Electrical circuits are integral to our daily lives, powering our homes and workplaces. However, a broken circuit can be a frustrating and potentially dangerous issue. A break in a circuit can be caused by a fault in the wiring, a malfunctioning switch, or a blown fuse. Before attempting any repairs, it is important to recognize the signs of a broken circuit to narrow down the problem area. Common signs include tripped breakers, discontinuity between wires, and a loss of power to connected devices. To fix a broken circuit, one must first locate the break by testing the circuit with a multimeter or voltage tester, employing a circuit tracer or tone generator, and then repairing or replacing the faulty component.
| Characteristics | Values |
|---|---|
| Tools | Cheap circuit tester, multimeter, circuit tracer, tone generator, insulation resistance tester, voltage tester |
| Signs of a break in the circuit | Fault in wiring, malfunctioning switch, blown fuse |
| Steps to find a break in the circuit | Check the electrical panel, test for continuity, locate the break, divide the circuit into sections, test the new wire |
| Safety precautions | Wear rubber shoes, ensure the area is dry, turn off the device being tested, turn off the main circuit switch |
Explore related products
What You'll Learn

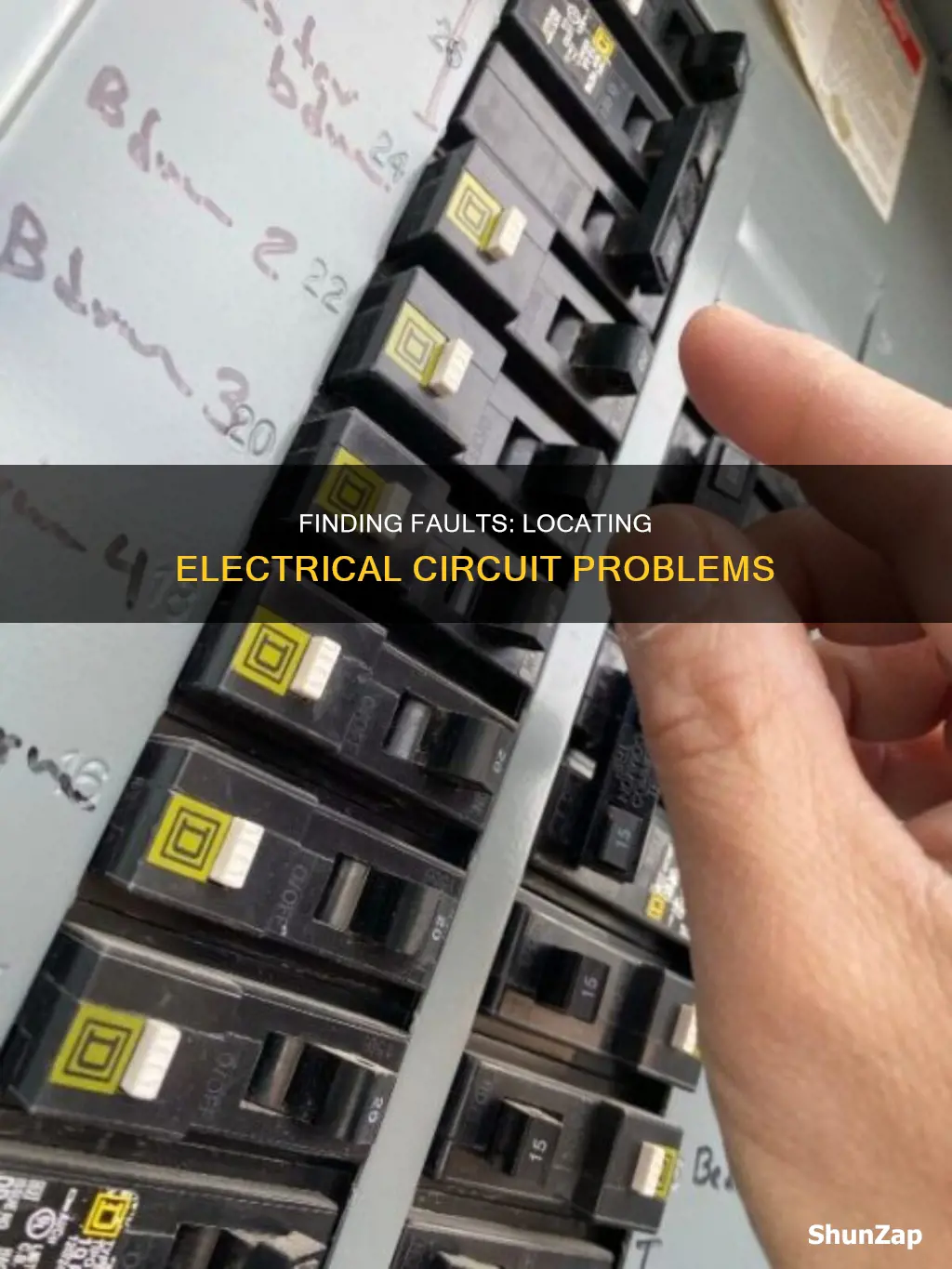

Check the electrical panel
Before attempting to fix a broken electrical circuit, it is important to recognise the signs that indicate a problem. A break in an electrical circuit can occur due to a fault in the wiring, a malfunctioning switch, or a blown fuse.
Now, let's discuss checking the electrical panel in detail:
- Locate the Electrical Panel: Find the electrical panel associated with the circuit you are troubleshooting. This is usually located near your meter.
- Open the Panel: Remove the panel door or cover to access the breakers. Be cautious as you will be working with live electricity. Ensure the area is dry, wear rubber shoes, and proceed with caution.
- Inspect the Breakers: Look for any breakers that may have tripped to the off position. Breakers can trip due to excess electricity, protecting you and your home from electrical shocks and fires.
- Reset a Tripped Breaker: If you find a tripped breaker, reset it by pushing the switch to the "on" position.
- Check Power Restoration: After resetting the breaker, check if power has been restored to the affected area. If not, the issue may lie elsewhere.
- Test the Breaker: Use a multimeter or voltage tester to test the breaker. Ensure the breaker is in the "on" position. Set the multimeter to "read voltage." Touch the screw feeding power into the breaker with the red probe, and touch the grounded box with the black or neutral probe.
- Replace a Faulty Breaker: If the breaker is faulty and needs replacement, purchase a new breaker with the same voltage and size. Turn off the breaker and, if possible, the main circuit switch to ensure safety. Loosen the terminal screw to remove the wires, and then remove the breaker. Install the new breaker by connecting the wires to the correct terminals and securing them with the terminal screw.
Remember, if you are uncomfortable working with electricity, it is best to contact a licensed electrician to ensure your safety and the proper functioning of your electrical system.
Electric Dryer Fuse: What You Need to Know
You may want to see also
Explore related products
Test for continuity
Testing for continuity is a crucial step in electrical diagnostics. It involves checking the integrity of a circuit to determine if there is a complete path for current flow. This can be done using a multimeter, which is a versatile tool that can test switches, fuses, electrical connections, conductors, and other components.
To test for continuity, first, ensure that the power to the circuit is switched off for safety reasons. Then, set your multimeter to continuity mode. The symbol for continuity may vary depending on the brand and model of your multimeter. It may be a diode symbol (a triangle with a line on the right side) or a symbol that resembles sound waves. If your multimeter does not have a dedicated continuity setting, you can use the lowest number in resistance mode (measured in ohms, Ω). Refer to your multimeter's manual if you are unsure about how to set it to continuity mode.
Once your multimeter is set to the correct mode, touch the metal parts of the terminals together to test the calibration. You will then touch one probe to one end of the wire suspected of being broken and the other probe to the corresponding end. If the multimeter beeps or indicates continuity, the circuit is intact. If not, the circuit is broken, and you can move on to locating the break.
It is important to note that continuity refers to the resistance in a closed electrical current. Poor continuity can lead to fires, shocks, or damage to electrical devices, so it is essential to test for continuity when installing or repairing electrical components.
Baseboard Heating: 110 vs 220 Voltage for Electric Heaters
You may want to see also
Explore related products
Locate the break
Locating a break in an electrical circuit can be a tedious and time-consuming task, but it is important to ensure the safe and efficient functioning of your electrical systems. Before attempting any repairs, it is crucial to understand the fundamental principles of electricity and to prioritize your safety. If you are uncomfortable working with electricity, it is always best to call a licensed, qualified electrician.
To locate the break, start by identifying the signs of a problem. A broken electrical circuit can result from various issues, such as faulty wiring, a malfunctioning switch, or a blown fuse. Common signs of a break include non-functioning outlets, tripped breakers, or a complete loss of power. Visual inspections can help narrow down the search area. Check for any visible damage, such as exposed or burnt wires, loose connections, or signs of overheating.
Once you have identified potential problem areas, it's time to test for continuity using a multimeter. Set the multimeter to the “continuity” setting and touch the probes to each end of the suspected broken wire. If the multimeter beeps or indicates continuity, the circuit is intact in that section. If not, continue testing along the circuit, moving towards the end until you identify the break. Remember to turn off the power to the circuit before conducting any tests.
In some cases, a visual inspection and basic testing may not be sufficient to locate the break. This is when employing a circuit tracer or tone generator can be helpful. Circuit tracers send a signal through the circuit, allowing you to trace its path and pinpoint the break. Follow the signal's path, paying close attention to areas where the signal weakens or disappears, as these indicate potential break locations. Inspect junction boxes, splices, and outlets in these areas.
If the break is caused by insulation failure, an insulation resistance tester is crucial. This tool measures the resistance of the insulation material, helping you identify areas of low insulation that could lead to a break. By using the appropriate tools and following systematic steps, you can efficiently locate the break in a broken electrical circuit.
The Best Electric BBQs at Litchfield, NT
You may want to see also
Explore related products
Use a circuit tracer or tone generator
Circuit tracers and tone generators are useful tools for finding a broken electrical circuit. They can help you locate the source of the problem without having to cut open walls or ceilings. Here's how you can use them:
Using a Circuit Tracer:
Circuit tracers are devices that help you identify the specific circuit that is faulty or not working. They are available at various price points, from cheap options at stores like Harbor Freight to more expensive, professional-grade tools. When using a circuit tracer, follow these steps:
- Ensure the circuit in question is turned off.
- Clip the transmitter of the circuit tracer onto the circuit you want to test.
- Poke around with the detector to locate the issue. This can include checking junction boxes, GFCIs, and receptacles for issues like loose wire nuts, loose receptacle screws, or burned connections.
- Reset any tripped breakers and test GFCIs and GCFI outlets.
- If you have zero voltage on the lines, there might be a fried junction, which is a fire hazard.
Using a Tone Generator:
Tone generators are useful for tracing wires through walls and locating breaks or shorts in the circuit. They work by sending a high-frequency signal through the wire, which can then be detected by a receiver. Here's how to use one:
- Clamp the transmitter of the tone generator to the wire you want to test. Ensure the circuit is turned off.
- The tone generator will send a signal through the wire.
- Use the receiver to detect the signal. It will make a chirping sound when it detects the matching wire, helping you locate the wire and any potential breaks.
- Tone generators can also be used to trace low-voltage cabling and building wiring.
By using these tools and following the provided steps, you can effectively locate and diagnose a broken electrical circuit in your home or workspace. Remember to exercise caution and ensure the circuit is turned off before beginning any work.
Comparing Electric Rates in New York: A Guide
You may want to see also
Explore related products
$21.98 $24.97
Test the breaker with a multimeter or voltage tester
Testing a circuit breaker with a multimeter is an efficient way to determine the flow of electricity in a circuit breaker panel. Multimeters are measuring instruments that can measure volts, amps, and ohms. They can be purchased at a local hardware store or online.
Before testing the circuit breaker, ensure that you are wearing protective gear, including insulated gloves and safety goggles, to safeguard yourself from potential electrical hazards. Turn off the main breaker to cut power to the entire electrical panel. This precaution helps prevent accidental contact with live wires and reduces the risk of electric shock.
The next step is to set your multimeter to the appropriate voltage setting. For most residential circuit breakers in North America, the standard voltage is 120 volts AC (alternating current). If you live in a region with a different standard voltage, adjust your multimeter accordingly. Ensure your multimeter is working correctly by testing it on a known live circuit.
Once your multimeter is set up, carefully remove the panel cover of your breaker box, being cautious not to touch any wires or metal parts inside the panel. Then, place one prong of the multimeter on the terminal screw of the circuit breaker and the other prong on the ground or neutral bar in the breaker panel.
A functional circuit breaker should display a reading close to the expected voltage, typically around 120 volts for a single-pole breaker and 240 volts for a double-pole breaker. If the multimeter shows 0V, your breaker might be tripped, faulty, or not receiving power.
Additionally, you can test for continuity by setting your multimeter to measure resistance or continuity (indicated by the ohm symbol, Ω). Place one probe on the screw terminal of the breaker and the other probe on the breaker's output terminal. A functional circuit breaker should display infinite resistance (or no continuity) when off and near-zero resistance (or continuity) when switched on.
Setting Up Power in Prison Architect: A Guide
You may want to see also
Frequently asked questions
Some common signs of a break in an electrical circuit include a fault in the wiring, a malfunctioning switch, or a blown fuse.
First, check the electrical panel and inspect the breakers. If you find a tripped breaker, reset it and check if that restores power to the affected area. If the problem persists, use a multimeter set to continuity mode to test the integrity of the circuit. If the multimeter beeps or indicates continuity, the circuit is intact. If not, divide the circuit into sections and test the continuity in each section, starting with the section closer to the power source and moving towards the end of the circuit until the break is identified.
You can use a standard multimeter or voltage tester to locate the break. When visual inspection and basic testing prove insufficient, employing a circuit tracer or tone generator can be helpful. Circuit tracers send a signal through the circuit, allowing you to trace its path and locate the break.
