John Deere riding lawn mowers are popular among gardeners and farmers, but like any machine, they can experience electrical issues. A common problem area is the electrical connectors, which can become corroded or damaged over time. To fix these issues, it's important to first consult the wiring diagram for your specific model, which can be found in the operator's manual. This diagram will help you understand the complex network of wires and connections, allowing you to identify the source of the problem. With this knowledge, you can then gather the necessary tools, such as screwdrivers, pliers, and a multimeter, to confidently diagnose and repair the issue. Remember always to disconnect the power source before starting any electrical work and to exercise caution when handling electrical components.
| Characteristics | Values |
|---|---|
| Wiring | Study the wiring diagram to understand the electrical components and their connections |
| Electrical Issues | Diagnose and fix problems with the help of the wiring diagram |
| Safety Precautions | Always disconnect the power source before starting work on the electrical system |
| Tools | Screwdrivers, pliers, a multimeter, and a flashlight |
| Connector Types | Male/female connectors, Delphi/Packard terminals & connectors, weather pack connectors |
| Connector Availability | John Deere dealers, Amazon, Terminal Supply Company |
| Connector Maintenance | Disconnect and remove terminals with a small screwdriver, clean with a wire brush and contact cleaner, install new connectors |
Explore related products
What You'll Learn
Disconnect power source before starting work
Working with electrical systems can be dangerous, so it is important to take the necessary precautions. Before starting any work on the electrical system of your John Deere equipment, always remember to disconnect the power source. This is a crucial step to prevent any potential electrical hazards and accidents.
Disconnecting the power source ensures that there is no live electricity flowing through the system while you are working on it. This is essential for your safety and helps protect the equipment from damage. Working on a live electrical system can lead to electrical shock, short circuits, or damage to sensitive components. By disconnecting the power, you eliminate these risks and create a safer working environment.
To disconnect the power source, start by locating the battery or the main power terminal. This is usually a central terminal dedicated to battery input, with surrounding terminals connecting to other key components. Once you have identified the battery, disconnect it from the system. This will cut off the power supply to the entire electrical system, ensuring that there is no live electricity flowing through the circuits.
After disconnecting the battery, it is important to take additional precautions. Inspect the wiring connections to ensure they are not loose or corroded. Clean the connectors with a wire brush and a cleaning solution if necessary. This will help prevent electrical malfunctions and ensure proper connectivity. Additionally, verify the sequence of terminals used for powering the unit to avoid incorrect wiring, which could lead to system failure.
By following these steps and disconnecting the power source before starting work, you can safely work on the electrical connectors of your John Deere equipment. Remember to refer to the manufacturer's instructions and safety guidelines throughout the process to ensure a successful and secure repair or maintenance procedure.
Electric Supplies: A-Van's One-Stop Shop in Hawthorne, NJ
You may want to see also
Explore related products
Understand the wiring diagram to identify problems

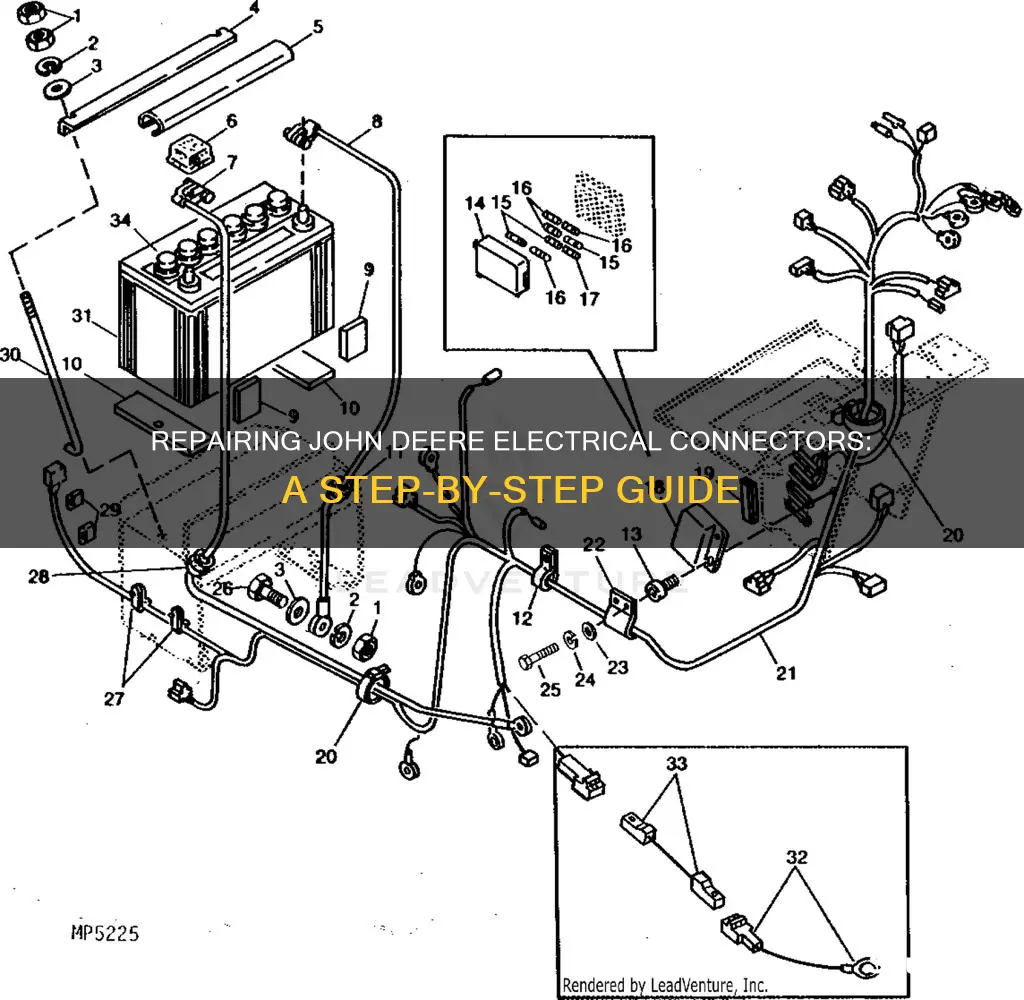

Understanding a wiring diagram is essential for identifying and fixing electrical problems in your John Deere riding lawn mower. A wiring diagram is a visual representation that shows how all the electrical components are connected and how they function within the mower's system.
- Visual Representation: The diagram provides a visual roadmap of the electrical system, showing the connections and layout of the components. It helps you see how the wires, connectors, and other parts interact with each other.
- Identify Components: The wiring diagram allows you to identify each component and its function. Look for labels or notes that explain specific connections or functions. These annotations can clarify voltage, wire type, and sections requiring caution. Understanding the purpose of each component is crucial for diagnosing and resolving issues.
- Trace Connections: Follow the paths from the power source to various endpoints. Understand how the wiring harness, which includes wires and connectors, routes electrical power throughout the mower. This knowledge will help you trace electrical issues back to their source.
- Safety: Wiring diagrams are important for safety. They help you identify potential hazards and prevent accidents. Always refer to safety precautions and manufacturer's instructions, and exercise caution when working with electricity. Disconnect the power source before starting any electrical work.
- Standardization: Wiring diagrams may follow different standards depending on the country. For example, voltage levels and frequencies vary internationally. Ensure you're referring to the correct diagram for your mower's model and year.
By studying the wiring diagram for your John Deere riding lawn mower, you can confidently diagnose and repair electrical issues. It serves as a valuable tool to guide your troubleshooting and maintenance process.
Electric Brush Cleaners: Worth the Investment?
You may want to see also
Explore related products
Clean male/female terminals with a wire brush
When fixing John Deere electrical connectors, it is important to clean the male and female terminals. This can be done with a wire brush. Firstly, disconnect the male and female connectors with a small screwdriver. The terminals are crimped to the wire, so they can be removed from the connectors.
There are various types of wire brushes available for cleaning terminals. You can purchase a manual wire brush, which can be used to scrub the terminals by hand. This method may be more time-consuming, but it is effective in cleaning very corroded terminals. Alternatively, for a quicker option, a wire brush attachment for a drill can be used. These drill attachments are available in different sizes and materials, such as brass, hard plastic, and wire. When using a drill attachment, ensure that the brush is not too aggressive, as it may cause scratches or remove too much metal.
After brushing the terminals with a wire brush, they can be sprayed with contact cleaner. This helps to ensure that the metal is treated properly and prevents corrosion. Additionally, some people recommend using a terminal cleaner before brushing, such as vinegar or baking soda, to help loosen any built-up dirt or corrosion.
It is important to note that different types of connectors may require specific cleaning methods. For example, female stagepin connectors may benefit from a small, sturdy wire brush that can fit inside the connector. Male stagepin connectors often have a pinsplitter with a built-in wire brush for cleaning.
Understanding Your Electricity Rate: A Guide to Power Pricing
You may want to see also
Explore related products
$12.99
Spray terminals with contact cleaner
When fixing electrical connectors on a John Deere garden tractor, it is important to clean the terminals. This can be done by first brushing them with a wire brush to remove any debris or corrosion. Then, spray the terminals with a contact cleaner to remove any remaining residue or contaminants.
One product that can be used for this purpose is WD-40 Specialist Contact Cleaner. This product is designed to blast away oil, dirt, flux residue, and condensation from electrical contacts and connections. It dries quickly, leaves no residue, and is safe to use on most plastics, rubber, and metal. It is also available with Smart Straw technology, allowing for precise application.
Another option for cleaning electrical contacts and connections is CRC QD Electronic Cleaner. This product is a petroleum distillate/alcohol-based precision cleaner that is safe to use on plastics, rubber, and other delicate electronic components. It quickly and effectively removes contaminants without leaving any residue behind, making it a good choice for small sockets or ports that are difficult to reach with a brush.
It is important to note that not all cleaners are suitable for electronic components due to their delicate nature. Always test cleaners on a small area first and refer to the manufacturer's instructions before performing any maintenance or repairs.
By following these steps and using the appropriate cleaning products, you can effectively clean and maintain the terminals on your John Deere electrical connectors, ensuring optimal performance and longevity.
Understanding Electrical Wiring Diagrams: A Beginner's Guide
You may want to see also
Explore related products
Refer to the manufacturer's instructions for safety
When fixing electrical connectors on a John Deere riding lawn mower, it is important to refer to the manufacturer's instructions for safety. Working with electricity can be dangerous, and failure to follow the manufacturer's guidelines can result in injury or equipment damage.
Before starting any work on the electrical system, always disconnect the power source. The wiring diagram provided by the manufacturer is a crucial tool that can help you identify and fix electrical issues efficiently. It provides a visual representation of how all the electrical components are connected, allowing you to locate potential problem areas.
The wiring diagram will guide you through the complex network of wires and connections, helping you to quickly identify faulty connections or components. It is important to understand the basic symbols and their meanings in the diagram, as they represent different electrical components such as switches, relays, solenoids, connectors, and wires. Refer to the diagram's legend or key to familiarize yourself with these symbols.
Additionally, the manufacturer's instructions will provide information on the specific tools required for electrical repairs. This may include screwdrivers, pliers, a multimeter, and a flashlight. By following the manufacturer's guidelines and exercising caution, you can confidently diagnose and fix any electrical issues with your John Deere riding lawn mower.
Electrical Equipment: Danger Labels and Their Legal Requirements
You may want to see also
Frequently asked questions
Fixing electrical connectors on your John Deere riding lawn mower requires caution and adherence to proper safety practices. Here is a step-by-step answer to your Q:
- Disconnect the power source before starting any work on the electrical system.
- Gather the necessary tools, such as screwdrivers, pliers, a multimeter, and a flashlight.
- Locate the wiring diagram for your specific model in the operator's or technical manual.
- Study the wiring diagram to understand the purpose of each component and diagnose the issue.
- Refer to the manufacturer's instructions for guidance on repairing or replacing the faulty connector.
You can try contacting your local John Deere dealer or visiting their website to check for availability. If the connectors are not available, you may need to purchase them from a third-party supplier, such as the Terminal Supply Company, or online retailers like Amazon.
Electrical connectors are often specified by the gauge of wire they are designed to work with. It is important to match the connector to the correct gauge or range of gauges to ensure compatibility and safety.
Some John Deere tractors, especially older models, may experience corrosion or cracking at the connection points. Additionally, the plastic housing of the connector may overheat, leading to contact between the terminals. Regular maintenance and inspection can help identify these issues early on.
