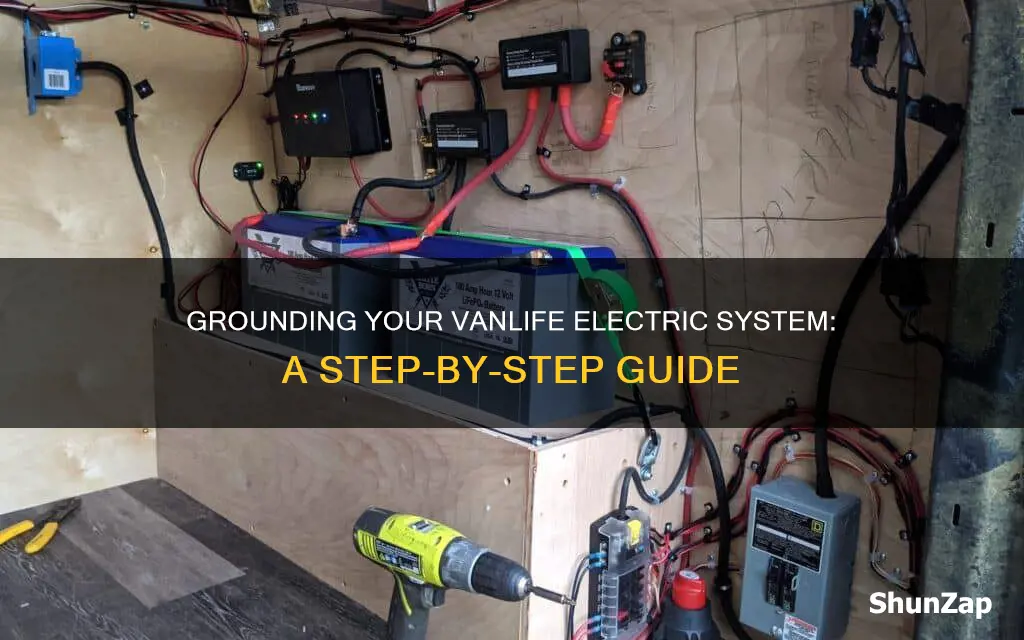

Grounding your electrical system is an essential part of van life, as without power, you won't get very far! Grounding your campervan electrical system is also a safety requirement. There are two types of grounding: earth ground, which is a direct connection to the earth, and chassis ground, which is when the metal chassis of the vehicle is used as the common return path for all return current to the battery. For AC power, a separate earth must be connected to the vehicle chassis and isolated from the DC ground to prevent crossover between the two systems. It is also crucial to install RCDs (Residual Current Devices) in the AC system to ensure safety, as they detect faults and disconnect power if a ground fault is detected. When it comes to wiring your van, it's important to have a comprehensive wiring diagram and to use adequately sized wires and quality components to make your system safe and reliable.
| Characteristics | Values |
|---|---|
| Power sources | Solar panels, batteries, shore power, alternator charging |
| Battery types | Lithium Iron, AGM |
| Electrical system | 12V, 24V, DC power, AC power |
| Electrical loads | Interior lights, air conditioners, refrigerators, microwaves |
| Safety devices | Fuses, Residual Current Devices (RCDs), Ground Fault Circuit Interrupters (GFCIs) |
| Grounding | Chassis ground, Earth ground |
| Wiring | Comprehensive wiring diagram, overcurrent devices, adequately sized wires, quality components |
Explore related products
What You'll Learn
- Use a 12v fused distribution panel to run fuse-protected wires to 12v appliances
- Ensure ground connections are permanent and accessible for maintenance
- Use a suitable earthing conductor that is appropriately sized
- Install solar panels and lithium batteries for power
- Use a fuse box to cut off electricity for safety
Use a 12v fused distribution panel to run fuse-protected wires to 12v appliances
To ensure safety, it is imperative to correctly fuse your campervan electrical system. Fuses provide overcurrent protection to an electrical circuit, preventing electrical fires and damage to appliances and wires.
When using a 12v fused distribution panel, it is important to run a fuse-protected positive wire to each of the 12v appliances in your system. Avoid using multiple appliances on the same fuse as it complicates troubleshooting. Ensure that the wires can handle the projected load of all appliances being used simultaneously.
Some fuse panels have an incorporated ground busbar for the negative side of the circuit. You can choose to bring both the positive and negative sides of the circuit back to the fuse panel, but this will result in extra cables, adding weight and cost. Alternatively, you can run only the positive side back to the fuse panel and ground appliances to the nearest solid metal fixing.
For AC systems, it is recommended to install a consumer unit or distribution panel to organize circuit breakers and RCDs (Residual Current Devices) for comprehensive protection. RCDs detect faults and disconnect power if a ground fault is detected, safeguarding the system from electrical hazards.
When fusing your system, consider the number of amps that will be used and the length of the cable from the battery to the fuse panel. It is important to fuse between the batteries and the fuse box to protect the wire from overcurrent.
Adding an Electrical Subpanel: A Comprehensive Guide
You may want to see also
Explore related products
Ensure ground connections are permanent and accessible for maintenance
Ground connections in campervans must be both permanent and accessible for maintenance. The main ground point should be easily accessible and not hidden behind cladding or insulation. This is to allow for easy inspection and maintenance.
The vehicle chassis is the common return path for all return current to the battery. The chassis is connected to the negative terminal on the battery, which makes it grounded. The negative bus bar is connected to the negative terminal of the battery. The chassis of the vehicle serves as the DC ground for the 12V system, providing a return path for current. All 12V electrical components, such as the negative bus bar, inverter, and batteries, should have a direct connection to the chassis ground.
For the AC system, a separate AC earth must be connected to the vehicle chassis and isolated from the DC ground to prevent any crossover between the AC and DC earthing systems. The grounding conductor from the shore power should also be connected to the chassis via a separate ground point to ensure the system has a reliable path to ground. Use green/yellow cables for AC ground and appropriately sized cables for DC ground, per the BS 7671 and NEC guidelines.
When installing solar panels, it is important to note that the negative post of the battery is usually connected to the chassis. This means that the solar panels' grounding wire should be connected to the chassis as well.
Karen Horney: Did She Introduce the Electra Complex?
You may want to see also
Explore related products
Use a suitable earthing conductor that is appropriately sized
Grounding a campervan electrical system is essential for safety and compliance. When it comes to selecting an earthing conductor, it is crucial to use a suitable conductor that is appropriately sized. This ensures the safety and effectiveness of the electrical system.
For the DC system, the minimum cross-sectional area for a grounding cable must be at least as large as the main DC positive cable. This regulation ensures that the grounding cable can handle the electrical load and prevent overloading. It is also important to select the correct wire gauge for each part of the system, as this will impact the performance and safety of the electrical components.
In the case of the AC system, the green/yellow cable used for grounding must comply with the minimum sizing set out in the relevant regulations. This cable is essential for ensuring a reliable path to ground and preventing electrical hazards. The sizing of this cable is standardized to ensure compatibility and safety across different electrical systems.
Additionally, it is recommended to use small load negative busbars with solid permanent fixings to the chassis in strategic locations near appliances. This approach helps reduce cable length for negative cables while still allowing for easy troubleshooting. Proper grounding techniques, such as those mentioned above, are crucial in maintaining the safety and functionality of electrical systems in vanlife setups.
Overall, selecting an appropriately sized earthing conductor is a critical aspect of designing a safe and effective electrical system for vanlife. By following regulations and best practices, individuals can ensure their systems are properly grounded and compliant with safety standards.
Electric Toothbrushes: Gum Health Friend or Foe?
You may want to see also
Explore related products
Install solar panels and lithium batteries for power
Solar panels and lithium batteries are a great way to power your vanlife electrical system. Here are some steps and considerations to help you install them:
Solar Panels
Firstly, you'll need to purchase solar panels that are suitable for your van. Many solar panels come with a van conversion electrical kit that includes all the necessary materials. The type of solar panel you choose is important; monocrystalline panels, for example, will allow you to get the most power per square foot, which is useful given the limited roof space of a van.
Once you have your panels, you'll need to install them securely on the roof of your van. You can use Z-brackets, VHB tape, and a drill to attach them. Make sure they are firmly in place before moving on.
Lithium Batteries
Lithium batteries are a popular choice for vanlifers as they provide power for various electrical components and are efficient, long-lasting, and powerful. However, they are more expensive and sensitive to cold temperatures, so you must keep them inside the van.
When choosing a lithium battery, consider the amp-hours (Ah), which indicate how much electricity the battery can store. You'll want to size your battery bank based on your power needs and the wattage of your solar panels.
Charge Controller
In addition to the panels and batteries, you'll need a charge controller to organize the energy coming from the solar panels and convert it into an acceptable current for your batteries. Mount the charge controller in a well-ventilated area near the battery bank.
Grounding
Finally, you must ground your electrical system for safety and compliance. Grounding involves connecting the negative terminal of your battery to the chassis of your vehicle. The chassis serves as the DC ground for the 12V system, providing a return path for the current. Ensure your ground point is accessible for inspection and maintenance, and use appropriately-sized cables as per guidelines.
By following these steps and considerations, you can successfully install solar panels and lithium batteries to power your vanlife electrical system. Remember to refer to detailed guides and seek professional advice when needed, as electrical installations can be dangerous if not done correctly.
Firming Up: Fixing a Loose Electrical Receptacle
You may want to see also
Explore related products
Use a fuse box to cut off electricity for safety
Using a Fuse Box to Cut Off Electricity for Safety
A fuse box is an essential component of a van's electrical system, allowing you to cut off the electricity supply for safety purposes. It acts as a middleman between your power source and appliances, regulating and controlling the power supply to various components. While simpler models may not require a fuse box, it is crucial for more advanced electrical setups.
When designing your electrical system, you have the option to bring both the positive and negative sides of the circuit back to the fuse panel. However, this approach can result in extra cables, adding weight and cost to your setup. An alternative method is to run only the positive side back to the fuse panel and ground the appliances to the nearest solid metal fixing on the vehicle. This turns the entire vehicle chassis into a negative busbar, providing a return path for the current.
It is important to select the correct fuse sizes for your specific setup. If you have multiple batteries wired in parallel, the terminal fuse sizes for each battery will be smaller. Busbars, which are power distribution blocks, can be used to join multiple cables, typically one for the positive and one for the negative side of the circuit. The main battery cables and those from primary charging devices terminate on the busbar, which should handle the maximum expected current.
Additionally, consider installing a Battery Kill Switch between your electrical system and the battery. This safety feature allows you to rapidly turn off all power with a single switch in case of any unforeseen issues.
Fuses play a critical role in protecting your cabling and entire electrical system. High amp fuses, such as the 100A Cube Fuse, are recommended to bolt directly onto the battery terminal. While they are more expensive, they provide reliable protection, safeguarding your setup from potential electrical hazards.
Electric Pallet Jack: Quick DIY Fixes and Maintenance
You may want to see also
Frequently asked questions
The basis of a camper van electrical system is usually the same: batteries, how you charge them, and how you discharge them. Most camper van electrical systems are 12V, or 24V. You can use solar panels, alternator charging, shore power, or batteries as your power source.
The central components, or "electrical loads", consist of anything in your van that consumes power. This includes interior lights, air conditioners, refrigerators, and microwaves.
Grounding refers to creating an alternative circuit return path in case something goes wrong in the main circuit. Proper grounding in your campervan electrical system is essential for safety and compliance. Ground connections in campervans must be both permanent and accessible for inspection and maintenance.
You must connect the battery to the chassis (or the vehicle’s frame). Your battery will have both a positive and negative post, and in most vehicles, the negative post is connected to the chassis. The chassis of the vehicle must be used as the DC ground. All 12V electrical components, such as the negative bus bar, inverter, and batteries, should have a direct connection to the chassis ground.
It is important to use fuses to protect your electrical system. A fuse is a thin strip of metal that melts when there is an overcurrent, cutting the power supply. RCDs (Residual Current Devices) or GFCIs should also be installed in the AC system to detect faults and disconnect power if a ground fault is detected.
