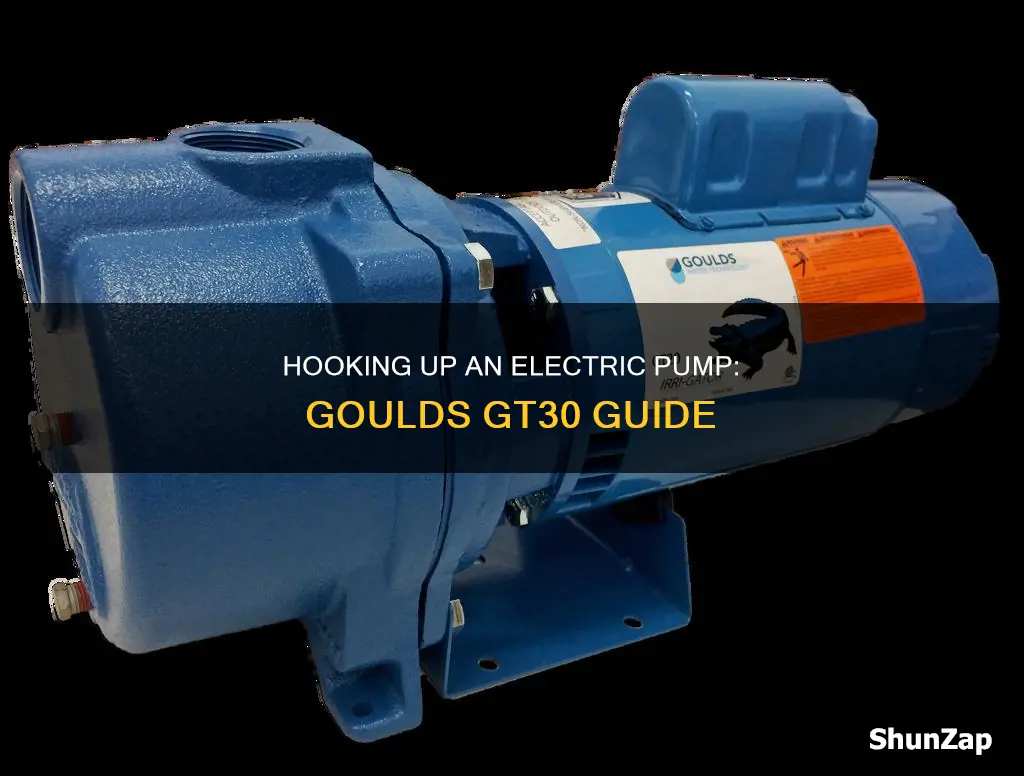

The Goulds GT30 is a self-priming centrifugal irrigation pump with a voltage of 230V and 3HP. It is part of the GT Irri-Gator series and is manufactured by Goulds, a brand of Xylem. This pump is ideal for transfer and irrigation and has a maximum flow rate of 80 to 105 GPM. If you are looking to install or hook up the Goulds GT30 electric pump, this guide will take you through the process step by step, ensuring a correct and secure setup.
| Characteristics | Values |
|---|---|
| Manufacturer | Goulds |
| Brand | Xylem |
| Series | GT Irri-Gator Series |
| Product Type | Centrifugal Pump |
| Best Use | Transfer / Irrigation Pump |
| Horsepower | 3 HP |
| Voltage | 230 V |
| Pipe Connections | 1-1/2" FNPT (Inlet) / 1-1/2" FNPT (Outlet) |
| Optimum TDH Range | 95 to 128 TDH |
| Optimum PSI Range | 40 to 45 psi |
| Optimum Flow Rate | 60 to 80 GPM |
| Phase | 1 |
| RPM | 3500 |
| Impeller | Glass-filled, abrasion-resistant engineered composite |
| Casing | Cast iron, 4-bolt, back pullout design |
Explore related products
What You'll Learn
GT30 pump specifications
The Goulds GT30 is a centrifugal irrigation pump with a horsepower of 3 HP and a voltage of 230 V. It is manufactured by Goulds and branded as Xylem. The GT30 pump is part of the GT Irri-Gator Series. The pump is designed for transfer and irrigation and has a pipe connection of 1-1/2" FNPT for both inlet and outlet. The optimum TDH range is 95 to 128 TDH, with a maximum suction lift of 25 feet, and the optimum PSI range is 40 to 45 psi. The maximum working pressure is 125 psi, and the pump has a maximum water temperature of 140° F (60° C). The optimum flow rate is 60 to 80 GPM, and the pump can be operated continuously without damage as long as there is water in the housing.
The GT30 pump features a self-priming design, allowing it to reprime automatically after the initial priming. It has a field-serviceable back pull-out design, making it easy to service without disturbing the piping. The pump's casing is made of cast iron, providing strength and durability, and it features an electro-coat paint process for corrosion resistance. The impeller is made of glass-filled, abrasion-resistant engineered composite, and the guidevane is made of Lexan®, providing excellent corrosion and abrasion resistance. The pump end motor specifications include a stainless steel shaft, single phase, and a built-in overload with automatic reset. The motor voltage option is 230V only, and it operates at 60 Hz with a speed of 3500 rpm.
The GT30 pump is also known as the IRRI-GATOR self-priming centrifugal pump and is designed for lawn irrigation, sprinkler systems, heat pumps, water transfer, air conditioning systems, and dewatering applications. It is FDA compliant, with injection-moulded, glass-filled Lexan for durability and abrasion resistance. The impeller is made of glass-filled Noryl, which is also FDA compliant, and provides corrosion and abrasion resistance. The pump features a carbon/ceramic mechanical seal with Buna elastomers, and the metal parts are made of 300 series stainless steel. The casing has a 4-bolt, back pull-out design, with openings for a vacuum gauge and casing drain.
Alfa Romeo's Electrical Issues: Resolved or Lingering Problems?
You may want to see also
Explore related products
Self-priming design
The Goulds GT30 is a self-priming irrigation pump with a self-priming design that allows it to reprime automatically when the water level rises above the end of the suction pipe. This means that once the pump is initially primed and filled with water, it will continue to reprime without requiring manual intervention.
The self-priming design of the Goulds GT30 offers several advantages. Firstly, it eliminates the need for manual priming, saving time and effort for users. Secondly, it ensures that the pump can maintain its prime even when the water level fluctuates, making it suitable for a wide range of applications, including irrigation, sprinkler systems, and water transfer.
The self-priming capability of the Goulds GT30 is achieved through its internal design and components. The pump has a back pullout design, which allows for easy disassembly and servicing without disturbing the piping. It also features a two-compartment motor that provides easy access to motor wiring and replaceable components. This makes it convenient for maintenance and repairs.
Additionally, the Goulds GT30's self-priming design includes a bolt-down diffuser (guidevane) that provides positive alignment with the impeller. This ensures efficient and effective water flow within the pump. The impeller itself is made of glass-filled Noryl, which is corrosion and abrasion-resistant. This further contributes to the pump's durability and performance.
The pump's casing is made of cast iron, providing strength and durability. An electro-coat paint process is applied to the casing, both inside and out, and then baked on to enhance its corrosion resistance. This helps to protect the pump from the elements and prolong its lifespan. Overall, the self-priming design of the Goulds GT30 makes it a reliable and low-maintenance option for a variety of water pumping applications.
Electrical Service Upgrades: AFCI Breakers, a Requirement or an Option?
You may want to see also
Explore related products
Corrosion resistance
The Goulds GT30 pump features a strong and durable cast iron casing design, which provides a good base level of corrosion resistance. This is further enhanced by the electro-coat paint process applied inside and out, which is then baked on for added corrosion protection.
The impeller is made from a glass-filled Noryl composite, which is a strong, lightweight material with excellent corrosion and abrasion resistance. The Goulds GT30 also features a Lexan® Guidevane, which is a highly durable polycarbonate material with superior corrosion resistance.
The mechanical seal features carbon and ceramic faces with BUNA elastomers, providing a robust barrier against corrosion and leakage. The metal parts are made from 300 series stainless steel, which offers excellent corrosion resistance, especially compared to lower-grade steel alloys.
Overall, the Goulds GT30 is designed with corrosion resistance in mind, utilising a combination of materials and coatings to ensure a long lifespan and reliable performance in a range of applications.
Electrical Hazards: Faulty Receptacles and Their Consequences
You may want to see also
Explore related products
Back pullout design
The Goulds GT30 pump features a back pullout design, which allows for easy servicing without disturbing the piping. This design enables the pump to be disassembled for service or repair while keeping the casing and its associated suction and discharge piping intact.
The back pullout design simplifies the process of pump maintenance and refurbishment. With this design, the impeller, pump shaft, and bearings can be easily accessed and removed for repair or replacement without disrupting the pipework. This feature minimises the time and effort required for pump maintenance, as there is no need to realign the pump and motor after servicing.
The back pullout design is a key factor in the field serviceability of the Goulds GT30 pump. It allows for quick and efficient repairs, reducing downtime and maintenance costs. This design also ensures that the pump can be easily serviced in the field, eliminating the need for specialised shop maintenance in many cases.
The back pullout design is complemented by the pump's cast iron casing, which provides strength and durability. The casing features openings for a vacuum gauge and casing drain, further enhancing the serviceability of the pump. The combination of the back pullout design and the cast iron casing makes the Goulds GT30 pump a robust and low-maintenance solution for irrigation and other applications.
Electric Shavers: A Sensitive Skin Solution?
You may want to see also
Explore related products
Repair and rebuild
The Goulds GT30 is a centrifugal irrigation pump with a self-priming design. It is field serviceable, with a back pull-out design that allows for easy servicing without disturbing the piping. The pump features a cast iron casing, providing strength and durability, and an electro-coat paint process for corrosion resistance.
To repair and rebuild the Goulds GT30 pump, a repair rebuild kit is available for purchase. The kit includes the following components:
- 5K555 Seal Ring
- 5K522 Diaphragm
- 3K69 Guidevane
- 2K712 Impeller
- 10K10 Mechanical Seal
- 5K7 Deflector
Using the repair rebuild kit, follow these steps to repair and rebuild the Goulds GT30 pump:
- Disassemble the pump: Due to the back pull-out design, the pump can be disassembled for service without disturbing the piping. This provides easy access to the motor and its components.
- Replace worn or damaged parts: Utilize the components provided in the repair rebuild kit to replace any worn or damaged parts. This may include replacing the seal ring, diaphragm, guidevane, impeller, mechanical seal, or deflector.
- Reassemble the pump: Once all necessary parts have been replaced, carefully reassemble the pump according to the manufacturer's instructions. Ensure that all components are properly aligned and secured.
- Test the pump: After reassembling the pump, test it to ensure it is functioning correctly. Follow the standard operating procedures and guidelines provided by the manufacturer.
- Perform regular maintenance: To prolong the life of the pump and maintain its performance, perform regular maintenance as recommended by the manufacturer. This may include periodic inspections, cleaning, and replacement of any worn parts.
By following these steps and utilizing the repair rebuild kit, you can effectively repair and rebuild the Goulds GT30 pump, ensuring its continued performance and longevity.
