Hooking up an RV to electricity is a straightforward process, but it's important to follow the correct steps to avoid damaging your vehicle or injuring yourself. Before connecting to an RV power hookup, it's essential to determine whether your RV has a 50-amp or 30-amp system, as this will dictate the type of electrical hookup you'll need. Most campgrounds offer both options, but some only provide 30-amp hookups, so it's a good idea to invest in an adapter to avoid compatibility issues. Once you've parked your RV, located the power cord, and ensured all appliances are turned off, you can connect the power cord to the campground power box or outlet. After plugging in, switch on the breaker, and you should have power in your RV!
Explore related products
What You'll Learn
Know the difference between 30-amp and 50-amp hookups
When connecting your RV to shore power, it's important to know the difference between 30-amp and 50-amp hookups. This is a key distinction to understand when it comes to RV electrical systems.
A 30-amp RV hookup provides 3,600 watts of power, while a 50-amp system offers more than 12,000 watts. This significant difference in power means that a 30-amp hookup is more suitable for smaller RVs with fewer appliances, typically featuring a single AC unit. On the other hand, a 50-amp hookup is designed for larger RVs with more power-hungry appliances, such as double AC units, washer/dryers, and other lavish setups.
The plugs and outlets for these two systems also differ. A 30-amp plug has three pins—a single 120-volt hot pin, a flat neutral, and a round ground pin. In contrast, a 50-amp plug has four pins, with two 120-volt hot pins, a flat neutral pin, and a round ground.
Additionally, the breaker panels vary between the two systems. A 30-amp RV has a single row of breakers, while a 50-amp RV features a split breaker panel. This allows for a heavy amp draw to be distributed across both sides of the panel. It's important to note that the main breaker in a 50-amp RV is not interconnected, providing 120-volts AC instead of 240-volts AC.
Adapters are available to accommodate different amperage hookups. For instance, you can use an adapter to connect a 30-amp RV to a 50-amp power source or vice versa. However, this does not change the amount of power your RV can draw. A 30-amp RV connected to a 50-amp source will still only draw 30 amps, and a 50-amp RV connected to a 30-amp source will be limited to 30 amps.
Electric Eels: Navigating the World With Electricity
You may want to see also
Explore related products
Finding a power source
Campground or RV Park Power Sources

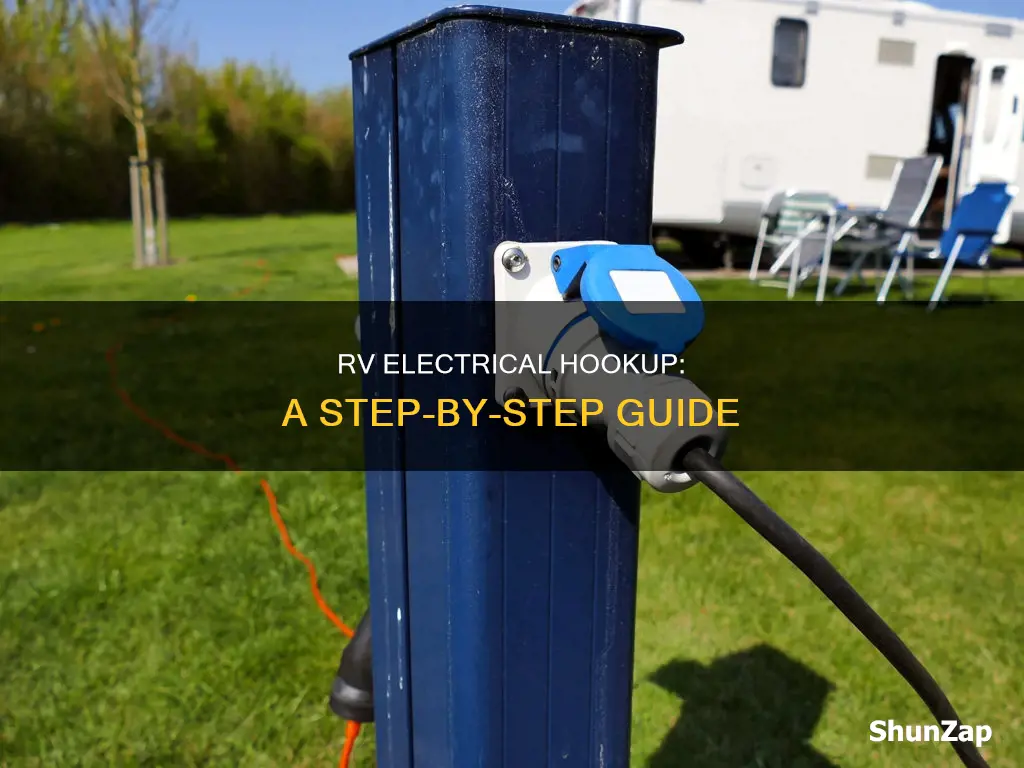

When staying at a campground or RV park, you can typically find power sources specifically designed for RV hookups. These power sources can be in the form of electrical pedestals or outlets provided by the campground. Before plugging in your RV, ensure that the power source is compatible with your RV's electrical system. Campgrounds usually offer both 30-amp and 50-amp hookups, so you need to determine which type of power system your RV has.
Adapters and Surge Protectors
If the campground's power outlet doesn't match your RV's plug type, you may need to use an adapter. For example, if you have a 50-amp RV and the campground has only 30-amp outlets, you'll need a 50-amp to 30-amp adapter. It is recommended to use the shortest adapter possible to avoid voltage drops. Additionally, consider using a surge protector to protect your RV's electrical system from potential power surges.
Testing and Safety
Before plugging into a campground power source, it is important to test the hook-up with a polarity tester to ensure the wiring is in good condition. Always turn off all appliances and electrical systems in your RV before connecting to a power source. This includes ensuring that your air conditioning unit is turned off.
Solar Panels for Off-Grid Camping
If you enjoy camping off the grid or at public campgrounds without power hook-ups, consider investing in solar panels to power your RV and charge your batteries. Solar panels come in various sizes and can provide a self-reliant power source for your electrical needs. However, you will need an inverter to convert the power generated by the solar panels into the appropriate electrical current for your RV's appliances.
Hooking Up to Your Home's Electrical System
In some cases, you may want to hook up your RV to your home's electrical system for testing or short-term stays. You can do this using a standard 3-prong household plug and a 15/20 amp adapter for your RV's electrical hookups. However, proceed with caution, as using high-power appliances simultaneously can overload your home's electrical system. Consult forums, dealerships, and the RVing community for advice before attempting this to avoid potential damage to your RV or home's electrical systems.
Repairing Your Fridge: Fixing a Damaged Electric Cord
You may want to see also
Explore related products
Using a power cord and surge protector
Once you've located your power cord, you'll need to determine if you have a 30-amp or 50-amp RV. This is important because it will dictate the type of RV electrical hookup you'll need to use. Most campgrounds offer both 30-amp and 50-amp hookups, so you can simply choose the outlet that matches your plug. If the campground only has 30-amp hookups available, you can still use your 50-amp RV by using an adapter. However, you won't be able to use as much electricity as you would with a 50-amp hookup.
When you're ready to plug in, make sure your RV is parked close enough to the power source for your power cord to reach. Then, connect the surge protector to the electrical stand first. Ensure the breaker to your required electrical service is turned off before connecting the surge protector. After connecting the surge protector, turn the breaker on and check the lights or display on the surge protector to ensure it's working properly.
Finally, plug your RV's power cord into the power source. If you're plugging into a campground power box, you may need to use an adapter if your RV has a different amperage. Once plugged in, switch the campsite's breaker back on, and you should now have power in your RV!
Electric Meter Grounding: Neutral Wiring and Safety Concerns
You may want to see also
Explore related products
Hooking up to a house
Hooking up your RV to a house's electrical system is possible, but it requires careful preparation to avoid damaging your RV or the house's electrical system. Here is a step-by-step guide to help you through the process:
Step 1: Understand the Amperage Requirements
RV electrical systems typically require a 30/50 Amp hookup, while most households have 15/20 Amp electrical outlets. This mismatch limits the number of appliances you can run simultaneously and the overall power available.
Step 2: Turn Off Appliances and Breakers
Before making any connections, ensure all appliances in your RV are turned off, including sensitive ones like the air conditioner. Also, turn off the breakers in the house to prevent any power surges or overloads.
Step 3: Connect Using an Adapter
Use an outdoor, all-weather extension cord to connect your RV to the house's electrical system. You will likely need a 30/50 Amp adapter to match the RV's requirements with the house's outlet.
Step 4: Reset Breakers and Check Connection
After connecting the extension cord and adapter, reset the breakers in your house. If the connection is successful, your RV should now have power. If not, double-check the connection and ensure all appliances are indeed off.
Step 5: Manage Power Usage
When using the RV while hooked up to a house, be mindful of your power usage. Avoid running multiple large appliances simultaneously, as this can overload the system and trip breakers.
Step 6: Consider Zoning Laws and Regulations
Before plugging your RV into a house's power, be sure to check the zoning laws and regulations of the area. Some states and cities have restrictions on RV parking and may require permits or have specific rules about connecting to the electrical grid.
By following these steps and being cautious, you can safely hook up your RV to a house's electrical system for a temporary period. Remember to be mindful of your power usage to avoid overloading the system and causing potential damage.
Electricity in Our Brains: Powering Thoughts and Actions
You may want to see also
Explore related products
Using solar panels
Solar panels are a great way to power your RV, especially if you're looking to avoid electric hookup sites or noisy generators. They can be used to power all or some of your RV's electrical needs, from lights to appliances and even air conditioning. The more panels you have, the faster you can generate electricity.
There are a few things to consider before installing solar panels on your RV. Firstly, you'll need to decide on the number of panels you want and how you want to configure them. You can choose between a portable solar panel system, which is easy to set up and typically includes one or more 100-watt solar panels attached to the roof with Velcro straps, or a more permanent installation. If you plan to go fully off-grid with solar power, you'll need a more robust system with all four components: panels, charge controller, battery bank, and inverter.
Once you've planned your solar panel layout, it's time to install the panels. If you're not comfortable working with electricity, it's best to call a certified RV technician. Here are the general steps for installation:
- Mount the solar panels on the roof of your RV, avoiding any areas that might be shaded by an air conditioner, vent, satellite dish, or other obstructions.
- Run the wiring from the solar panels into the RV and connect it to the charge controller, ensuring proper alignment of positive and negative wires.
- Connect the charge controller to the RV batteries, maintaining positive-to-positive and negative-to-negative connections.
- Install a solar inverter to convert the DC electricity generated by the panels into AC power for use in your RV.
- Verify that all connections are secure and the system functions as expected.
- Ground the system to protect it from lightning strikes and power surges.
Some additional tips to keep in mind:
- You can use existing wire ports, such as refrigerator vents or plumbing, to avoid drilling holes in your RV.
- Mark the positive wire with red electrical tape to distinguish it from the negative wire.
- The number of Watts produced by your solar panels will depend on the sun exposure, so perfect conditions mean direct sunlight on the panels.
- It's challenging to estimate the amount of power you'll use daily, so it's advisable to estimate high.
With solar panels, you'll have the freedom to go anywhere and stay in areas without electrical hookups, enjoying nature while powering your RV with renewable energy.
Electric Hookups at Diamond Lake, Oregon: What Campers Need to Know
You may want to see also
Frequently asked questions
First, check if your RV has a 30-amp or 50-amp electrical system. Campgrounds will offer either 30-amp or 50-amp hookups, or both. If the campground's hookup amperage is different from your RV, you will need an adapter. Park close enough to the power source so that your power cord can reach the outlet. Ensure all appliances are turned off, then plug your RV into the power source. Turn on the breaker and you should have power!
30-amp RVs receive 3,600 watts of power, while 50-amp systems receive over 12,000 watts. 30-amp systems will need to be more careful about what appliances are run simultaneously, as multiple large appliances can trip the breaker or damage the electrical system.
You will need a connector for a three-prong plug and a 30/50 amp adapter to hook up to a house's 15/20 amp system. Ensure all appliances in your RV are turned off, as well as the breakers in your house. Plug your RV into your house using the adapter and turn your breakers back on.
It is recommended to use a surge protector to protect your RV's electrical system from power surges. If you are camping off-grid, consider using solar panels to power your RV.
