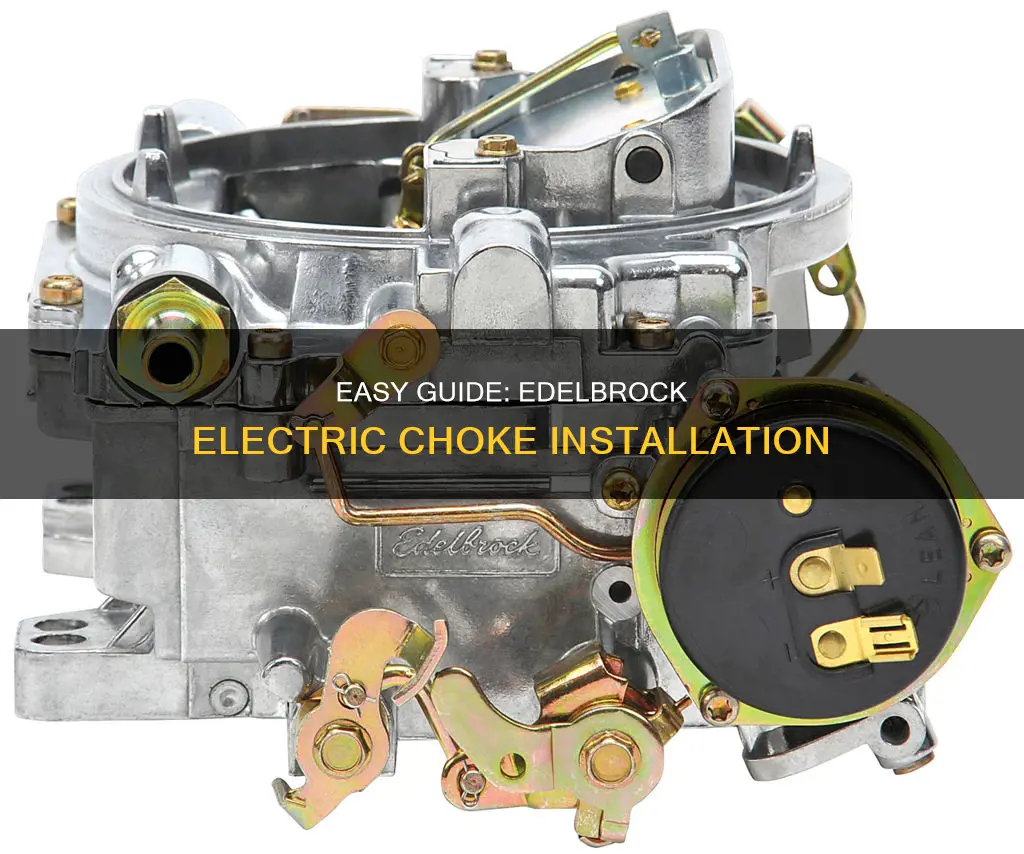

Edelbrock offers a range of carburettors with manual chokes, which can be converted to electric chokes using an electric choke kit. The Edelbrock Electric Choke Kit #1478 is designed to convert manual choke Edelbrock Performer series carburettors to electric choke. This kit includes all the necessary parts to convert #1404, #1405, #1407 and #1412 carbs to electric choke. The choke should only be used when starting the engine when it is cold. The Edelbrock procedure can be used to set the idle mixture and idle speed.
Explore related products
What You'll Learn
Where to find a 12v source
To hook up an Edelbrock electric choke, you need to find a 12V source that is controlled by the ignition switch in the run position. Here are some options for where to find a suitable 12V source:
Firstly, check if your car originally came with an anti-dieseling solenoid. If it did, there should be a heavy 12V "key on" wire running to it, which you can use as a power source for the electric choke. This wire can be found near the carburetor.
Another option is to use the coil, although some people recommend staying away from this circuit. If you do decide to use the coil, make sure to use the input side of the ballast resistor, which can be identified with a piggyback connector and two blue wires.
If you have replaced the original resistor wire to the coil with an electronic ignition, this can be an easy place to tap into for power. The wire is usually about a foot long and can be found behind the ignition.
Additionally, you can consider adding an auxiliary 3-5 circuit fuse block that is powered through a relay. The primary side of the relay would be connected to the ignition switch, and the secondary side would power the auxiliary fuse box directly from the battery. This method allows you to add power to your stock harness without overloading or splicing into it.
Finally, some people have reported success using the stator post on the alternator as a 12V source for the Edelbrock electric choke thermostat. However, keep in mind that the voltage may be less than 12V, and it will only work when the engine is running.
