Solar-powered electric fences are an affordable, practical, and sustainable way to protect land, livestock, and property. They are also an eco-friendly alternative to standard electric fences. Setting up a solar electric fence involves careful planning and installation. The process includes determining the purpose and layout of the fence, installing the fence posts, connecting the wires, and testing the electrical flow. Regular maintenance, such as checking the electric current and voltage, is also important to ensure the fence functions correctly.
| Characteristics | Values |
|---|---|
| Purpose | Contain livestock such as horses, cattle, and pigs, or keep out foxes, dogs, predators, deer, and other pests |
| Fence type | Permanent or temporary |
| Installation | Dig holes for corner or end posts, fill with cement, then attach wiring with U-pins or tension |
| Charger | Install in a clean, sheltered location, accessible to a separate ground rod system, with the charger mounted off the ground |
| Grounding | Install an effective ground system with three six-foot-long ground rods, spaced ten feet apart, using ground rod clamps and galvanized wire or insulated cable |
| Voltage | Regular readings should be between 6,000 to 10,000 volts, depending on the charger's electrical strength and the type of animal |
| Maintenance | Regularly check the electric current and keep plants, grass, and weeds away from the fence to prevent voltage loss |
Explore related products
What You'll Learn
Planning and layout
Firstly, determine the purpose of your solar electric fence. Consider what you intend to use it for, whether it's for containing livestock such as horses, cattle, and pigs, or protecting your land and produce from intruders such as foxes. This will help you choose the right type, shape, and size of solar electric fence, as they vary depending on their intended use.
Next, measure the area you plan to fence and create a layout diagram. Sketch a diagram of your fencing plan, taking into account the surrounding structures, such as buildings or barns, and their position relative to the fence. Consider any necessary adjustments for obstacles like hills, wet areas, trees, and other natural hindrances. If you're working with a builder, share your layout with them to get expert advice.
Once you have your layout ready, it's time to start installing the fence posts. Begin by digging holes for your corner or end posts, typically about 2-3 feet deep, using a post-hole digger. Place your posts in the holes and secure them by filling the holes with dry cement. You can also use level props to ensure a smooth and clean finish.
After installing the posts, you can start planning the wiring. Decide whether you'll be installing a single wire or multiple wires at different heights, depending on the animals you want to control or keep out. When you reach the corner and end posts, use U-pins to affix the wire, or simply wrap the wire around the post and let the tension hold it in place. Make use of tensioners and insulators to secure the wire firmly.
Remember, safety is a priority. Install plastic safety handles at regular intervals to allow for safe disconnection of the electric fence when you or your machinery need to pass through. Ensure that your fence charger (energizer) is appropriately grounded to avoid any issues. A properly installed ground circuit is critical to the effective functioning of your solar electric fence.
Setting Up Your Electric Choke: A Step-by-Step Guide
You may want to see also
Explore related products
Installing the fence
The first step in installing your solar electric fence is to plan the layout by measuring and sketching the area you want to fence. Consider any structures, terrain variations, and potential obstacles within or adjacent to your fence. Once you have a clear plan, start installing the fence posts. Dig holes for your corner and end posts, placing them at the corners or extremes of your boundary. The holes should be approximately 2-3 feet deep and filled with dry cement to secure the posts firmly.
Next, you can begin installing the wires. If you're installing multiple wires at different heights, consider the height of the animals you want to control or keep out. Affix the wire to the posts using U-pins or by wrapping the wire around the post and using tension to secure it. Tensioners and insulators can also be used to fix the wire in place. You can start and end the wiring wherever you like on the perimeter, and you can install plastic safety handles to safely disconnect the fence when needed.

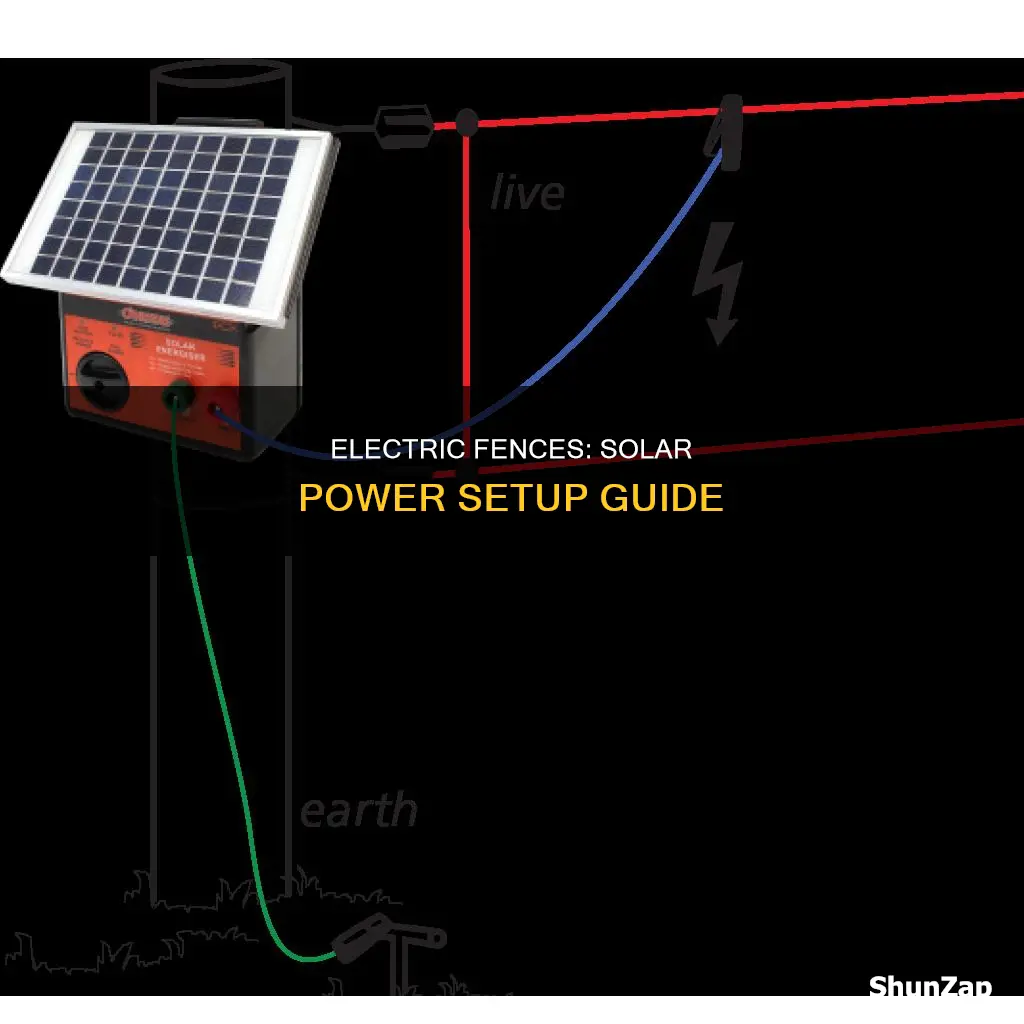

Once the wires are in place, you can connect the fence charger (also known as an energizer). The charger should be installed in a clean, sheltered location, protected from direct moisture and sunlight, except for solar-powered chargers. Solar-powered fence chargers should be installed in an open area facing south in the northern hemisphere. Use a screw or nail through the hanger hole in the charger case to mount it off the ground onto a post or wall.
Use insulated cable rated for 20,000 volts or higher to connect the fence charger to the fence. You will also need to install an effective ground system to ensure the electric fence functions properly. Install three six-foot-long ground rods, spaced ten feet apart, and use ground rod clamps and galvanized wire or insulated cable to connect the ground rods to each other and to the fence charger.
Finally, test your fence line using a voltmeter to ensure the proper flow of electricity. Regular volt readings should be between 6,000 and 10,000 volts, depending on your charger's electrical strength and the type of animals you're containing. Regularly check your fence's electric current and keep the surrounding area clear of plants, grass, and weeds to avoid voltage loss.
The Electric Chair's Demise: A Historical Perspective
You may want to see also
Explore related products
Charging the fence
Charging an electric fence is a simple process, but it must be done correctly to ensure the fence works properly. Firstly, you need to decide on the type of fence charger you will use. There are three types: 110-volt plug-in, 6-12 volt battery-powered, and solar-powered. The solar-powered option is the least powerful but is the most convenient for remote areas.
Once you have your charger, you need to install it in a clean, sheltered location. Solar-powered chargers can be placed outdoors, but they should be sheltered from direct moisture and sunlight. The charger should be installed off the ground and connected to a ground rod system that is separate from any buildings. Use a screw or nail through the hanger hole in the charger case to mount the charger.
Next, you need to connect the charger to the fence. Use insulated cable rated for 20,000 volts or higher to make the connection. If you are using a solar-powered charger, you will need to position it in an open area facing south (in the northern hemisphere).
Before turning on the fence, you should test the voltage with a voltmeter to ensure the proper flow of electricity. Regular voltage readings should be between 6,000 and 10,000 volts, depending on your charger's strength and the type of animals you are containing. You can then turn on the charge and connect the lines using a gauge jumper wire from the top of the fence to the charger.
To maintain your solar fence, you should use a trickle charger to maintain the battery when the fence controller is not in use for long periods. The battery should be stored outside of the energizer and charged for no longer than 18 hours. Regularly check your fence's electric current to avoid signal problems, and keep plants, grass, and weeds away from the fence to prevent voltage loss.
Grounding Your Electric Fence: How Many Rods Are Needed?
You may want to see also
Explore related products
Grounding the fence
To install an effective ground system, you will need three six-foot-long ground rods, spaced ten feet apart. Use ground rod clamps and galvanised wire or insulated cable to connect the ground rods to each other and to the fence charger. The rule of thumb is to use one 6-8' ground rod per joule output of energy. The ground wire should be connected to the ground terminal and ground rods using an insulated ground wire.
The fence charger should be installed in a clean, sheltered location, away from direct moisture and sunlight. An exception to this is solar-powered chargers, which should be installed in an open area facing south (in the northern hemisphere). The charger should be accessible to a ground rod system that is separate from the grounding of any buildings. It is important to ensure that the ground terminal of the charger is sufficiently grounded; otherwise, the path of the electric current cannot be completed, and the animal will not feel the shock.
To test your fence, use a voltmeter to ensure the proper flow of electricity. Regular volt readings should be between 6,000 and 10,000 volts, depending on your charger's electrical strength and the type of animal you are seeking to contain.
Carmen Electra's Infidelity: Cheating on Dennis Rodman?
You may want to see also
Explore related products
Maintenance and testing
Solar-powered electric fence maintenance is straightforward but essential to ensure the fence functions correctly and safely. Firstly, it is important to keep the area around the fence free from plants, grass, and weeds, as these can cause voltage loss.
The fence charger should be kept clean and dry, and the area where it is installed should be inspected frequently. This is to ensure no wires are exposed that could cause the electric charge to ground. It is also important to keep the charger away from direct sunlight and moisture, except for solar-powered chargers, which should be installed in an open area facing south in the northern hemisphere.
To test your solar-powered electric fence, use a voltmeter to check the voltage. Regular readings should be between 6,000 and 10,000 volts, depending on your charger's strength and the type of animals you are containing. You can also use a fence tester, or voltage tester, to check for adequate voltage.
If your solar fence is not in use for more than three months, a trickle charger should be used to maintain the battery. The battery should be stored outside of the energizer and charged for no longer than 18 hours. Before reinstalling the battery, it should be charged for an additional 18 hours to ensure it is fully charged.
Electric Mattress Pads: Safe Sleep Solution for Toddlers?
You may want to see also
Frequently asked questions
Solar electric fences come in various types, shapes, and sizes. Consider the purpose of your fence and the types of animals you are looking to contain or keep out. For example, if you need to contain livestock such as horses, cattle, and pigs, select a strong fence.
First, plan the layout of your electric fence by measuring and sketching a diagram of the area you would like to fence. Then, install the fence posts by digging holes and filling them with dry cement. Install the fence, fence charger, and ground system. Install the fence charger in a clean, sheltered location away from direct moisture and sunlight, and connect it to the fence using insulated cable. Finally, test your fence with a voltmeter to ensure the proper flow of electricity.
Regularly check your fence's electric current and keep plants, grass, and weeds away from the fence to prevent voltage loss. If the fence controller is not in use for more than three months, use a trickle charger to maintain the solar fence battery.
