Trystan Casey

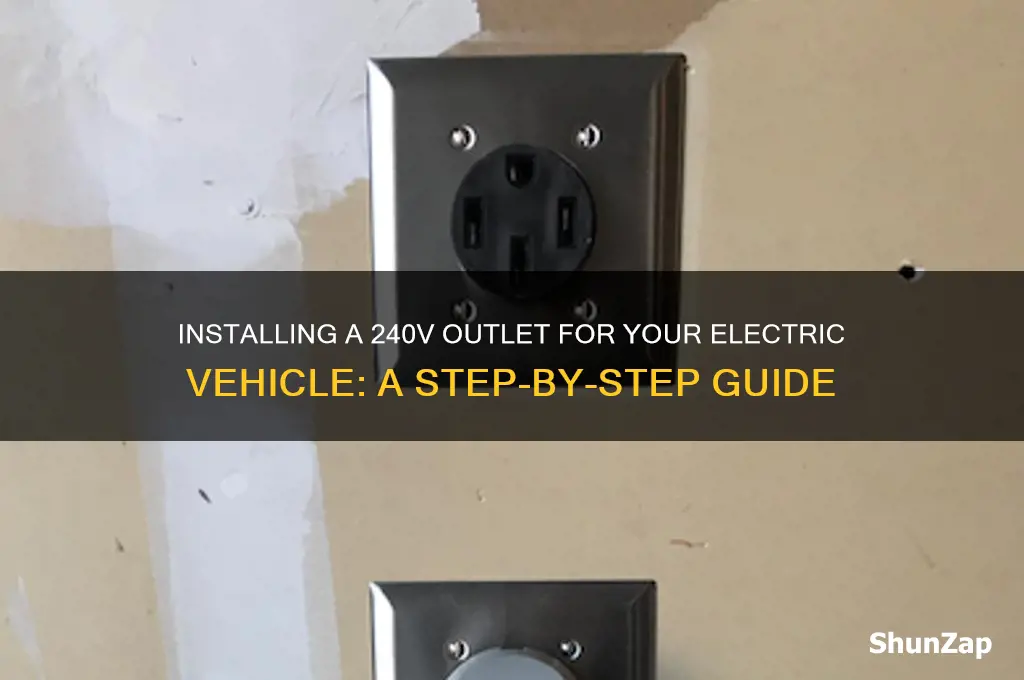

Installing a 240V outlet for an electric car is a crucial step in setting up a reliable and efficient home charging solution. This process involves upgrading your electrical system to accommodate the higher voltage required for faster charging compared to standard 120V outlets. Key steps include assessing your home’s electrical capacity, selecting the appropriate charging station, obtaining necessary permits, and hiring a licensed electrician to ensure safe and code-compliant installation. Proper planning and execution not only enhance charging speed but also safeguard your vehicle and home from potential electrical hazards.
Explore related products
What You'll Learn
- Choose Correct Outlet Type: Select NEMA 14-50 or hardwired option for safe, efficient EV charging
- Plan Circuit Requirements: Ensure 40-50 amp dedicated circuit with proper gauge wiring (6-8 AWG)
- Install Circuit Breaker: Add 40-50 amp double-pole breaker in main electrical panel
- Wire the Outlet: Connect wires (black, red, white, green) to outlet terminals securely
- Test and Verify: Use multimeter to confirm voltage, polarity, and grounding before use
Choose Correct Outlet Type: Select NEMA 14-50 or hardwired option for safe, efficient EV charging
When installing a 240V outlet for electric vehicle (EV) charging, selecting the correct outlet type is crucial for safety, efficiency, and compatibility with your EV. The two most recommended options are the NEMA 14-50 outlet or a hardwired solution. Both options provide the necessary power for Level 2 charging, which significantly reduces charging time compared to standard 120V outlets. The choice between them depends on your specific needs, preferences, and the requirements of your EV.
The NEMA 14-50 outlet is a popular choice for EV owners due to its widespread availability and compatibility with many EV charging stations. This outlet is commonly used for RVs and electric stoves, making it a reliable and well-understood option. It provides up to 50 amps of power and is designed to handle high-current applications safely. Most EV charging stations come with a NEMA 14-50 plug, so installing this outlet type ensures compatibility with a wide range of chargers. Additionally, the NEMA 14-50 outlet is relatively easy to install, making it a cost-effective solution for homeowners.
Alternatively, a hardwired charging solution involves directly connecting the EV charging station to your home’s electrical panel without using a traditional outlet. This option is often preferred for its clean, permanent installation and can be tailored to meet the exact power requirements of your EV. Hardwired systems are typically more efficient and can handle higher amperage, which may be necessary for faster charging speeds. However, this option requires professional installation to ensure compliance with local electrical codes and safety standards. It’s also less flexible than a NEMA 14-50 outlet, as it cannot be easily replaced or upgraded without additional work.
When deciding between NEMA 14-50 and hardwired, consider your EV’s charging capabilities and your long-term needs. If you plan to upgrade your EV in the future or prefer a versatile setup, the NEMA 14-50 outlet offers greater flexibility. On the other hand, if you prioritize a seamless, customized installation and have a clear understanding of your EV’s power requirements, a hardwired solution may be the better choice. Always consult your EV’s manual and a licensed electrician to determine the most suitable option for your situation.
Regardless of the outlet type you choose, safety should be the top priority. Ensure that your home’s electrical system can handle the additional load of a 240V outlet, and verify that the installation complies with local building codes. Using high-quality materials and hiring a qualified electrician will help prevent hazards such as overheating or electrical fires. By selecting the correct outlet type—whether NEMA 14-50 or hardwired—you’ll create a safe, efficient, and reliable charging solution for your electric vehicle.
Electric Cars in Europe: Rising Popularity and Market Trends
You may want to see also
Explore related products
![Raylix 16A Level 1&2 EV Charger, 110V-240V Electric Car Charger with 21ft Cable [Adjustable Current & Delay Charging] Portable EV Chargers for All SAE J1772, Nema 6-20 & Nema 5-15 Plug, Accessories](https://m.media-amazon.com/images/I/71jtqSY-S4L._AC_UL320_.jpg)
Plan Circuit Requirements: Ensure 40-50 amp dedicated circuit with proper gauge wiring (6-8 AWG)
When planning the circuit requirements for a 240V outlet to charge your electric car, the first critical step is to ensure a dedicated 40-50 amp circuit. This dedicated circuit is essential because it prevents overloading your home’s electrical system, which could occur if the charging load is shared with other appliances. A dedicated circuit means that the wiring runs directly from your main electrical panel to the outlet without any other devices or outlets connected to it. This setup ensures that the full amperage capacity is reserved solely for your electric vehicle charger, providing safe and efficient charging.
Next, selecting the proper gauge wiring is crucial for safety and performance. For a 40-50 amp circuit, you will need to use 6-8 AWG (American Wire Gauge) wire. The gauge of the wire determines its thickness and current-carrying capacity. Using the correct gauge ensures that the wire can handle the amperage without overheating, which could pose a fire hazard. Specifically, 6 AWG wire is suitable for a 50 amp circuit, while 8 AWG wire is appropriate for a 40 amp circuit. Always consult the National Electrical Code (NEC) or local regulations to confirm compliance with safety standards.
Before purchasing materials, calculate the total length of the wire run from your electrical panel to the outlet location. This measurement is important because longer wire runs can result in voltage drop, which may affect charging efficiency. To minimize voltage drop, you may need to use a larger gauge wire or adjust the circuit design. Additionally, ensure that the wire is rated for the environment where it will be installed, such as indoor or outdoor use, and that it is properly insulated to prevent damage or short circuits.
Once you have determined the circuit requirements and wire specifications, plan the route for the wiring. The path should be as direct as possible to minimize costs and potential issues. Consider factors such as wall cavities, ceilings, or outdoor trenching if the outlet is located far from the electrical panel. If the wiring needs to pass through walls or floors, use appropriate conduit to protect the wires from damage. Proper planning at this stage will save time and reduce the risk of errors during installation.
Finally, ensure that your electrical panel has the capacity to support an additional 40-50 amp circuit. Most modern homes have 200-amp service panels, which typically have enough space for new circuits. However, older homes with 100-amp service may require an upgrade to accommodate the new circuit. If your panel is full or lacks sufficient capacity, consult a licensed electrician to discuss options such as subpanels or service upgrades. Always prioritize safety and compliance with local codes when planning and installing a dedicated circuit for your electric vehicle charger.
Electric Vehicles: Pollution-Free or Not?
You may want to see also
Explore related products
Install Circuit Breaker: Add 40-50 amp double-pole breaker in main electrical panel
Before installing a 240V outlet for your electric car, one of the critical steps is to add a 40-50 amp double-pole circuit breaker to your main electrical panel. This breaker will safely manage the high-power demands of your electric vehicle charger. Begin by ensuring the main power to your electrical panel is turned off at the main disconnect or breaker box to prevent any risk of electrical shock. Verify that the power is indeed off by using a non-contact voltage tester on the panel and the circuits.
Once the power is confirmed to be off, remove the panel cover by unscrewing the screws holding it in place. Carefully set the cover aside, ensuring not to damage any internal components. Locate an open slot in the panel where the new double-pole breaker can be installed. Most panels have a layout that allows for easy identification of available slots. If all slots are occupied, you may need to upgrade your panel or remove a less critical breaker, though this should be done with professional guidance.
Next, select a 40-50 amp double-pole breaker that matches the specifications of your electrical panel. Common brands include Square D, Siemens, and Cutler Hammer. Ensure the breaker is compatible with your panel by checking the panel’s label or manual. Insert the new breaker into the open slot, pushing it firmly until it snaps into place. The breaker should sit flush with the other breakers in the panel. Double-check that it is securely installed and aligned properly.
After installing the breaker, reconnect the main power by turning it back on at the main disconnect or breaker box. Test the new breaker by flipping it off and on to ensure it operates smoothly. Label the breaker clearly with a tag indicating its purpose, such as "EV Charger," to avoid confusion in the future. This step is crucial for safety and maintenance, as it helps identify the dedicated circuit for your electric vehicle charger.
Finally, ensure all panel covers are securely reattached before proceeding with the next steps of your 240V outlet installation. Proper installation of the circuit breaker is essential for the safe and efficient operation of your electric vehicle charging station. If you are unsure about any part of this process, consult a licensed electrician to ensure compliance with local codes and safety standards.
Becoming an Electric Vehicle Technician: A Comprehensive Guide
You may want to see also
Explore related products
Wire the Outlet: Connect wires (black, red, white, green) to outlet terminals securely
When wiring a 240V outlet for an electric car, the first step in connecting the wires to the outlet terminals is to ensure the power is completely turned off at the circuit breaker to avoid any risk of electrical shock. Once confirmed, you’ll typically be working with four wires: black (hot), red (hot), white (neutral), and green (ground). Begin by stripping about ½ inch of insulation from the ends of each wire using a wire stripper. This exposes the copper conductors, allowing them to make secure contact with the outlet terminals. Always double-check that the stripped wires are free of any fraying or damage.
Next, identify the terminal screws on the 240V outlet. The black and red wires are your hot wires and should be connected to the brass-colored terminal screws, usually labeled "LINE 1" and "LINE 2" or "HOT 1" and "HOT 2." Tighten these screws securely with a screwdriver, ensuring the wires are wrapped clockwise around the screws for a firm connection. It’s crucial that each wire is connected to its designated terminal to maintain the correct electrical configuration for the 240V circuit.
The white wire is the neutral wire and should be connected to the silver-colored terminal screw, often labeled "NEUTRAL." Again, wrap the wire clockwise around the screw and tighten it securely. While 240V circuits primarily use the two hot wires for power, the neutral wire is still essential for safety and to complete the circuit in certain electrical configurations. Ensure the connection is tight to prevent any loose wires that could cause overheating or failure.
Finally, the green wire is the ground wire, which is critical for safety. Connect it to the green grounding screw on the outlet, typically located at the bottom or side of the device. This screw is often attached to the outlet’s metal housing, providing a path for electrical current to safely dissipate in case of a fault. Tighten the grounding screw securely to ensure a reliable connection. Once all wires are connected, gently tug on each wire to confirm they are firmly attached to the terminals.
After completing the wiring, carefully fold the wires into the outlet box, ensuring they are not pinched or damaged. Install the outlet into the box and secure it with the provided screws. Finally, attach the cover plate and restore power at the circuit breaker. Test the outlet with a voltage tester to verify it is functioning correctly and safely. Properly wiring the outlet terminals is a critical step in installing a 240V outlet for your electric car, ensuring both efficiency and safety for your charging needs.
Electric Vehicles: Is Our Infrastructure Prepared?
You may want to see also
Explore related products
Test and Verify: Use multimeter to confirm voltage, polarity, and grounding before use
Before connecting your electric vehicle to the newly installed 240V outlet, it's crucial to test and verify the electrical parameters to ensure safety and functionality. The first step in this process is to use a multimeter to confirm the voltage. Set your multimeter to the AC voltage setting and ensure it’s capable of measuring up to 240V. Insert the probes into the outlet slots: the black probe into the hot wire slot (usually brass-colored) and the red probe into the neutral wire slot (usually silver-colored). A correctly wired 240V outlet should read between 220V and 240V. If the reading is outside this range, double-check your wiring connections and consult an electrician if necessary.
Next, verify the polarity of the outlet to ensure the hot and neutral wires are correctly identified. With the multimeter still set to AC voltage, swap the probes: place the red probe in the hot wire slot and the black probe in the neutral slot. The reading should remain the same as before, confirming proper polarity. If the reading drops significantly or shows zero, the wires may be reversed, which is a critical safety issue. Correct the wiring by swapping the hot and neutral wires at the circuit breaker or outlet.
Grounding is another essential aspect to test. A properly grounded outlet prevents electrical hazards and ensures the safe operation of your electric vehicle charger. Set your multimeter to the continuity or resistance setting. Insert one probe into the grounding slot (usually a round hole below the two vertical slots) and the other probe onto an exposed metal part of the outlet box or a known ground source. A properly grounded outlet will show low resistance or continuity, typically close to zero ohms. If there is no continuity or high resistance, check the grounding wire connection at the outlet and the circuit breaker panel.
After confirming voltage, polarity, and grounding, perform a final test to ensure all components are functioning correctly. Plug in the electric vehicle charger and check if it powers on and communicates with your vehicle. Some chargers have indicator lights or displays that show the charging status. If the charger fails to operate, recheck all connections and measurements. It’s also advisable to consult the charger’s manual for troubleshooting tips specific to your model.
Lastly, document your test results for future reference. Note the voltage readings, polarity confirmation, and grounding status. This documentation can be helpful for maintenance or if issues arise later. Always prioritize safety and consult a licensed electrician if you’re unsure about any step in the testing and verification process. Properly testing and verifying your 240V outlet ensures a safe and reliable charging solution for your electric vehicle.
Claiming Electric Vehicle Tax Credit on Your Federal Return
You may want to see also
Frequently asked questions
Most electric vehicles (EVs) use a NEMA 14-50 outlet, which provides 240V and is capable of delivering up to 50 amps. This is the most common and recommended option for home EV charging stations.
While it’s technically possible to install a 240V outlet yourself, it’s highly recommended to hire a licensed electrician. Working with high-voltage wiring can be dangerous and requires knowledge of local electrical codes and proper installation practices.
A NEMA 14-50 outlet typically requires 6-gauge or 8-gauge stranded copper wire and a 50-amp double-pole circuit breaker. Ensure your electrical panel can handle the additional load before proceeding with installation.
