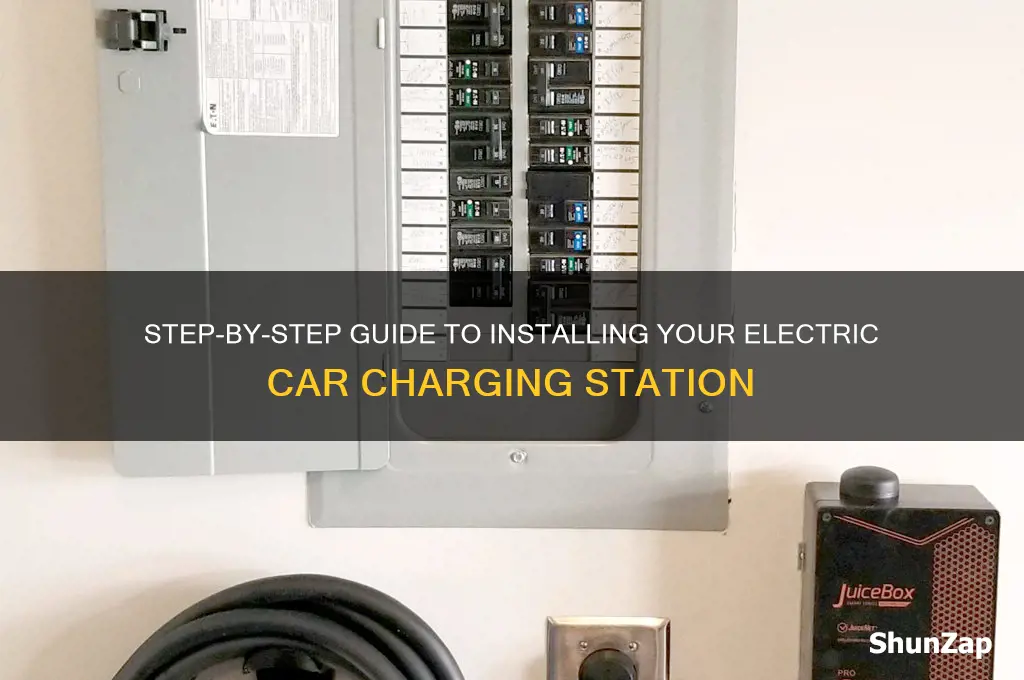

Installing an electric car charging station at home is a practical step toward embracing sustainable transportation. The process begins with assessing your electrical system to ensure it can handle the additional load, typically requiring a dedicated 240-volt circuit. Next, choose a suitable charging station, considering factors like charging speed, compatibility with your vehicle, and smart features. Hiring a licensed electrician is crucial for safe and compliant installation, as they will handle wiring, mounting the unit, and connecting it to your electrical panel. Permits and inspections may be necessary, depending on local regulations. Once installed, test the station to ensure it functions correctly, and familiarize yourself with its operation. With proper setup, a home charging station offers convenience, cost savings, and a seamless transition to electric vehicle ownership.
| Characteristics | Values |
|---|---|
| Location Assessment | Choose a suitable location near your parking area, close to the electrical panel. Ensure it’s accessible and complies with local regulations. |
| Permits and Regulations | Check local building codes, HOA rules, and utility company requirements. Obtain necessary permits before installation. |
| Charging Level | Level 1 (120V, 3-5 miles/hour), Level 2 (240V, 12-80 miles/hour), or DC Fast Charging (400V+, 60-100+ miles/20 minutes). |
| Electrical Requirements | Level 2 requires a dedicated 40-50 amp circuit. Ensure your electrical panel can handle the load or upgrade if necessary. |
| Charging Station Type | Hardwired (permanently installed) or plug-in (portable). Choose based on convenience and usage needs. |
| Power Output | Typically 3.7 kW to 22 kW for Level 2 chargers. Higher for DC Fast Chargers. |
| Connector Type | SAE J1772 for Level 1/2 (North America), CCS (Combined Charging System) or CHAdeMO for DC Fast Charging. |
| Installation Cost | $500-$2,500+ depending on electrical upgrades, charger type, and labor. |
| Installation Time | 3-8 hours for Level 2 installation by a professional electrician. |
| Smart Features | Optional: Wi-Fi connectivity, app control, scheduling, and energy usage monitoring. |
| Weatherproofing | Ensure the charging station is rated for outdoor use if installed outside. |
| Warranty and Support | Check for manufacturer warranties (typically 3-5 years) and customer support. |
| Incentives and Rebates | Research federal, state, or local incentives to offset installation costs. |
| Safety Compliance | Ensure the charger meets UL, NEC, and other safety standards. |
| Future Proofing | Consider installing a higher-capacity electrical panel to accommodate future EV upgrades or additional chargers. |
Explore related products
What You'll Learn
- Site Assessment: Evaluate location, electrical capacity, and permits needed for installation
- Equipment Selection: Choose compatible charging levels (Level 1, 2, or DC Fast)
- Electrical Upgrades: Ensure panel capacity and wiring meet charging station requirements
- Installation Process: Hire certified electricians for safe and compliant setup
- Testing & Activation: Verify functionality, register with networks, and start charging
Site Assessment: Evaluate location, electrical capacity, and permits needed for installation
When embarking on the installation of an electric car charging station, the first critical step is Site Assessment. This involves a thorough evaluation of the location to ensure it meets the necessary criteria for functionality, safety, and compliance. Begin by identifying the most suitable area for the charging station. Ideally, the location should be easily accessible for drivers, close to parking spaces, and protected from extreme weather conditions. Consider proximity to the main electrical panel to minimize wiring costs and complexity. Additionally, ensure the site has sufficient space to accommodate the charging equipment and allow for safe vehicle maneuvering. Avoid areas prone to flooding or where the installation could interfere with existing utilities or structures.
Next, assess the electrical capacity of the site to determine if the existing electrical system can support the charging station. Start by checking the amperage and voltage requirements of the charger you plan to install, as these vary depending on the model and charging speed (Level 1, Level 2, or DC Fast Charging). Consult with a licensed electrician to evaluate the electrical panel's capacity and whether it can handle the additional load. If the current system is insufficient, upgrades such as a subpanel installation or service panel replacement may be necessary. It’s also important to consider future expansion needs, as adding more chargers later could require additional electrical infrastructure.
Permits and regulatory compliance are another crucial aspect of the site assessment. Research local building codes, zoning regulations, and utility company requirements to ensure your installation meets all legal standards. Most jurisdictions require permits for electrical work and may have specific guidelines for EV charging stations, such as minimum distance from property lines or accessibility standards for public chargers. Contact your local government or permitting office to obtain the necessary documentation and approvals before proceeding. Failure to secure the required permits can result in fines, delays, or the need to uninstall non-compliant equipment.
During the site assessment, also consider any environmental or structural factors that could impact installation. For example, if the charging station will be installed outdoors, ensure the equipment is rated for outdoor use and consider adding weatherproof enclosures or canopies. If the site involves mounting the charger on a wall or pedestal, verify that the structure can support the weight and that the installation won’t compromise its integrity. Grounding requirements and cable routing should also be evaluated to ensure safety and compliance with electrical codes.
Finally, consult with stakeholders, including property owners, tenants, or homeowners’ associations, to address any concerns and gain approval for the installation. If the charging station will be accessible to the public, plan for signage, payment systems, and network connectivity, if applicable. A comprehensive site assessment not only ensures a smooth installation process but also lays the foundation for a reliable and efficient charging solution that meets both current and future needs.
Government Blocks: Electric Vehicles' Future in Jeopardy
You may want to see also
Explore related products
Equipment Selection: Choose compatible charging levels (Level 1, 2, or DC Fast)
When selecting equipment for your electric car charging station, the first critical decision is choosing the appropriate charging level: Level 1, Level 2, or DC Fast Charging. This decision depends on your vehicle’s compatibility, charging speed requirements, and available electrical infrastructure. Level 1 charging is the most basic and uses a standard 120-volt household outlet. It’s compatible with all electric vehicles (EVs) and requires no additional equipment beyond the charging cord that comes with your car. However, it’s the slowest option, providing about 2 to 5 miles of range per hour of charging, making it best suited for drivers with low daily mileage or ample time for overnight charging.
If you need faster charging, Level 2 charging is a popular and practical choice. It operates on a 240-volt circuit, similar to what large appliances like dryers use, and delivers approximately 12 to 80 miles of range per hour, depending on the EV and charger specifications. To install a Level 2 charger, you’ll need a dedicated circuit and a compatible charging station. Most EVs support Level 2 charging, but it’s essential to verify your vehicle’s maximum charging capacity to avoid overpaying for a higher-powered charger than you need. Hiring a licensed electrician to install the necessary wiring and ensure compliance with local codes is highly recommended.
For those seeking the fastest charging option, DC Fast Charging is the most powerful solution. It uses direct current (DC) to charge an EV’s battery directly, bypassing the onboard charger, and can provide up to 100 miles of range in as little as 20 minutes. However, DC Fast Charging is significantly more expensive to install and requires a three-phase power supply, making it impractical for most residential settings. It’s typically reserved for commercial or public charging stations. Additionally, not all EVs support DC Fast Charging, so check your vehicle’s specifications before considering this option.
When choosing a charging level, consider your driving habits, vehicle compatibility, and budget. For most homeowners, Level 2 charging strikes a balance between speed and cost, offering a practical solution for daily charging needs. If you rarely drive long distances and have ample time to charge overnight, Level 1 may suffice. Conversely, if you operate a public charging station or need rapid charging for a fleet, DC Fast Charging might be the best fit. Always consult your EV’s manual and an electrician to ensure the equipment you select aligns with your requirements and electrical capabilities.
Lastly, compatibility with your vehicle’s charging port and onboard charger is non-negotiable. Most modern EVs use the J1772 connector for Level 1 and Level 2 charging, while Tesla vehicles use a proprietary connector (though adapters are available). For DC Fast Charging, CCS (Combined Charging System) and CHAdeMO are the most common standards, but not all EVs support both. Verify your vehicle’s charging standards and select equipment that matches to avoid incompatibility issues. Proper equipment selection ensures efficient, safe, and reliable charging for your electric vehicle.
Is Infiniti Going Electric? Exploring Their EV Lineup and Future Plans
You may want to see also
Explore related products
Electrical Upgrades: Ensure panel capacity and wiring meet charging station requirements
Before installing an electric vehicle (EV) charging station, it's crucial to assess and potentially upgrade your home’s electrical system to ensure it can safely and efficiently support the new load. The first step is to evaluate your electrical panel’s capacity. Most EV charging stations require a dedicated circuit, and higher-power Level 2 chargers (240 volts) typically draw between 30 and 50 amps. Check your panel’s amperage rating (usually 100, 150, or 200 amps) and the available space for a new circuit breaker. If your panel is already near capacity or lacks the necessary space, you’ll need to upgrade to a higher-amp panel or install a subpanel dedicated to the charging station.
Next, inspect the wiring to ensure it meets the charging station’s requirements. Level 2 chargers often require 8- or 6-gauge wiring to handle the higher current safely. Older homes may have outdated wiring that isn’t rated for such loads, posing a fire risk. Hire a licensed electrician to assess the wiring and replace it if necessary. Additionally, ensure the wiring is properly grounded and complies with local electrical codes to prevent hazards and ensure compatibility with the charging station.
Load calculation is another critical step. Determine the total electrical demand of your home, including the new charging station, to avoid overloading the panel. An electrician can perform this calculation, considering factors like lighting, appliances, HVAC systems, and the EV charger. If the total load exceeds your panel’s capacity, upgrading to a higher-amp panel or redistributing circuits may be necessary. Some homeowners opt for smart load management devices that monitor energy usage and temporarily reduce power to other circuits when the charger is in use, preventing overloads without a full panel upgrade.
Upgrading your electrical service can be costly, but it’s a necessary investment for safe and reliable EV charging. Costs vary depending on the extent of the work, but upgrading to a 200-amp panel typically ranges from $1,500 to $3,000, while rewiring a home can add another $2,000 to $5,000. Many regions offer rebates or incentives for electrical upgrades related to EV charging, so check with local utilities or government programs to offset expenses.
Finally, hire a qualified electrician to perform all upgrades and installations. Working with electricity is dangerous and requires expertise to ensure safety and compliance with codes. A professional will obtain the necessary permits, complete the work to standard, and inspect the system to confirm it meets the charging station’s requirements. Skipping this step can void warranties, create safety risks, or result in failed inspections. With the right upgrades, your electrical system will be ready to support your EV charging needs for years to come.
Electric Vehicles: Cheaper to Run?
You may want to see also
Explore related products
Installation Process: Hire certified electricians for safe and compliant setup
When embarking on the installation of an electric car charging station, prioritizing safety and compliance is paramount. The process begins with hiring certified electricians who specialize in EV charger installations. These professionals possess the necessary expertise to ensure that the setup adheres to local electrical codes and manufacturer specifications. Certified electricians will conduct a thorough assessment of your property, evaluating factors such as the electrical panel capacity, wiring requirements, and the optimal location for the charging station. This initial step is crucial to identify potential challenges and ensure a seamless installation.
Once the assessment is complete, the electrician will guide you in selecting the appropriate charging station for your needs. Level 2 chargers, which are the most common for home installations, require a dedicated 240-volt circuit. The electrician will determine if your electrical panel can support this additional load or if an upgrade is necessary. Upgrading the panel or adding a subpanel might be required to handle the increased electrical demand safely. This phase underscores the importance of professional involvement, as incorrect assessments can lead to safety hazards or non-compliance with regulations.
The actual installation process involves several critical steps that certified electricians are trained to handle. First, they will install the necessary wiring from the electrical panel to the charging station location. This includes running conduit and ensuring that all wiring is properly grounded and secured. Next, the charging station is mounted securely, typically on an exterior wall or a dedicated pedestal. The electrician will then connect the charger to the electrical supply, ensuring all connections are tight and weatherproof. Proper grounding and bonding are essential to prevent electrical faults and ensure user safety.
After the physical installation, the electrician will perform a series of tests to verify the system’s functionality and safety. This includes checking for proper voltage, ensuring the charger communicates correctly with the vehicle, and confirming that all safety features, such as ground fault protection, are operational. Compliance with local building codes and utility company requirements will also be verified. A final inspection by a local authority may be required to officially approve the installation, ensuring it meets all legal and safety standards.
Throughout the installation process, communication with the electrician is key. They will provide guidance on maintenance, troubleshooting, and any future upgrades you may consider. Hiring certified professionals not only guarantees a safe and compliant setup but also provides peace of mind, knowing that your electric car charging station is installed correctly and efficiently. This investment in professional expertise ensures long-term reliability and safety for your EV charging infrastructure.
Are Electric Cars Gay? Debunking Stereotypes and Embracing Sustainability
You may want to see also
Explore related products
Testing & Activation: Verify functionality, register with networks, and start charging
Once your electric car charging station is installed, the next critical step is Testing & Activation to ensure it functions correctly, is registered with necessary networks, and is ready for use. Begin by verifying functionality. Start by powering on the charging station and checking for any error codes or indicator lights on the display panel. Most stations will have LED indicators to show power status, connectivity, and readiness to charge. Plug in your electric vehicle (EV) using the charging cable and ensure the station recognizes the connection. Monitor the display to confirm that the charging process initiates and that power is being delivered to the vehicle. If the station has a mobile app or Wi-Fi connectivity, use it to check real-time charging data, such as power output and session duration. If any issues arise, consult the user manual or contact the manufacturer’s support team for troubleshooting.
After confirming functionality, the next step is to register the charging station with relevant networks. Many EV charging stations require registration with a network provider to enable features like remote monitoring, payment processing, or access control. Visit the manufacturer’s website or use their mobile app to create an account and register your station. You’ll typically need the station’s serial number and location details. If your station supports third-party networks like ChargePoint or EVgo, follow their registration process to integrate your station into their platforms. This step is crucial for public or shared charging stations, as it allows users to locate and pay for charging sessions seamlessly.
Once registered, activate the charging station by following the manufacturer’s instructions. This may involve pairing the station with your home Wi-Fi network, updating firmware, or configuring settings like charging schedules or access permissions. For smart charging stations, download the associated mobile app to control and monitor the station remotely. Test the activation by initiating a charging session through the app or by plugging in your EV again. Ensure all features, such as scheduled charging or load balancing, work as expected. If your station supports RFID cards or PIN codes for access, test these functionalities to ensure only authorized users can start a session.
Before declaring the station fully operational, conduct a final test to simulate real-world usage. Charge your EV from a low battery level to a higher percentage, monitoring the station’s performance throughout the session. Check for consistent power delivery, accurate metering, and proper communication with the mobile app or network. If the station is installed in a public or commercial setting, test the payment process to ensure transactions are processed correctly. Address any discrepancies or errors immediately to avoid inconvenience for users.
Finally, start charging your EV regularly and encourage others to use the station if it’s publicly accessible. Keep the station’s firmware updated to ensure compatibility with new EV models and network requirements. Regularly inspect the station for physical damage or wear and perform maintenance as needed. By completing these testing and activation steps, you’ll ensure your electric car charging station is reliable, user-friendly, and ready to support the growing demand for EV infrastructure.
Sacramento County: Incentivizing Electric Vehicles?
You may want to see also
Frequently asked questions
You’ll need a dedicated parking space, a stable Wi-Fi or cellular connection (for smart chargers), and access to your home’s electrical panel. Ensure your electrical system can handle the additional load, and consult a licensed electrician to assess compatibility.
Yes, most areas require permits for installing EV charging stations. Check with your local building department or municipality to ensure compliance with codes and regulations before starting the installation.
While some Level 2 chargers come with DIY installation options, it’s highly recommended to hire a licensed electrician. Professional installation ensures safety, compliance with local codes, and proper integration with your home’s electrical system.
Level 1 chargers use a standard 120V outlet and provide 2-5 miles of range per hour, while Level 2 chargers use a 240V outlet and offer 12-80 miles of range per hour. Level 2 is recommended for faster charging and daily use.
Costs vary depending on the charger type, electrical upgrades needed, and labor. Basic Level 2 chargers range from $500 to $700, while installation can add $500 to $2,000. Rebates and incentives may be available to offset expenses.
