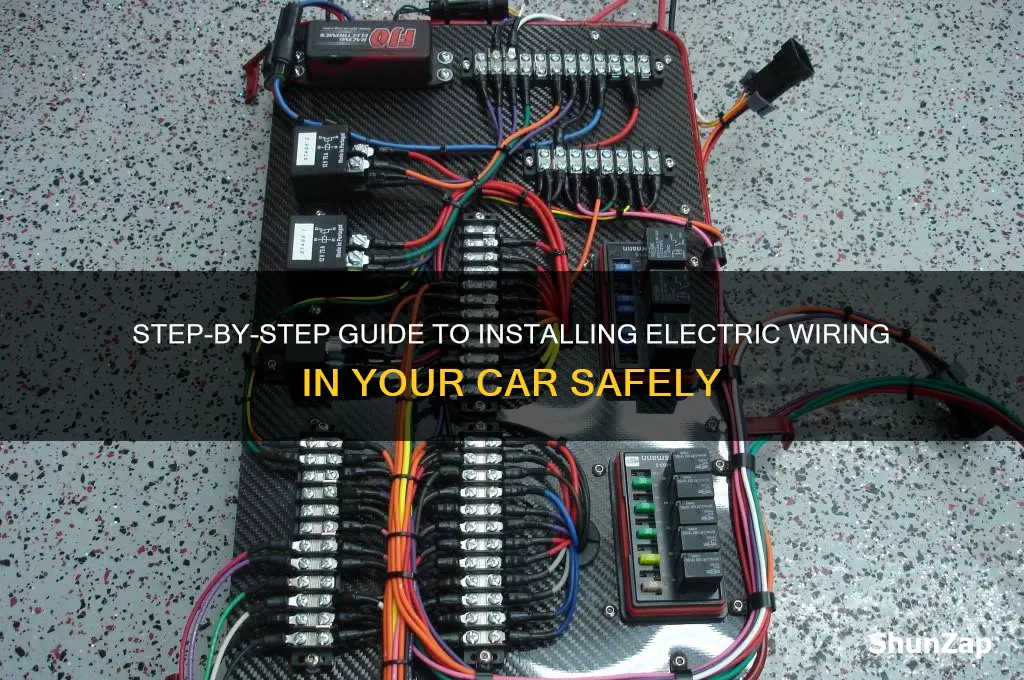

Installing electric wire in a car is a crucial task that requires careful planning, precision, and adherence to safety standards. Whether upgrading the audio system, adding LED lighting, or integrating a new accessory, proper wiring ensures functionality and prevents electrical issues. The process begins with selecting the correct gauge wire for the application, followed by mapping out the routing path to avoid interference with moving parts or heat sources. Tools such as wire strippers, crimp connectors, and electrical tape are essential for clean connections. It’s vital to disconnect the car battery before starting to avoid short circuits. Proper grounding and securing wires with zip ties or clamps help maintain a professional finish and reduce the risk of damage. Always consult the vehicle’s wiring diagram and follow manufacturer guidelines to ensure compatibility and safety.
| Characteristics | Values |
|---|---|
| Wire Type | Use automotive-grade wire (e.g., TXL or GPT) rated for high temperatures and vibration resistance. |
| Wire Gauge | Choose gauge based on current draw: 18-20 AWG for accessories, 14-16 AWG for high-power components. |
| Wire Color Coding | Follow standard color codes (e.g., red for power, black for ground) or create a custom scheme. |
| Routing | Plan the shortest, safest route away from heat sources, moving parts, and sharp edges. Use existing loom paths when possible. |
| Protection | Use split loom, wire wrap, or heat shrink tubing to protect wires from abrasion and environmental damage. |
| Grounding | Ensure a solid ground connection to the vehicle chassis using a clean, metal surface and proper grounding terminals. |
| Fuses | Install inline fuses within 18 inches of the power source to protect circuits from overcurrent. |
| Connectors | Use weatherproof connectors for outdoor installations and crimp or solder connections securely. |
| Testing | Test all connections with a multimeter before powering the system to ensure continuity and proper grounding. |
| Documentation | Label wires and create a wiring diagram for future reference and troubleshooting. |
| Compliance | Adhere to local vehicle modification laws and safety standards. |
| Tools Required | Wire strippers, crimping tool, soldering iron, heat gun, multimeter, zip ties, and wire loom. |
| Safety Precautions | Disconnect the battery before starting, wear safety gear, and avoid working on live circuits. |
Explore related products
What You'll Learn
- Gather Tools & Materials: Wire strippers, crimpers, connectors, heat shrink, electrical tape, multimeter, wiring diagram
- Plan Wiring Route: Identify path, avoid heat/moving parts, use existing looms, secure with clips
- Strip & Connect Wires: Strip insulation, crimp terminals, solder if needed, insulate with heat shrink
- Test Connections: Use multimeter to check continuity, voltage, and ground before powering system
- Secure & Protect Wires: Bundle wires, wrap with loom, secure with ties, avoid sharp edges

Gather Tools & Materials: Wire strippers, crimpers, connectors, heat shrink, electrical tape, multimeter, wiring diagram
Before you embark on the task of installing electric wire in your car, it’s crucial to assemble the right tools and materials. Think of this as the foundation of your project—skimp on quality or forget an essential item, and you risk faulty connections, shorts, or even fire hazards. Start with wire strippers, a tool specifically designed to remove insulation from wires without damaging the conductive core. Opt for a model with adjustable stripping holes to accommodate various wire gauges, typically ranging from 10 to 24 AWG, which covers most automotive applications.
Next, crimpers are indispensable for creating secure, professional-grade connections. Unlike pliers, crimpers apply precise pressure to terminals, ensuring a gas-tight seal that resists vibration and corrosion. Pair these with the appropriate connectors—butt connectors for joining wires, ring terminals for grounding, and spade connectors for attaching to switches or relays. Always match the connector size to the wire gauge; for instance, a 22-18 AWG wire requires a corresponding terminal to avoid loose connections.
To protect these connections, heat shrink tubing is a must-have. This flexible plastic shrinks tightly around wires when heated, providing insulation and strain relief. Choose a diameter that’s 1.5 to 2 times the wire’s diameter before shrinking, and use a heat gun or lighter to apply heat evenly. For quick fixes or added protection, electrical tape can be used, but it’s less durable and prone to degradation over time, especially in high-temperature areas like the engine bay.
A multimeter is your diagnostic lifeline, allowing you to test voltage, continuity, and resistance. Before splicing wires, use it to confirm power is present and circuits are functioning. For example, set the multimeter to the voltage setting and touch the probes to the wire ends to verify 12V in a typical automotive system. Without this tool, you’re essentially working blind, risking misconnections or damage to sensitive components.
Finally, a wiring diagram is the roadmap for your project. It shows the layout of your car’s electrical system, including wire colors, component locations, and fuse box details. Cross-reference this with your vehicle’s manual or online resources specific to your make and model. A diagram not only prevents guesswork but also highlights potential hazards, like high-current circuits that require heavier gauge wires. Together, these tools and materials transform a daunting task into a systematic, safe process.
