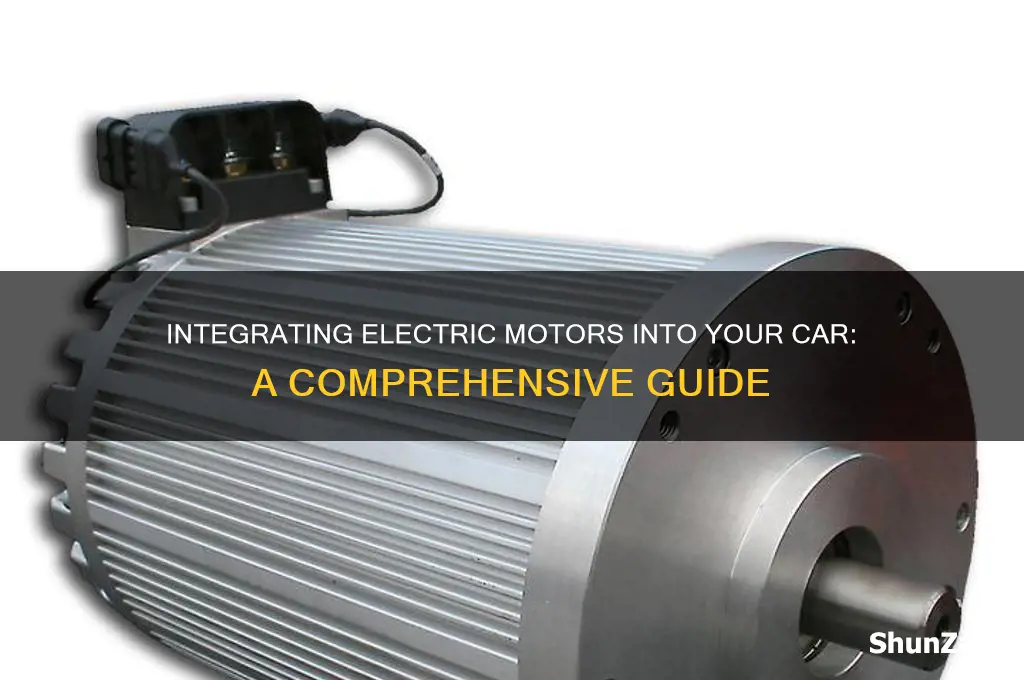

Integrating electric motors into an electric car involves a meticulous process that combines mechanical, electrical, and software engineering. The first step is selecting the appropriate motor type, such as AC induction or permanent magnet synchronous motors, based on performance requirements like torque, efficiency, and cost. Next, the motor must be physically mounted within the vehicle, often replacing the traditional internal combustion engine, ensuring proper alignment with the drivetrain. Electrical integration follows, connecting the motor to the battery pack via a power inverter, which converts DC power to AC for motor operation. Additionally, a robust cooling system is essential to manage heat dissipation and maintain efficiency. Finally, the motor’s control system must be seamlessly integrated with the vehicle’s electronic control unit (ECU) to optimize performance, monitor energy consumption, and ensure safety, creating a cohesive and efficient electric powertrain.
Explore related products
What You'll Learn
- Motor Selection: Choose based on power, efficiency, size, and cooling requirements for optimal performance
- Battery Integration: Match motor voltage and current demands with battery capacity and charging systems
- Controller Setup: Configure motor controllers for precise speed, torque, and regenerative braking control
- Thermal Management: Design cooling systems to prevent overheating during prolonged or high-load operation
- Mechanical Mounting: Ensure secure, vibration-resistant motor installation aligned with drivetrain components
Motor Selection: Choose based on power, efficiency, size, and cooling requirements for optimal performance
Selecting the right electric motor is a critical step in designing an electric vehicle (EV), as it directly impacts performance, range, and overall efficiency. The first consideration is power output, which must align with the vehicle’s intended use. For instance, a compact city car requires a motor delivering 50–100 kW, while high-performance EVs like the Tesla Model S demand upwards of 400 kW. Overestimating power needs wastes energy, while underestimating results in sluggish acceleration and poor drivability. Use the formula *Power (kW) = Torque (Nm) × RPM × 2π / 60,000* to calculate required output based on desired torque and RPM.
Efficiency is equally vital, as it determines how effectively the motor converts electrical energy into mechanical work. Aim for motors with peak efficiencies of 90–95%, typically achieved in the 50–80% load range. Permanent magnet synchronous motors (PMSM) often outperform induction motors in this regard, especially at lower speeds. However, PMSMs rely on rare-earth magnets, which can increase costs. Analyze efficiency maps provided by manufacturers to ensure the motor operates optimally within your vehicle’s typical driving cycle.
Size and weight constraints are non-negotiable in EV design, as every kilogram added reduces range. Motors with higher power densities (kW/kg) are ideal, such as those using advanced materials like silicon steel laminations or lightweight housings. For example, a 150 kW motor should ideally weigh under 50 kg for a mid-sized sedan. Consider integrating the motor directly into the wheel hub or axle to minimize drivetrain losses and save space, though this approach may complicate cooling and suspension design.
Cooling requirements are often overlooked but critical for sustained performance. Motors operating at high power levels generate significant heat, which must be dissipated to prevent thermal degradation. Liquid cooling is more effective than air cooling but adds complexity and weight. For a 200 kW motor, a cooling system capable of handling 20–30 kW of heat dissipation is necessary. Monitor temperature thresholds (typically 120–150°C for windings) and incorporate thermal management into the motor’s design, such as using phase-change materials or integrated heat exchangers.
Finally, trade-offs are inevitable. A high-power, compact motor may excel in performance but require expensive cooling solutions. Conversely, a cost-effective, efficient motor might lack the power density needed for a sporty EV. Prioritize based on your vehicle’s primary use case: efficiency for long-range commuting, power for performance, or size for urban mobility. Tools like motor simulation software (e.g., ANSYS Maxwell) can help model these trade-offs before prototyping, ensuring the selected motor meets all criteria without compromising other design aspects.
Are Electric Cars Truly Green? BBC Explores Their Environmental Impact
You may want to see also
Explore related products
Battery Integration: Match motor voltage and current demands with battery capacity and charging systems
Electric motors in vehicles demand precise voltage and current to operate efficiently, and the battery system must align perfectly with these requirements. Mismatches can lead to reduced performance, overheating, or even system failure. For instance, a 300V motor paired with a 400V battery pack risks overvoltage stress, while a 200V battery may underpower the motor, limiting torque and speed. Understanding the motor’s peak and continuous power demands is the first step in selecting a compatible battery system.
To ensure compatibility, calculate the motor’s power requirements using the formula *P = V × I*, where *P* is power in watts, *V* is voltage, and *I* is current in amperes. For example, a motor requiring 60 kW at 400V draws 150A (*60,000 ÷ 400 = 150*). The battery must supply this current without exceeding its discharge limits, typically rated in C (C-rate). A 50Ah battery with a 5C discharge rate can deliver 250A (*50 × 5 = 250*), sufficient for this motor. Always verify the battery’s voltage range matches the motor’s operating range, typically within ±10% to avoid inefficiencies.
Charging systems must also align with battery capacity to prevent overcharging or prolonged downtime. A 100 kWh battery pack requires a charger capable of delivering at least 50 kW for a 2-hour charge cycle. Fast-charging systems, such as those using CCS or CHAdeMO standards, can reduce this to 30 minutes but demand higher current ratings, often exceeding 200A. Ensure the vehicle’s onboard charger and external charging infrastructure support the battery’s voltage and current specifications to maintain safety and efficiency.
Practical tips include using battery management systems (BMS) to monitor voltage, current, and temperature, ensuring the motor operates within safe limits. For DIY integrations, start with a modular battery setup, allowing for incremental capacity additions as motor demands increase. Always test the system under load conditions before full deployment, using tools like dynamometers to simulate real-world driving scenarios. Proper battery integration isn’t just about matching specs—it’s about creating a harmonious system that maximizes range, power, and longevity.
Electricity in Healthcare: Which Professionals Use Electrical Modalities?
You may want to see also
Explore related products
Controller Setup: Configure motor controllers for precise speed, torque, and regenerative braking control
Electric motor controllers are the brains behind an electric vehicle's performance, translating driver inputs into precise control over speed, torque, and regenerative braking. These controllers act as intermediaries between the battery pack and the electric motor, regulating the flow of electricity to achieve desired outcomes.
Think of them as the conductor of an orchestra, ensuring each instrument (motor, battery, and drivetrain) plays in perfect harmony.
Configuration for Precision:
Configuring motor controllers involves a delicate dance of parameters. Key settings include:
- Current Limits: Defining maximum current draw protects the motor and battery from damage while ensuring safe operation.
- Duty Cycle: This controls the percentage of time power is delivered to the motor, directly influencing speed and torque.
- Pulse Width Modulation (PWM) Frequency: Adjusting PWM frequency affects motor efficiency and noise levels. Higher frequencies generally result in smoother operation but can increase switching losses.
Regenerative Braking: Capturing Energy:
A unique advantage of electric vehicles is regenerative braking, where the motor acts as a generator during deceleration, converting kinetic energy back into electrical energy to recharge the battery. Controller setup is crucial for optimizing this process. Parameters like regeneration voltage and current limits determine how aggressively energy is recaptured, balancing braking force with battery charging efficiency.
Fine-tuning these settings allows for a seamless driving experience, where braking feels natural while maximizing energy recovery.
Software Tools and Tuning:
Modern motor controllers often come with sophisticated software interfaces, allowing for real-time monitoring and adjustment of parameters. These tools enable engineers and enthusiasts to fine-tune performance based on specific vehicle characteristics and driving preferences. Data logging capabilities further enhance the tuning process, providing valuable insights into motor behavior under various conditions.
Safety and Reliability:
Precise controller setup is paramount for safety and reliability. Overcurrent protection mechanisms must be meticulously configured to prevent thermal runaway and potential hazards. Additionally, fail-safe mechanisms should be implemented to ensure safe operation in case of controller malfunctions. Regular firmware updates and thorough testing are essential to maintain optimal performance and address any potential vulnerabilities.
Can Electric Cars Charge on the Go? Exploring Dynamic Charging Tech
You may want to see also
Explore related products
Thermal Management: Design cooling systems to prevent overheating during prolonged or high-load operation
Electric motors in vehicles generate significant heat, especially during high-torque demands or extended operation. Without effective thermal management, this heat can degrade performance, damage components, or even lead to system failure. Cooling systems must address both the motor and its associated power electronics, as both contribute to thermal stress. Liquid cooling is often preferred over air cooling due to its higher efficiency, particularly in high-performance electric vehicles (EVs). Glycol-water mixtures, with a typical concentration of 50/50, are commonly used as coolants due to their optimal balance of heat transfer and freeze protection.
Designing a cooling system requires careful consideration of flow rates, pressure drops, and heat exchanger efficiency. For instance, a motor operating at 150 kW might require a coolant flow rate of 10–15 liters per minute to maintain temperatures below 120°C. Radiators or chillers must be sized to dissipate this heat effectively, often integrated into the vehicle’s front grille or underbody. Advanced systems may incorporate phase-change materials or thermoelectric coolers for additional thermal buffering during peak loads. Simulation tools like computational fluid dynamics (CFD) are essential for optimizing coolant pathways and minimizing hotspots.
A comparative analysis of cooling methods reveals trade-offs. Air cooling, while simpler and lighter, struggles to manage high heat fluxes, making it unsuitable for performance EVs. Direct liquid cooling, where coolant flows through channels in the motor housing, offers superior heat dissipation but adds complexity and cost. Indirect cooling, where coolant circulates around the motor, is easier to implement but less efficient. Hybrid systems, combining liquid cooling for the motor and air cooling for power electronics, strike a balance between performance and practicality. Tesla’s Model S, for example, uses a glycol-based liquid cooling system for both the motor and inverter, ensuring reliability even during aggressive driving.
Practical implementation demands robust materials and fail-safe designs. Coolant hoses and connectors must withstand pressures up to 15 bar and temperatures exceeding 100°C. Expansion tanks and pressure caps are critical to prevent air pockets and maintain system integrity. Regular maintenance, including coolant flushes every 50,000–100,000 miles, ensures longevity. For DIY enthusiasts or small-scale projects, off-the-shelf components like automotive radiators and electric water pumps can be adapted, but professional calibration of the control system is advised to avoid overheating or overcooling.
Ultimately, thermal management is not just about preventing failure—it’s about optimizing efficiency. Lower operating temperatures reduce resistive losses in windings and improve power density, extending the vehicle’s range. For instance, maintaining a motor temperature below 90°C can increase efficiency by up to 3%. This makes thermal design a critical differentiator in the competitive EV market. Whether for a high-performance sports car or a family sedan, a well-engineered cooling system is indispensable for unlocking the full potential of electric propulsion.
The Largest Electric Vehicle: A Colossal Green Machine
You may want to see also
Explore related products
Mechanical Mounting: Ensure secure, vibration-resistant motor installation aligned with drivetrain components
Electric motors in vehicles are subjected to immense forces and vibrations, making their secure mounting critical for performance and safety. The mechanical mounting process demands precision to ensure the motor remains firmly in place, aligned with the drivetrain, and capable of withstanding operational stresses. A misaligned or poorly secured motor can lead to inefficiencies, premature wear, or even catastrophic failure. Thus, the integration begins with a meticulous approach to mounting, considering both static and dynamic forces.
To achieve vibration-resistant installation, start by selecting a mounting system designed to absorb and dissipate energy. Rubber isolators, for instance, are commonly used to dampen vibrations between the motor and the chassis. These isolators should be rated to handle the motor’s weight and operational frequency, typically specified by the manufacturer. For example, a 50 kW motor might require isolators with a load capacity of 200–300 kg and a frequency range of 20–50 Hz. Ensure the isolators are positioned symmetrically to maintain balance and prevent uneven stress distribution.
Alignment is equally critical, as even minor deviations can cause drivetrain inefficiencies or damage. Use precision tools like laser alignment systems to ensure the motor’s rotational axis is perfectly aligned with the driveshaft or gearbox. A misalignment of just 0.1 mm can reduce efficiency by up to 5% and increase wear on bearings and couplings. Follow a step-by-step process: first, secure the motor loosely in place; second, align it using the laser system; and third, tighten the mounting bolts in a crisscross pattern to the manufacturer’s torque specifications, typically ranging from 50 to 150 Nm depending on the motor size.
Consider environmental factors that could affect mounting integrity over time. Temperature fluctuations, for instance, can cause materials to expand or contract, potentially loosening bolts or deforming isolators. Use anti-seize compounds on bolts to prevent corrosion and ensure they remain adjustable. For vehicles operating in extreme conditions, such as off-road or in cold climates, opt for mounting components made from materials like stainless steel or high-durometer rubber, which offer greater durability and temperature resistance.
Finally, validate the mounting setup through rigorous testing. Conduct vibration analysis using accelerometers to identify resonance frequencies and ensure they do not overlap with the motor’s operational range. Perform a road test to simulate real-world conditions, checking for unusual noises, vibrations, or changes in performance. Regularly inspect the mounting system during routine maintenance, replacing worn isolators or retorquing bolts as needed. A well-executed mechanical mounting process not only ensures the motor’s longevity but also contributes to the overall reliability and efficiency of the electric vehicle.
Is the Toyota Crown Electric? Exploring Its Powertrain Options
You may want to see also
Frequently asked questions
Key considerations include power and torque requirements, efficiency, size and weight, cooling needs, and compatibility with the vehicle's battery and control systems.
Proper cooling can be achieved through liquid or air cooling systems, ensuring adequate airflow or coolant circulation around the motor to dissipate heat generated during operation.
A motor controller, such as a DC or AC inverter, is required to manage the flow of electricity from the battery to the motor, controlling speed, torque, and direction.
Match the motor's power and torque ratings to the vehicle's weight, desired performance, and driving conditions, often using simulations or calculations to ensure optimal performance.
Safety measures include proper insulation, grounding, and protection against overcurrent, overvoltage, and overheating, as well as compliance with automotive safety standards.
