Beatrice Lang

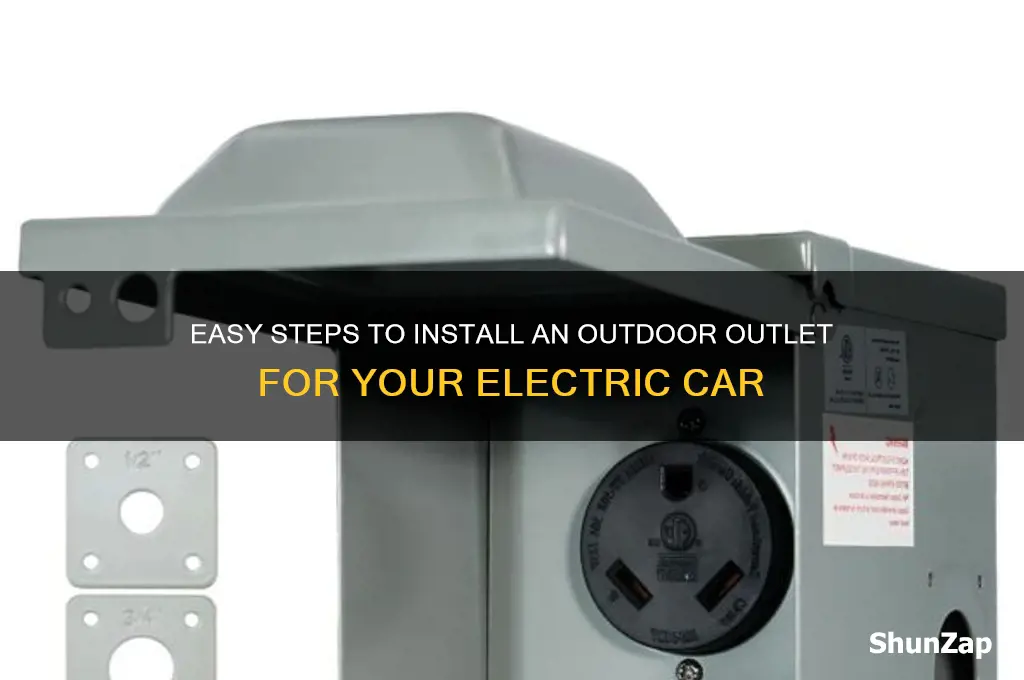

Installing an outdoor outlet for your electric car is a practical and essential step toward ensuring convenient and efficient charging at home. This process involves selecting the appropriate outlet type, typically a Level 2 charger, which provides faster charging compared to standard household outlets. Before beginning, it’s crucial to assess your electrical system’s capacity to handle the additional load and consult a licensed electrician to ensure compliance with local codes and safety standards. The installation typically includes mounting a weatherproof outlet box, running dedicated wiring from your electrical panel, and installing a compatible charging unit. Proper planning, including choosing an optimal location near your parking area and considering future upgrades, will maximize convenience and functionality. With the right tools, professional guidance, and adherence to safety protocols, you can create a reliable charging solution tailored to your electric vehicle’s needs.
Explore related products
What You'll Learn
- Choose weatherproof outlet: Select a NEMA 14-50 or 6-50 outlet rated for outdoor use
- Plan location: Place near parking, away from water, and accessible for charging
- Install dedicated circuit: Use 40-50 amp breaker for safe, efficient charging
- Wire correctly: Use 8-10 gauge stranded copper wire for durability
- Test and secure: Verify connections, ground properly, and seal against moisture
Choose weatherproof outlet: Select a NEMA 14-50 or 6-50 outlet rated for outdoor use
Selecting the right outlet for your outdoor electric vehicle (EV) charging setup is critical, and the NEMA 14-50 or 6-50 outlets are the gold standard for this purpose. These outlets are specifically designed to handle the high amperage required for Level 2 charging, which significantly reduces charging time compared to standard household outlets. The NEMA 14-50, for instance, supports up to 50 amps and is commonly used for RVs and EVs, while the NEMA 6-50 is less common but equally capable. Both are rated for outdoor use, ensuring they can withstand exposure to rain, snow, and temperature extremes without compromising safety or functionality.
When choosing between the two, consider your EV’s charging requirements and the compatibility of your charging equipment. Most home EV chargers are designed to work with NEMA 14-50 outlets, making it the more versatile and widely recommended option. However, if your charger specifies a NEMA 6-50 connection, ensure the outlet is correctly matched to avoid incompatibility issues. Always verify the amperage rating of your electrical circuit to ensure it aligns with the outlet’s capacity, typically 40 or 50 amps for these configurations.
Installation of these outlets requires careful planning and adherence to local electrical codes. Start by selecting a weatherproof outlet box and cover, which provides an additional layer of protection against the elements. The outlet should be mounted at least 18 inches above ground level to comply with safety standards and prevent water intrusion. Use outdoor-rated wiring and conduit to connect the outlet to your electrical panel, ensuring all connections are secure and properly sealed.
One practical tip is to install the outlet near your parking area but away from high-traffic zones to minimize wear and tear. Consider adding a dedicated circuit breaker in your electrical panel to handle the load without overloading existing circuits. If you’re unsure about any step, consult a licensed electrician to ensure the installation meets safety and regulatory requirements.
In conclusion, opting for a NEMA 14-50 or 6-50 weatherproof outlet is a smart investment for reliable and efficient outdoor EV charging. By prioritizing compatibility, safety, and proper installation, you’ll create a durable and functional charging solution tailored to your electric vehicle’s needs.
Mastering Car Electrical Disconnect Crimping: A Step-by-Step Guide
You may want to see also
Explore related products
![[4 in 1] USB C Car Charger, 4-Port 90W Super Fast Charging Cigarette Lighter Adapter, Dual 45W USBC & USB-A Multiport Car Phone Charger Accessories for iPhone 17 16 15 14 13 12, iPad, Galaxy, Tablet](https://m.media-amazon.com/images/I/719ZMzCWKXL._AC_UL320_.jpg)
![200W Car Power Inverter, PiSFAU DC 12V to 110V AC Car Plug Adapter Outlet with [20W USB-C] /USB-Fast Charger(18W) / 4.8A Dual USB/car Charger for Laptop](https://m.media-amazon.com/images/I/61IRXv7G09L._AC_UL320_.jpg)
Plan location: Place near parking, away from water, and accessible for charging
Choosing the right location for your outdoor outlet is crucial for both convenience and safety. Start by identifying the spot closest to your parking area to minimize cable length and tripping hazards. Ensure the outlet is within 10 to 15 feet of your vehicle’s charging port to accommodate most standard charging cables. Proximity reduces wear and tear on the cable and simplifies the charging process, especially during inclement weather.
Water is the enemy of electrical installations, so avoid areas prone to pooling or flooding. Position the outlet at least 3 feet above ground level to protect it from splashes, rain, and snowmelt. If your property slopes or is near a sprinkler system, angle the outlet downward to prevent water ingress. Consider using a weatherproof cover rated for outdoor use, such as NEMA 6-50 or 14-50 outlets, which are designed to withstand harsh conditions.
Accessibility is key to a functional charging setup. Place the outlet in a clear, unobstructed area where you can easily connect and disconnect the charger without bending or stretching. Avoid tight spaces or areas blocked by landscaping, fences, or other vehicles. If your driveway is shared or narrow, mount the outlet on a side wall or post rather than directly on the ground to prevent accidental damage from vehicles or lawn equipment.
For added safety and practicality, install the outlet near a well-lit area or add outdoor lighting nearby. This not only deters tampering but also makes nighttime charging safer and more convenient. If your charging routine involves late hours, motion-sensor lights can be a cost-effective and energy-efficient solution. Always consult local building codes and hire a licensed electrician to ensure the installation meets safety standards and is properly grounded.
Finally, think long-term. As electric vehicle technology evolves, future-proof your setup by installing a higher-amp outlet (e.g., 50-amp) even if your current car only requires 30 amps. This allows for compatibility with faster chargers or upgrades to your vehicle. Additionally, consider placing the outlet near a dedicated circuit breaker to avoid overloading your home’s electrical system. A well-planned location today saves time, money, and frustration tomorrow.
Electric Bus Motors: Types, Efficiency, and Power Sources Explained
You may want to see also
Explore related products
Install dedicated circuit: Use 40-50 amp breaker for safe, efficient charging
Installing a dedicated circuit for your electric vehicle (EV) charger is crucial for safety and efficiency. A 40- to 50-amp breaker is the sweet spot for most home EV charging setups. This amperage range ensures your charger operates optimally without overloading your electrical system. It’s a balance: too low, and charging times suffer; too high, and you risk unnecessary strain on your panel. Always consult your EV’s manual to confirm the recommended amperage, but this range typically aligns with Level 2 chargers, which are faster and more practical for daily use than Level 1 chargers.
From a practical standpoint, here’s how to proceed: hire a licensed electrician to install the dedicated circuit. They’ll assess your electrical panel’s capacity, ensuring it can handle the additional load. The process involves running a new 8-gauge or 6-gauge wire (depending on the amperage) from the panel to the outdoor outlet. Avoid sharing the circuit with other appliances to prevent tripped breakers during charging. The electrician will also install a weatherproof outlet or wall-mounted charger unit, ensuring it complies with local codes and is grounded properly. DIY is not recommended here—electrical mistakes can be dangerous and costly.
One common misconception is that higher amperage always means faster charging. While a 50-amp circuit can theoretically deliver more power, your EV’s onboard charger limits the actual charging speed. For instance, if your car’s charger is rated for 32 amps, a 50-amp circuit won’t charge it any faster. However, future-proofing with a 50-amp setup is wise if you plan to upgrade to a higher-capacity EV later. It’s an investment in flexibility, ensuring your infrastructure keeps pace with evolving technology.
Finally, consider the long-term benefits of a dedicated 40- to 50-amp circuit. It not only reduces charging times by up to 70% compared to a standard 15-amp household outlet but also minimizes wear on your electrical system. Overloading circuits with high-demand appliances like EV chargers can lead to overheating, fires, or damage to your car’s battery. By prioritizing safety and efficiency, you’re not just installing an outlet—you’re creating a reliable, sustainable charging solution for your electric vehicle.
Best Strings for Electric Ukulele: A Comprehensive Guide to Choosing
You may want to see also
Explore related products
Wire correctly: Use 8-10 gauge stranded copper wire for durability
Choosing the right wire gauge is critical for safely and efficiently powering your electric vehicle (EV) charger. 8-10 gauge stranded copper wire strikes the ideal balance between current capacity and flexibility. This range handles the high amperage demands of Level 2 chargers (typically 30-50 amps) without excessive energy loss or overheating. Stranded wire, composed of multiple thin strands, offers superior durability outdoors. It withstands vibration, temperature fluctuations, and bending far better than rigid solid-core wire, making it essential for the dynamic conditions of an outdoor installation.
Consider the analogy of a highway: wire gauge is like the number of lanes. A 12-gauge wire, while sufficient for household appliances, is a two-lane road struggling with EV charging traffic. An 8-gauge wire, however, is a four-lane highway, allowing smooth flow of electricity even during peak charging times. This prevents voltage drop, ensuring your car charges at its maximum rate without straining the system. Remember, undersized wire not only slows charging but also poses a fire hazard due to overheating.
Installation requires careful planning. Measure the distance from your electrical panel to the desired outlet location, factoring in bends and obstacles. Always add 10-15% extra length to accommodate connections and future adjustments. Use a wire stripper to expose ½ inch of copper at each end, ensuring clean connections. Secure the wire with outdoor-rated cable staples, spaced every 12-18 inches, and protect it with conduit where exposed to the elements.
While 8-10 gauge wire is standard for most EV installations, consult your charger's manual for specific recommendations. Some high-power chargers may require 6-gauge wire. Never exceed the amperage rating of your circuit breaker – a 40-amp charger needs a dedicated 50-amp breaker to account for inefficiencies. If in doubt, consult a licensed electrician to ensure compliance with local codes and safety standards.
Investing in quality stranded copper wire upfront saves money and headaches down the road. It prevents costly repairs, ensures reliable charging, and provides peace of mind knowing your EV setup is safe and future-proof.
Mastering Electric Guitar: Essential Finger Techniques and Placement Guide
You may want to see also
Explore related products
Test and secure: Verify connections, ground properly, and seal against moisture
Once your outdoor outlet is installed, the final steps are critical to ensuring safety, functionality, and longevity. Testing and securing the setup isn’t just a formality—it’s a safeguard against electrical hazards, water damage, and potential malfunctions. Start by verifying all connections are tight and secure. Loose wires can lead to overheating or intermittent power, which is especially problematic for high-draw appliances like electric vehicle chargers. Use a voltage tester to confirm the outlet is live and properly wired, checking for correct polarity and grounding. A miswired outlet can damage your vehicle or pose a shock risk, so precision here is non-negotiable.
Grounding is another cornerstone of this process. A properly grounded outlet prevents electrical surges and provides a safe path for stray current. Ensure the grounding wire is securely connected to the outlet’s grounding terminal and to the grounding rod or system in your electrical panel. Test the ground with a multimeter to confirm continuity. Without a reliable ground, your EV charger could become a hazard during a fault or lightning strike. Think of grounding as the outlet’s safety net—it’s invisible but indispensable.
Moisture is the silent enemy of outdoor electrical installations. Even a small gap or crack can allow water to seep in, causing corrosion, short circuits, or mold. Seal the outlet box with silicone caulk, paying special attention to where the conduit enters and where the box meets the wall. Use a weatherproof cover designed for outdoor outlets, ensuring it fits snugly and has a gasket to block water. For added protection, apply a bead of caulk around the cover’s edges. In regions with heavy rain or snow, consider installing the outlet at least 18 inches above ground level to minimize water exposure.
Finally, treat this phase as a checklist, not a suggestion. Test the outlet under load by plugging in your EV charger and monitoring for any signs of overheating or unusual behavior. Inspect all seals annually, especially after extreme weather, and reapply caulk as needed. Remember, an outdoor outlet isn’t just a convenience—it’s an extension of your home’s electrical system, exposed to the elements. Skipping these steps could void warranties, damage your vehicle, or worse. Done right, your installation will be as reliable as it is safe, powering your EV for years to come.
Essential Metals in Electrical Panel Cables: Conductivity and Durability Explained
You may want to see also
Frequently asked questions
You typically need a Level 2 charging station, which requires a 240-volt outlet. Common options include NEMA 14-50 or NEMA 6-50 outlets, depending on your charging station’s requirements.
It’s highly recommended to hire a licensed electrician for the installation. Working with 240-volt wiring can be dangerous and often requires permits and inspections to ensure compliance with local codes.
The outlet should be installed close to where you park your car, ideally within 10-15 feet. Ensure it’s easily accessible and protected from the elements with a weatherproof cover.
Yes, a dedicated circuit is usually required to handle the high power demand of electric vehicle charging. Most Level 2 chargers need a 40-50 amp circuit to operate safely and efficiently.
