Before starting any electrical work, it is crucial to ensure that the power is off to avoid accidents. The first step is to verify that the voltage detector or tester is functioning properly. This can be done by testing it on an outlet that is known to be live. Once the voltage tester is confirmed to be working, it can be used to test the circuit, outlet, or light switch that appears dead. If the voltage tester does not beep, flash, or vibrate, it indicates that the power is off. It is also important to wear insulated gloves and rubber-soled shoes for added protection. Additionally, understanding the basics of light switches and their positions in different countries can be helpful. In some cases, multiple switches may control the same lights, so it is important to be aware of the wiring setup.
How to know if the electricity is off
| Characteristics | Values |
|---|---|
| Light switches | Check the position of the switch. The "on" position of a toggle switch is usually "up" in the US, Canada, European countries, and Russia. In other countries, such as the UK, India, Australia, New Zealand, and Ireland, it is "down". |
| Voltage tester | Use a voltage tester to check for the presence of an electrical current. Ensure the voltage tester is working by testing it on a live circuit. |
| Voltmeter | Place the voltmeter on the output points at the bottom of the circuit breaker. If the light does not light up, there is no voltage. |
| Multimeter | A multimeter can measure voltage, current, resistance, and more. It requires more preparation than a voltage tester, such as connecting the leads to the correct jacks and selecting the appropriate settings. |
| Three-way switches | Three-way switches have no on or off position and simply switch between electrical paths. They allow control of a light from two different locations. |

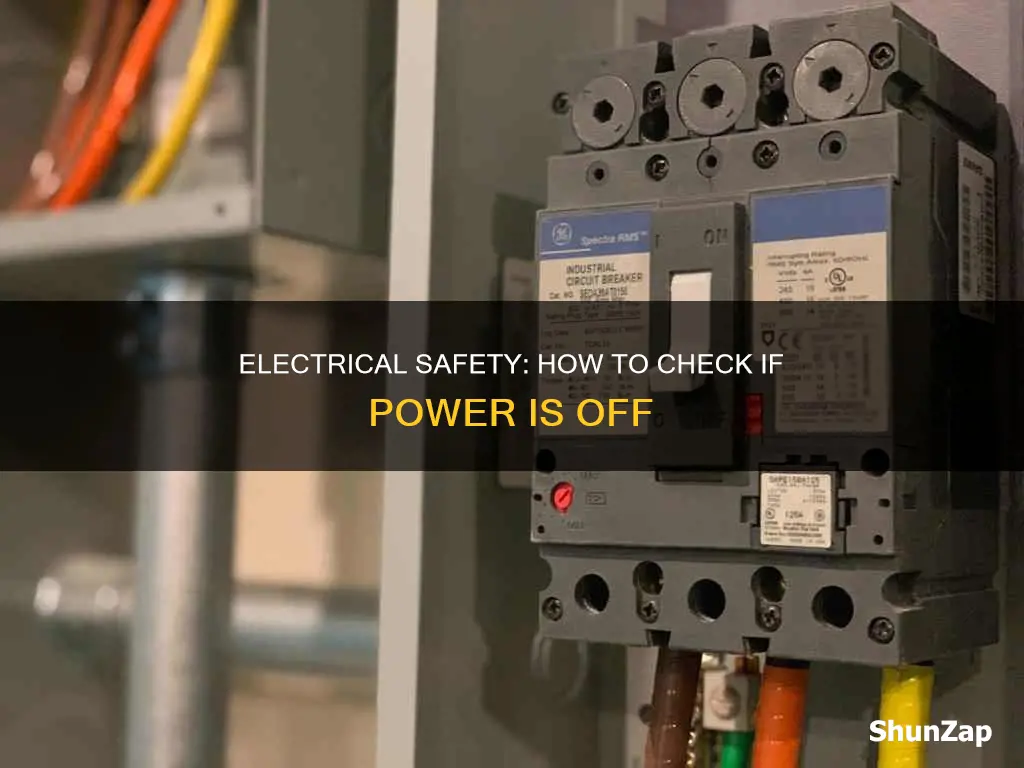

| Circuit breaker | Turn off the power at the circuit breaker and verify by attempting to switch the lights on. |
Explore related products
$23.4
What You'll Learn
Using a voltage tester
A voltage tester is a device used to test for the presence of an electrical current. It is different from a multimeter, which can perform the same basic test but also measures the voltage, current, resistance, and more. Both devices are useful for home electrical system repairs, but a multimeter requires more preparation. A simple voltage tester is more affordable and easier to use.
There are three types of voltage testers: contact voltage testers, non-contact voltage testers, and receptacle testers. Contact voltage testers use two metal probes to test the flow of electricity. They are used by inserting each probe into the slots of the outlet. Non-contact voltage testers can detect an electrical current from about an inch away, without coming into direct contact with the outlet or exposed wiring. Receptacle testers plug directly into a three-prong outlet to provide information about the electrical current.
Before using a voltage tester, it is important to test it on a live circuit to ensure it is functioning properly. Voltage testers are usually designed to be non-conductive, so even if they come into contact with a live wire, the power should not transmit through the device. It is also a good idea to wear insulated gloves for protection against electric shock.
To use a receptacle tester, simply plug the device into the outlet. The lights on the device will indicate the presence of a live electrical current. To test an outlet with a non-contact voltage tester, hold the tester about an inch away from the short slot (the "hot slot"). If the outlet is live, the voltage tester will beep or flash. Test wiring with a contact voltage tester by touching the probes to the hot and neutral wires.
While voltage testers are a useful tool, they have some limitations. They are only designed to tell you if the power is on or off, and cannot test variations in power or detect current in low-voltage devices. For more precise measurements, a multimeter may be a better option.
Understanding Pulseless Electrical Activity: A Medical Mystery
You may want to see also
Explore related products
Understanding light switches
Light switches are a simple yet integral part of any home's electrical system. They are usually located near doorways and allow us to control ceiling-mounted fixtures, wall sconces, and even some electrical outlets with a simple flick or tap. While it may seem like magic, understanding the basics of how light switches work and how they are wired can be very useful for running your home and can help you reduce the risk of electric shock or fire when working with switches.
There are two main types of electrical switches: power-through switches and end-line switches. The type of wiring depends on whether the power comes into the light box or the switch box first. If the power comes into the switch box first, the neutral white line from the service panel and the white line that leads to the light are spliced together. The hot black wire from the power source travels through the switch and then to the light. Flipping the switch interrupts the flow of electricity to the light, turning it off and on. If the power goes to the fixture before heading to the switch, you have "end-line" wiring. Only one cable enters the switch box, coming from the fixture. The white wire to the switch should be marked black to indicate that it is hot.
Light switches can also be categorised by the number of switches they have, or 'gangs', and how many individual switches control the same lighting fixture, or 'ways'. A one-gang switch has one switch, while a three-gang switch has three. A one-way switch is a typical on/off switch where a single switch controls a single light. A two-way switch means there is another switch controlling the same light fixture, and these are often used in staircases and larger rooms. Intermediate switches are used when there are three or more places controlling the same light fixture.
Before attempting to fix or replace a light switch, it is important to verify that the power is off to ensure safety. This can be done using a voltage tester or voltmeter. Voltage testers can be used on outlets, light switches, wires, or batteries, while voltmeter are placed on the output points at the bottom of the circuit breaker. It is important to test the voltage tester or voltmeter on a live outlet before use to ensure it is working properly.
Electricity's Nuclear Connection: Uranium's Role Explored
You may want to see also
Explore related products
Using a multimeter
A multimeter is a measurement device that combines three functions: a voltmeter, an ohmmeter, and an ammeter. It is used to measure voltage, current, and resistance, and in some cases, continuity. Multimeters are especially useful for home electrical system repairs.
- Set the multimeter to the appropriate setting. If you are testing a standard electrical outlet in your home, set the multimeter to AC voltage mode. If you are testing a battery, set it to DCV (direct current voltage).
- Prepare the multimeter leads. Connect the multimeter leads to the correct jacks, and select between testing AC or DC current.
- Insert the probes into the outlet. If you are testing an electrical outlet, insert the probes into the outlet slots. One probe goes into the large slot (the "hot" slot), and the other goes into the small slot (the "neutral" slot).
- Read the multimeter display. If you are using a digital multimeter, the voltage reading will be displayed clearly on the screen. If you are using an analog multimeter, look at where the needle is pointing to get the reading.
- Interpret the results. For a standard household outlet in the United States, a typical reading is 120 volts. If the reading is lower or higher, the outlet may be malfunctioning. If you are testing a battery, the voltage should ideally be between 12.6 and 12.8 volts.
It is important to exercise caution when using a multimeter to avoid the risk of electric shock. Always follow the specific instructions provided with your multimeter, as different models may vary. Additionally, always turn off the power before conducting any electrical tests.
Exterior Electrical Line Coverage: Worth the Cost?
You may want to see also
Explore related products
Verifying the voltage detector is working
Verifying that your voltage detector is working properly is an important step before relying on it to test electrical circuits. Here are some detailed instructions on how to do this:
First, ensure that the voltage detector is turned on. Many voltage detectors have an on/off switch or a similar mechanism to activate them. Check your specific model's instructions to confirm how to turn it on.
Next, verify that the voltage detector is functioning properly by testing it on a known live circuit or power outlet. This is an important step to ensure that the detector is giving accurate readings. Look for an outlet that is verifiably powering a device, such as a microwave, lamp, or television. Turn on the device to ensure the outlet is live, then turn it off.
Now, use your voltage detector to test this outlet. If it is functioning correctly, the detector should indicate the presence of voltage. The specific response will depend on your voltage detector model. For example, it may beep, flash, vibrate, or a combination of these. Some voltage detectors may have LED lights that illuminate to indicate voltage. If your detector does not respond, try replacing the batteries and testing again.
Additionally, some voltage detectors have a self-test function built-in. This feature will allow you to verify that the detector is operational without needing a known live circuit. Refer to your detector's user manual to understand if it has this function and how to use it.
It is also important to be aware of potential sources of false readings. "Ghost" or "phantom" voltage can occur due to induced voltage from a nearby conductor, resulting in a false positive reading even when no active power source is present. To minimize false positives, use a high-quality voltage detector, follow proper testing procedures, and be cautious when interpreting the results.
By following these steps, you can be confident that your voltage detector is working properly and providing accurate information about the electrical circuits you are testing.
Understanding Digital Electric Meters: A Beginner's Guide
You may want to see also
Explore related products
$8.99 $9.85
Using a voltmeter
A multimeter is a device that can be used to test electricity in batteries, appliances, and outlets. It can measure electrical properties such as voltage, current, and resistance. Before using a multimeter, it is important to read the instructions that came with the device, as different models can vary. It is also important to check your equipment for any damage, such as cracks or frayed wires, to protect yourself from electrical shock.
To test an electrical outlet with a multimeter, follow these steps:
- Turn off all power to the plug, including any circuits and the plug itself.
- Set the mode on your multimeter to AC voltage. Start at the top of the range and adjust downwards. Ensure that the multimeter is set higher than the voltage number printed on the cord.
- Connect the black probe (also known as the common jack) to the multimeter. The black probe does not carry live electricity and is always neutral.
- Plug the red probe into the jack labelled as AC voltage, ohms/omega, or VΩmA, VΩ, or V (for voltage).
- Place the end of the black probe into the neutral slot of the outlet. On a polarized plug, this will be the wider prong.
- Put the red probe into the hot slot on the plug.
- Check your reading. A typical reading for a household outlet in the United States is 120 volts. If the reading is lower or higher, the outlet may be malfunctioning.
- Remove the probes from the outlet and switch off the multimeter.
It is important to note that when testing with a multimeter, you should always hold the probes in the same hand to prevent an electrical shock from passing through your body. Additionally, always start with a high range and dial it down, as a range that is too low can cause problems.
Electric Charges: Understanding the Buildup and its Power
You may want to see also
Frequently asked questions
The first thing to do is to check the position of the switch. In the US, Canada, Europe, and Russia, the "on" position of a toggle switch is usually "up", whereas in the UK, India, Australia, New Zealand, and Ireland, it is usually "down".
If you turn the light on at the switch and then turn the breaker off, and the light goes out, then there is no electricity to the switch.
A voltage tester is a device used to test for the presence of an electrical current. To use a voltage tester, insert each probe into the slots of the outlet. If the outlet is live, the voltage tester should beep, flash, or vibrate.
You can use a voltmeter or voltage detector to check that the power is off. Place the voltmeter on the two output points at the bottom of the circuit breaker. If the light on the voltmeter does not light up, there is no voltage.
It is important to always verify that the power is off before beginning any electrical work. Wear insulated gloves and rubber-soled shoes to protect yourself from electric shock. Stand on dry ground and use one hand to minimize the risk of across-the-chest shocks.
