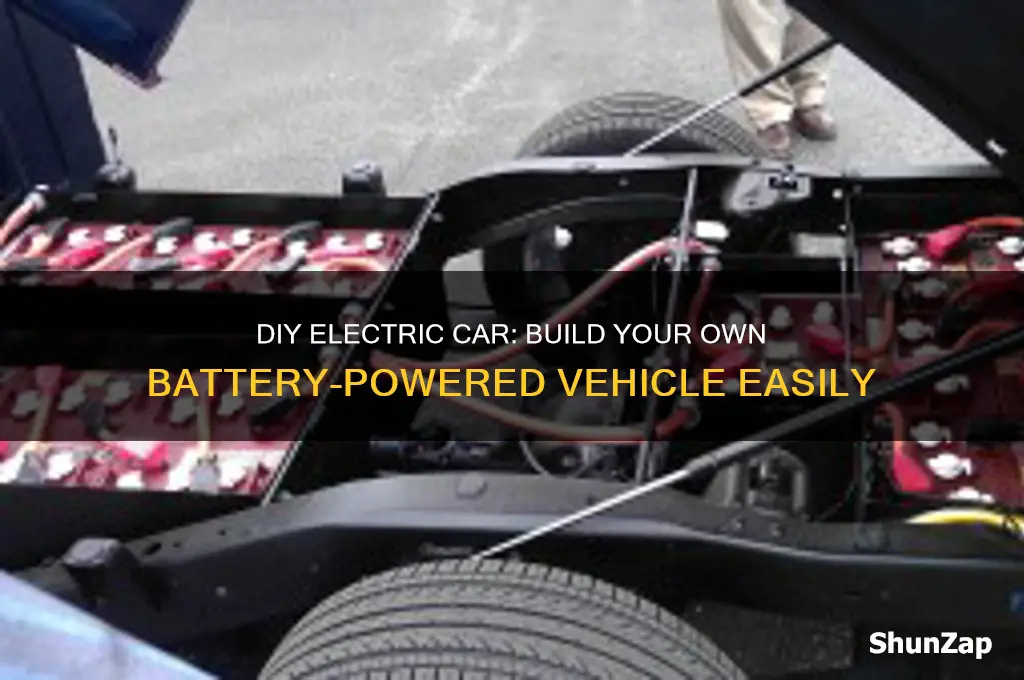

Building a battery-powered DIY electric car is an exciting and rewarding project that combines engineering, sustainability, and creativity. By repurposing a conventional vehicle or starting from scratch, enthusiasts can transform a car into an eco-friendly, electric-powered machine. The process involves key steps such as selecting a suitable donor vehicle, sourcing or building a battery pack, integrating an electric motor and controller, and ensuring proper wiring and safety measures. With the right tools, knowledge, and dedication, creating a DIY electric car not only reduces carbon emissions but also offers a hands-on learning experience in the growing field of electric vehicle technology.
Explore related products
What You'll Learn
- Battery Selection: Choose high-capacity, lightweight lithium-ion or LiFePO4 batteries for optimal performance and range
- Motor & Controller: Select a DC motor and compatible controller to match power and speed requirements
- Chassis & Frame: Build or modify a lightweight frame using aluminum or steel for durability
- Wiring & Safety: Ensure proper wiring, fuses, and insulation to prevent short circuits and overheating
- Testing & Tuning: Test drive, adjust motor settings, and optimize efficiency for smooth operation
Battery Selection: Choose high-capacity, lightweight lithium-ion or LiFePO4 batteries for optimal performance and range
Selecting the right battery is the cornerstone of your DIY electric car project, as it directly impacts performance, range, and overall efficiency. Lithium-ion (Li-ion) and LiFePO4 (Lithium Iron Phosphate) batteries are the top contenders due to their high energy density, lightweight design, and long cycle life. For instance, a 100Ah LiFePO4 battery can store up to 1.28 kWh of energy, providing a balance of power and longevity. Li-ion batteries, on the other hand, offer even higher energy density, making them ideal for maximizing range in compact builds.
When choosing between Li-ion and LiFePO4, consider your project’s priorities. LiFePO4 batteries are safer, more stable, and have a longer lifespan (up to 5,000 cycles), but they are slightly heavier and less energy-dense. Li-ion batteries, particularly those with nickel-manganese-cobalt (NMC) chemistry, offer up to 260 Wh/kg energy density, making them perfect for lightweight, high-performance vehicles. For a DIY electric car, a 48V or 72V system using 10-20 parallel LiFePO4 cells or fewer Li-ion cells is a common configuration, balancing power and practicality.
Practical tips for battery selection include calculating your car’s energy needs based on motor power and desired range. For example, a 5kW motor running for 1 hour requires 5 kWh of energy. Use this to determine the battery capacity (Ah) and voltage (V) needed. Always factor in a safety margin—aim for 20-30% more capacity than your calculated requirement to account for inefficiencies. Additionally, ensure your battery pack includes a Battery Management System (BMS) to monitor cell balance, temperature, and voltage, preventing overcharging or overheating.
Cost and availability are also critical factors. LiFePO4 batteries are generally more affordable upfront, with prices ranging from $200 to $500 per kWh, while Li-ion batteries can cost $300 to $600 per kWh. However, Li-ion’s higher energy density may justify the cost if weight and range are paramount. Sourcing from reputable suppliers and considering second-life batteries (repurposed from electric vehicles) can reduce expenses without compromising quality.
Finally, safety should never be overlooked. Lithium batteries require careful handling, especially during installation and charging. Use insulated tools, wear protective gear, and ensure proper ventilation. Always follow manufacturer guidelines for wiring, fusing, and enclosure design. By prioritizing safety, capacity, and weight, your battery selection will not only power your DIY electric car but also ensure it performs reliably for years to come.
The Evolution of Crude Electric Vehicles: Understanding Their Basics
You may want to see also
Explore related products
Motor & Controller: Select a DC motor and compatible controller to match power and speed requirements
Selecting the right DC motor and controller is the backbone of your DIY electric car project. The motor determines how much power your vehicle can deliver, while the controller manages how that power is applied. Together, they dictate acceleration, top speed, and efficiency. Start by defining your car’s intended use: is it for casual neighborhood drives, off-road adventures, or high-speed performance? This will guide your voltage, amperage, and torque requirements. For instance, a 24V motor with a 500W rating might suffice for light commuting, while a 72V, 5kW motor could power a more robust, high-performance vehicle.
When pairing a motor with a controller, compatibility is non-negotiable. The controller must match the motor’s voltage and current ratings to avoid overheating or damage. For example, a 48V motor requires a 48V controller, and the controller’s maximum current output should align with the motor’s peak draw. Brushless DC (BLDC) motors are popular for their efficiency and durability, often paired with electronic speed controllers (ESCs) that offer precise throttle control. If you’re working with a brushed DC motor, opt for a brushed motor controller, which is simpler but less efficient. Always check the controller’s amperage limit—exceeding it can lead to failure.
Consider the motor’s torque and RPM (revolutions per minute) to ensure it meets your speed and load requirements. Higher torque is essential for heavier vehicles or steep inclines, while higher RPM translates to faster top speeds. For example, a motor with 20 Nm of torque and 3000 RPM might be ideal for a lightweight car, whereas a 50 Nm, 5000 RPM motor could handle a larger, more demanding build. Use online calculators or consult manufacturer specs to estimate performance based on your motor’s kV (RPM per volt) rating and battery voltage.
Practical tips: Always factor in a safety margin when selecting components. If your motor draws 30A under load, choose a controller rated for 40A or higher to prevent overloading. Test the system incrementally—start with low power and gradually increase to ensure everything functions as expected. Finally, consider regenerative braking capabilities if your controller supports it, as this can improve efficiency and extend battery life. By carefully matching your motor and controller, you’ll create a reliable, efficient powertrain tailored to your DIY electric car’s needs.
Discover the Most Reliable Electric Car for Long-Lasting Performance
You may want to see also
Explore related products
Chassis & Frame: Build or modify a lightweight frame using aluminum or steel for durability
The foundation of any DIY electric car is its chassis and frame, which must balance strength, weight, and cost. Aluminum is a popular choice for its lightweight properties, reducing the overall vehicle weight and improving efficiency. However, it’s more expensive and requires specialized tools for welding. Steel, on the other hand, is cheaper and easier to work with but adds significant weight, which can drain battery life faster. For a budget-friendly project, consider modifying an existing steel frame from a donor vehicle, such as a small economy car, and reinforcing it with aluminum components where weight reduction is critical.
When building from scratch, start by designing a simple tubular frame using 1.5-inch diameter aluminum or steel tubing. Use CAD software or graph paper to map out dimensions, ensuring the frame accommodates the battery pack, motor, and seating area. For aluminum, TIG welding is ideal but requires practice or professional assistance. Steel can be welded with a MIG welder, a more accessible option for beginners. Incorporate cross-bracing to enhance rigidity, especially if the car will handle high speeds or sharp turns. Always follow safety protocols, such as wearing protective gear and working in a well-ventilated area.
Modifying an existing chassis is often more practical than starting from zero. Strip a donor vehicle’s body, retaining the frame and suspension components. Replace heavy steel parts with aluminum alternatives, such as custom-cut flat plates or tubular sections. Ensure the modified frame maintains its structural integrity by consulting a mechanic or using finite element analysis (FEA) software to test stress points. This hybrid approach combines the durability of a proven design with the benefits of lightweight materials, making it ideal for first-time builders.
A critical consideration is the frame’s compatibility with electric components. The battery pack, often the heaviest element, should be mounted low and centered to improve stability. Use aluminum angle brackets or custom-fabricated mounts to secure it to the frame. Similarly, the electric motor and drivetrain must align with the existing suspension geometry. If using a rear-wheel-drive setup, ensure the frame allows for proper driveshaft clearance. Regularly measure and test-fit components during construction to avoid costly rework.
Finally, prioritize durability without sacrificing weight savings. For aluminum frames, use thicker gauge material in high-stress areas like the front and rear crumple zones. Apply rust-proofing treatments to steel frames, especially if the car will be exposed to moisture. Test the completed chassis by simulating load conditions, such as adding weights to mimic passenger and battery mass. A well-built frame not only ensures safety but also extends the lifespan of your DIY electric car, making it a worthwhile investment of time and resources.
Electric Vehicle Inspection: Texas Requirements Explained
You may want to see also
Explore related products
Wiring & Safety: Ensure proper wiring, fuses, and insulation to prevent short circuits and overheating
Proper wiring is the backbone of any DIY electric car project, and it’s not just about connecting point A to point B. High-current systems, like those in battery-powered vehicles, demand wires rated for their specific amperage. For instance, a 12V system drawing 100 amps requires 2-gauge wire to minimize voltage drop and heat generation. Undersized wires can melt insulation, leading to shorts or fires. Always consult an amperage chart or use an online calculator to determine the correct wire gauge for your setup.
Fuses are your first line of defense against electrical disasters. They’re designed to break the circuit when current exceeds safe levels, preventing overheating and potential fires. Place fuses as close to the battery as possible to protect the entire system. For a 100-amp draw, use a 100-amp fuse, but consider adding smaller fuses downstream for individual components like motors or controllers. Never bypass a blown fuse—it’s a warning sign, not an inconvenience.
Insulation is just as critical as the wiring itself. High-temperature automotive wire with silicone or Teflon insulation is ideal, as it withstands the heat generated by high-current systems. Avoid using electrical tape as a primary insulator; it degrades over time. Instead, use heat-shrink tubing or split loom to protect wires from abrasion and environmental factors. Pay special attention to areas where wires pass through metal frames or near moving parts, as these are common failure points.
A systematic approach to wiring can save you from headaches later. Label every wire with its function and destination using heat-resistant tags or markers. Create a wiring diagram before you start, and follow it meticulously. Group wires into bundles using zip ties or wire looms to keep them organized and reduce the risk of tangling or chafing. Test each circuit with a multimeter before powering up the entire system to ensure continuity and proper grounding.
Finally, safety isn’t just about preventing fires—it’s about designing a system that’s reliable and maintainable. Incorporate accessible disconnect switches to kill power quickly in an emergency. Use waterproof connectors for outdoor components, and ensure all connections are tight and corrosion-free. Regularly inspect your wiring for signs of wear, heat damage, or loose connections. A well-wired DIY electric car isn’t just functional; it’s a testament to your attention to detail and commitment to safety.
Inverters and Electric Vehicles: The Perfect Pairing
You may want to see also
Explore related products
Testing & Tuning: Test drive, adjust motor settings, and optimize efficiency for smooth operation
Once your DIY electric car is assembled, the real magic begins with testing and tuning. This phase is where you transform a collection of parts into a smooth, efficient vehicle. Start with a controlled test drive in a safe, open area. Pay close attention to acceleration, braking, and handling. Note any unusual noises, vibrations, or resistance, as these could indicate misalignment or improper installation. For instance, a whining sound might suggest the motor is under strain, while jerky movements could point to issues with the throttle or controller settings.
Adjusting motor settings is a critical step in optimizing performance. Most DIY electric car controllers allow you to tweak parameters like current limits, acceleration curves, and regenerative braking. Begin by setting the current limit to 70-80% of the motor’s rated capacity to prevent overheating. Gradually increase this value during subsequent test drives, monitoring temperature and performance. Use a multimeter to measure voltage and current draw under load, ensuring they stay within safe limits. For example, if your motor is rated for 50A, aim for 35-40A during initial tests.
Efficiency optimization goes beyond the motor. Evaluate tire pressure, as underinflated tires increase rolling resistance and reduce range. Aim for 10-15% above the manufacturer’s recommended PSI for better efficiency. Additionally, streamline the vehicle’s aerodynamics by removing unnecessary protrusions or adding lightweight fairings. Test different driving styles—smooth acceleration and coasting are more efficient than rapid starts and stops. Use a watt-hour meter to track energy consumption, aiming for a consistent, low draw over time.
Caution is key during this phase. Always wear protective gear and have a spotter during test drives. Avoid pushing the car to its limits until you’re confident in its stability and safety. Keep a fire extinguisher nearby, especially when working with high-capacity batteries. Regularly inspect connections for signs of wear or corrosion, as loose wires can lead to short circuits. Finally, document each adjustment and its impact on performance. This data will help you fine-tune the car systematically, ensuring it operates smoothly and efficiently for the long haul.
Electric Cars Maintenance: What You Need to Know
You may want to see also
Frequently asked questions
The essential components include a battery pack (usually lithium-ion), an electric motor, a motor controller, a chassis or frame, wheels, a throttle mechanism, and a charging system. Additionally, you’ll need wiring, connectors, and safety components like fuses and a battery management system (BMS).
Select a battery based on voltage, capacity (Ah), and energy density. Lithium-ion batteries are popular due to their high energy density and lightweight. Calculate the required voltage and capacity based on your motor’s power needs and desired range. Ensure the battery pack is compatible with your motor controller and includes a BMS for safety.
Use a DC brushless motor or a brushed DC motor, depending on your budget and performance needs. Brushless motors are more efficient but require a more complex controller. Connect the motor to the motor controller, which regulates power from the battery. Follow the manufacturer’s wiring diagram and ensure proper grounding to avoid electrical issues.
