Condensation in electrical enclosures can cause a lot of problems, from corrosion and short-circuiting to dangerous electrical arcs and expensive downtime. It occurs when warm, humid air comes into contact with a cold surface, and the air becomes unable to hold moisture, causing it to condense and form water droplets. This is more likely to happen in outdoor enclosures, which are often installed in environments with high humidity levels, and when enclosures are moved between different temperature zones. To prevent condensation, it's important to stop air and water intrusion and maintain temperature control. Heating elements, such as anti-condensation heaters, can be used to prevent the enclosure's temperature from dropping below the dew point. Humidity sensors can also help monitor relative humidity levels and manage temperature balance. Other solutions include using desiccant packets to absorb moisture, installing vent plugs for airflow, applying corrosion inhibitor sprays, and choosing weatherproof cabinets with NEMA or IP ratings that protect against moisture ingress.
How to prevent condensation in electrical enclosures
| Characteristics | Values |
|---|---|
| Design | NEMA or IP-rated outdoor weatherproof cabinets |
| Electrical enclosure moisture control | Prevent moisture ingress and allow humidity to exit |
| Ventilation | Use vent plugs, Gore Protective Vents, or a fan to improve airflow |
| Temperature control | Use heaters or a Peltier heat pump to maintain temperature above the dew point |
| Humidity control | Use dehumidifiers, AC, or electrolysis to remove humidity |
| Sealing | Seal entry points with putty or foam, and use gasketed fittings |
| Drainage | Install a bucket or pipe to collect water |
| Corrosion prevention | Apply corrosion inhibitor sprays or gels, and use polycarbonate enclosures |
| Moisture absorption | Use desiccant or silica gel packets |
| Maintenance | Regularly inspect and maintain the enclosure, addressing any moisture or corrosion issues |
Explore related products
What You'll Learn
Use heaters to maintain temperature
Using heaters to maintain the temperature is an effective way to prevent condensation in electrical enclosures. This method involves raising or lowering the temperature of the enclosure to prevent moisture build-up.
One approach is to use anti-condensation enclosure heaters, which can be controlled by a humidistat. When the temperature drops, the air inside the enclosure can become saturated with water. If the temperature falls below the dew point, water vapour will condense. A humidistat detects the increase in humidity and turns on the heater, preventing the temperature from dropping below the dew point. This method is particularly useful in cold environments, where condensation can turn to frost and cause damage to sensitive electrical components.
Another option is to use resistance heaters, such as 24v heaters, to warm the panels and keep them from getting too cold. This can be an effective solution when there are significant temperature differences, such as when enclosures are hosed down with hot water or exposed to cold outdoor conditions.
It is also important to consider the placement of the enclosure. Whenever possible, install the enclosure away from temperature fluctuations and damp areas to minimise the risk of condensation. However, in some cases, this may not be achievable. In such instances, heaters can be used alongside other methods, such as fans or air heat exchangers, to maintain the desired temperature and prevent condensation.
Additionally, it is worth noting that no enclosure is completely airtight. As temperatures change, the air inside an enclosure will draw in moisture-rich air, leading to condensation. Therefore, it is crucial to monitor relative humidity levels using humidity sensors and evaluate the balance between exterior and interior temperatures. This information can then guide the use of heaters and other temperature control methods to prevent condensation effectively.
Electricity Theft: A Crime That Shocks the System
You may want to see also
Explore related products
Seal entry points to prevent humid air
Sealing entry points is a crucial step in preventing humid air from causing condensation within electrical enclosures. This is especially important for outdoor electrical enclosures, which are often exposed to high humidity levels in their environments.
The first step is to identify all potential entry points for humid air. These can include conduit entries, box covers, doors, and ventilation openings. Once identified, these entry points can be sealed using a variety of methods.

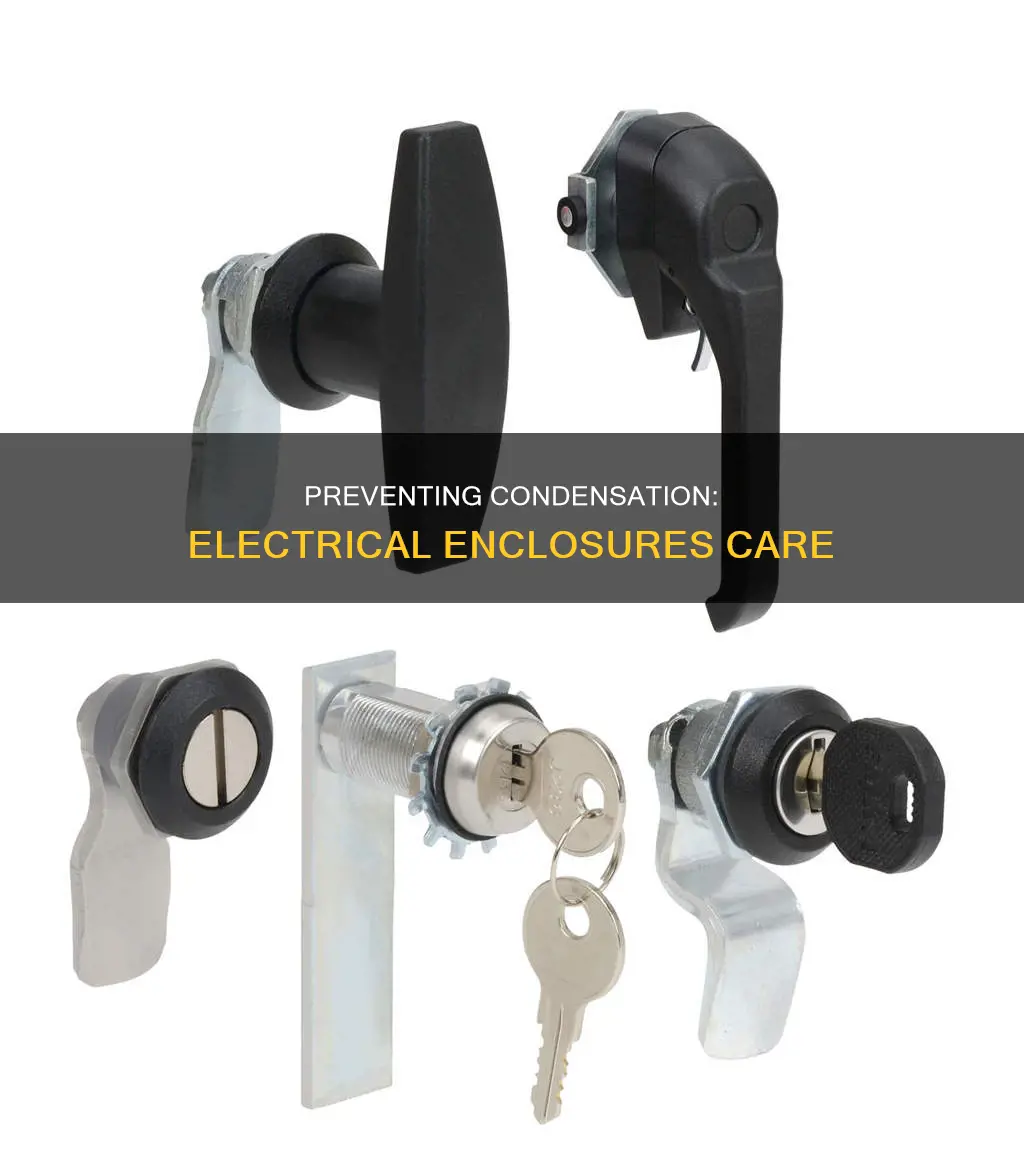

One common method is to use waterproof duct-sealing putty to seal the box covers and doors. However, this may not be a permanent solution as it can be washed off or blasted off during sanitation. Another option is to use NEMA or IP-rated enclosure components, such as an IP65-rated lock. These enclosures are designed to protect against the ingress of moisture and provide different levels of protection depending on their ratings. It is important to note that no enclosure is completely airtight, and temperature changes can still cause condensation due to the air inside drawing in moisture-rich air.
Gaskets and seals, such as the GORE® Protective Vents Adhesive Series, Snap-In Series, and Screw-In Series, can also be used to block the entry of water and contaminants while allowing humidity to escape. Gore's ePTFE Membrane Vents are another option that prevents water ingress and equalizes pressure to reduce the chance of seal failure. Additionally, applying corrosion inhibitor sprays or gels can help prevent the corrosive effects of condensation on the enclosure and its electrical components.
It is also important to consider the placement of the enclosure. If possible, install the enclosure away from serious temperature fluctuations or damp areas to minimize the risk of condensation. By sealing entry points and taking preventative measures, you can effectively reduce the impact of humid air and maintain the integrity of your electrical enclosures.
Electric Razor Benefits: Preventing Razor Bumps and Irritation
You may want to see also
Explore related products
Use NEMA or IP-rated weatherproof cabinets
When designing electrical enclosures, it is crucial to focus on preventing condensation. This is because condensation in electrical enclosures can lead to several issues, such as corrosion, mould, and the risk of electrical shortages, fires, or shock to workers.
One effective solution to prevent moisture ingress is to use NEMA or IP-rated weatherproof cabinets. NEMA stands for the National Electrical Manufacturers Association, which is the largest trade association of electrical engineers in the US. NEMA-rated enclosures are designed to protect against the ingress of solid foreign objects, such as falling dirt and windblown dust, as well as water in the form of rain, sleet, or snow, or hose-directed water. They also provide defence against water splashes and corrosion, making them suitable for environments with high moisture levels.
IP ratings, on the other hand, were developed by the International Electrotechnical Commission (IEC) and are commonly used in Europe and, increasingly, in the US. Like NEMA ratings, IP ratings indicate the level of protection an enclosure provides against the entry of moisture, liquids, and solid objects. For example, an IP65-rated enclosure is designed to prevent water ingress, but it is not completely airtight, so condensation may still occur due to temperature changes.
While NEMA and IP-rated enclosures do not guarantee the prevention of condensation, they do provide a higher level of protection against moisture ingress. This is especially important for outdoor electrical enclosures, which are often subjected to high ambient humidity levels. By using these enclosures, designers can provide their customers with added protection against the elements, ensuring that electrical equipment stays safe and reducing the risk of condensation-related issues.
To further enhance the performance of these enclosures, designers can incorporate features such as cooling and heating options, various construction materials like FRP, ABS, steel, or stainless steel, and custom configurations to meet specific application requirements.
Electrical Work in Colorado: License Requirements and Qualifications
You may want to see also
Explore related products
Install humidity sensors to monitor levels
Installing humidity sensors is a crucial step in preventing condensation in electrical enclosures. Humidity sensors are devices that monitor the relative humidity levels within the enclosure, providing valuable data for proactive decision-making.
By installing these sensors, you gain the ability to continuously track and record humidity levels. This real-time data helps you identify trends and fluctuations in humidity, allowing you to make data-driven adjustments to prevent condensation. For example, if humidity levels consistently rise during specific periods, you can implement targeted solutions, such as improved ventilation or the use of dehumidifiers, to address the issue at its source.
Humidity sensors are especially beneficial for enclosures located in environments with fluctuating temperatures or high humidity levels. These sensors can be strategically placed within the enclosure to monitor humidity levels at critical points, ensuring that you receive early warnings of potential condensation risks. This proactive approach enables you to address humidity issues before they lead to condensation, protecting your electrical equipment from moisture-related damage.
In addition to monitoring, humidity sensors can also help evaluate the effectiveness of implemented solutions. By tracking humidity levels over time, you can assess whether your condensation prevention strategies are working as intended. This feedback loop allows for continuous improvement and refinement of your condensation prevention measures, ensuring that your electrical enclosures remain protected from moisture-related issues.
Overall, installing humidity sensors is a vital tool in the fight against condensation in electrical enclosures. By providing real-time data on humidity levels, these sensors empower you to make informed decisions, take proactive measures, and continuously refine your condensation prevention strategies, ultimately safeguarding your electrical equipment and maintaining operational efficiency.
Electric Fences: Are They Legal?
You may want to see also
Explore related products
![wisedry 2 x 500 Gram [2.2 lbs] Rechargeable Silica Gel Car Dehumidifier, Microwave Fast Reactivated Desiccant Packets Large for Gun Safe Closet Basement Garage Storage Moisture Absorber Bag Reusable](https://m.media-amazon.com/images/I/71d+MkwAnML._AC_UL320_.jpg)
Use anti-condensation sprays or gels
Using anti-condensation sprays or gels is a great way to prevent moisture build-up in electrical enclosures. These sprays or gels act as corrosion inhibitors, protecting the electrical components from the harmful effects of condensation. This is especially important in outdoor enclosures, which are often exposed to high humidity levels and temperature fluctuations that can lead to condensation and, eventually, frost.
Corrosion inhibitor sprays or gels can be applied directly to the electrical enclosure and its internal components. By creating a protective layer, these products prevent moisture from coming into direct contact with the electrical components, reducing the risk of corrosion and other issues caused by condensation. This method is simple and effective, providing a barrier that helps to mitigate the potentially damaging consequences of condensation.
In addition to corrosion inhibitor sprays and gels, desiccant packets, such as silica gel packets, can be placed inside the electrical enclosure to absorb moisture. This two-pronged approach of using both sprays/gels and desiccant packets can further enhance the protection against condensation. By actively absorbing moisture, these desiccant packets work in tandem with the protective layer formed by the sprays or gels, creating a drier environment within the enclosure.
While these solutions are effective, it's important to note that they may not entirely prevent condensation in all cases. Electrical enclosures with higher IP ratings, for example, may experience more condensation issues due to the difficulty of water vapour escaping from these highly protected environments. In such cases, combining anti-condensation sprays or gels with other methods, such as enclosure dehumidifiers or temperature and humidity controllers, can provide a more comprehensive solution.
By taking a proactive approach and utilising anti-condensation sprays or gels, along with other complementary methods, you can significantly reduce the impact of condensation on your electrical enclosures. This will help maintain the integrity and functionality of your electrical equipment, preventing potential malfunctions, corrosion, and other issues caused by moisture build-up.
Repairing John Deere Electrical Connectors: A Step-by-Step Guide
You may want to see also
Frequently asked questions
Condensation occurs when warm, humid air comes into contact with a cold surface. When the difference in air temperature becomes too great, the air becomes unable to hold moisture in the form of water vapour, causing that moisture to condense and form water droplets.
Condensation can lead to corrosion, short-circuiting, diminished performance, dangerous electrical arcs, and expensive downtime. In sub-freezing conditions, water that condenses and then freezes becomes frost, which can potentially damage sensitive device components.
To prevent condensation in electrical enclosures, it is important to stop air and water intrusion. This can be done by sealing the conduit entry points and using waterproof duct-sealing putty on box covers and doors. Using heaters can also help to keep the temperature above the dew point. Other methods include using desiccant packets, installing anti-condensation units, and improving ventilation.
