Ham radio operators need to be aware of the potential dangers of electrical shock and electromagnetic pulses (EMPs). EMPs can be generated by lightning, the sun, or nuclear explosions, and can overload and damage electrical circuits. While it is challenging to completely protect ham radio equipment from EMPs, some measures can be taken, such as using enclosures known as Faraday cages or commercial products like the EMP Shield. Additionally, it is crucial to follow electrical safety practices to prevent electrical shocks, such as using three-wire cords and plugs for AC-powered equipment and grounding the feedline and antenna mast. These precautions can help ensure the safety of both the operator and the equipment in the event of electrical issues.
Explore related products
What You'll Learn
- Disconnect ham radio from power sources, antenna, and computer during a storm
- Use a Faraday cage to protect from electromagnetic pulses
- Ground the feedline and antenna mast to avoid lightning damage
- Use three-wire cords and plugs for AC equipment to prevent electrical shock
- Ensure proper grounding where electrical, CATV, and phone services enter the building
Disconnect ham radio from power sources, antenna, and computer during a storm
Disconnecting your ham radio from its power sources, antenna, and computer during an electrical storm is a critical step in protecting your equipment from damage. While this may not be a guaranteed way to safeguard your radio gear, it is a recommended practice to reduce the risk of damage or destruction from lightning strikes or electromagnetic pulses (EMPs).
During a lightning storm, lightning can strike the antenna or power lines, causing high currents to pass through your equipment and potentially damaging it. By disconnecting all cables, including the feedline, power, ethernet, and any "RF grounds", you can minimize the risk of such damage. It is important to remember that even with these precautions, there is still a possibility of equipment damage due to the powerful electromagnetic fields generated by lightning.
EMPs can also be generated by lightning, solar flares, and nuclear explosions, among other sources. These pulses are extremely brief, lasting on the order of nanoseconds, but they are long enough to overload and permanently damage electrical circuits. While commercial Faraday cages can provide protection from EMPs, they can be expensive, leading many radio amateurs to construct their own enclosures. However, it is challenging to determine the effectiveness of homemade EMP shielding without specialized testing.
To enhance protection during a storm, it is advisable to follow the National Electrical Code (NEC) requirements, particularly NEC 810. Compliance with these standards can help prevent fire insurance claims denial and the need for additional insurance policies. Additionally, proper grounding of the feedline and/or antenna mast can create two grounds (mast ground and electrical service ground), which can help divert high currents away from your equipment in the event of a lightning strike.
In summary, while disconnecting your ham radio equipment from all power sources, antennas, and computers during a storm is a recommended practice, it may not provide a complete guarantee against damage. Combining this practice with other protective measures, such as proper grounding and considering EMP shielding, can help enhance the overall protection of your ham radio equipment during electrical storms.
Transforming Your Wood Fireplace to Electric: A Step-by-Step Guide
You may want to see also
Explore related products
Use a Faraday cage to protect from electromagnetic pulses
Electromagnetic pulses (EMPs) are one of the most dangerous hazards to your ham radio, and they are all around us. They can be generated by everyday actions like turning on an electric motor or flipping a light switch, and also by lightning, the sun, and nuclear explosions.
To protect your ham radio from EMPs, you can use a Faraday cage. Faraday cages are enclosures designed to protect against electromagnetic energy. Commercially made Faraday cages can be expensive, so many radio amateurs make their own.
- Testing: You can test your Faraday cage by using a battery-operated AM/FM radio. Tune the radio to a strong local station, place it inside the cage, and close the cage. If the signal disappears, your cage is effective, at least at the frequency the radio is tuned to.
- Simplicity: While it may be tempting to create an elaborate design, a simple Faraday cage will likely be effective.
- Fire: It's important to remember that EMPs can cause fires. Even if your ham radio is protected by a Faraday cage, be aware of the potential for fire during an EMP event.
- Grounding: Ensure that your Faraday cage is properly grounded. This will help protect your equipment from lightning strikes and EMPs.
- Limitations: Keep in mind that a Faraday cage will only protect your ham radio from EMPs, not from other potential issues like power surges or physical damage.
By constructing and properly grounding a simple Faraday cage, you can effectively protect your ham radio from EMPs.
Winterizing Your Electric Pressure Washer: Step-by-Step Guide
You may want to see also
Explore related products
Ground the feedline and antenna mast to avoid lightning damage
Grounding the feedline and antenna mast is a crucial step in protecting your ham radio equipment from lightning damage. Here are some detailed instructions to help you with the process:
Firstly, it is important to understand that grounding provides a pathway for lightning to discharge safely into the ground, reducing the risk of damage to your equipment. When grounding your antenna mast, use a grounding cable with a gauge of 10 AWG or lower, as recommended by the National Electric Code (NEC). Ensure the mast is painted to avoid any issues.
Next, create a low-impedance ground to handle a significant portion of the lightning strike's current. To do this, ground the base of your mast with a large field of radials and multiple ground rods, spaced over a wide area and bonded with wide copper straps. This will help divert the lightning strike's energy away from your equipment and towards the ground.
Additionally, bond the shields of all coax feedlines to the ground system you've created. This ensures that any lightning strike on the antenna or power lines will result in high currents flowing between the mast ground and the electrical service ground, rather than through your ham radio equipment.

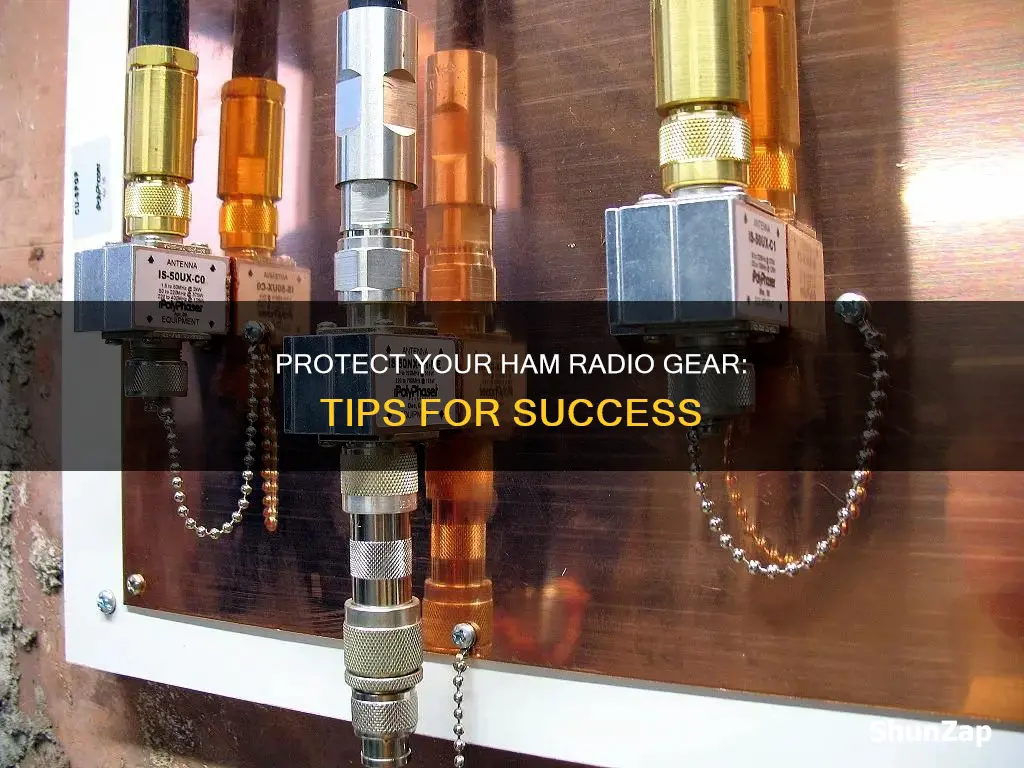

Finally, consider installing lightning arrestors or surge protectors. These devices are designed to break the connection when a sudden energy burst occurs, providing an extra layer of protection for your equipment.
While grounding is essential, it is also important to be cautious during thunderstorms. If possible, disconnect your equipment from the feedline and power sources, as lightning can still cause damage even when properly grounded. Always follow safety guidelines and seek expert advice when dealing with lightning protection for your ham radio setup.
Understanding Electric Potential: Measuring Circuit Voltages
You may want to see also
Explore related products
Use three-wire cords and plugs for AC equipment to prevent electrical shock
Using three-wire cords and plugs for AC equipment is a crucial safety measure to prevent electrical shocks. This setup typically consists of a live wire, a neutral wire, and an earth wire, each serving a specific function to ensure a safe electrical connection.
The live wire, also known as the hot wire, carries the electric current from the power source to the device. It is typically coloured black or red to indicate its role in delivering power. The neutral wire, on the other hand, completes the electrical circuit by providing a return path for the current. It is commonly identified by its white or grey colour.
The earth wire, often coloured green or green and yellow, is the critical component for safety. It provides a path for electricity to flow to the ground, offering protection against electrical faults and reducing the risk of electric shock. In the event of a fault, the earth wire redirects the electric current away from the device and the user, minimising the potential for harm.
By utilising a three-wire cord and plug configuration, you add an extra layer of protection against electrical hazards. This setup ensures that any deviation in the flow of electricity is safely directed away from the device and the user, reducing the chances of electric shock. This safety measure is particularly important when dealing with sensitive equipment, where electrical faults can lead to damage or disruption in functionality.
It is important to note that while three-wire cords and plugs provide enhanced safety, regular inspection and maintenance of electrical connections are also essential. Over time, cords and plugs can become worn or damaged, potentially compromising their effectiveness in preventing electrical shocks. Therefore, it is advisable to periodically check and replace these components as necessary to maintain a safe operating environment for your equipment.
Best Colleges for Industrial Electrical Training
You may want to see also
Explore related products
Ensure proper grounding where electrical, CATV, and phone services enter the building
To ensure proper grounding where electrical, CATV, and phone services enter the building, it is important to follow the guidelines provided by electrical professionals and industry standards, such as the National Electrical Code (NEC). Here are some detailed instructions and considerations to achieve proper grounding:
Firstly, it is recommended to have all services, including electrical, CATV, telephone, and water, enter the building at the same location. This facilitates a single-point connection to the grounding electrode (GE) system, allowing all grounds to be bonded together with the shortest length of wire possible. This helps to minimize the chances of equipment damage or destruction due to lightning strikes or power crosses.
When inspecting the grounding system, ensure that the ground where these services enter the building is in good shape and has sufficiently low impedance. A low impedance ground is crucial to diverting a significant portion of the lightning strike's current, reducing the load on other components.
For telephone grounding, the telephone company should install a Network Interface Device (NID) where their line enters the house. The NID contains protectors for the cable pairs and a means of terminating the shield. It also includes a ground terminal that should be connected to a power service ground electrode using a conductor of #14 AWG or larger and limited to a length of 20 feet. If the length requirement cannot be met, a ground rod can be driven into the ground and bonded to the service electrode using a #6 AWG bonding jumper.
For CATV grounding, it is important to follow the guidelines provided by the National Electrical Code (NEC). While cable TV companies may have their own strict rules, adhering to the NEC will help ensure proper grounding. This includes grounding the coaxial cable's outer conductive shield as described in section 820.33 of the NEC. Additionally, section 820.40 specifies that the grounding conductor should not be smaller than 14 AWG.
By following these guidelines and working with qualified electrical professionals, you can ensure proper grounding where electrical, CATV, and phone services enter your building, providing protection against lightning strikes and power-related issues.
