Reading auto electrical schematics is a useful skill to have, whether you're a professional technician or an enthusiast. Electrical schematics are like maps that show how wires and components in an electronic circuit are connected. They can tell you almost everything you need to know about how a circuit works. While schematics may seem daunting at first, with their complex lines, symbols, and labels, understanding some basics and common conventions can help you make sense of them. This includes memorizing common schematic symbols, understanding voltage sources, and recognizing wire tags and connections.

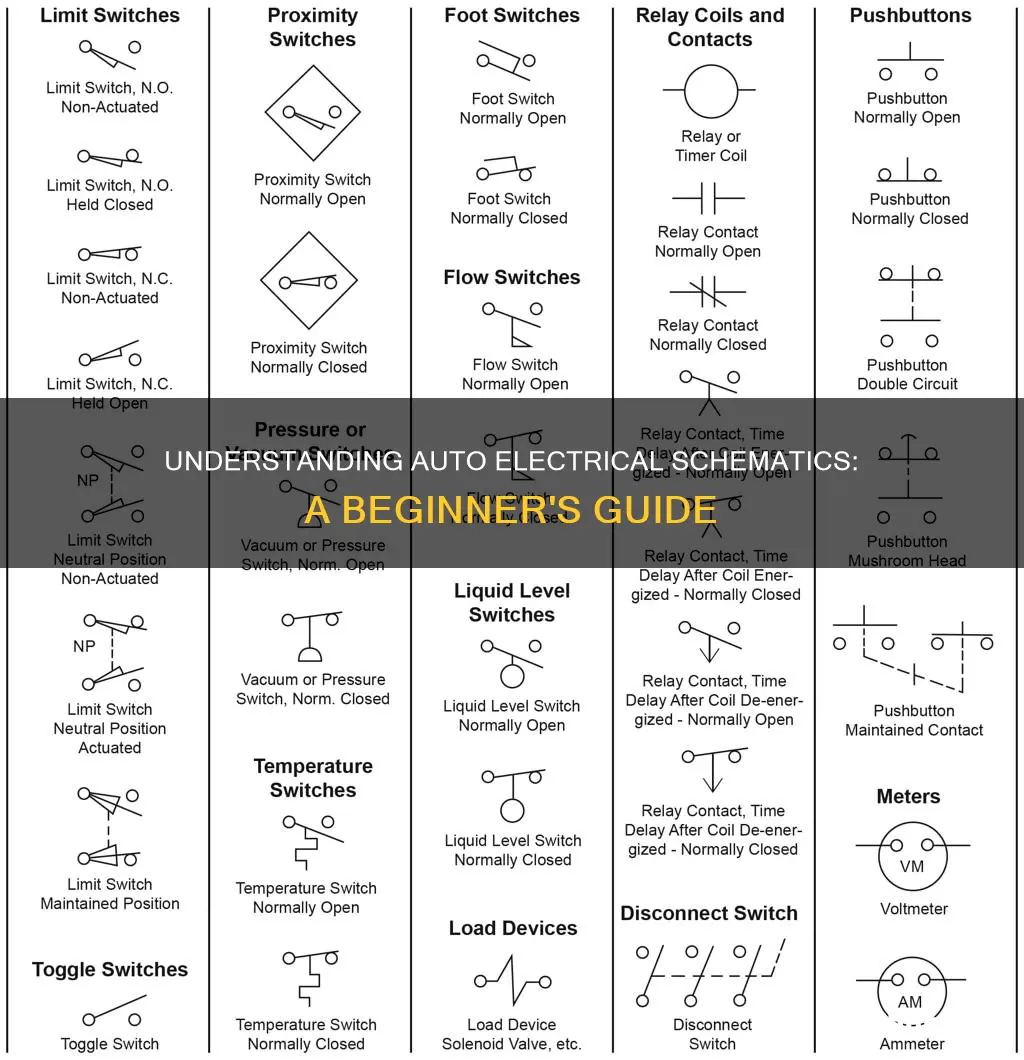

| Characteristics | Values |
|---|---|
| Reading direction | Left to right and top to bottom, like reading a book |
| Symbols | Represent physical wires, connections, and components |
| Wires | Represented by lines |
| Connections | Represented by dots |
| Nodes | Positive voltage nodes are indicated by an up-pointing arrow; ground nodes by flat lines or a down-pointing arrow or triangle |
| Wire tags | Combination of letters and numbers to show which device or terminal block a wire or cable is connected to |
| Batteries | Represented by parallel lines; the longer line indicates the positive terminal |
| Resistors | Represented by zig-zag lines or a featureless rectangle |
| Capacitors | Two terminals running into plates; one curved plate indicates a polarized capacitor |
| Legend | Page(s) in a wiring diagram that explain the symbols and naming conventions |
Explore related products
What You'll Learn
- Learn the common symbols for components like resistors, capacitors and transistors
- Understand how to identify wire tags and their functions
- Recognise battery symbols and how to identify voltage sources
- Know how to identify load devices and their functions
- Understand how to read wiring diagrams for vehicles
Learn the common symbols for components like resistors, capacitors and transistors
To read an auto electrical schematic, you must first learn the common symbols for components like resistors, capacitors, and transistors. Resistors on a schematic are usually represented by a few zig-zag lines, with two terminals extending outward. If international symbols are used, a featureless rectangle may be used instead of the squiggles. Variable resistors are denoted by an arrow laid diagonally across the middle, while potentiometers, a three-terminal device, use the arrow as the third terminal or the wiper.
Capacitors are represented by two symbols. One symbol is for polarized capacitors, usually indicated by a curved plate, representing the cathode, which should be at a lower voltage than the positive, anode pin. The other symbol is for non-polarized capacitors. Both types of capacitors have two terminals running perpendicularly into plates.
Transistors are semiconductor devices that provide both switching action and signal amplification. Bipolar junction transistors (BJTs) are made up of three layers of semiconductor material and can be arranged as either NPN or PNP transistors, with the circuit symbol changing according to the layer arrangement. Insulated-gate field-effect transistors (IGFETs) are another type of transistor, with N-channel and P-channel variants. The physical structure of an IGFET results in a fourth terminal called the body, although this terminal is usually not relevant to circuit operation. Junction field-effect transistors (JFETs) are similar to IGFETs, except the gate is not insulated.
Defeating Deadlifts: Strategies to Overcome Electric Ball Challenges
You may want to see also
Explore related products
Understand how to identify wire tags and their functions
Automotive wiring diagrams can be intimidating if you don't understand what you're looking at. However, once you get the basics down, it's easy to read and interpret them. These diagrams are essentially maps that tell you where the circuits are located, what their sources of power are, and where they're grounded. Engineers and technicians use them to create, identify, and repair circuits in automotive applications.
When reading a wiring diagram, it's important to focus on specific power systems, as looking at the entire diagram can be confusing. Grounding points, for instance, are a crucial part of automotive circuits. They are usually represented by lines with an arrow pointing downwards that ends in a series of horizontal lines. Ground points typically connect to the chassis of your vehicle and serve as the return path for the circuit. Knowing where the grounding points are can help you find the end of a circuit.
Wiring diagrams also include fuses, relays, connectors, junctions, and other splits in the power supply. These components are essential to identify to ensure that new components are installed properly and receiving power. They will appear as locations where wires are splitting off from the main circuit to connect to other components.
Wire tags are another important element to identify in wiring diagrams. These are combinations of letters and numbers installed on the wire or cable, indicating which device or terminal block it should be connected to. They are useful for troubleshooting, as you can easily refer to the wiring diagram to figure out where a wire should be connected if it gets disconnected.
To summarise, understanding how to identify wire tags and their functions is crucial when reading automotive electrical schematics. Wire tags provide information about the connection points of wires and cables, helping with troubleshooting and ensuring proper connections. Additionally, familiarity with wiring diagrams as a whole, including grounding points, fuses, relays, and connectors, is essential for effective automotive electrical work.
Electricity in Rural Areas: Reliable or Not?
You may want to see also
Explore related products
$10.99
Recognise battery symbols and how to identify voltage sources
When reading an auto electrical schematic, it is important to be able to recognise battery symbols and identify voltage sources.
Batteries are usually represented by a pair of disproportionate, parallel lines. The longer line represents the positive terminal, and the shorter line represents the negative terminal. If there are more pairs of lines, this indicates that there are more series cells in the battery. The battery symbol is made up of two or more cell symbols together.
In some cases, special symbols may be assigned to node voltages. These one-terminal symbols can be connected to devices and will be tied directly to a specific voltage. Positive voltage nodes are usually indicated by an arrow pointing up, while ground nodes usually involve one to three flat lines or sometimes a downward-pointing arrow or triangle.
It is important to note that the voltage level and frequency of power can vary depending on the country. For example, in the United States, a three-phase power source will produce 480 volts with 60 hertz of frequency.
Additionally, different software programs may use slightly different symbols. Therefore, when encountering a new schematic, it is essential to take the time to analyse and familiarise yourself with its layout and symbols.
Resetting Your Electric Scooter: A Step-by-Step Guide
You may want to see also
Explore related products
$35.99 $64.99
Know how to identify load devices and their functions
Automotive schematic diagrams, also known as wiring diagrams or electrical diagrams, are visual representations of the electrical circuits within a vehicle. They are used to understand how the various parts of a car's electrical system work together. These diagrams use symbols and lines to convey information about the connections and functions of each component in the system.
Load devices are represented as circles with letters or symbols inside to denote their function. They are anything that does electrical work and can include lighting, the starter motor, on-board computers, relays, power windows, and keyless entry, among other components. The ground return completes the electrical path from the battery's positive terminal to the load device and back to the battery's negative terminal.
Wiring diagrams always depict load devices in their "OFF" state, requiring technicians to imagine the presence of power throughout the circuit with the load turned on and operating. For example, a diagram may show the path that provides power to each cooling fan in low-speed mode, allowing users to identify the wire colours, relays, and relay terminals that are powered during fan operation.
It is important to familiarise yourself with the commonly used symbols and their meanings before interpreting a schematic. For instance, resistors are usually represented by a few zig-zag lines, while variable resistors and potentiometers augment this symbol with an arrow. Batteries usually look like a pair of disproportionate, parallel lines, with the longer line representing the positive terminal and the shorter line the negative.
Electrical Tape: A Cancer Risk?
You may want to see also
Explore related products
$23.28 $25
Understand how to read wiring diagrams for vehicles
Reading wiring diagrams for vehicles can be a complex but rewarding task. These diagrams provide a schematic representation of the electrical systems in a vehicle, detailing how various components are connected and powered. Here's a step-by-step guide to help you understand and interpret these diagrams:
Familiarize Yourself with Symbols:
Wiring diagrams use standardized symbols to represent different electrical components, connections, and functions. Take time to study and understand these symbols, as they are the foundation of reading any wiring diagram. The diagram should include a legend or symbol key, which explains each symbol and its meaning. Symbols may vary slightly depending on the software used to create the diagram.
Understand Voltage Sources:
Most wiring diagrams will involve constant voltage sources, which can be direct current (DC) or alternating current (AC). Batteries, for example, are commonly represented by parallel lines, with the longer line indicating the positive terminal and the shorter line the negative terminal. Pay attention to voltage levels, as they can vary depending on the country and electrical standards.
Identify Key Components:
Locate the most important components on the diagram. These are often integrated circuits, such as microcontrollers or sensors, and they tend to be the largest components, positioned at the center of the schematic. Resistors, for instance, are usually represented by zig-zag lines with two terminals, while capacitors have two terminals running into plates.
Read Sequentially:
Approach the diagram in a logical sequence, typically from left to right and top to bottom, just like reading a book. However, some diagrams may have exceptions to improve layout or clarity. Follow the flow of power from the voltage source to the various components and connections.
Understand Wire Tags:
Wires in the diagram will often have tags—combinations of letters and numbers. These wire tags indicate which device or terminal block a particular wire connects to. They are extremely helpful for troubleshooting and identifying issues.
Consult Connector Diagrams:
Wiring diagrams may also include connector diagrams or views, which provide additional information. These diagrams map positions to numbers, helping you identify the physical locations of connectors and terminals. They may also list part numbers, circuit numbers, and wire colors, aiding in your understanding of the wiring layout.
Remember that wiring diagrams can vary in complexity and detail, and some practice is often needed to become proficient in reading them. Understanding the underlying electrical principles and familiarizing yourself with common symbols and conventions will greatly aid in your ability to interpret vehicle wiring diagrams accurately.
Activating Your Electric Oven: A Step-by-Step Guide
You may want to see also
Frequently asked questions
An electrical schematic is a diagram that shows how all of the wires and components in an electronic circuit are connected.
Schematics will have a legend where symbols and naming conventions are spelled out. It is important to memorise the most common schematic symbols. Each physical component (i.e. resistor, capacitor, transistor) has a unique schematic symbol. Wires are represented by lines, and connections are represented by dots.
Standard wiring diagrams are read from left to right and from top to bottom. Wiring diagrams may follow different standards depending on the country they are used in. For example, a three-phase power source in the United States will produce 480 volts with 60 hertz of frequency.
Resistors on a schematic are usually represented by a few zig-zag lines, with two terminals extending outward. Batteries usually look like a pair of disproportionate, parallel lines. More pairs of lines usually indicate more series cells in the battery. A longer line usually represents the positive terminal, while a shorter line connects to the negative terminal.
Electrical schematics can be used to understand how a ceiling fan is connected to its power source and remote switches. They can also be used to understand how horns in a vehicle are powered and connected to the controller on the steering wheel.
