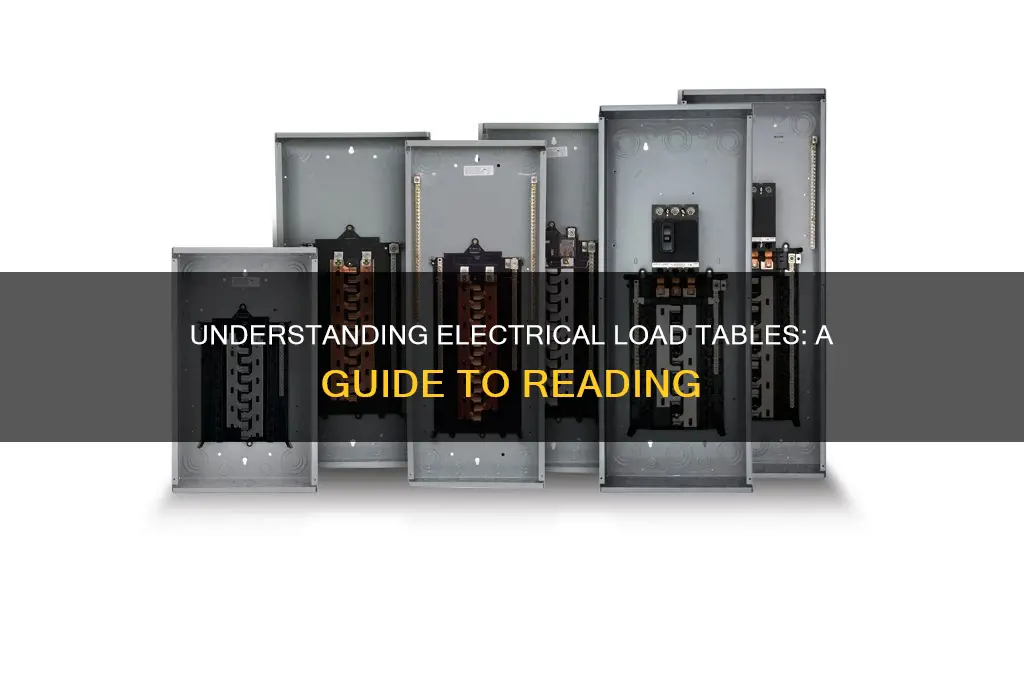

Electrical load tables are an important aspect of understanding the electrical capacity of a residence, especially when planning upgrades or installing new appliances. The electrical panel, or service panel, is the control centre for all electrical circuitry in a home, and its capacity is the maximum power it can supply at one time. Electrical load, on the other hand, is the amount of power that all electrical devices in a home draw if they were all turned on simultaneously. To calculate the electrical load, one must determine the power rating of each appliance, which is usually provided in volts-amperes or watts. This information is then used to calculate the total electrical load, ensuring it does not exceed 80% of the electrical capacity to prevent overloads and potential overheating.
| Characteristics | Values |
|---|---|
| Purpose | To determine the amount of power required for an installation, ensuring it doesn't exceed the electrical capacity |
| Application | Residential, commercial, and industrial settings |
| Factors Considered | Appliances and their power ratings, electrical capacity, power factor, efficiency, load duty, load balance, future load growth |
| Load Calculation | Multiplying amps by volts to get watts, ensuring load doesn't exceed 80% of capacity |
| Load Schedule | A preliminary task involving classifying loads, calculating consumed load, and determining operating, peak, and design loads |
| Benefits | Informed power management, reduced electricity costs, proper sizing of equipment and protection systems, load balancing |
Explore related products
What You'll Learn
Understanding electrical capacity and load
To calculate your electrical capacity, you need to determine the conversions between watts, volts, and amps. A typical US home outlet is 120 volts, while the overall system is 240 volts. For example, a 20-amp, 120-volt branch circuit has a total capacity of 2400 watts (20 amps x 120 volts). It is important to ensure that your electrical load does not exceed 80% of your electrical capacity to prevent overloads and potential safety hazards.
To calculate your electrical load, you can add up the wattage ratings of all the appliances and devices that will be drawing power simultaneously. Most appliances will have their wattage listed on the back, bottom, or a metal nameplate. If the wattage is not listed, you can multiply the amps by the volts to calculate the watts. By understanding your electrical load, you can make informed decisions about your energy usage and potentially reduce your electricity bill.
Additionally, when planning to add new appliances or increase your electrical load, it is crucial to ensure that your electrical panel or service panel can handle the additional load. The service panel acts as the control center for all the electrical circuitry in a residence. Upgrading to a larger panel may be necessary to accommodate modern appliances and devices, which require higher electrical loads. Consulting a professional is recommended if you are unsure about your electrical capacity or load.
The Right Way to Thread Electrical Cable Through Walls
You may want to see also
Explore related products
Reading appliance power ratings
To find the power rating of an appliance, start by checking the label on the appliance or the product specifications online. The label will often specify the current draw in amps (A), which represents the rate at which the electrical current flows. If the label provides the current draw, you can calculate the power rating in watts by multiplying the current draw by the operating voltage. In the US, the standard voltage for outlets is 120 volts, while the overall electrical system operates at 240 volts.
For example, let's say you have an appliance with a current draw of 10 amps. If the appliance operates at 120 volts, the power rating is calculated as follows: 10 amps x 120 volts = 1200 watts. This means the appliance has a power rating of 1200 watts.
It's important to note that some appliances, such as refrigerators and air conditioning units, may not run continuously throughout the day. They typically turn on and off as needed, so their actual power consumption may be lower than the rated power. Additionally, be mindful of ""ghost loads," which are devices like clocks, TVs, and microwaves that consume a small amount of energy (often less than 1 watt) but run continuously. While individually insignificant, multiple ghost loads can collectively contribute to a notable increase in energy consumption over time.
By understanding appliance power ratings and calculating the electrical load of your home, you can ensure that your electrical panel can handle the load without exceeding 80% of its capacity. This helps prevent issues like power cuts, overloads, or potential overheating. If you're planning to add new major appliances, it's crucial to verify that your electrical panel has the capacity to accommodate the increased load.
Starting an Electrical Business: Steps to Success in the UK
You may want to see also
Explore related products
Calculating power consumption
To calculate power consumption, you need to know the power rating of your appliances and the amount of time they are used. The power rating of appliances is usually given in watts (W), which is a unit of power that measures the rate of energy transfer. One kilowatt (kW) is equal to 1,000 watts. Kilowatt-hours (kWh) are a unit of energy, where one kilowatt-hour is equal to the energy used to maintain one kilowatt of power for one hour.
To calculate the kWh for a specific appliance, multiply the watts of the appliance by the amount of time (in hours) it is used, then divide that number by 1,000. For example, if a 720-watt appliance is used for 30 minutes, the calculation would be:
720 watts x 0.5 hours / 1,000 = 0.36 kWh
You can also calculate power consumption by tracking the revolutions or dots on a smart meter. Each revolution or dot represents a certain number of watts consumed. You can then calculate the usage at that point in time and convert it to watt-hours or kWh.
It's important to note that appliances may have different power requirements and usage patterns, so it's best to adjust the usage for each appliance to reflect your personal usage. Additionally, the power rating listed on an appliance may reflect its maximum energy requirements, so typical usage may result in lower energy consumption.
By understanding your power consumption, you can identify areas where you can reduce energy usage, such as by unplugging electronics when not in use, using energy-efficient appliances, or adjusting your thermostat settings.
Unplugging Computers: Overnight Electricity Savings?
You may want to see also
Explore related products
Avoiding overloads
Electrical overloads can lead to power outages, appliance damage, and even fires. To avoid them, it's important to understand the electrical load and capacity of your home. Electrical load refers to the amount of power all electrical devices in your home would draw if they were all on at the same time. Electrical capacity, on the other hand, is the maximum power your service panel can supply simultaneously.
To prevent overloads, ensure your electrical panel can handle the load. Calculate the total electrical load by adding up the power ratings (in volt-amperes) of all fixed and dedicated circuit appliances, such as your washer, dryer, dishwasher, etc. You can find the power rating on the appliance label or product specifications. If only the current draw is listed, multiply it by the operating voltage (120 or 240 volts) to get the power rating in watts.
When upgrading to more powerful appliances, confirm your panel has the capacity to handle the increased load. For example, a simple swap from a gas to an electric water heater may require an expensive electrical panel upgrade. In general, your electrical load should not exceed 80% of your electrical capacity. If it does, consider upgrading your electrical panel to a higher capacity.
To further avoid overloads, distribute your electrical usage across different circuits. Identify which circuits power which devices, and ensure high-power circuits are dedicated to larger appliances. For smaller devices, check their wattage and add them to a circuit with existing load headroom. Unplugging devices and moving them to another circuit can also help redistribute the load and prevent overloads.
Adjusting Your Electric Eye Garage Door: A Simple Guide
You may want to see also
Explore related products
Preparing a load schedule
Step 1: Identify the Loads
The first step is to identify all the electrical loads that will be supplied by the power system. There are two main types of loads: process loads and non-process loads. Process loads are directly relevant to the facility, such as motors, heaters, compressors, and conveyors in factories and industrial plants. Non-process loads are auxiliary loads necessary to run the facility, such as lighting, HVAC, utility systems, and fire safety systems.
Step 2: Collect Electrical Parameters
For each load, collect electrical parameters such as nominal or absorbed ratings, power factor, and efficiency. The power factor is necessary to determine the reactive components of the load schedule, and it is typically the load power factor at full load that is used. Efficiency accounts for losses incurred when converting electrical energy to another form.
Step 3: Classify Loads
Classify each load in terms of switchboard location, load duty, and load criticality. This involves determining which voltage level and switchboard each load will be located on.
Step 4: Calculate Expected Consumed Load
For each load, calculate the expected amount of power that will be consumed.
Step 5: Calculate Operating, Peak, and Design Loads
For each switchboard and the overall system, calculate the operating, peak, and design loads. The design load is typically made larger to accommodate errors in load estimation or unforeseen additional loads. It is also designed to be higher to account for future load growth, which may result in oversized equipment.
Additional Considerations
It is important to note that there are no standard governing load schedules, and calculations are based on generally accepted industry practices. Code requirements, however, must always be followed. The cable and circuit breaker must be coordinated, and specific rules, such as the National Electrical Code, should be referenced when preparing the load schedule.
AC vs Fan: Which Appliance Drains More Power?
You may want to see also
Frequently asked questions
An electrical load table is a summary of the electrical load during normal and peak loading. It provides an estimate of the instantaneous electrical loads operating in a facility, in terms of active, reactive, and apparent power.
An electrical load table helps determine the amount of power required for an installation. It is used to ensure that the electrical capacity can handle the load. Electrical capacity is the amount of electricity your home or facility can support, while electrical load is the amount being used.
To create an electrical load table, you need to collect a list of all the electrical loads that will be supplied by the power system. This includes the electrical parameters such as nominal/absorbed ratings, power factor, efficiency, etc. You also need to classify each load in terms of switchboard location, load duty, and load criticality.
The electrical load is calculated by multiplying the current draw by the operating voltage to get the power rating in watts. You can then add up the power ratings of all the appliances to get the total electrical load. It's important to note that you only need to factor in one appliance at a time, as you won't be using all your appliances simultaneously.
