Otis Singleton
Reading electrical schematics is a fundamental skill for anyone working with electronics or electrical systems. Electrical schematics are diagrams that show how wires and components in an electronic circuit are connected. They are like a map for building or troubleshooting circuits. To read a schematic, one must understand electrical wiring, symbols, and conventions. Wires are represented by lines, and connections are represented by dots. Each physical component (resistor, capacitor, transistor, etc.) has a unique schematic symbol. For example, the symbol for a battery is made up of short and long parallel lines, with the longer line representing the positive terminal. It is also important to understand basic electrical concepts, such as Ohm's Law, which states that current is directly proportional to voltage and inversely proportional to resistance. With a solid understanding of these concepts and components, one can effectively interpret electrical schematics and apply them to building, troubleshooting, and designing electronic circuits.
Explore related products
$10.99
What You'll Learn
Learn the basic electrical concepts, such as Ohm's Law
Learning to interpret electrical schematics is a valuable skill for electricians, engineers, and students. An electrical schematic is a diagram that shows how all the wires and components in an electronic circuit are connected. It is like a map for building or troubleshooting circuits.
To read and interpret electrical schematics, it is important to first learn the basic electrical concepts and understand the fundamental laws of electric circuits. One of the most important laws is Ohm's Law, which is a formula used to calculate the relationship between voltage, current, and resistance in an electrical circuit.
Ohm's Law is named after German physicist Georg Ohm, who experimentally verified the law in 1827. The law states that the electric current through a conductor between two points is directly proportional to the voltage across the two points. In other words, the voltage across a conductor is directly proportional to the current flowing through it, provided all physical conditions and temperatures remain constant.
Mathematically, this current-voltage relationship can be written as:
V = IR
Where V is the voltage, I is the current, and R is the constant of proportionality, also known as resistance, with units of ohms (Ω).
Ohm's Law can be rearranged to calculate any one of the three variables (voltage, current, or resistance) as long as the other two are known. For example, if you know the voltage (V) and current (I) and want to calculate resistance (R), you can use the equation:
R = V/I
Ohm's Law is a fundamental tool for technicians and students of electronics, as it allows them to validate the static values of circuit components, current levels, voltage supplies, and voltage drops. It is also useful for troubleshooting, as it can help identify issues in a circuit when customary values do not register correctly on testing equipment.
Journey to Becoming an Electrician in California
You may want to see also
Explore related products
$14.59 $24.99

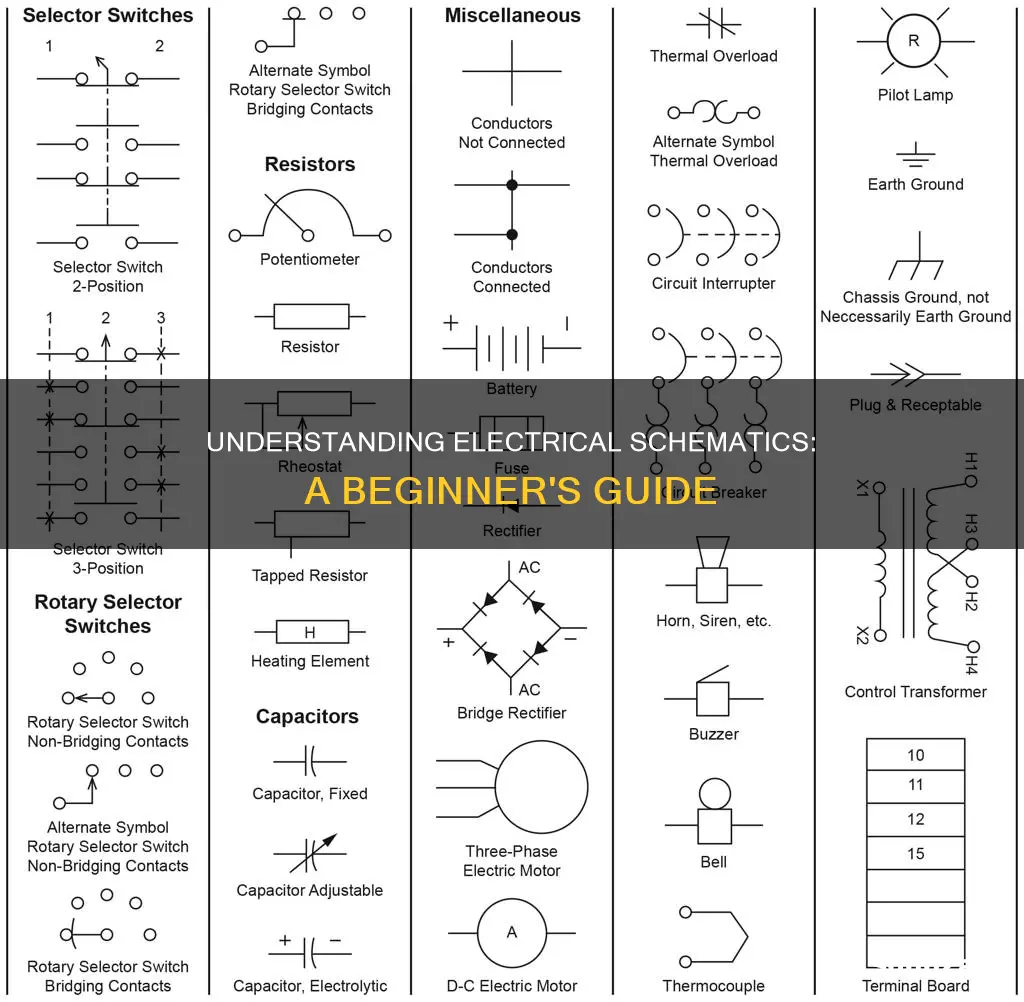

Memorise the symbols for components like resistors and capacitors
To read and interpret electrical schematics, it is essential to memorise the symbols used to represent various electrical components. Each physical component, such as a resistor, capacitor, or transistor, is associated with a unique symbol. These symbols serve as a shorthand representation of the components in a circuit schematic, facilitating quick understanding and visual communication, which is crucial in engineering.
Let's focus on memorising the symbols for components like resistors and capacitors. The letter 'R' is commonly used to denote resistors, with each resistor in a circuit given a unique name like R1, R2, and so on. This naming convention helps in referencing specific points in schematics. While the prefix for resistors is typically just the first letter, 'R', other components may have different prefix conventions. For instance, capacitors are denoted by the letter 'C', inductors by 'L', and integrated circuits by 'U'.
The symbol for a resistor can vary, but one proposed symbol is a simple rectangle with the letter 'R' inside. In contrast, the capacitor symbol is quite straightforward, consisting of two lines at the centre, which may be either parallel or curved. The curved line indicates the negative terminal, and when dealing with ionized capacitors, a plus sign is added to indicate the side connected to the higher voltage.
It's worth noting that some symbols may have variations or change over time. For example, there are different symbols for capacitors that are now considered obsolete. Additionally, some resistors have non-fixed resistance, like rheostats and potentiometers, which have their own unique symbols. A rheostat has two terminals and allows for mechanical adjustment of resistance, while a potentiometer has three terminals and can function as a variable voltage divider.
The Science Behind Neon's Color Without Electricity
You may want to see also
Explore related products
Understand how to identify wires and their connections
To understand how to identify wires and their connections in an electrical schematic, you must first recognise that wires are represented by lines, and connections are represented by dots. These dots over the intersections of wires are called nodes. The absence of a node means that the wires are not connected and merely pass by each other. Another way to show unconnected wires in a schematic is with a semi-circle over the point where the wires cross.
It is also important to understand the basic electrical concepts that underpin the schematic. For example, according to Ohm's Law, the current (I: the flow of electric charge) flowing through a conductor between two points is directly proportional to the voltage (V: the potential difference between two points) and inversely proportional to the resistance (R: the opposition to the flow of current). This is expressed by the formula (V = IR).
Each physical component (i.e. resistor, capacitor, transistor) has a unique schematic symbol. Component names are usually a combination of one or two letters and a number. The letter part of the name identifies the type of component—for example, R's for resistors, C's for capacitors, and U's for integrated circuits. Each component name on a schematic should be unique. For example, if there are multiple resistors in a circuit, they should be named R1, R2, R3, and so on.
In some electronic schematics, wires may have colour codes representing specific attributes, such as power, ground, or signal connections, aiding in quick identification.
Finally, it is crucial to understand the flow of circuits. For example, polarity is essential in circuits with positive and negative charges. Understanding polarity is important, and one should always follow the law of 'like charges repel' and 'unlike charges attract'.
Transforming Your Home: Battery to Electrical Lighting
You may want to see also
Explore related products
$12.95
Know how to interpret polarity and voltage nodes
Voltage and polarity are fundamental concepts in electrical engineering. Voltage refers to the energy level difference between two points in a circuit, and it is measured in volts (V). Voltage polarities are indicated on circuit diagrams by "+" and "-" signs, with the "+" sign indicating a higher voltage than the "-".
Polarity, on the other hand, indicates the symmetry of a component. It refers to the directional flow of electrons from one pole to another. In a direct current (DC) circuit, the current flows only in one direction, from the positive pole to the negative pole, while in an alternating current (AC) circuit, the poles routinely change from negative to positive and vice versa. The positive pole is usually marked with the colour red or a plus symbol, while the negative pole is marked with black or blue and a minus symbol.
When working with electronic circuits, only the conventional current, which flows from the positive to the negative pole, is shown. This is opposite to the flow of electrons, which go from the negative to the positive pole. Diodes, for example, are polarized and only allow current to flow in one direction, from the anode (positive) to the cathode (negative).
Electrolytic capacitors are another example of polarized components. They have a negative terminal marked with a "-" symbol and a shorter cathode pin. If connected incorrectly, they can fail catastrophically, even resulting in an explosion.
Understanding voltage nodes is also crucial when interpreting electrical schematics. Like-named voltage nodes, such as GND, 5V, and 3.3V, are all connected to their counterparts, even without wires between them. Ground voltage nodes, in particular, are essential because many components require a connection to ground. Positive voltage nodes are often indicated by an upward-pointing arrow, while ground nodes may involve one to three flat lines or a downward-pointing arrow or triangle.
In summary, interpreting polarity and voltage nodes in electrical schematics requires knowledge of the symbols and conventions used to represent them. Polarity symbols indicate the direction of current flow and the symmetry of components, while voltage nodes help identify connections between components, especially the ground node, which is crucial for many circuit elements.
Exploring the Electric Circus: How Many Groups Exist?
You may want to see also
Explore related products
Practise with real-world examples to improve your skills
Practising with real-world examples is an effective way to improve your electrical schematic interpretation skills. Start by familiarising yourself with the common symbols and conventions used in electrical schematics. Symbols represent different components, such as switches, resistors, capacitors, relays, sensors, and motors. Resistors, for instance, are usually represented by zig-zag lines, with two terminals extending outward. Alternatively, schematics using international symbols may use a featureless rectangle instead of the squiggles. You should also understand the conventions for drawing and labelling, such as how to indicate wires, connections, voltages, currents, references, and annotations.
Once you have a grasp of the basics, you can begin interpreting real-world examples. Start with simple schematics that show basic circuits and functions, then work your way up to more complex schematics involving multiple components, logic, and control. For instance, you could study schematics of a lighting system, a motor control circuit, a PLC program, or a sensor network.
As you advance, you can review and revise your own or others' schematics. Check for errors, inconsistencies, or areas that could be optimised or simplified. You can also use tools like multimeters, oscilloscopes, logic analysers, or test equipment to help analyse, debug, or troubleshoot the schematics.
Additionally, seek out new types or styles of schematics that you are unfamiliar with. For example, explore schematics used in different fields or industries, such as power systems, robotics, or communication. You can also experiment with different formats, standards, or languages used to create or communicate schematics, such as ANSI, IEC, IEEE, or Ladder Logic.
Finally, put your knowledge into practice by designing your own schematics for different purposes and scenarios. You can use software like AutoCAD Electrical, EAGLE, or KiCad, or simply a pencil and paper. Challenge yourself by designing schematics that meet certain specifications or constraints, then compare your designs with existing solutions to evaluate their advantages and disadvantages.
Remember, improving your skills in reading and interpreting electrical schematics is an ongoing process that requires continuous practice, improvement, and feedback.
Extinguishing Electrical Fires: Quick and Safe Methods
You may want to see also
Frequently asked questions
Electrical schematics are diagrams that show how wires and components in an electronic circuit are connected. They are like maps that help with building or troubleshooting circuits.
Memorising common schematic symbols is essential. Each physical component (resistor, capacitor, transistor, etc.) has a unique symbol. Understanding the flow of circuits and practising with real-world examples will help with interpretation.
Wires are represented by lines, and connections are represented by dots. The absence of a dot where wires intersect indicates that they are not connected and merely pass by each other.
