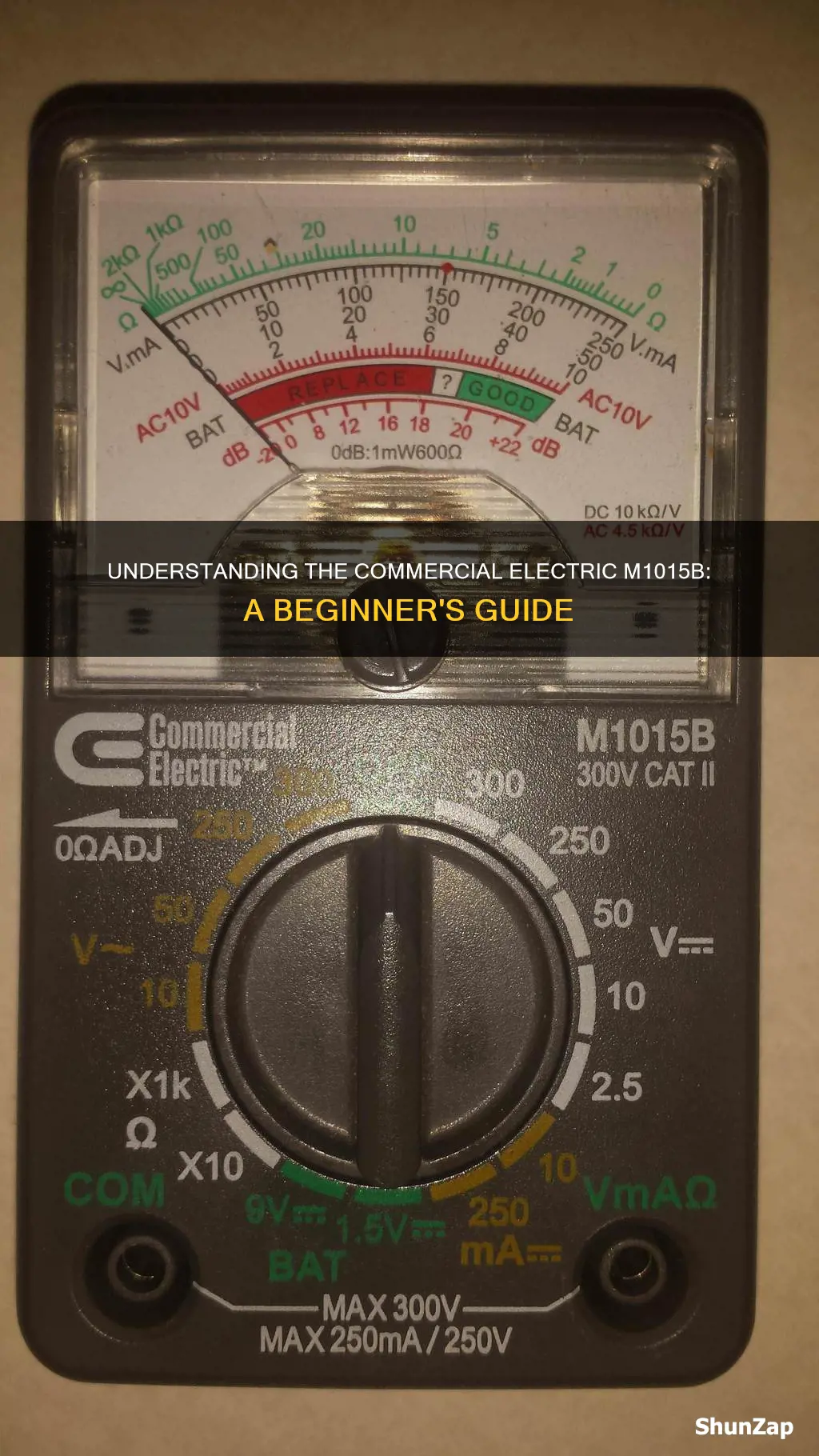

The Commercial Electric M1015B is an analogue multimeter. It can be used to test the continuity of a switch, for example, on a vacuum cleaner. To do this, set the dial to Ohms, X10, and touch the black and red probes together, adjusting the side dial to a Zero reading. You can also test a 1.5-volt battery, check heating elements, and test smoke alarms. The M1015B has a D'Arsonval swinging-needle movement, which gives you a precise reading.
| Characteristics | Values |
|---|---|
| Model Number | M1015B |
| Type | Analogue Multimeter |
| Voltage Scales | Suitable for most home and casual hobby electricals |
| Current Scales | Suitable for beginners |
| Resistance Scales | Suitable for continuity tests |
| Battery Check | Yes |
| D'Arsonval Movement | Swinging-needle |
