Industrial electrical schematics are diagrammatic representations that provide guidelines on the setup, functioning, and service of an electrical circuit. They are an important tool for identifying and resolving problems that may occur within an electrical system. While there are online guides and courses available to learn how to read electrical schematics, it is a complex subject that requires adequate formal education due to the complexities involved. Some sources suggest that it is best to have someone talk you through reading schematics, and that it takes time to fully understand them. Familiarizing yourself with the symbols used is a good place to start. A book that is used in colleges is The Art of Electronics by Paul Horowitz and Winfield Hill, which may be a good resource for learning how to read industrial electrical schematics.
| Characteristics | Values |
|---|---|
| Purpose | Provide guidelines on the setup, functioning, and service of an electrical circuit |
| Target Audience | Electricians, Heat Ventilation and Air Conditioning (HVAC) technicians, machine operators |
| Diagram Type | Diagrammatic representation, block diagrams |
| Symbols | Represent components and wiring of electrical circuits, e.g., lines represent wires and connections, zig-zag lines represent resistors |
| Component Names | Combination of letters and numbers, e.g., R for resistors, C for capacitors |
| Complexity | Requires adequate formal education and practice; improper reading can lead to great losses |
| Learning Resources | Online guides, community college courses, symbol charts, books (e.g., The Art Of Electronics) |
Explore related products
$10.99
What You'll Learn

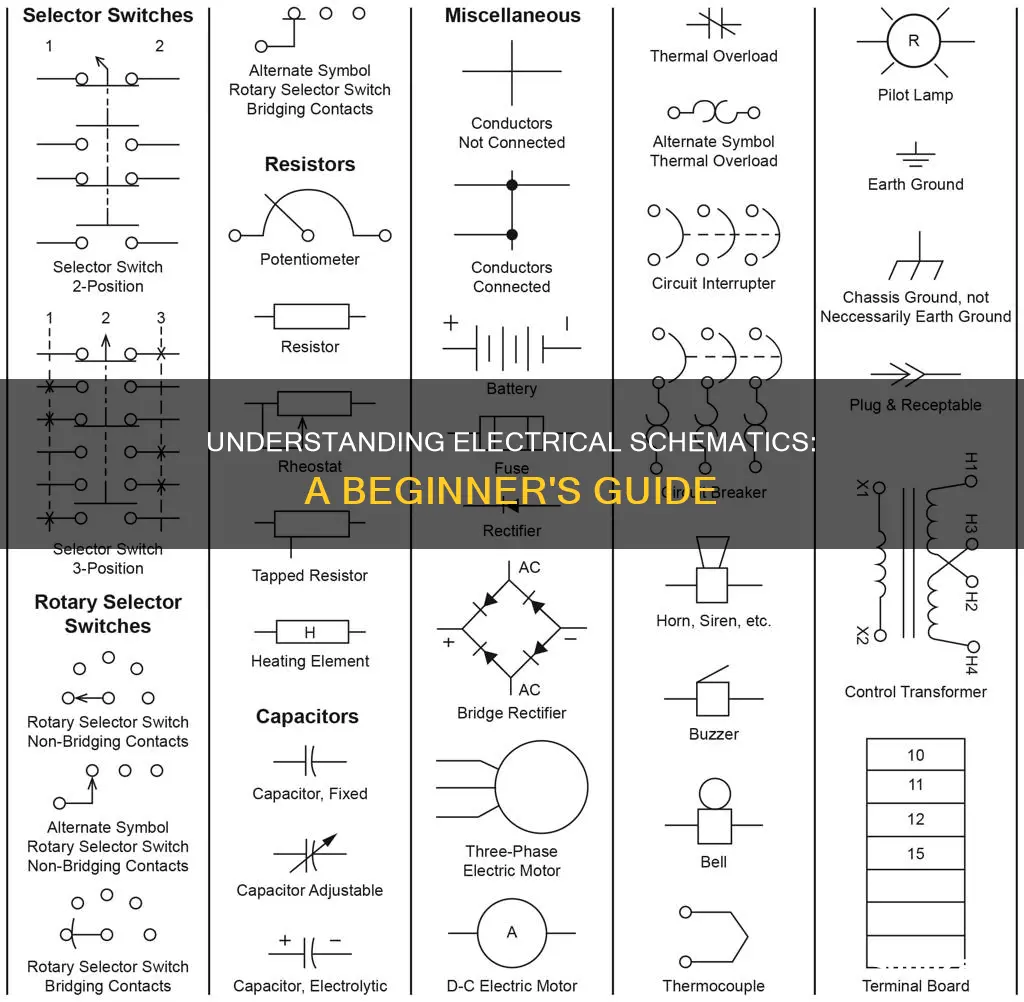

Understanding standard symbols
Standard symbols are a critical aspect of reading industrial electrical schematics. These symbols serve as a universal language, enabling effective communication and collaboration among diverse teams involved in electronics design, manufacturing, and troubleshooting. Here are some essential insights to help you understand standard symbols:
Firstly, familiarize yourself with the circuitry vocabulary. This includes understanding the terms used to name and describe the various components of a circuit. By mastering this vocabulary, you will be able to easily identify the components in a schematic diagram and facilitate clear communication with other professionals.
Next, recognize the different standards for symbols. While IEC 60617 and ANSI/IEEE 315 are the two most common standards, there are about ten different standards for symbols used in electrical and electronic devices. The IEC 60617 standard, for instance, often uses rectangles to represent passives, while ANSI/IEEE 315, historically used in North America, employs zigzag lines for resistors. It's important to be aware of these variations and consult the appropriate standards documents or resources, such as component datasheets, to ensure accurate interpretation.
Additionally, it's worth noting that different countries may use distinct symbols for the same component or function. For example, integrated circuits may be prefixed with "IC" or "U," and crystals may be labeled as "XTAL" or "Y." Being adaptable and using your best judgment is crucial when encountering different symbol representations.
To further enhance your understanding of standard symbols, consider creating your own circuits. Start with a board and a package of components, and follow instructions to assemble a basic circuit. With practice, you will become more adept at recognizing the symbols and understanding their functions. You can also explore resources like online tutorials or books specifically focused on reading electrical schematics, such as the "Beginner's Guide to Reading Schematics."
Lastly, remember that symbols can evolve over time due to changes in standards and regional preferences. For instance, the JIC standard for electrical symbols, last published in 1971, is no longer active. Stay informed about the latest standards and any updates or revisions to symbol representations to ensure you're referencing the most current information.
The Science of Conductive Paint: Electricity's Path Through Metal
You may want to see also
Explore related products
$14.59 $24.99
Identifying components
When reading industrial electrical schematics, it is important to be able to identify the various components. Electrical and electronic symbols are used by engineers in circuit diagrams and schematics to show how a circuit's components are connected. These symbols are used to identify the position and type of electrical element, whether it is resistive, inductive, capacitive, mechanical, etc.
There are some universally accepted schematic symbols, but there are also variants and alternatives used throughout the world to represent the same component. The symbols used are often defined by professional organisations such as the Institute of Electrical and Electronics Engineers (IEEE), the International Electrotechnical Commission (IEC), and the American National Standards Institute (ANSI).
To identify components, it is helpful to start from the power source, as every electronic component depends on some sort of power supply. The most common type of failure in electronic devices is power supply failure, so identifying this component is key. Passive components are those that cannot inject or amplify power in a circuit, and they are also common electronic components to look out for.
Some common symbols include resistors, which are represented by a few zig-zag lines with two terminals extending outward. Capacitors are represented by the letter 'C'. Bipolar junction transistors are identified by the letters E (emitter), B (base), and C (collector). Arrows are also used to indicate the direction of conventional current flow around a circuit or to show that a component has a variable or adjustable value.
Component names are usually a combination of letters and numbers, with the letter identifying the type of component. For example, 'R' is for resistors, 'C' for capacitors, and 'U' for integrated circuits. Each component name should be unique, and prefixes are standardised to help with identification.
Washing Machine Electrical Issues: DIY Troubleshooting Guide
You may want to see also
Explore related products
Reading AC diagrams
To read AC diagrams, one must first familiarize themselves with the standard symbols and their meanings. For example, resistors are usually represented by zig-zag lines, with two terminals extending outward, while capacitors are indicated by two perpendicular terminals running into plates, with a curved plate indicating a polarized capacitor. Voltage sources can be represented by battery symbols, with the longer line indicating the positive terminal and the shorter line the negative terminal.
It is also important to understand the different types of AC diagrams. Single-line diagrams, for instance, simplify low and high-voltage distribution, providing an overview of the installation. On the other hand, block diagrams are simplified representations that outline the steps or descriptions of an operation without going into detail. Logic diagrams are similar to block diagrams and are often used for troubleshooting, displaying potential issues and the directives to follow. Earthing diagrams, often overlooked, show the ground distribution systems, cabling, earthing pits, and connection points.
When reading AC diagrams, it is crucial to pay attention to labels and names, which help to identify the purpose of signals on wires. For instance, power nets may be labelled "VCC" or "5V", while serial communication nets may be labelled "RX" or "TX". Recognizing the different sections of a diagram, such as power input, voltage regulation, or connectors, is also important. Following the flow of the circuit from input to output can help understand the functionality of the system.
Practicing with real-world examples and exercises can greatly improve one's ability to read and interpret AC diagrams. Resources such as handbooks, video tutorials, and online forums can provide valuable guidance and insights for beginners and experienced electricians alike.
Electric Razor Hack: DIY Vibrator
You may want to see also
Explore related products
$9.46 $14.83
Reading DC diagrams
DC diagrams, also referred to as elementary wiring diagrams, are used to depict a DC system and usually show the protection and control functions of equipment in a substation. They are often used to show the tripping and closing of a circuit breaker, as well as alarms.
To read DC diagrams, one must be familiar with the fundamental symbols used to represent various components. For example, batteries are usually represented by a pair of parallel lines, with the longer line indicating the positive terminal and the shorter line indicating the negative terminal. Positive voltage nodes are often indicated by an upward-pointing arrow, while ground nodes may involve flat lines or a downward-pointing arrow or triangle. Fuses and PTCs, which limit large inrushes of current, have their own unique symbols as well.
It is also important to understand the standards and practices specific to the utility or company when reviewing DC diagrams. These diagrams often include tables or graphical representations of relay inputs and outputs, providing valuable information about the functionality and physical wiring of the system.
While there may not be extensive books on reading DC diagrams, online resources and courses can provide guidance. Additionally, having a basic understanding of electrical systems and voltage sources is essential. With practice and experience, one can become proficient in interpreting DC diagrams and utilizing them for designing, building, and troubleshooting circuits.
Brazil's Electric Network: A Complex Regional System
You may want to see also
Explore related products
Knowing the basics of electrical systems
Firstly, electricity enters your home from the utility company's power lines at the service entrance. The electric meter, which is owned and maintained by the utility company, measures the amount of energy consumed and determines the cost of the energy bill. It is usually located between the mains and your home. There are three types of electrical meters: electromechanical, digital, and smart meters.
After the electric meter, electricity is distributed throughout your home to the switches, outlets, appliances, and other devices that require power. This distribution begins at the breaker panel, also known as the breaker box, service panel, or distribution panel. The breaker panel works to distribute energy throughout the home and has a safety feature that turns off the breakers if a power overload occurs.
The wiring in your home is crucial for connecting the electrical system to electrical devices and lighting fixtures. Several types of wiring are used, with non-metallic sheathed cable (Romex) being the most common. Romex consists of insulated hot, neutral, and ground wires encased in a plastic sheath. It is typically hidden behind walls, attics, or crawl spaces and should be installed and maintained following electrical codes and safety standards.
Finally, grounding is an essential aspect of electrical systems. In a properly grounded system, a grounding wire connects the electrical system's ground to a metallic grounding electrode, typically a ground rod driven into the earth. Grounding helps prevent electrical shocks and reduces the risk of electrical fires, especially for electrical equipment and appliances.
Understanding these basic components of electrical systems is crucial for homeowners to make informed decisions about safety, maintenance, and upgrades. It also empowers individuals to identify potential issues and take appropriate action to ensure their safety and the proper functioning of their electrical systems.
Carbon Dioxide's Electricity Connection
You may want to see also
Frequently asked questions
Electrical industrial schematics are diagrammatic representations that provide guidelines on the setup, functioning, and service of an electrical circuit. They show every element of a circuit and its practical information, including the wiring of each component.
The simplest diagrams of industrial electrical schematics are block diagrams. A simple geometric block is used to represent a component or a system as a whole.
"The Art of Electronics" by Paul Horowitz and Winfield Hill is a commonly recommended book to learn to read electrical schematics. "J. Lewis Blackburn Protective Relaying Principals and Applications" is another good book to help with this topic.
There are many online guides and courses available to learn to read industrial electrical schematics. One recommended resource is the Skillcat app, which offers different courses and a guide blog post on electrical drawings and blueprints. Another online platform is LabVIEW, which is a graphical programming environment used to develop measurement, test, and control systems using intuitive graphical icons and wires.
It is important to familiarize yourself with the circuitry vocabulary and symbols used in the diagrams. Different countries use different symbols to represent the same thing. Component names are usually a combination of one or two letters and a number, with the letter identifying the type of component (e.g. R for resistors, C for capacitors). Resistors are represented by zig-zag lines or a featureless rectangle, while capacitors have two terminals running perpendicularly into plates, with one curved plate indicating a polarized capacitor.
