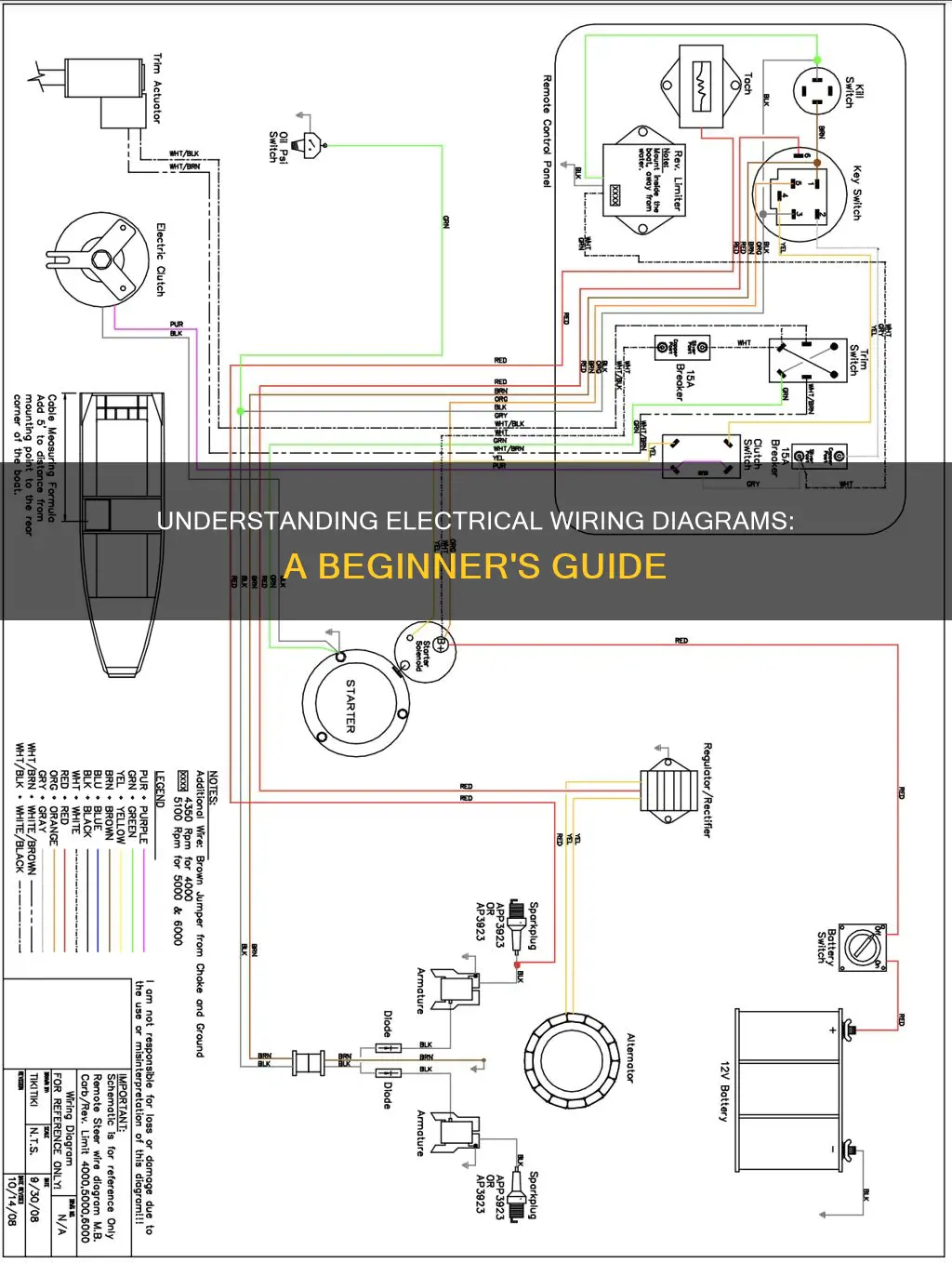

Electrical wiring diagrams are an essential tool for electricians, engineers, and automation technicians. They are graphical representations of electrical systems that show how components are connected and how current flows through the system. Proper interpretation of these diagrams is crucial for understanding how devices operate, diagnosing faults, and working safely with electrical installations. This article will provide an introduction to reading industrial electrical wiring diagrams, covering topics such as understanding symbols, interpreting potential lines, and applying knowledge in practice. By the end of this article, readers should be able to navigate these diagrams with confidence and take the first step towards mastering technical skills in this field.
| Characteristics | Values |
|---|---|
| Purpose | Electrical wiring diagrams are essential tools for electricians, engineers, and automation technicians. They allow users to understand the operation of devices, diagnose faults, and work safely with electrical installations. |
| Diagram Structure | Wiring diagrams are graphical representations of electrical systems, showing how components are connected and how current flows through the system. |
| Symbols | Symbols in wiring diagrams represent equipment and contacts. Symbols may vary depending on the ECAD software used to design the diagram. Common symbols include fuses, which appear as dashed lines, and wire tags, which are combinations of letters and numbers indicating connection points. |
| Reading Direction | Standard wiring diagrams are typically read from left to right and top to bottom. |
| Complexity | Diagrams can range from simple lighting circuits to complex industrial automation systems. More complex systems may include multiple pages of documentation with cross-references between pages. |
| Markings | Markings on diagrams include potential lines indicating voltage levels and symbols indicating power levels (+12V, +24V, GND). In industrial applications, markings may indicate function, location, and product type according to standards like IEC 81346-1. |
| Learning Approach | It is recommended to start with simple diagrams and gradually move to more complex ones. Practicing with technical documentation and diagrams provided by manufacturers can help with understanding system components and their functions. |
Explore related products
What You'll Learn
Understanding standard symbols and their application
Reading industrial electrical wiring diagrams is an essential skill for electricians, engineers, and automation technicians. These diagrams are graphical representations of electrical systems, showing how components are connected and how current flows through the system. Understanding how to interpret these diagrams is crucial for various applications, including device operation, fault diagnosis, and safe work practices involving electrical installations.
Standard symbols and their application are fundamental to understanding electrical wiring diagrams. Each diagram typically includes a legend and abbreviation page, helping users familiarise themselves with the symbols used. While specific symbols may vary depending on the ECAD software used in designing the diagram, some commonly used symbols and their meanings include:
- Fuse: Represented as a dashed line, indicating that the circuit will interrupt in case of overload to prevent damage.
- Contacts: A closed contact indicates a normally closed contact, while the rest of the contacts should be open.
- Wire tags: Combinations of letters and numbers on wires or cables indicate the device or terminal block to which they should be connected.
- Cross-references: These markings help locate connections between different pages of documentation, especially in complex systems with multiple pages of diagrams.
- Potential lines: Indicating voltage levels in a circuit, such as +12V, +24V, or circuit ground (GND). Interpreting these lines is crucial for understanding power levels in multi-voltage systems.
- IEC 81346-1 Standard: This standard uses specific markings to identify the function, location, and product for each element in the diagram, increasing readability. The function is denoted by an equals sign, the location by a plus sign, and the product type by a minus sign.
It is important to remember that symbols may vary across different industries and organisations, so it is always beneficial to refer to the legend and any relevant standards or documentation when interpreting a new diagram.
