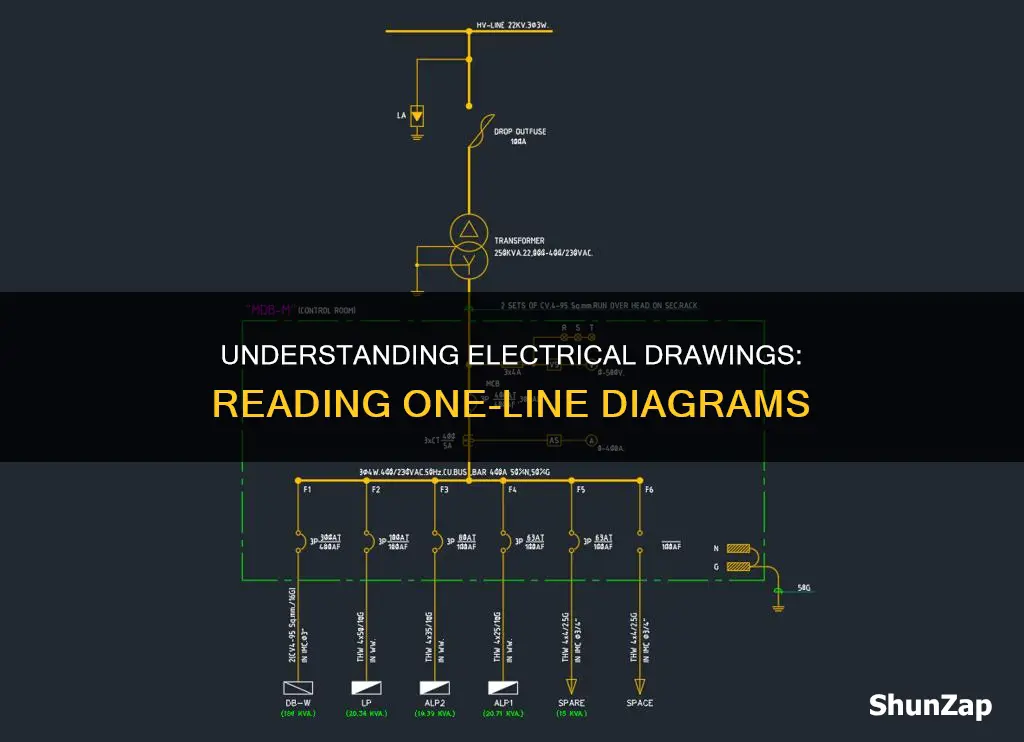

Single-line diagrams (SLDs) are simplified visual representations of complex electrical systems. They are used to illustrate the framework of electrical networks, including automated systems and their interconnected components. To interpret an SLD, one must be familiar with the standard electrical symbols used to represent different components and their relationships within the system. When reading an SLD, it is important to start at the top, where the highest voltage is, and work downwards to the lowest voltage, keeping the voltage paths clear. Understanding these diagrams is crucial for navigating industrial electrical systems and their safety protocols, as they provide insights into circuit breakers, protective devices, and emergency procedures.
| Characteristics | Values |
|---|---|
| Purpose | To provide a simplified view of the components, interconnections, and electrical flow paths of an electrical system |
| Components | Multiple conductors, transformers, circuit breakers, electrical buses, and other electrical equipment |
| Symbols | Universally accepted electrical symbols are used to represent different electrical components and their relationships within the circuit or system |
| Voltage | Start interpreting the diagram at the top, where the highest voltage is, and work down to the lowest voltage |
| Standards | IEEE 315-1975/ANSI Y32.9, National Electrical Code (NEC), and International Electrotechnical Commission (IEC) are relevant standards |
Explore related products
What You'll Learn
Learn the standard electrical symbols
Electrical symbols are a type of visual representation used in electrical drawings and diagrams to convey information about components, devices, and connections within a circuit or system. These symbols are like a universal language, allowing engineers, electricians, and technicians to communicate and understand the design and layout of electrical systems effectively. Learning to interpret these symbols is crucial for anyone working with electrical systems. Here are some essential symbols to know:
Transformer Symbol: Transformers are common components of power systems, used to step up or step down voltage levels. In a single-line diagram, you'll see a transformer symbol with numbers indicating the voltage change, such as stepping down from 35kV to 15kV.
Circuit Breaker Symbols: Circuit breakers are represented by specific symbols depending on their type. For example, a medium-voltage circuit breaker is typically denoted by a basic square breaker symbol with the ANSI Device Number 52 inside. The circuit breaker symbol may also have dotted lines connecting them, indicating that they operate as a single unit with one actuator.
Battery Symbols: Batteries have two common symbols. The first symbol represents the positive and negative plates, with larger lines for positive and smaller lines for negative. The second symbol shows the negative terminal grounded and the positive terminal going through a resistor to the ground.
Protective Relay Elements: These are denoted by numbers or characters as defined by the ANSI/IEEE C37.2 Standard. The element numbers are usually shown in a circle on the SLD. The protective relay symbol indicates the action to be taken if monitored values exceed preset thresholds.
Electrical Bus: An electrical bus is represented by a heavier, horizontal line in a single-line diagram. It is used to distribute electricity to other areas or circuits.
Multi-Pole Electrical Equipment: The symbols for multi-pole electrical equipment are the same as those used in other diagram types, specifically in single-pole representations.
While these are some of the essential electrical symbols, there are many more to learn and understand. Each symbol represents a specific electrical element, allowing professionals to create accurate and universally understood diagrams for various applications.
How Much Electricity Does 70 kWh Actually Power?
You may want to see also
Explore related products
Understand voltage and its path
Understanding voltage and its path is crucial when interpreting one-line electrical drawings, also known as Single-Line Diagrams (SLDs). These diagrams provide a simplified representation of an electrical system, showcasing its components, interconnections, and electrical flow paths. Here are some essential considerations to help you comprehend voltage and its path in SLDs:
Voltage Levels and Power Sources: SLDs indicate the voltage levels of power sources such as generators or utility supplies. The highest voltage is typically at the top of the diagram, with the voltage stepping down as you move downwards. This helps you follow the voltage path and keep the voltage levels straight. For example, a transformer in the diagram might step down the voltage from 35kV to 15kV, as indicated by the numbers next to the transformer symbol.
Standardized Symbols and Nomenclature: In North America, the Institute of Electrical and Electronics Engineers (IEEE) and ANSI have standardized symbols and labels for electrical drawings, including SLDs. These symbols help represent common devices and voltage-stepping devices like transformers, current transformers, and circuit protective devices. Properly indicating the type of transformer, its kV ratings, and any surge protection devices is vital for safety and documentation.
Wiring Layouts and Connections: One-line electrical drawings show the wiring layouts and connections. These paths are typically inside the ceiling, and the wiring layout illustrates the set path for wires from the switchboard to the light fixtures or other equipment. Understanding the wiring connections is crucial for grasping the voltage path, as voltage flows through these connections.
Schedules and Equipment Details: Electrical diagrams often include schedules that provide detailed information about the equipment or items used. Schedules help you understand the specifics of lighting fixtures, appliances, and other electrical components denoted by symbols in the diagram. This information is vital for estimating, ordering, and installing equipment, ensuring the connections between equipment are accurate, and tracing the voltage path.
Maintenance and Updates: It is essential to maintain up-to-date SLDs for everyday operations, maintenance, and engineering power system studies. CSA Z463 recommends reviewing SLDs every five years or when significant changes occur. When working on a new or existing SLD, refer to equipment tags, nameplates, and connections to ensure accurate representations of voltage paths and equipment connections.
Electrical Code Compliance: NC's Essential Guide
You may want to see also
Identify transformers and their function
When reading one-line electrical drawings, identifying transformers and understanding their function is essential. Transformers are devices that play a crucial role in electrical power systems, specifically in the generation, transmission, and distribution of electricity. They are responsible for converting input voltage to a different output voltage, ensuring compatible voltage levels between different components of the electrical system.
In one-line electrical drawings, transformers are typically represented using standardised schematic symbols. These symbols offer a visual way to indicate the presence of transformers within the circuit design. Understanding these symbols is crucial for interpreting the drawing accurately. The symbols may vary depending on the type of transformer, such as single-phase or three-phase power transformers.
To identify a transformer in a one-line electrical drawing, look for a set of interconnecting lines or loops that represent the transformer's windings. These windings are the key components of a transformer and are responsible for voltage transformation. The windings are usually labelled with an "H" for high-voltage windings and an "X" for low-voltage windings, as per ANSI (American National Standards Institute) standards. The number of windings can vary, with some transformers having multiple high- and low-voltage windings denoted by H1, H2, X1, X2, and so on.
The positioning of the windings and their connections is also important. The start and end of each winding are indicated by numbering the leads, such as H1, H2 for an H winding. The direction of current flow is from the start to the finish of the winding, and the polarity of each lead is essential for proper connection. Additionally, some transformers may have an electrostatic shield or "E-Shield," represented by a line labelled "ES" between the windings.
Understanding the function of transformers in one-line electrical drawings involves interpreting their connections and voltage transformations. The drawing may show how the transformer connects to the core transmission panel or transmission board, distributing power to various circuits. Residential transformer diagrams, for example, illustrate how power is distributed throughout a house, including connections to lighting circuits, outlets, equipment, and HVAC systems.
AC or DC: What Powers Your Home?
You may want to see also
Recognise circuit breakers and their types
Circuit breakers are an essential safety device in any electrical system, protecting circuits from overloading and short circuits. They are designed to trip or shut off if the amperage load gets too large, preventing electrical fires and damage to equipment. Circuit breakers are usually located in a breaker box, often in the basement, utility room, or garage.
There are several types of circuit breakers, each with a unique appearance and specific function. The main types are standard circuit breakers, GFCI breakers, and AFCI breakers. Standard circuit breakers are the most common type, featuring a simple switch that flips up and down. They are available in single-pole and double-pole variations, with the latter occupying two slots on a breaker panel and controlling two circuits. GFCI breakers are similar in appearance but feature a test button and on/off button, as well as pigtails. AFCI breakers resemble GFCI breakers but are generally wider and may have "AFCI" printed on them.
When identifying a circuit breaker, it is important to refer to its label, which provides vital information. The label typically includes the brand, serial number, and electrical specifications such as maximum amperage rating, voltage rating, frequency rating, and trip curve details. The labels are usually placed next to each switch or inside the breaker panel door, corresponding to a specific appliance or room in the circuit.
Additionally, it is crucial to determine the load capacity or amp size of the circuit breaker required for installation. This is based on the total circuit load, with most appliances indicating their amp rating. Large appliances such as air conditioning units, washing machines, and ovens require their own dedicated circuit. Consulting an electrician is recommended when unsure about the total circuit load.
Hydro-Electric Commission's Approved Appliances: A Historical Perspective
You may want to see also
Know safety standards and regulations
When creating and interpreting one-line electrical drawings, it is crucial to adhere to safety standards and regulations. These standards and regulations are designed to ensure the safe installation, operation, and maintenance of electrical systems and equipment, protecting both personnel and equipment from potential faults and hazards. Here are some key considerations:
- Standardization and Compliance: It is important to follow standardized drawing symbols and nomenclature for electrical drawings, including one-line diagrams or single-line diagrams (SLDs). In North America, the Institute of Electrical and Electronics Engineers (IEEE) has standardized symbols and labels to represent common devices such as circuit protective devices, transformers, and current transformers. Compliance with relevant industry standards, such as those by the National Electrical Code (NEC), International Electrotechnical Commission (IEC), and regional regulations, is essential for real-world applications.
- Safety Considerations: One-line diagrams should incorporate safety considerations, clear documentation, and appropriate safety labels and warnings. This includes properly indicating the type of transformer, its kVA ratings, cooling methods, and the presence of surge or lightning protection devices. Circuit breakers and protective devices are critical for safety and reliability, safeguarding against faults and overloads. Removable or drawout circuit breakers facilitate maintenance and replacement, while non-drawout circuit breakers are used for less critical circuits. Disconnect switches provide a visible means of isolation for maintenance or emergencies.
- Workplace Safety: In the United States, the Occupational Safety and Health Administration (OSHA) sets forth electrical safety standards specifically designed to protect workers from electrical hazards in the workplace. These regulations are part of the Code of Federal Regulations (CFR), with specific sections for general industry and construction. OSHA outlines requirements for personal protective equipment (PPE), such as gloves, eye protection, and flame-resistant clothing, based on risk assessments. Employers are mandated to provide training for workers who face risks of electric shock and other electrical hazards.
- Electrical Safety Practices: The National Fire Protection Association's NFPA 70E provides detailed guidelines on electrical safety in the workplace, complementing OSHA regulations. Proper wiring techniques, the use of circuit breakers, and grounding of electrical components are essential. Safety practices also include identifying and labeling live parts, using lockout/tagout (LOTO) procedures to control hazardous energy, and de-energizing equipment before work. Regular maintenance of electrical equipment is necessary to ensure ongoing safety.
- Hazard Control and Updates: One-line diagrams are crucial for hazardous energy control programs and LOTO practices. Accurate and regularly updated diagrams are essential for safety management and electrical maintenance personnel. Modifications to the electrical system may introduce new hazards, so updates are necessary to ensure safety and compliance with regulations.
By adhering to these safety standards and regulations, one can ensure that one-line electrical drawings are not only technically accurate but also contribute to a safer working environment and reliable facility operation.
Comparing Electric Rates in PA: A Guide
You may want to see also
Frequently asked questions
A single-line electrical drawing, also known as a Single-Line Diagram (SLD), is a simplified schematic of a multi-line power distribution system. It uses a single line to represent the many components of a distribution system, including three-phase, three-phase with neutral, single-phase with neutral, or direct current with two lines.
Single-line electrical drawings provide a simplified and comprehensive view of an electrical system, making it easier to understand the components, interconnections, and electrical flow paths. They serve as a roadmap for navigating complex industrial electrical systems.
Single-line electrical drawings use universally accepted electrical symbols to represent different electrical components and their relationships within a circuit or system. These symbols include those for circuit breakers, transformers, relays, and automatic transfer switches.
To interpret the symbols in a single-line drawing, you must first familiarize yourself with the standard electrical symbols and their meanings. You can then analyze the diagram by starting at the top, where the highest voltage is, and working your way down to the lowest voltage. This helps you understand the voltages and their paths within the system.
In a single-line diagram, you may see a transformer stepping down the voltage from 35kV to 15kV. Following this, you might encounter a removable circuit breaker (a1), which can handle 15kV. This circuit breaker is then attached to an electrical bus, represented by a heavier, horizontal line, which distributes electricity to other areas or circuits.
