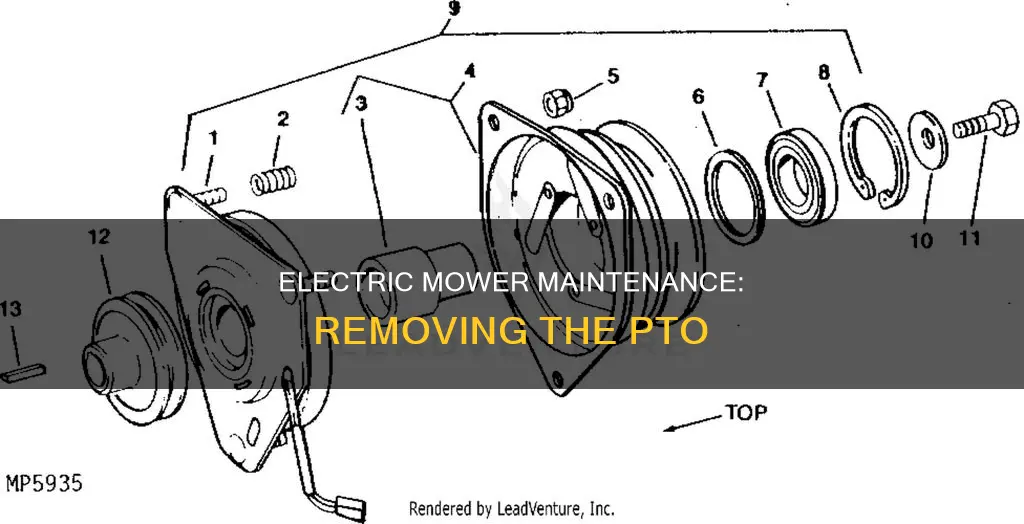

The electric Power Take-Off (PTO) system on a lawn mower uses electricity to engage or disengage a PTO clutch, allowing power to be transferred from the engine to the attachment. Removing the electric PTO clutch is a simple process that can be done by first lifting the front of the machine and placing it on jack stands. Next, the mower deck belt should be removed from the PTO clutch, followed by unplugging the electrical connector. The bottom bolt can then be removed from the PTO clutch using an impact wrench or a length of clean cord. However, it is important to note that if the PTO clutch is rusted in place, it may be difficult to remove without causing damage.
Explore related products
What You'll Learn
Removing the bolt, collar, pulley, and lower half of the PTO
Step 1: Removing the Bolt
The first step is to locate and remove the bolt that holds the PTO clutch in place. This bolt is typically found at the end of the shaft. However, before removing the bolt, you may need to address any rust or corrosion that has built up over time. Soaking the bolt in penetrating oil or using a product like PB Blaster can help loosen it. If rust is a significant issue, you may need to apply heat to the bolt, but exercise caution to avoid damaging the surrounding components.
Step 2: Releasing the Clutch
Once the bolt is removed, you can focus on releasing the clutch. In some cases, you may be able to simply pull or wiggle the clutch off the shaft. However, if it's seized or rusted in place, you might need to use a puller or a pry bar to apply pressure and dislodge it. An impact gun can also be used to knock it loose. If you need more force, consider using a hammer, but be careful not to damage other components.
Step 3: Removing the Collar
The collar is the next component to address. In some instances, the collar may come off along with the clutch. However, if it remains on the shaft, you may need to cut it off using a side grinder or similar tool. This process can be tricky, so proceed with caution to avoid damaging the shaft or other nearby parts.
Step 4: Detaching the Pulley
Detaching the pulley can be a challenging task. Start by identifying the bolts attached to the pulley and the taper lock collar. Soaking these bolts in penetrating oil can help loosen them. Then, try tightening the bolts alternately while tapping the angle opposite the PTO shaft to break the seal. If this doesn't work, you may need to use a rubber hammer or a regular hammer to apply force and dislodge the pulley. Be cautious not to use excessive force, as this may damage the pulley or the shaft.
Step 5: Lower Half of the PTO
Finally, addressing the lower half of the PTO may involve additional steps depending on the specific design of your mower. You may need to remove any remaining components attached to the shaft, such as bearings or other attachments. Consult your mower's manual or seek advice from a professional if you encounter any unique challenges during this step.
Remember to exercise caution throughout the process, and if you're unsure about any steps, it's always best to seek guidance from a qualified technician or mechanic.
Hydraulic vs Electric Trim Tabs: Pros and Cons
You may want to see also
Explore related products
Using an impact gun to knock it loose
Removing an electric power take-off (PTO) from a mower can be challenging, especially if it's rusted in place. Here's a detailed guide on using an impact gun to knock it loose:
Before you begin, it's important to note that the PTO clutch is bolted onto the shaft of the motor. To remove it, you'll need to first remove the bolt at the end of the shaft. This bolt is not reverse threaded and is designed to prevent the PTO from turning on the shaft.
Now, to use an impact gun effectively:
- Prepare the Mower: Lift the front of the mower and place it on jack stands. This will give you better access to the PTO clutch.
- Disconnect Components: Remove the mower deck belt from the PTO clutch. Then, unplug the electrical connector from the PTO clutch and secure it safely out of the way.
- Use an Impact Gun: With an impact gun, you can deliver a short, violent burst of force to the bolt. This impact can effectively knock the bolt loose before the engine has a chance to turn. Make sure you have the correct sized socket attached to your impact gun.
- Alternative Methods: If you don't have an impact gun, you can try using a wrench. Attach the wrench to the bolt and hit the other end with a hammer in the direction you want the bolt to turn. This creates a similar impact effect.
- Penetrating Lubricant: If the bolt is rusted or stuck, consider using a penetrating lubricant like PB Blaster or WD-40. Soak the bolt overnight, and then use your impact gun or wrench to try loosening it.
- Safety Precautions: Always remove the spark plug lead before attempting to remove the PTO. Additionally, wear thick leather gloves or wrap an old towel around the blade for a better grip and to protect your hands.
Remember, if you're unable to loosen the bolt with an impact gun, you may need to try other methods or seek professional assistance to avoid damaging your mower.
Build Your Own Electric Fish Stunner: DIY Guide
You may want to see also
Explore related products
Lifting the front of the mower for easier access
Before you begin, ensure you have the necessary tools, such as an impact wrench, and safety equipment, including gloves and eye protection. It is also recommended to have a clean work area to avoid any debris getting into the mower components.
To start, locate a sturdy and level surface where you can safely lift the front of your mower. This could be a flat concrete floor or a paved driveway. Engage the parking brake and ensure the mower is securely parked to stabilise the machine during the procedure.
Next, you'll want to lift the front of the mower. This can be done by using a jack or a similar lifting mechanism. Place jack stands under the machine to support it and ensure stability. It is important to use appropriate jack stands that can bear the weight of the mower. If you don't have access to an impact wrench, you can still proceed, but you will need a length of clean cord, similar to a starter rope, which will be used later in the process.
Once the mower is securely lifted and supported, you will have better access to the PTO clutch. At this point, you can proceed to the next steps, which include removing the mower deck belt from the PTO clutch, and then addressing the electrical connector, as outlined in other sections of the mower repair guide. Remember to always refer to your mower's manual for specific instructions pertaining to your model, as well as safety precautions to observe during the removal process.
By following these steps, you'll be able to safely and effectively lift the front of your mower, providing easier access to the electric PTO clutch for removal or maintenance.
Understanding Peak and Off-Peak Electricity Rates
You may want to see also
Explore related products
Unplugging the electrical connector and securing it
To unplug the electrical connector and secure it, follow these steps:
First, lift the front of the mower machine and place it on jack stands or another stable surface. This will give you better access to the mower deck and the electrical connector. Next, locate the electrical connector, which is usually plugged into the PTO clutch. It is important to identify the correct component to avoid any confusion or accidental damage. Once you have located the electrical connector, carefully unplug it from the PTO clutch. Use one hand to hold the connector and the other hand to gently but firmly pull it out. Ensure that you are pulling it out in a straight motion to avoid bending or damaging any wires or components.
After unplugging the connector, it is crucial to secure it properly to prevent it from being accidentally pulled or damaged. You can use a cable tie or zip tie to secure the connector out of the way so that it does not get pulled loose or damaged. Alternatively, if there is a hook or loop designed for this purpose, you can use that to secure the connector. Make sure that the connector is not left loose or hanging, as it may get caught in other components or present a safety hazard.
If your mower has a cover or housing that needs to be removed to access the connector, make sure to note the exact location of the connector before securing it. This will help ensure that you can easily plug it back in when reassembling the mower. Additionally, it is good practice to consult the mower's manual or a trusted online resource to identify any specific considerations or steps for your particular mower model.
By following these steps, you can safely and securely unplug and secure the electrical connector during the process of removing the electric PTO from your mower.
Develop Electrical Expertise: Steps to Becoming Competent
You may want to see also
Explore related products
Using a dead-blow hammer to remove the PTO
To remove the PTO from an electric mower, you must first understand how it works. The PTO clutch connects the mower blades to the engine. When activated, an electric current flows through a coil to create an electromagnet. This electromagnet pulls the rotor plate, which then spins a pulley connected to the blades, causing them to rotate.
The electric PTO clutch is bolted onto the shaft of the motor. To remove it, you must first remove the bolt at the end of the shaft. However, this can be challenging as the shaft tends to turn inside the clutch, preventing the bolt from being loosened. One way to address this issue is by using an impact gun, which can knock the bolt loose before the engine has a chance to turn.
Another method to prevent the shaft from turning is by removing the blower housing and locking down the flywheel. An old trick involves removing the spark plug, turning the engine over until the piston is at the bottom, and then using a small rope with knots tied at both ends. This rope is inserted through the spark plug hole and wrapped around the flywheel to lock it in place.
Once the bolt is loosened, you may need to use some force to pull the PTO off the shaft, especially if it is rusted. This is where a dead-blow hammer comes in. A dead-blow hammer can be used to deliver precise, controlled strikes to the PTO without damaging the surrounding components. It is important to note that you should not use heat on a clutch you plan to reuse, as it will melt the coil and destroy it.
Additionally, it is recommended to always use an anti-seize compound when putting on a new PTO clutch. By following these steps and using the appropriate tools, you can safely and effectively remove the PTO from your electric mower.
