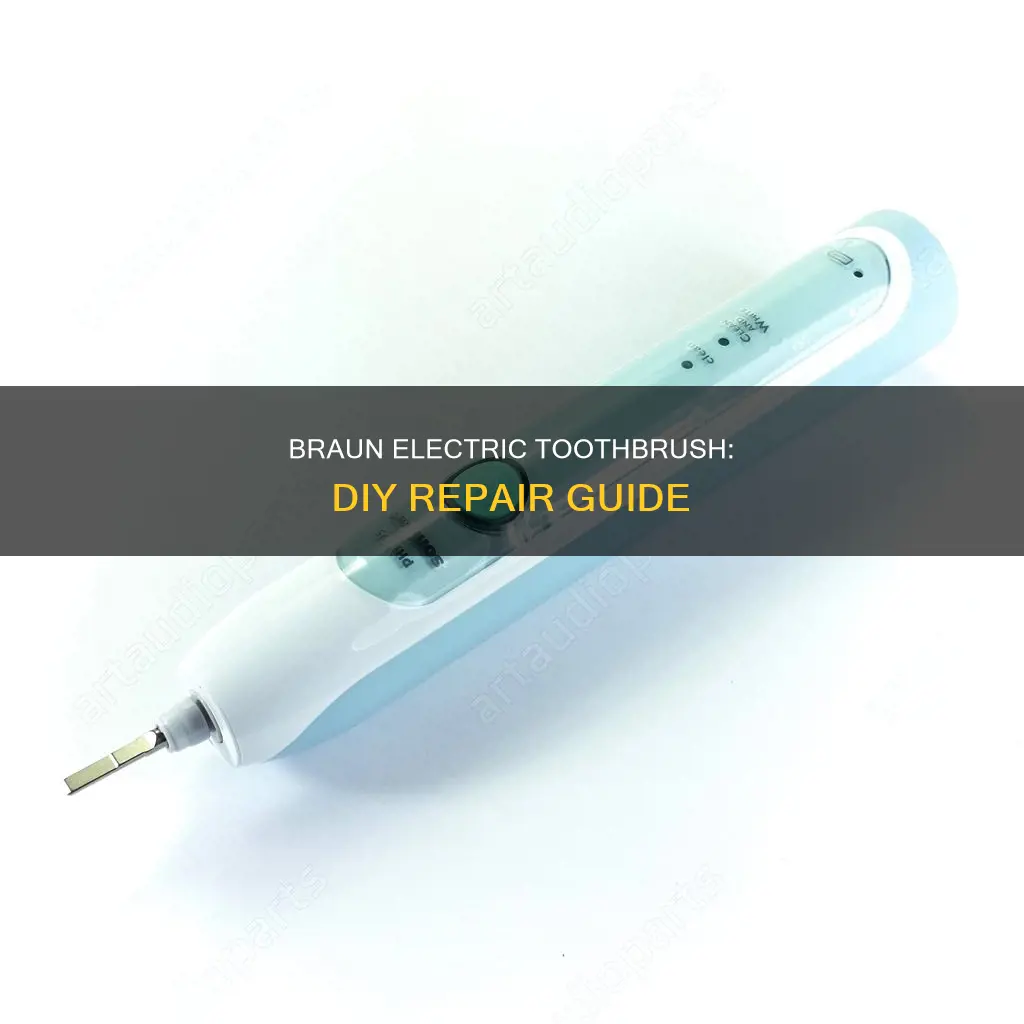

Braun electric toothbrushes are popular worldwide, but many users complain about their batteries losing the ability to hold a charge over time. This issue can be addressed by replacing the battery, which requires disassembling the toothbrush and soldering a new battery into place. While this repair can be challenging, it is possible to bring new life to your toothbrush for a fraction of the cost of a new one. In this article, we will explore the steps involved in repairing a Braun electric toothbrush, including common issues and troubleshooting tips, to help you decide if repairing or replacing your toothbrush is the best option.
| Characteristics | Values |
|---|---|
| Common issues | Reduced battery life |
| Battery connection issues | |
| Physical damage to the handle | |
| Water ingress | |
| Cracked solder joints | |
| Repair methods | Replacing the battery |
| Soldering | |
| Using a small adjustable spanner | |
| De-soldering | |
| Checking for solder splashes | |
| Using a temperature-controlled soldering station | |
| Using a magnifying glass | |
| Contacting Oral-B for repair or replacement |
Explore related products
What You'll Learn
Opening the toothbrush
Opening a Braun electric toothbrush involves a process of disassembly. It is important to note that the Oral-B handles are not designed to be opened by users, and doing so may void the warranty and cause permanent damage to the toothbrush.
To open the toothbrush, start by placing a small adjustable spanner around the flat white plastic part of the toothbrush. Twist the spanner anticlockwise until you have twisted it about 30 degrees. At this point, the white plastic should disengage from the main body of the toothbrush. Once released, the inner mechanism should slide out easily. Set aside the main body and the spring, as these will not be needed until reassembly.
On one side of the mechanism is the PCB (Printed Circuit Board). The PCB controls the charging of the cell (battery) and also drives the motor. It has a momentary push button near the top. Turning the mechanism over will reveal the cell, which is yellow in colour. De-solder the four tabs that hold the PCB and cell in position. Two of the tabs connect to the motor, while the other two connect to the positive and negative ends of the cell. The negative tab on the cell needs to be bent up to enable the PCB to be removed. Once this is done, the PCB can be lifted away from the rest of the mechanism, and the cell can be slid out.
It is important to be careful when working with the solder connections, as cracked solder joints can be repaired, but damage to the battery connection inside the handle may occur if the toothbrush has been dropped or knocked. Additionally, when working with the solder, it is important to be aware that the PCB in the Braun is of high quality, and it would be difficult to delaminate the traces by overheating with a soldering iron. Therefore, it is recommended to use a temperature-controlled soldering station. After soldering, it is also good practice to use a magnifying glass to check for any solder splashes or solder balls that could cause problems in the future.
