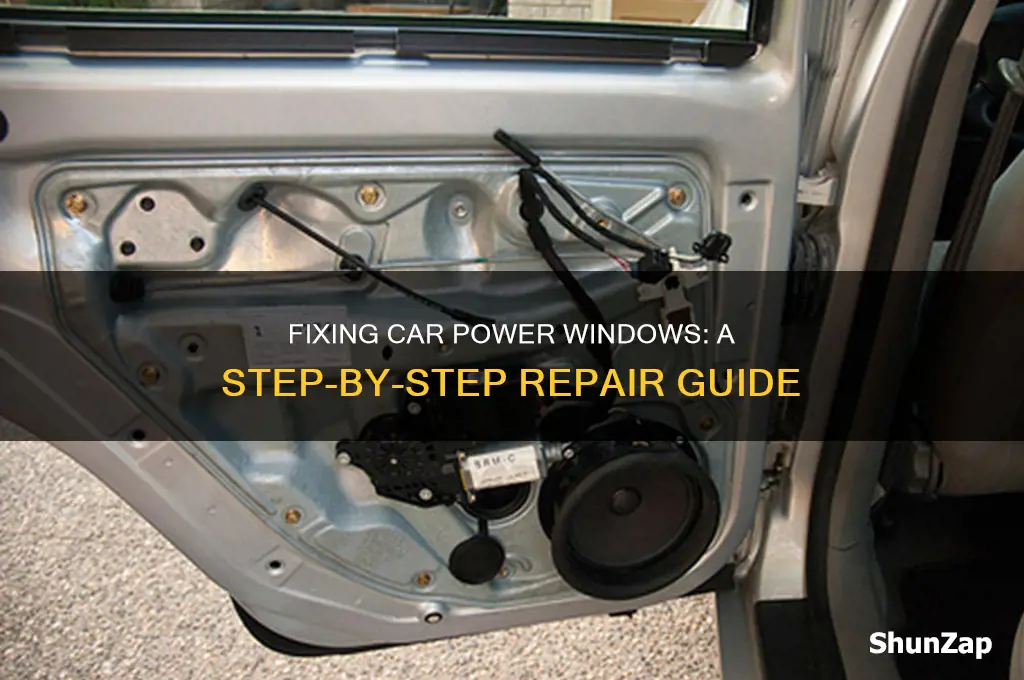

Repairing electric power windows in cars can be a straightforward task if approached methodically. The process typically begins with diagnosing the issue, which could range from a faulty switch, a broken motor, or a malfunctioning regulator. Start by checking the fuse and relay associated with the window system, as a blown fuse is a common culprit. If the fuse is intact, inspect the window switch for continuity using a multimeter; a faulty switch will often require replacement. Next, examine the window motor and regulator assembly, which may need to be removed from the door panel for a thorough inspection. In some cases, lubricating the regulator or replacing the motor can resolve the problem. Always ensure the battery is disconnected before working on electrical components to avoid accidents. With the right tools and a systematic approach, most power window issues can be fixed without professional help.
| Characteristics | Values |
|---|---|
| Common Issues | Window not moving, slow operation, window falling into door, noisy motor. |
| Tools Required | Screwdriver, trim panel removal tool, multimeter, socket set, pliers. |
| Steps to Repair | 1. Remove door panel, 2. Inspect wiring and connectors, 3. Test window motor, 4. Replace faulty components (motor, regulator, switch). |
| Cost of Repair | DIY: $50-$200 (parts); Professional: $200-$400 (labor + parts). |
| Common Faulty Parts | Window regulator, window motor, window switch, wiring harness. |
| Safety Precautions | Disconnect car battery before starting, avoid sharp edges on door panel. |
| Time Required | 1-3 hours (DIY), depending on complexity and experience. |
| Difficulty Level | Moderate (requires basic mechanical and electrical knowledge). |
| Preventive Maintenance | Regularly clean window tracks, lubricate moving parts, check for loose connections. |
| When to Seek Professional Help | If wiring issues are complex, or if the regulator/motor needs welding. |
| Compatibility | Repair methods vary slightly by car make and model. |
| Environmental Impact | Repairing extends the life of the part, reducing waste compared to replacement. |
| Warranty Considerations | DIY repairs may void manufacturer warranty; check before proceeding. |
Explore related products
What You'll Learn
- Diagnosing Common Issues: Identify symptoms like slow operation, unusual noises, or complete failure
- Replacing Window Regulators: Steps to remove and install new regulator assemblies
- Fixing Window Motors: Testing and replacing faulty electric window motors
- Repairing Window Switches: Cleaning, testing, or replacing defective control switches
- Resetting Window Systems: Procedures to recalibrate power window auto-up/down functions
Diagnosing Common Issues: Identify symptoms like slow operation, unusual noises, or complete failure
Electric power windows, while convenient, can exhibit symptoms that signal underlying issues. Slow operation, for instance, often indicates a strained system. This could stem from worn-out motor brushes, insufficient lubrication on the window tracks, or a weak battery. To diagnose, observe if the window accelerates slightly after pausing mid-operation—a telltale sign of motor fatigue. Applying a silicone-based lubricant to the tracks can sometimes restore speed, but persistent slowness warrants motor inspection.
Unusual noises, such as grinding or squeaking, are more than just annoyances—they’re alarms. Grinding typically points to debris in the window channel or a failing regulator mechanism. Squeaking, on the other hand, suggests dry or damaged seals. A visual inspection of the window tracks can reveal obstructions, while running the window with the door panel removed allows you to pinpoint the source of the noise. Addressing these issues promptly prevents further damage, like shattered glass or a seized motor.
Complete window failure demands a systematic approach. Start by testing the fuse associated with the power window circuit—a blown fuse is a common culprit. If the fuse is intact, check for voltage at the window switch using a multimeter. No voltage indicates a wiring issue, while voltage without operation points to a faulty switch or motor. Pro tip: Disconnect the window switch and use a jumper wire to bypass it; if the window operates, replace the switch.
Comparing symptoms across different window operations can narrow down the problem. If all windows fail simultaneously, the issue likely lies in the master switch or a central relay. If only one window malfunctions, the problem is localized to that door’s components. This comparative analysis saves time and ensures you target the correct part for repair or replacement.
In summary, diagnosing power window issues requires a blend of observation, testing, and comparison. Slow operation, unusual noises, and complete failure each have distinct causes, from mechanical wear to electrical faults. By methodically addressing these symptoms, you can restore functionality without unnecessary part replacements or costly repairs.
Top Metals for Conducting Electricity: A Comprehensive Guide
You may want to see also
Explore related products
Replacing Window Regulators: Steps to remove and install new regulator assemblies
A faulty window regulator is a common culprit behind malfunctioning power windows, often requiring replacement to restore smooth operation. This task, while intricate, is manageable with the right tools and a methodical approach. Here’s a step-by-step guide to removing and installing a new window regulator assembly.
Disassembly Begins with Preparation: Start by disconnecting the car battery to prevent accidental deployment of the window mechanism or electrical shocks. Remove the door panel carefully, prying it open with a trim removal tool to avoid damaging clips or upholstery. Locate the window regulator, typically attached to the window glass and the door frame. Detach the electrical connector from the motor and remove any bolts securing the regulator to the door. Carefully lower the window glass and secure it in place with tape or a makeshift support to prevent it from falling once the regulator is removed.
Removal and Inspection: With the glass secured, remove the remaining bolts holding the regulator assembly. Take note of the regulator’s orientation and any specific features, such as cable routing or motor placement, as these details are crucial for proper installation of the new unit. Inspect the old regulator for wear, broken cables, or damaged gears to understand the root cause of the failure. This step is essential for ensuring the new regulator is installed correctly and for identifying potential issues with other components, like the window motor or switches.
Installation Requires Precision: Position the new regulator assembly in the door, aligning it with the mounting points. Reattach the bolts securely but avoid over-tightening to prevent damage. Reconnect the electrical connector to the motor and ensure all cables are properly seated. Carefully remove the temporary support and reattach the window glass to the regulator, ensuring it sits correctly in the tracks. Test the window’s operation manually before reinstalling the door panel to verify smooth movement.
Final Steps and Testing: Reattach the door panel, ensuring all clips and screws are secured. Reconnect the car battery and test the power window function thoroughly. Check for proper alignment, smooth operation, and any unusual noises. If the window binds or operates unevenly, recheck the regulator’s installation and glass alignment. A successful replacement will restore the window’s functionality, providing reliable performance for years to come.
By following these steps with attention to detail, you can effectively replace a window regulator, saving time and money compared to professional repairs. This process not only addresses the immediate issue but also enhances your understanding of your vehicle’s mechanics.
Toyota's Electric Car Battery Breakthrough: A Game-Changer for EVs?
You may want to see also
Explore related products
Fixing Window Motors: Testing and replacing faulty electric window motors
Electric window motors are the unsung heroes of modern automotive convenience, but when they fail, the silence can be deafening. Diagnosing a faulty motor begins with a systematic approach. Start by checking the window switch and wiring harness for continuity using a multimeter. If these components are functioning, the motor itself is likely the culprit. Apply power directly to the motor’s terminals; if it doesn’t hum or move, internal damage or burnout is probable. This simple test isolates the issue, saving time and unnecessary part replacements.
Replacing a window motor isn’t as daunting as it seems, but precision is key. Begin by removing the door panel, a task that varies by vehicle but typically involves prying off clips or unscrewing fasteners. Once exposed, disconnect the motor’s electrical connector and remove the window regulator assembly. Most motors are secured with 2–4 bolts, accessible after detaching the window from the regulator. When installing the new motor, ensure the window aligns properly with the door seal to prevent leaks or misalignment.
Not all window motor failures require a full replacement. In some cases, the problem lies in the motor’s brushes or gears, which can be serviced individually. Disassemble the motor carefully, inspect for worn components, and replace them with compatible parts. This approach is cost-effective but requires patience and a basic understanding of motor mechanics. However, for older vehicles or motors with extensive damage, a complete replacement is often the more reliable solution.
Choosing the right replacement motor is critical. Aftermarket options are affordable but vary in quality; OEM (Original Equipment Manufacturer) parts offer reliability but come at a premium. Verify compatibility by matching the motor’s part number or consulting the vehicle’s service manual. Additionally, consider the motor’s torque rating—higher torque ensures smoother operation, especially in larger windows. Always test the new motor before reassembling the door to confirm functionality.
Preventive maintenance can extend the life of electric window motors. Regularly clean the window tracks and lubricate the regulator mechanism to reduce strain on the motor. Avoid forcing the window when it moves slowly, as this can cause overheating. For vehicles in humid climates, apply dielectric grease to electrical connections to prevent corrosion. These small steps can save you from future repairs and keep your power windows operating seamlessly.
Mastering Car Electrical Diagrams: A Step-by-Step Guide for Beginners
You may want to see also
Explore related products
Repairing Window Switches: Cleaning, testing, or replacing defective control switches
Window switches are the command centers of your car’s power windows, but dirt, wear, and electrical faults can render them unresponsive. Before condemning a switch to replacement, start with a thorough cleaning. Disassemble the door panel carefully, unplug the switch, and use compressed air to remove dust and debris. For stubborn grime, apply a small amount of electrical contact cleaner (e.g., CRC Electronics Cleaner) and scrub gently with a soft-bristled brush. Reassemble and test—often, this simple step restores functionality without further intervention.
If cleaning fails, testing the switch is your next diagnostic step. Use a multimeter set to the continuity or resistance mode to check for a complete circuit when the switch is activated. Connect the multimeter probes to the switch’s input and output terminals while operating it up and down. A functioning switch will show consistent readings; erratic or no readings indicate internal failure. For example, a broken spring or worn contacts inside the switch can disrupt the circuit, pinpointing the need for replacement.
Replacing a defective switch is straightforward but requires attention to detail. First, identify the correct part number for your vehicle—generic switches may lack proper fitment or functionality. After removing the door panel and disconnecting the old switch, transfer any retaining clips or bezels to the new unit. Ensure the wiring harness clicks securely into place, then test the window before reinstalling the panel. Pro tip: If the new switch fails prematurely, inspect the window regulator or master switch for underlying issues, as these components can overburden individual switches.
While cleaning and testing are cost-effective solutions, knowing when to replace a switch saves time and frustration. Persistent issues like intermittent operation or complete failure after cleaning suggest irreversible damage. Modern switches, particularly those with integrated backlighting or advanced controls, rarely respond to DIY repairs. In such cases, opt for OEM or high-quality aftermarket replacements to ensure compatibility and longevity. Remember, a faulty switch isn’t just an inconvenience—it’s a safety hazard, especially in emergencies requiring quick window operation.
High-Voltage Battery Location in Electric Vehicles: Under the Floor?
You may want to see also
Explore related products
Resetting Window Systems: Procedures to recalibrate power window auto-up/down functions
Modern vehicles often feature power windows with auto-up/down functions, which rely on precise calibration to operate smoothly. Over time, these systems can lose their programmed settings due to battery disconnection, window obstruction, or electrical glitches. Resetting the window system recalibrates the auto-up/down feature, ensuring the window stops at the correct positions without fully closing or opening. This process varies by vehicle make and model but typically involves a series of button presses or specific actions to retrain the window motor’s limits.
To reset the auto-up/down function, start by ensuring the window is fully closed. Hold the window switch in the up position for at least one second after the window closes completely. This signals the system to recognize the top limit. Next, lower the window fully and hold the switch in the down position for another second to set the bottom limit. Some vehicles may require additional steps, such as repeating this process three times or using a combination of button presses (e.g., holding the up and down buttons simultaneously). Always refer to your vehicle’s manual for model-specific instructions.
A common mistake during recalibration is interrupting the process or failing to hold the switch long enough. For example, releasing the button too early can prevent the system from registering the window’s limits accurately. If the reset fails, check for obstructions in the window track or inspect the fuse box for blown fuses related to the window circuit. In some cases, a professional diagnostic tool may be needed to clear error codes or recalibrate the system.
Recalibrating the auto-up/down function is not just about convenience—it’s a safety feature. A properly calibrated window will automatically reverse if it detects an obstruction, reducing the risk of injury. For vehicles with one-touch operation, this reset ensures the window responds correctly to a single press, enhancing both functionality and user experience. By understanding and performing this procedure, you can maintain the reliability of your power windows without costly repairs.
Why Symbols Simplify Electrical Component Representation in Diagrams
You may want to see also
Frequently asked questions
Common signs include the window moving slowly, making unusual noises, getting stuck in one position, or not responding to the switch at all.
Test the switch by using a multimeter to check for continuity when pressed. If the switch works, the issue is likely the motor or regulator. You can also swap the switch with one from another window to confirm.
Simple repairs like replacing a motor or switch can be DIY with basic tools. However, replacing a regulator often requires removing the door panel and may need professional assistance due to complexity.
Common tools include a screwdriver set, trim removal tools, a multimeter for testing, and possibly a socket set. For regulator replacement, specialized tools may be required.
