Electric vehicles (EVs) are becoming an increasingly popular alternative to traditional fuel cars. They are powered by high-voltage batteries, which are generally considered anything over 50 volts. These batteries are typically located at the bottom of the car and the front cabin, and they can produce voltages of up to 900 volts. The battery pack is a crucial component of an EV's high-voltage system, which also includes the electric motor and motor controller. Together, these core components enable the vehicle to convert electrical energy from the battery into mechanical energy to drive the car. The battery pack itself is made up of several individual cells connected in series and parallel to achieve the required voltage and current. These cells are usually grouped into smaller stacks called modules, which can incorporate cooling mechanisms, temperature monitors, and other devices.
Explore related products
What You'll Learn
High-voltage battery safety

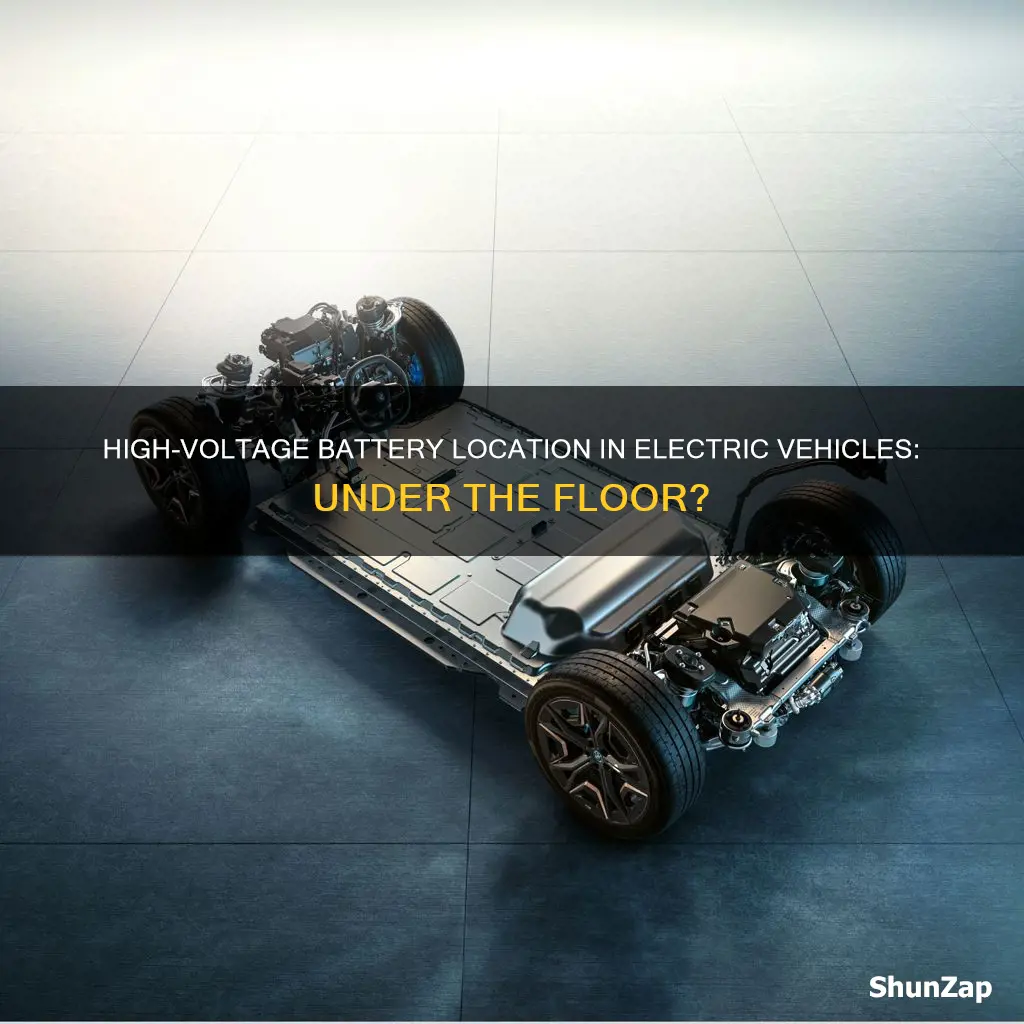

High-voltage batteries are key components of electric vehicles (EVs), offering superior performance, long-range, and fast recharging. These batteries are located at the bottom of the car and the front cabin. The power battery, electric motor, and motor controller are the top three core components of EVs.
The high voltage in these batteries means that stringent safety measures and protocols are needed to ensure system reliability and operator safety. The manufacturer must adopt strict design and production standards, implementing advanced technologies and thorough testing to ensure that the battery functions safely and reliably in all operating conditions. The battery management system (BMS) or battery controller is the core component of battery management and protection. It is designed to offer full, constant control of each battery pack, ensuring stable performance over time.
The voltage of most electric vehicles' batteries ranges from 400 volts to 800 volts. The higher the voltage, the longer the battery life. For example, a 400-volt battery can travel up to 250 miles on a single charge, while an 800-volt battery can last up to 400 miles. The ideal operating temperature for EV batteries is around 70 °F (21.5 °C), and it is important to keep the battery within the safe temperature range of 5 °C to 45 °C to ensure optimal performance and safety.
In the event of an emergency, all EVs have an emergency shut-off or disconnect feature that can be used by first responders. Additionally, when the EV is turned off or in storage, the high-voltage battery is automatically disconnected using high-voltage contactors. These contactors are designed to safely and effectively interrupt electrical currents under normal operating conditions and are critical to the safety of EVs.
Driving Electric Vehicles: A Beginner's Guide to Getting Started
You may want to see also
Explore related products
Electric vehicle charging options
Electric vehicle (EV) charging options have become more diverse as the popularity of EVs has increased. The three main charging locations are home, workplace, and public charging stations. Most EV owners opt to charge their vehicles at home, which accounts for more than 80% of charging sessions.
Home Charging
Home charging is a convenient and cost-effective way to charge your EV. EV owners can install chargers in their garages or outside their homes, with costs ranging from $300 to over $1,000. Home charging stations can be powered by electricity or solar power, and it is recommended to engage an electrician to ensure the charger fits your home's power capabilities. Home charging is typically done overnight and can take up to 20 hours for a full charge with a standard Level 1 charger, which comes with the EV. A Level 2 charger can reduce this time to 8-10 hours, but it may require installation by a qualified electrician.
Workplace Charging
Workplace charging can nearly double an EV's daily electric range and is particularly beneficial for plug-in hybrids. Level 2 chargers are common in workplaces as they allow for quicker recharges. Some employers cover the costs of workplace charging, and governments in some regions offer incentives for installing EV charging stations.
Public Charging Stations
Public charging stations are essential for long trips or when your battery is running low. These stations are typically located near businesses like restaurants, shopping centers, and public areas. There are tens of thousands of public EV charging stations available in the United States, and their locations can be found using tools like the ChargeHub map and app, or the Alternative Fueling Station Locator. Public charging stations offer various charging levels, including Level 1, Level 2, and Level 3 (DCFC) or DC fast charging. Level 1 is the slowest option, taking about 20 hours for a full charge, while Level 3 is the fastest, offering an 80% charge in 15 to 60 minutes.
Charging Equipment and Terminology
It is important to understand the terminology related to charging stations and equipment. The EV charging port, also called a charger, provides power to charge a single vehicle. Multiple connectors, such as CHAdeMO and CCS, can be available on one charging port. The J1772 connector is the standard for Level 2 charging, except for Tesla vehicles, which use a proprietary connector but can adapt to J1772 and CHAdeMO connectors.
High-Voltage Batteries
High-voltage batteries in EVs refer to those with an operating voltage of more than 60 volts, with most EVs using at least 400 volts. The use of high-voltage batteries offers faster charging times, smaller battery sizes, and longer driving ranges. These batteries also contribute to a reduced carbon footprint and lower ownership costs due to less frequent maintenance and repairs.
Scrapping Electric Vehicles: A Step-by-Step Guide
You may want to see also
Explore related products
Battery pack design
The battery pack is the most expensive and complex part of an electric vehicle. It is a full-sized battery designed to supply the entire range of the vehicle, including the traction motor and accessories. The energy is stored in cells that are all connected to one another in the battery pack. To provide sufficient power, battery packs require a minimum voltage level, which is achieved by connecting multiple cells in series. Some designs use small-capacity cells connected in parallel to boost capacity. These modules are usually at a lower voltage, which is safe for handling.
The most common chemistry used in the EV industry is the lithium-ion cell, although alternative chemistries are sometimes used, such as Nickel-Metal Hydride (NiMH), which offers a slightly better lifecycle. The cathode is typically a lithium transition metal oxide, such as manganese or cobalt, or a combination of transitional metals. The anode is usually a graphite-based material, which can intercalate or release lithium, and may contain a percentage of silicon to increase capacity. Alternatively, the anode can be Lithium Titanate (LTO).
The Battery Management System (BMS) is a critical component that measures and controls cell voltages, temperatures, and battery pack current. It also detects faults and controls the thermal management system. The BMS protects the operator and the battery pack from overcharge, over-discharge, overcurrent, and cell short circuits. The Battery Thermal Management System (BTMS) controls the thermal energy in the electric vehicle’s powertrain and cabin, providing cooling or heating to meet the battery’s needs and protect the cells.
High-voltage batteries have become increasingly popular in electric vehicles due to their ability to improve energy efficiency, reduce material usage, and lower costs. They also offer faster charging times, smaller battery sizes, and longer driving ranges.
Ford's Electric Future: Upcoming Vehicle Releases
You may want to see also
Explore related products
Electric motor conversion
Electric vehicles (EVs) are becoming an increasingly popular alternative to traditional fuel cars. This is largely due to their reduced environmental impact, higher energy efficiency, and lower long-term costs. As a result, many are interested in converting their traditional cars into electric vehicles.
An electric vehicle conversion involves replacing a car's internal combustion engine with an electric motor, which is powered by high-voltage batteries. The electric motor converts electrical energy from the battery into mechanical energy to drive the car. This process has a higher working efficiency than traditional fuel combustion engines, as less energy is wasted.
There are a variety of EV conversion kits available on the market, which provide the necessary components and instructions for the conversion process. These kits can be purchased for specific vehicle types, such as golf carts, boats, or even airplanes. The kits typically include a motor, controller, and high-voltage battery, as well as other electrical components.
The conversion process can vary depending on the vehicle and the kit used, but it generally involves removing the internal combustion engine and associated components, and installing the electric motor and high-voltage battery in their place. The high-voltage battery is typically located at the bottom of the car or in the front cabin, depending on the vehicle's design and available space. The battery provides electricity to the electric motor, which drives the vehicle's wheels.
In addition to the environmental and efficiency benefits, electric vehicles also offer improved safety. EVs do not contain any combustible gas, reducing the risk of fires or explosions. The high-voltage batteries used in EVs are also protected by a coating that prevents electrocution and the rubbing of parts.
The Ultimate Long-Range Electric Vehicles: How Far Can You Go?
You may want to see also
Explore related products
Battery management systems
Electric vehicles (EVs) are becoming increasingly popular as the world moves towards a more sustainable future. The battery is a crucial component of an EV, and its performance, safety, and efficiency are determined by the battery's quality. High-voltage batteries, in particular, have enabled significant improvements in the consumer experience of EVs, making them a more attractive alternative to traditional fuel-powered vehicles.
High-voltage batteries in EVs typically have operating voltages of 200-600 volts, with most EVs using at least 400 volts, and larger vehicles requiring up to 800 volts. These batteries have longer ranges, faster charging times, and are more compact than their lower-voltage counterparts. The use of high-voltage batteries also eliminates the need for combustible gas, making EVs safer.
To ensure the safe and efficient operation of these batteries, electric vehicles employ a Battery Management System (BMS). The BMS is an electronic system that monitors, controls, and protects the rechargeable battery, ensuring optimal performance, longevity, and safety. It is a crucial component in maintaining the safety of both the user and the battery by keeping the battery cells within a safe working range.
The BMS performs several critical functions, including monitoring the battery's voltage, current, temperature, and state of charge (SOC). It also helps balance the battery cells, eliminating variations in performance to allow them to work uniformly. Additionally, the BMS communicates with the onboard charger to monitor and control the charging process, ensuring the battery does not get overcharged or over-discharged, which could lead to damage or safety hazards.
The BMS plays a vital role in extending the service life of the battery and is an essential component in the overall performance and user experience of the EV. As EV technology continues to advance, the BMS will also evolve, contributing to the development of safer, more effective, and more sustainable electric vehicles.
Electric Vehicle Identification: What to Look For
You may want to see also
Frequently asked questions
The high-voltage battery in an electric vehicle is typically located at the bottom of the car or in the front cabin.
A high-voltage battery typically refers to products that rely on a power source supplying more than 50-60 volts of power. Most electric vehicles use at least 400 volts, with larger vehicles requiring 800 volts.
To disconnect the high-voltage power in an electric vehicle, follow these general steps:
- Inform any other technicians in the workshop and prevent reconnection by locking away components.
- Read the manufacturer's official guidance and procedure.
- Turn off the vehicle, remove the key and wait for the prescribed amount of time to allow the system's capacitors to discharge.
