Installing an electric range is a complex process that requires careful consideration of factors such as measurements, kitchen layout, and electrical requirements. It is important to determine whether the range space is set up to power the appliance and ensure that the proper electrical circuits and installations are in place. While some individuals may possess the necessary skills to run new electrical circuits, it is generally recommended to consult a professional electrician for assistance. This guide will provide an overview of the process, including the wiring of electrical outlets and the connection of power cords, to ensure a safe and seamless installation.
Explore related products
What You'll Learn
Electric supply requirements for different types of ranges
Electric ranges have special wiring needs because they require a 120/240-volt circuit and receptacle. While gas stoves are plugged in to provide power to operate timers, vent fans, and other accessories, these stoves use simple 120-volt household circuits. An electric range, on the other hand, makes use of a 120-volt current for similar purposes, but it also uses a 240-volt current to heat the stovetop heating elements and oven heating coils. Therefore, it requires a 120/240-volt receptacle and circuit with an independent neutral wire that provides a return path for the 120-volt portion of the circuit.
The electrical circuit that powers an electric range must be of sufficient amperage to supply the necessary power to the range. The power demand of ranges varies depending on the rating of the appliance, but in most cases, a 50-amp 240-volt circuit is required, wired with #6-gauge wire. Smaller ranges may require a 40-amp circuit, wired with #8-gauge wire. Either way, the circuit is wired with a 3-wire cable, including white, black, and red wires, plus a bare copper ground wire. You cannot plug a range into a normal outlet because it requires more power than a normal outlet can provide. Using the wrong type of outlet can cause a fire, serious injury, or even death from an electrical shock.
The National Electrical Code (NEC) has different rules for different types of ranges. Drop-in ranges are usually hard-wired, and the circuit conductors must be sized to exactly match the wattage on the nameplate rating of the appliance. But circuits for plug-in freestanding ranges can be lower than the nameplate rating. If the rating is 12,000 watts or less, the circuit can be designed to handle only 8,000 watts. This means that for this 12,000-watt oven, you could supply your new receptacle with #8 AWG cable and a 40-amp breaker, rather than #6 cable and a 50-amp breaker.
Freestanding and slide-in ranges always rest on adjustable feet, so it's easy to align and level the cooktop with the countertop, as needed. Slide-in and drop-in ranges usually require fastening with anti-tilt safety brackets that are shipped with the appliance. As you read through the manufacturer's instructions, note where those brackets are to be positioned and make sure that there's a good, solid place within the opening to fasten them to the cabinets, wall and/or floor.
Rolling Cigarettes: Electric Machine Methods Explored
You may want to see also
Explore related products
Preparing the range for a power supply
Firstly, ensure that you have the right power cord for your range. Modern ranges typically have four-prong cords that fit four-slot outlets, while older ranges have three-prong cords for three-slot receptacles. It is important to match the plug on the power cord to the receptacle. Additionally, look for a cord with pressed terminals already in place at the wire ends opposite the plug.

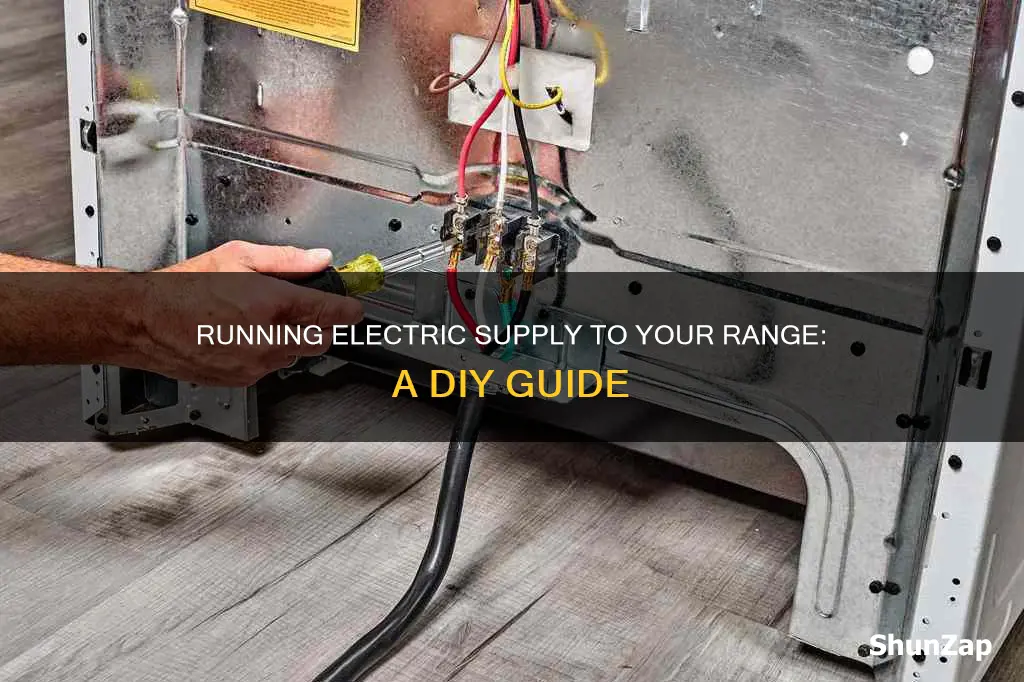

Next, locate the terminal block, usually at the back of the range near the bottom. You may need to unscrew a cover plate to access the terminals. Just below the exposed terminals, you should find a plate with a large round opening.
Now, you can connect the power cord to the range. For a three-wire connection, the white grounded wire should be connected to the centre port, with the red and black wires on either side. For a four-wire connection, the green wire should be secured to the green grounding connector first, followed by the other wires. Ensure that the two hot terminals are interchangeable, and each must have only one wire connected. Do not forget to attach the strain relief to prevent damage to the cord.
Once the wires are secure, reattach the wire connection cover plate. If your range has a ground screw, you may need to make some alterations. If the ground screw is connected to the neutral terminal with a metal strap or wire, remove the strap. If there is a small white wire connected to the ground screw, remove it and fit it onto the neutral terminal. However, if there is no ground screw or it is already connected to the neutral terminal, no changes are needed.
Finally, turn off the main power circuit connected to the range before plugging the appliance into the electrical outlet. Then, turn the main power back on and carefully slide the range into place, ensuring proper alignment and levelling with the floor or countertops. Adjust the levelling legs as needed. Refer to the manufacturer's instructions for any additional steps or specifications.
Spray Painting 101: Electric Paint Spraying Techniques
You may want to see also
Explore related products
Connecting the power cord to the range
Once the wiring is in place, you can connect the power cord to the range. First, make sure all controls on the range are off. Then, detach the wire connection cover plate from the back of the range with a screwdriver. Next, locate the terminal block, which is usually at the back, near the bottom of the range. You may need to unscrew a cover plate to access the terminals.
The next step is to connect the power cord to the terminals. If your range has a three-wire configuration, the white grounded wire should be connected to the centre port, with the red and black wires on either side. If your range has a four-wire configuration, the green wire should be secured to the green grounding connector before the rest of the wires are connected to their ports. Once the wires are secure, reattach the wire connection cover plate.
Now, plug the cord into the range outlet. Then, turn the main power circuit back on and slide the range into place, checking that it is level with the floor and properly aligned with any countertops. Finally, test the range functions to confirm proper operation.
Federal Pacific Electric: Still Operating or Defunct?
You may want to see also
Explore related products
Wiring the outlet
First, you need to ensure you have the correct cable for the job. For a 220-volt circuit, a #10 copper conductor cable is required, while a 240-volt circuit will need a #6 cable. The cable should be threaded through the drilled holes, starting at the electrical panel, and passed through the hole behind the range. You should leave several feet of cable in this area.
Next, you need to strip the outer jacket and any plastic shielding from the cable. Remove 6 inches of the jacket and shielding to expose the conductors. You can then wire the outlet. It is easier to install the connector at the bottom of the outlet rather than the back. Once the connector is installed, you can attach the cable.
After wiring the outlet, you can plug the range into the outlet and turn the main power circuit back on. You should test the range to confirm it is working properly.
If you are installing a new range, you may need to install a new circuit. This involves installing a new circuit breaker and routing the electrical cable through the walls to the outlet. This is a job for a professional electrician, as it can be dangerous if not done correctly.
Tying Electric Fence Knots: A Step-by-Step Guide
You may want to see also
Explore related products
Sliding the range into place
Before sliding the range into place, it is important to ensure that the wiring is complete and functional. Once the electrical hookup is done, you can slide the new range into place.
If you are installing a slide-in range, it is designed to fit between kitchen cabinets and align with your countertops. Slide-in ranges usually rest on adjustable feet, so it's easy to align and level the cooktop with the countertop. You can use a hand level on your stove top to determine if the range surface is level, both from side to side and from front to back.
Before sliding the range into place, you must first remove the existing range (if there is one). Slide a piece of cardboard or a rug under the feet of the range to protect your flooring. You may need to make some final levelling adjustments after sliding the range into place.
Slide-in ranges usually require fastening with anti-tilt safety brackets that are shipped with the appliance. Make sure to refer to the manufacturer's instructions for where to position these brackets. Due to the heavy size and bulkiness of most electric stoves, it is recommended to have another person help you gently slide the range into place.
Paying Electricity Bills: Credit Card Options and Benefits
You may want to see also
Frequently asked questions
Modern electric ranges come in freestanding, slide-in, and drop-in configurations.
You will need a 240-volt circuit of the proper amperage rating run from the main circuit breaker panel to the location where you want the receptacle. The power cord of the range should have either a three-prong or four-prong connection.
First, measure the dimensions of the appliance and your cutout space. Then, locate two adjacent spaces in the electrical service panel for the new circuit. Drill holes and thread the cable through, passing it behind the range. Strip the outer jacket and wire the outlet. Finally, connect the power cord to the range and the outlet, and slide the range into place.
Freestanding and slide-in ranges require a dedicated 240-volt circuit rated at 40 or 50 amps, terminating within 4 feet of the range. Drop-in ranges are usually hard-wired, and the circuit conductors must match the wattage on the nameplate rating.
Installing new electrical circuits can be dangerous, so it is recommended to consult a professional electrician if you are unsure or installing a new range in a new location.
