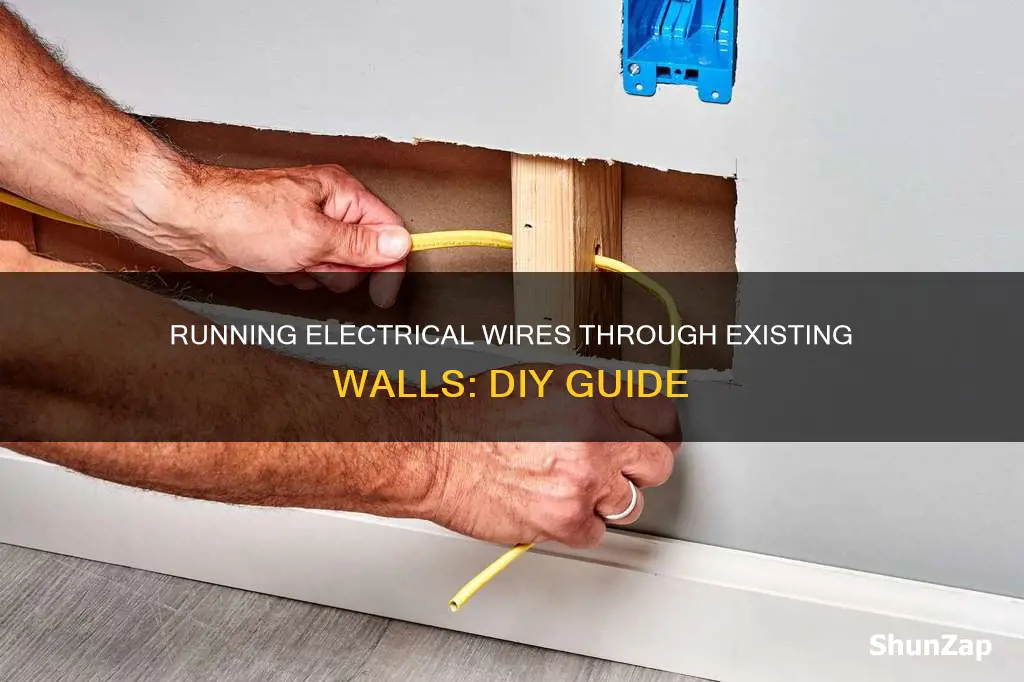

Running electricity through existing walls is a complex process that requires careful planning and execution. It involves extending electrical circuits to add new outlets, switches, or other devices. This typically requires fishing wires through walls, which can be done by following specific steps. Firstly, it is crucial to turn off the power for safety. Then, use a stud finder to check for obstructions and cut holes in the wall to gain access to the studs. Secure the wires to a fish tape and slowly pull them through the wall. When dealing with finished walls, cutting through the surface layer is necessary to reach the studs. In some cases, drilling holes in the joists may be required for the horizontal portion of the cable run. The process varies depending on whether the wall has a finished surface and whether it is an exterior wall. Additionally, local electric and building codes should be considered, and a licensed electrician may be needed for certain tasks.
| Characteristics | Values |
|---|---|
| Scope of the job | Extending a circuit to a new outlet location, running a new circuit from the main service panel to multiple locations, or replacing existing wiring |
| Approach | The approach depends on the scope of the job, but all retrofit wiring jobs use similar techniques |
| Cable run | Looping the cable up or down through the wall cavity, across floor or ceiling joists, and then through another stud cavity to the next wall box |
| Horizontal cable run | Drilling holes in the joists for the cable to pass through |
| Vertical cable run | Anchoring the cable to a stud with staples spaced no more than 4 1/2 feet apart |
| Tools | Stud finder, drywall saw or jigsaw, drill, electrical tape, fish tape, multimeter or current tester |
| Safety | Turn off the power and circuit breakers in the area, use a dust mask and safety glasses |
| Building codes | Check local electric and building codes to ensure compliance, obtain a building permit if required |
| Techniques | Fishing wires, cutting holes in walls, patching walls, using conduit or metal-sheathed cable |
Explore related products
What You'll Learn
Check for studs and building materials
Before you begin to run electric wires through existing walls, it is important to check for studs and building materials. This is because you will need to drill holes in the studs to run the wires through.
The go-to tool for finding a stud is a stud finder. However, these can be expensive, and there are alternative ways to find studs without one. For example, you can use a strong magnet, such as a neodymium magnet, to locate the drywall screws or nails. Run the magnet back and forth across the wall until it catches on a fastener. This will mark the centre of the stud. You can also look for dimples in the wall, which are a telltale sign of where drywall is fastened to the edge of a stud. These can sometimes be spotted with the naked eye, but a flashlight can help to illuminate them.
If you are happy to drill into your wall, you can drill small holes to find a stud. Drill a 1/4-inch hole and use a wire coat hanger or stiff wire to probe the wall. When you hit something, mark the wire with a Sharpie, remove it, and lay it flat against the wall to find the edges of the stud. Another method that involves drilling is to use your phone as a stud finder. You can download a free stud-finder app that uses your phone's magnetometer to locate studs.
If you don't want to drill into your wall, you can try knocking on it to find the studs. Studs are typically on a 16-inch centre layout, so if you find one stud, you can measure 16-inch increments to find the rest. Knock on the wall to verify that there is a stud there. If you don't hear or feel a stud, the layout may be 12 or 24 inches. There is nearly always a stud on both sides of an inside corner and always a stud on the outside of an outside corner.
SBC Electric Fans: Installation Guide for Beginners
You may want to see also
Explore related products
Turn off the power
Before starting any electrical work, it is imperative to turn off the power supply. This is a crucial safety measure that must not be overlooked.
Locate your home's main circuit breaker box, often found in the basement, garage, or a closet. This box controls the electricity flow to every room and appliance in your house. It may have a door or a cover, so open it to access the circuit breakers.
The circuit breakers are switches that can be turned on or off. They are usually labeled, indicating which areas or appliances they control. Find the correct switch that corresponds to the area you will be working on. For instance, if you are adding a new outlet in the living room, look for a label indicating "Living Room" or something similar.
Once you have identified the correct circuit breaker, turn it off. In most cases, this involves flipping the switch to the 'off' position. In some cases, the switch may need to be pushed or slid to the 'off' position. Make sure the switch is securely in the 'off' position, and there is no ambiguity about whether it is off or on.
Now, to ensure the power is indeed off, conduct a simple test. Turn on any lights or appliances in the area you plan to work on. They should not function since the power has been cut off. If they are still working, you may have turned off the wrong circuit breaker, or the breaker may be faulty. In this case, turn the breaker back on and try another one, repeating the test until you are certain you have cut the power to the correct area.
With the power safely off, you can now proceed with the next steps of your project, such as cutting into walls or handling electrical wiring, with reduced risk of electrical shock or other hazards.
Treating Electric Ant Bites: What You Need to Know
You may want to see also
Explore related products
Cut holes in the wall
Cutting holes in the wall is a crucial step in running electrical wires through existing walls. Here is a detailed guide on how to approach this task:
Planning and Preparation:
Before cutting any holes, it is essential to plan the route the wire will take. Utilize a stud finder to locate any blocking or obstructions within the wall that might impact your work. Mark the locations of studs, pipes, and existing electrical wires to ensure you don't cut into them accidentally. Use painter's tape and a writing instrument to mark the stud locations and plan your cuts carefully.
Cutting the Holes:
Attach a trash bag with painter's tape to the bottom of the wall to catch drywall dust. Wear a face mask or respirator to avoid inhaling the dust. Cut the holes along the outline of the electrical box using a drywall saw, jigsaw, or an oscillating multi-tool. Ensure the cutout fits exactly with the outline of the electrical box. Drill access holes in the wall plate at the bottom or top of the stud cavity, being cautious not to drill into any existing wires or pipes.
Fishing the Cable:
Once the holes are cut, you can begin fishing the cable through. Use a fish stick (also called a fish tape or glow rod) to pull the wires through the space behind the walls. Insert the fish stick through the bottom exit hole and out through the top hole, taping it temporarily in place. Run the cable through the entrance and exit holes, ensuring it is securely held at both ends to avoid pulling it into the wall.
Patching and Finishing:
After the wiring is complete, you can patch up the holes. If you had to cut additional holes high on the wall to gain access for drilling, these can be patched once the wiring is finished. Use low-voltage brackets and receptacle boxes to hide wires in the wall and improve the overall appearance.
Remember, always be cautious and follow proper safety procedures when working with electricity and cutting into walls.
Fitting an Electric Oven Element: A DIY Guide
You may want to see also
Explore related products
Secure wires to fish tape
Fish tape is a tool used by electricians to pull electrical or other wires through conduits. It is also used for pulling wire through walls, ceilings, floors, and other enclosed spaces. The fish tape itself is a long, stiff, flat steel wire. When securing wires to fish tape, it is important to take the following steps:
Firstly, wear safety glasses when working with fish tape. Fish tape's stiff metal wire can be dangerous if allowed to unravel all at once. Turn off electric circuits in the working area to avoid injury from electricity. Pull 5 to 6 inches of the fish tape out of its plastic housing. Push the fish tape forward to feed it into the conduit or through the holes in the studs. Feed the tape until a foot or two of the tape is exposed at the other end.
Next, strip the plastic casing from the ends of the wires to expose the copper wire. Twist the wires together, leaving one wire loose at the end. Attach the loose wire to the end of the fish tape. Bend the wire to form a complete loop and tamp down the wires tightly by hand so that the bundle is smooth. Nothing should protrude from the bundle. Wrap the wires with electrical tape, starting where the wires attach to the fish tape and ending the wrap at the cable sheathing. Wrap tightly, using only one layer of tape.
Finally, at the reel end of the fish tape, slowly pull the fish tape back. It is helpful to have an assistant at the other end to unspool the electrical cable and relieve tension. Reel back all of the fish tape until the electrical cable appears, ensuring that about a foot or more of the cable is exposed to prevent it from retracting and being lost. Once the wires are in place, untwist and remove them from the fish tape.
Safe Digging: Electric Line Markings Explained
You may want to see also
Explore related products
Patch the wall
Patching a wall after running electrical wires through it is a relatively simple process. The exact method will depend on the size of the hole that was cut in the wall. For holes larger than 4 inches, you will need to cut a new piece of drywall material to fit the hole. Before you start, ensure you know where your electrical wires and utilities are located. Use a stud finder to locate the wall studs, as this is where most wires should be attached.
Once you have located the studs, use a carpenter's square and a pencil to draw a line at least an inch or more above and below the hole. Then, use a drill to secure the patch to the support and wall studs. Sink the screws slightly below the surface of the drywall. Next, apply strips of self-adhesive fiberglass drywall tape around the edges of the patch. For larger holes, it is important to center the tape on the seams.
Use a drywall knife to spread drywall joint compound or lightweight spackle across the patch in a crisscross pattern, feathering the edges so it blends with the wall. Allow the patch to dry overnight, then sand until smooth. You may need to repeat this process with a second or third coat of compound. Once the final coat is dry, wipe the patched area with a tack cloth before painting the wall.
For smaller holes, you can simply fill the hole with lightweight spackle, ensuring it is level with the rest of the wall. Allow the spackle to dry, then sand the area smooth and brush away any debris. Finally, touch up the paint to match the surrounding wall.
The Electric Friend: Numan's Synthetic Questioning
You may want to see also
Frequently asked questions
You can do this by cutting holes in the wall and drilling access holes to feed the cable down into the basement or up into the attic.
If you want to avoid opening up walls, your best option is to go through the attic or crawl space.
It is possible to do this as a DIY project, but it can be a complicated process. If you are not fully confident in your skills, it is advised that you call an electrician to make the final connections.
You will need a stud finder, a drywall saw or jigsaw, a drill, electrical tape, and a fish tape.
If you are running cable through walls without finished surfaces, you will need to use metal or plastic conduit or a metal-sheathed cable known as BX cable. If the cable will be exposed, you will need to use armoured cable.
