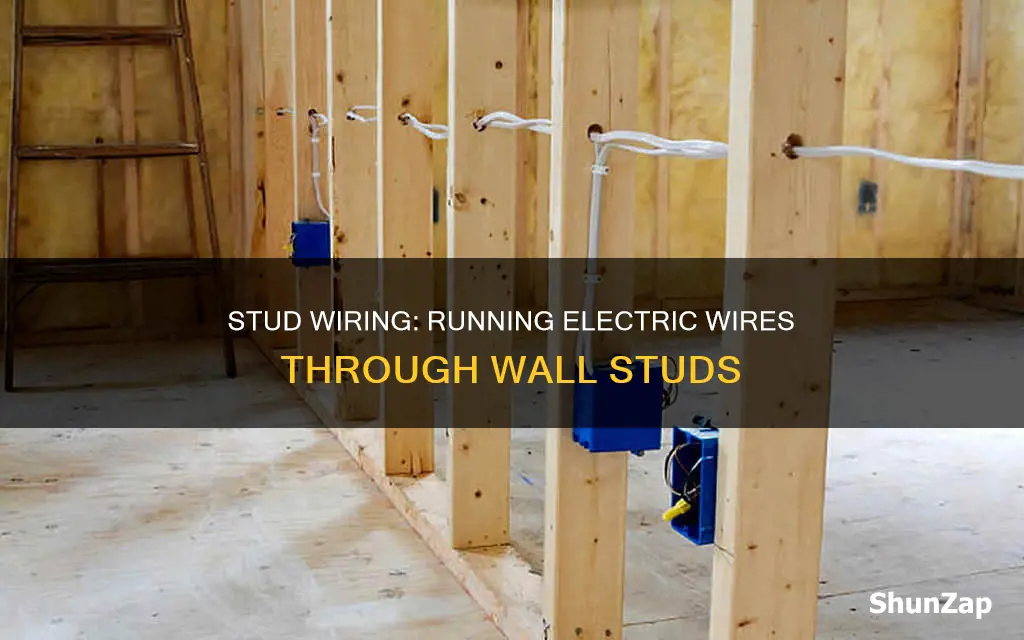

Running electrical wiring through studs is a common task for electricians, but it can also be done by DIY enthusiasts as long as they follow safety protocols and local regulations. The process involves drilling holes through the studs, feeding the wires through, and then connecting them to the power source and destination. Before beginning any electrical work, it is essential to ensure that the power is turned off for safety reasons. Safety gear, such as safety glasses and gloves, should also be worn to protect against debris and sharp edges. When drilling holes, it is important to follow local building codes and regulations, such as maintaining a minimum distance from the edge of the stud to avoid damaging the wires and ensuring proper structural integrity.
| Characteristics | Values |
|---|---|
| When to run electrical wiring through studs | When adding a new electrical outlet, light fixture, or running cables for a home theater system |
| Who can run electrical wiring through studs | Electricians or DIY enthusiasts |
| Requirements | Building permit, on-site inspection, and compliance with local building codes |
| Tools | Drill, drill bits, wire fish tape, safety glasses, gloves, dust mask, non-contact circuit tester, etc. |
| Steps | Turn off the circuit breakers, map out the wiring route, drill holes, pull the wire through, and label the wires |
Explore related products
What You'll Learn
Planning and permits
Planning:
Before beginning any electrical work, it is imperative to have a clear plan and gather all the necessary materials, including the appropriate wire type, drill, drill bits, wire fish tape, and protective equipment. Understanding the proper techniques, tools, and safety considerations is essential to ensure a successful and safe installation.
When planning the wiring route, it is important to map out the path and keep wires organized and labelled for easy identification. The standard height to run electrical wire in walls is typically 16 to 18 inches above the floor, and keeping the holes at a consistent height makes wire pulling easier and safer. It is also crucial to check for other utilities like plumbing or HVAC before drilling to avoid any damage.
Permits:
It is important to follow local building codes and regulations when running electrical wiring through studs. In some cases, a permit and inspection process may be required to ensure the work is done safely and complies with all relevant codes. For example, the National Electric Code (NEC) provides guidelines for safe installations, and local codes may have specific requirements for running cable, such as routing NM cable through holes in joists rather than stapling it to the face of the joists.
Additionally, it is advised to consult with a licensed electrician, especially for long or complicated cable runs or final connections to outlets, switches, and circuit breakers. Electricians have the specific skill set needed to ensure that the wiring is safe and up to code.
Safe Electric Heater Disposal: What You Need to Know
You may want to see also
Explore related products
Drilling holes
The National Electrical Code (NEC) sets standards for safe electrical wiring practices. According to the NEC, holes must be at least 1.25 inches from the edge of the stud. This requirement leaves about 1 inch of space in the center of a standard 2x4 stud. Drill holes in the center of the stud to maintain structural integrity. For multiple wires, ensure that the holes are spaced to prevent wire damage. Drill all holes at the same height so that the cable is run level to the floor.
When drilling holes, try to follow a straight line. Any deviation from a straight line makes it harder to pull the cable. To ensure straight holes, hold the drill inside the stud cavity as you drill horizontally through the studs. After drilling all the holes, clean out the wood chips and sawdust with a shop vacuum.
Use a drill with a long bit or an auger bit to create pathways through studs. Flexible drill bits are perfect for navigating around studs or drilling through multiple studs at once. Employ a right-angle attachment to drill through the assembly. For very tight spaces, use flexible drill bits that can snake around corners.
Understanding Electrical Improvement Depreciation for Rental Properties
You may want to see also
Explore related products
Pulling wires
Before pulling wires, you must first trace the electrical wires in your wall with a magnetic or electrical stud finder. The standard height to run electrical wire in walls is 16 to 18 inches above the floor and in line with the wall's outlets.
When drilling holes, try to follow a straight line as any deviation will make it harder to pull the cable. Drill holes in the centre of the stud to maintain structural integrity and ensure they are at least 1.25 inches from the edge of the stud. For multiple wires, ensure the holes are spaced to prevent wire damage. Use a drill with a long bit or an auger bit to create pathways through the studs. After drilling all holes, clean out the wood chips and sawdust with a shop vacuum.
Measure and cut a length of cable to run from the source to the destination, allowing a full foot of excess at each end. Thread, or pull, the cable through the first stud, across the wall cavity, and through the next stud. Before pulling long stretches of wire, unravel and straighten out the coil of cable.
Once you've pulled the wires through, label them for easy identification during connection.
Pepsi Electric: Is It Available in the US?
You may want to see also
Explore related products
$13.99 $15.94
Safety considerations
Before you begin drilling, it is important to have the right tools on hand. Drilling holes through studs for electrical wiring requires precision, knowledge of building codes, and the right equipment. Understanding the proper techniques for drilling into studs will ensure safe and efficient electrical installations.
Wear safety glasses to protect your eyes from wood chips and other debris. Also, wear work gloves to shield your hands from splinters and sharp edges.
Be mindful of existing wiring or plumbing inside the walls. Avoid damaging other installations. Always turn off the power before starting any electrical work.
Follow local building codes and regulations to ensure your work is compliant. The National Electrical Code (NEC) sets standards for safe electrical wiring practices. For example, the NEC specifies that holes must be at least 1 1/4 inches from the edge of the stud to maintain structural integrity. For multiple wires, ensure the holes are spaced to prevent wire damage.
It is good practice to have a first aid kit nearby in case of minor injuries.
Demolishing a Wall With Electrical: A Step-by-Step Guide
You may want to see also
Explore related products
Final connections
Planning and Safety:
Before starting any electrical work, ensure the power is turned off for safety. Put on safety gear, including safety glasses and gloves, to protect yourself from debris and sharp edges. It is also recommended to have a first aid kit nearby for any minor injuries. Check for other utilities like plumbing or HVAC systems before drilling to avoid accidental damage.
Drilling and Hole Placement:
Drill holes in the studs at the same height to maintain a level cable run. The standard height for electrical wiring is typically 16 to 18 inches above the floor, in line with wall outlets. Drill holes 6 to 8 inches above or below switch and receptacle boxes. The National Electrical Code (NEC) specifies that holes should be at least 1 1/4 inches from the edge of the stud for safety and structural integrity.
Wire Feeding and Protection:
Feed the wires through the drilled holes using a fish tape or a pull string. Avoid over-pulling or bending the wires excessively. Label the wires for easy identification during connection. Protect wires running closer than 1 1/4 inches to the stud's edge with metal or steel plates to prevent accidental damage from screws or nails.
Final Hookup:
The final hookup of outlets, switches, and circuit breaker connections may require a licensed electrician, depending on local regulations. Ensure that the wire gauge is sufficient to handle the amperage load and that all connections are secure.
Testing and Inspection:
Once the final connections are made, test the wiring to ensure it is functioning correctly. Inspect the work to confirm that it complies with all relevant building codes and regulations. This step may require an on-site inspection by a qualified electrician or a building inspector, depending on local permit requirements.
Covering Electrical Tub Drains: A DIY Guide
You may want to see also
Frequently asked questions
Safety should always be a top priority when drilling into studs for electrical wiring. Wear safety glasses to protect your eyes from wood chips and debris and use work gloves to protect your hands from splinters and sharp edges. Ensure that the power is turned off before drilling and be mindful of existing wiring or plumbing to avoid damaging other installations within the walls.
Before drilling into studs for electrical wiring, it is important to have the right tools on hand. You will need a drill, two types of drill bits (auger bits and flexible drill bits), wire fish tape, and protective equipment.
First, identify the location of the studs and mark the cutting lines on the wall. Cut through the surface layer to access the studs. Then, drill holes in the center of the studs, maintaining a minimum distance of 1 1/4 inches from the edge of the stud. Use a drill with a long bit or an auger bit to create pathways through the studs. After drilling, clean out the wood chips and sawdust. Measure and cut the cable to length, allowing excess at each end. Finally, feed the wire through the holes using fish tape or a pull string.
It is important to understand the building codes and techniques for drilling into studs to ensure safe and efficient electrical installations. Map out the wiring route before drilling and check for other utilities like plumbing or HVAC to avoid any conflicts. Label the wires for easy identification during connection. In some cases, metal plates may be required to protect the cables from accidental penetration.
