Running electrical conduit to a shed is a challenging but rewarding DIY project. It requires some wiring knowledge and lots of digging. The cost of powering a shed can vary from $100 to $600, depending on the specifics of your situation, such as the length of wiring and the power requirements. The first step is to plan the electrical cable routing and determine the power needs of the shed, such as whether it will need 240V or 120V power. Then, you need to add a GFCI outlet or circuit breaker to the home's electrical panel and route the new circuit wire to the exterior of the house. Next, you need to excavate a trench for the conduit at the proper depth, which is typically between 4 and 24 inches. After that, you can run the electrical cable through the conduit and into the shed, backfill the trench, and test all connections.
| Characteristics | Values |
|---|---|
| Burial depth | 4 to 24 inches, depending on wiring method and location |
| Wiring method | Direct burial cable, conduit, or type of circuit |
| Location | Driveway, airport runway, residential branch circuit |
| Voltage | 120 volts or less |
| Ground-fault circuit interrupter (GFCI) | 20-amp or less |
| Conduit type | Rigid metal conduit (RMC) or underground feeder cable (UF) |
| Conduit burial depth | RMC: 6 inches, UF: 12 inches |
| Power needs | 240v and 60 amps |
| Conduit material | PVC |
| Conduit depth | 18 inches |
| Tools | Conduit, wiring, cords, switch boxes |
| Cost | $100-$600 |
| Conduit pricing | $0.77 per foot for 1/2 inch size, $1.16 per foot for 3/4 inch size, $1.60 per foot for 1-inch size |
Explore related products
What You'll Learn
Planning your electrical cable routing
Firstly, determine the power needs of your shed. Calculate whether your shed requires 120v or 240v power. This will depend on the electrical loads, such as whether you plan to heat and cool the shed or install heavy-duty machinery. This calculation will influence the size of the feed wire and the new circuit breaker you'll need at your house's main panel.
Next, locate your house's main breaker box and assess whether there is enough power and space to accommodate the new circuit breaker. Adding a subpanel next to the main breaker can simplify wiring connections. Decide whether to add a dedicated GFCI (Ground Fault Circuit Interrupter) circuit for your shed's electrical supply. This decision may depend on factors such as the length of wiring and how much power you need to supply.
Now, plan the route for your electrical cable. Determine how the cable will get from your breaker box to the exterior of your house, how it will be buried, and how it will be routed underground to the shed. Consider whether you will need to drill holes through band joists or floor joists to guide the cable. If your cable needs to pass through concrete patios, slabs, or driveways, remember that these areas have different depth requirements than standard yard wiring.
When planning the route, also decide whether you will use conduit to protect your wiring. Conduit provides flexibility and can make it easier to access your wiring for future work or inspections. Rigid metal conduit (RMC) is a popular choice, with burial depth requirements as shallow as 6 inches, but it is more expensive than other options like underground feeder cable (UF). Remember to consult local electrical codes and guidelines, such as the National Electrical Code (NEC), to ensure your conduit installation complies with required depths and other safety standards.
Finally, gather the necessary tools and supplies, including any wiring, cords, switchboxes, and, if applicable, your chosen conduit material. You can typically find these supplies at a hardware store, and renting specialized tools can save you time and money.
Understanding the Painful Shock of a Joule of Electricity
You may want to see also
Explore related products
Understanding burial depth requirements
For residential installations, the burial depth requirements are typically shallower. Rigid metal conduit (RMC), a common choice for residential projects, has a burial depth requirement of 6 inches. This option can save labour on digging compared to other methods. Underground feeder cable (UF), on the other hand, requires a burial depth of 12 inches. It's important to note that these depths are specific to wires running under your yard, and wires under concrete patios, slabs, or driveways may have different depth requirements.
When running electrical conduit to a shed, it's crucial to consult local electrical inspectors or licensed electricians to ensure compliance with local codes and regulations. Additionally, the type of soil can impact the burial depth. If the soil is granular and easy to dig, you may be able to save on electrical materials by digging deeper and potentially avoiding the need for metal or plastic conduit to protect the wiring from physical damage.
The burial depth requirements also depend on the type of conduit used. For PVC conduit, a depth of 18 inches is typically required. This depth ensures protection from physical damage and complies with code requirements. Using a treated wood plank over the wiring can provide complete protection and reduce the required burial depth.
Finally, it's worth noting that burial depth requirements may vary based on local regulations and the specific project needs. Consulting a professional electrician or referring to local code guidelines can help determine the exact burial depth requirements for your shed's electrical conduit installation.
Electric Circuits Powering Robots: Understanding the Core Relationship
You may want to see also
Explore related products
Choosing the right conduit
Rigidity
Conduits can be rigid or flexible. Rigid metal conduits (RMC) are made of heavyweight galvanized steel or aluminum and offer superior strength and protection. They are commonly used in industrial applications and have the shallowest burial depth, typically requiring a trench of only 6 inches deep. However, they are more expensive and labor-intensive to install. Alternatively, flexible conduits like electrical metallic tubing (EMT) and flexible metal conduit (FMC) are thinner, lighter, and more bendable, making them easier to maneuver and install, especially in tight spaces.
Material
Conduits can be metallic or non-metallic. Steel has traditionally been the material of choice for conduits due to its protection and durability, but it is heavy, difficult to handle, and expensive. Aluminum is a lightweight and corrosion-resistant alternative used in RMC and EMT conduits. For even greater corrosion resistance, galvanized rigid steel (GRC) is an option, but it is also heavy and expensive. PVC-coated rigid steel and fiberglass are other materials to consider for their corrosion and UV resistance.
Environment
The installation environment is crucial when choosing a conduit. If your shed is in a wet environment, liquid-tight non-metallic conduits or liquid-tight flexible metal conduits with a PVC jacket are ideal for protecting wires from moisture. For areas with high corrosion, fiberglass conduits offer excellent resistance. If your shed is in an area with direct sunlight, HDPE (high-density polyethylene) conduits are a good choice as they are flexible, durable, and resistant to abrasion, impact, and chemicals.
Cost
Cost is an important consideration when choosing a conduit. RMC and GRC conduits are among the most expensive options due to material and installation costs. EMT and FMC conduits are more economical choices, while HDPE conduits are generally low-cost compared to metal products.
Compliance
It is essential to ensure that your conduit complies with the National Electrical Code (NEC) and local building codes. The NEC guidelines specify whether a conduit is required for an installation and which type should be used. Consulting a licensed electrician or referring to the NEC codebook can help you determine the appropriate conduit for your shed's electrical wiring.
Electric Forest Camping: How Many People Per Group?
You may want to see also
Explore related products
Digging the trench
Digging a trench for your electrical conduit is a crucial step in powering your shed. Here are some detailed instructions to guide you through the process:
First, plan the route of your trench. Consider the path the electrical cable will take from your home's electrical panel to the exterior, the location of your shed, and how the cable will be routed underground to reach it. This step is important as it will determine the length and depth of your trench.
Next, gather the necessary tools and safety equipment. Ensure you have the required permits and are adhering to local codes and regulations. The National Electrical Code (NEC) dictates minimum burial depths, which range from 4 to 24 inches depending on the wiring method and location. For PVC conduit, the minimum depth is 18 inches, while rigid metal conduit (RMC) has a shallower minimum depth of 6 inches.
Now, it's time to start digging! If you have a lot of earth to move, consider renting a gas-powered trenching machine to make the job easier. Keep in mind that you may need to dig deeper if your shed requires heavy-duty machinery or if you plan to expand in the future. Ensure you take accurate measurements of the trench depth, as inspectors will want to verify this.
As you dig, be mindful of any underground utilities, such as water pipes or existing electrical cables. Take precautions to avoid damaging any underground infrastructure. It is recommended to call 811 before you dig to have underground utility lines marked to ensure a safe excavation.
Finally, once your trench is dug, it's a good idea to take pictures to document the depth and ensure compliance with electrical inspection requirements. Remember to complete all excavation work before running your conduit.
By following these steps, you'll be well on your way to successfully installing your electrical conduit and powering your shed.
Mastering Mitsubishi Electric AC: Remote Control Guide
You may want to see also
Explore related products
Running the electrical cable through the conduit
Running electrical cable through the conduit is a complex process that requires careful planning and execution. Here are the steps you can follow to ensure a safe and successful installation:
Planning and Preparation:
Start by gathering the necessary tools and materials, including conduit, wiring, cords, switch boxes, and other supplies. Determine the power needs of your shed, including the required voltage and amperage. Consult a professional electrician or your local electrical inspector to ensure your existing electrical service can meet these needs. Decide on the routing of the electrical cable, considering how it will get from your home's electrical panel to the exterior, how it will be buried, and how it will be routed to the shed.
Running the Electrical Cable:
Begin by completing any necessary excavation or digging of trenches to the required depth, which can range from 6 inches to 24 inches depending on your local code and the type of conduit. It is recommended to complete all excavation before running the conduit. Choose the right type of conduit for your specific situation, such as rigid metal conduit (RMC) or underground feeder cable (UF). Ensure you have the necessary permits and comply with local codes for conduit installation.
Installing the Conduit:
Install the conduit along the planned route, securing it in place. If needed, cut the conduit to fit through walls and use appropriate fittings to protect the wiring, such as male fittings for sharp edges. Use a flexible conduit to navigate tight spaces, and secure the conduit with straps where necessary.
Pulling the Electrical Cable:

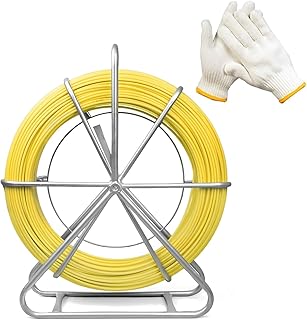

Run an electrician's fish tape through the conduit from one end to the other. Tie a rope to the end of the fish tape and pull it back through the conduit. Attach the electrical wires (individual conductors or sheathed cable, as required by code) to the rope and pull them through the conduit. Ensure you use the correct wire gauge to supply the required amperage.
Connecting the Circuit:
At the shed, affix a junction box to the conduit where it enters the building. Join the individual wires from the conduit to a non-metallic sheathed cable, making it easier to run inside the shed. Connect the cable to a new sub-panel or breaker installed below the existing main panel in your home's electrical panel. Test all connections to ensure they are safe and functional.
Remember, electrical work can be dangerous, so always follow local codes and regulations, and consult a licensed electrician if you are unsure about any part of the process.
Open Fridge, Wasted Electricity: What's the Real Cost?
You may want to see also
Frequently asked questions
The easiest way to run electrical conduit to a shed is to plan out the electrical cable routing, add a GFCI outlet or circuit breaker to the home's electrical panel, and route the new circuit wire to the home's exterior. Then, excavate an electrical cable trench to the proper depth and install the conduit. Finally, run the electrical cable through the conduit and into the shed.
You will need conduit, wiring, cords, switch boxes, and other supplies. Most of these supplies can be found at a hardware store and are affordable.
The cost of running electrical conduit to a shed varies depending on the specifics of your situation, such as the length of wiring, the amount of power supplied, and the type of tools used. The cost of tools can range from $100 to $600.
The depth of excavation depends on the type of conduit being installed. Rigid metal conduit (RMC) has the shallowest burial depth of 6 inches. Underground feeder cable (UF) requires a depth of 12 inches, and for PVC conduit, the minimum depth is 18 inches.
Running electrical conduit to a shed requires wiring knowledge and can be dangerous if not done correctly. While there are many DIY tutorials available, it is recommended to consult a professional electrician, especially if you are new to home improvement.
