Mini-split systems are a great way to heat and cool your home, and they can be a more cost-efficient alternative to traditional heating and cooling systems. While they are easier to install than central air conditioning systems, they are not plug 'n play and require a dedicated electrical line to run into the building's electrical panel. This means that you will need to install a new, appropriately sized circuit breaker in your panel, which is connected to a Romex cable, which connects to your AC disconnect. This will then run a 'whip' (an outdoor-rated electrical wire set) from the AC disconnect to the condenser. It is important to consult with a professional installer to ensure that the electrical requirements of your system are met and that the work is done to code.
Explore related products
What You'll Learn
Use a dedicated electrical line and circuit
Mini-split systems require a dedicated electrical line and circuit to supply power to the system. This means that the system needs its own electrical line running into the building's electrical panel, with a separate breaker for the mini-split system.
The electrical service panel supplies power to the mini-split's outdoor unit, which is typically a condensing unit. This unit requires a disconnect box, which allows a technician to shut off power to the system when performing service or repairs. It is important to use a non-fused disconnect switch, as the breaker in the service panel already provides built-in protection. Additionally, circuit breakers can be reset, whereas fuses must be replaced and can corrode over time, rendering the system unsafe.
When installing a dedicated electrical line and circuit for a mini-split system, it is crucial to use the correct wire gauge (thickness). The wire gauge determines the amount of current the wire can safely handle, with lower gauge wires being thicker and able to handle more current. For most installations, it is recommended to use 14-gauge stranded wire. However, it is important to consult with a professional installer to ensure that the wire sizing is appropriate for the specific system and that all work is done according to local codes and standards.

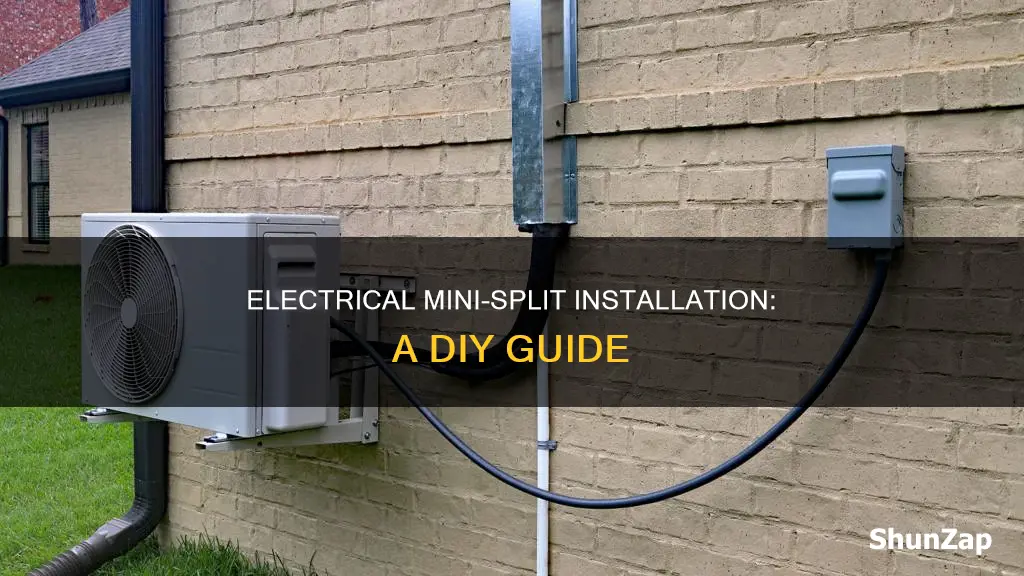

Furthermore, it is important to note that the electrical wiring for a mini-split system should be protected from the elements. This can be achieved by using an electrical whip, which is a pre-made, outdoor-grade wire set that runs from the shut-off box to the unit. The whip must be wired into the shut-off box and then connected to the unit according to the instruction manual. Alternatively, you can run your own wire through an outdoor-grade conduit to protect it from the weather.
Stop Electricity Marketers: Block Unwanted Calls
You may want to see also
Explore related products
Understand wire gauge requirements
It is essential to understand wire gauge requirements when installing a mini-split system. While mini-split systems are easier to install than central air conditioning systems, they still require careful consideration of electrical specifications.
The wire gauge refers to the thickness of the wire, which determines the amount of current it can safely handle. A lower gauge wire is thicker and can handle more current, while a higher gauge wire is thinner and can handle less current. Common wire sizes include 16, 14, 10, 8, 6, and 2-gauge wire. For most installations, it is recommended to use 14-gauge stranded wire, although some installations may use 12-gauge or 10-gauge wire. It is important to consult with a professional installer to ensure the wire gauge is appropriate for the specific mini-split system and electrical requirements.
The wire gauge requirements depend on various factors, including the size and model of the mini-split system, the distance from the electrical panel to the unit, and the voltage. Some small 9k-12k BTU systems may require a 110-volt service, while most larger systems require 220 volts or more. The wire gauge must be able to safely handle the voltage and current requirements of the system.
In addition to wire gauge, it is important to consider other electrical requirements, such as the use of a disconnect box, surge protector, and proper grounding. A disconnect switch is required by code to be installed near the outdoor unit, allowing for safe service and repairs. A surge protector protects the mini-split system from voltage spikes caused by lightning or other power surges. Proper grounding ensures the system is safely connected to the electrical supply.
Furthermore, it is crucial to follow local codes and regulations when installing a mini-split system. Some states require HVAC services to be handled by licensed professionals. Consulting with a professional installer can help ensure that the work is done correctly, maintains the warranty of the system, and complies with all relevant safety standards and regulations.
Exhaust Fan Electricity Costs: How Much Does it Add Up?
You may want to see also
Explore related products
Connect the control wire to the indoor unit
Connecting the control wire to the indoor unit is a crucial step in installing a mini-split system, and the process may vary slightly depending on the model. Here is a detailed guide on how to do this:
Before beginning, it is important to note that mini-split systems require dedicated electrical lines and circuits to supply power, and it is recommended to consult with a professional installer to ensure that the work is done safely and in accordance with local codes and requirements. Some states require these types of HVAC services to be handled by licensed professionals.
Now, to connect the control wire to the indoor unit, first locate the back plate of the unit. You will typically need to remove this back plate to access the wiring connections. Refer to your specific model's installation manual for detailed instructions on this step, as it may vary.
Once you have accessed the wiring connections, you will need to attach the control wire. This is usually done by hand, and you should ensure a secure connection. Some manufacturers recommend using round crimp-style terminals for a more secure connection.
After connecting the control wire, you will need to bundle it together with the refrigerant pipe and drainage tubing using electric tape. This will keep the wires and tubing neatly organized and secured.
Finally, lift your indoor unit and position it on the wall mount. Ensure you follow the manufacturer's instructions for mounting the unit securely. Pass the bundled pipes, wire, and tubing through the hole in the wall, ensuring they are properly secured and organized.
By following these steps, you will have successfully connected the control wire to the indoor unit of your mini-split system, bringing you one step closer to enjoying a cost-efficient and effective heating and cooling solution for your space.
Easy Ways to Remove Rust from Your Electric Shaver
You may want to see also
Explore related products
Use a disconnect box and surge protector
A disconnect box and surge protector are crucial components of a mini-split installation. The disconnect box, or disconnect switch, is required by code to be installed near the outdoor unit. It allows technicians to safely shut off power to the system when performing service or repairs. A non-fused disconnect switch is generally preferred over a fused one, as the breaker in the service panel already provides built-in protection, and circuit breakers can be reset, unlike fuses.
The surge protector is equally important, as it protects appliances from voltage spikes caused by lightning or other surges in the AC circuit. While it may not be essential, especially if you live in an area with minimal power issues, it provides an extra layer of safety for your setup. Surge protectors are particularly recommended if you reside in a region prone to power surges due to storms.
When installing a mini-split, you can choose to use either a whole-house surge protector or individual surge protectors for each disconnect box. The Rectorseal disconnect VRM or VRMDC, Mars, or Interconnect are popular options for individual disconnects. For whole-house protection, the ICM493 is a good choice, offering advanced protection against brownouts, lightning strikes, power outages, and more.
In terms of wiring, the electrical whip connects the 120v/220v power from the disconnect box to the outdoor condensing unit. The whip is a weatherproof cable that contains high-voltage wires, protecting them from the elements. When wiring the disconnect box and surge protector, you will typically connect the black wires from the surge protector to the LINE side wires of the disconnect and the white wire from the surge protector to the disconnect's equipment ground.
It is important to consult the instructions for your specific surge protector, as wiring may vary depending on whether you are installing it for 120V or 240V. Additionally, always ensure that you follow local codes and consult a professional installer to ensure the work is done correctly and safely.
Grounding Electrical Work: What's the Law?
You may want to see also
Explore related products
Consult a professional installer
While it may be tempting to install a mini-split system yourself, it is always best to consult a professional installer. Mini-split installation is a complex process that requires careful planning and execution to ensure safety, proper functionality, and compliance with local codes and standards.
Professional installers, such as certified HVAC contractors, have the necessary training and experience to handle the entire installation process, including the electrical work. They can guide you in selecting the appropriate wire gauge and type, ensuring that your system meets the required voltage and power specifications. For instance, they can advise on whether to use stranded or solid wire—while 14-gauge stranded wire is recommended for most installations, a 14-gauge solid wire can be used if stranded wire is unavailable.
Additionally, professionals can ensure that your mini-split system is properly connected to your building's electrical panel. This includes the use of electrical whips—premade, outdoor-grade wire sets that run from a shutoff box to the unit, simplifying the installation process and ensuring code compliance. A professional installer can also advise on the correct placement of the mini-split units, taking into account factors such as condensate line drainage and refrigerant line pressure.
By consulting a professional installer, you can eliminate the risks associated with DIY installations, which can lead to poor performance, voided warranties, and costly repairs down the line. While it may seem more expensive upfront, investing in a professional installation can save you money in the long run and provide you with peace of mind, knowing that your system is safe and efficient.
If you're unsure where to start, you can reach out to reputable companies specializing in mini-split installations, such as Snowflake Air, which offers free consultations and is certified to work on major heat pump brands.
Vinyl Electrical Tape 1400: 3M's Economical Solution
You may want to see also
Frequently asked questions
An electrical whip is a premade, outdoor-grade wire set that runs from a shutoff box to the unit being installed. It ensures that your installation meets the code and simplifies the process. The whip must be wired into the shutoff box and then to the unit.
A dedicated circuit supplies power to the mini split system. A dedicated circuit is required by code to ensure that a technician can shut off power to the system when performing service or repairs.
Mini split systems have specific wire gauge requirements, and the wrong wire can have dangerous consequences. Common wire sizes include 16, 14, 10, 8, 6, and 2-gauge wire. The thickness of the wire determines how much current it can safely handle.
Connecting cable, also known as 4-conductor cable, is used to supply power and carry control information between the indoor and outdoor units. It is part of the electrical whip setup and is typically run through a conduit in accordance with local codes.
While some aspects of the installation can be done by a homeowner, such as installing the air handler and condenser unit, other steps may require a licensed professional, depending on your location. Handling refrigerant lines and making high-voltage electrical connections are often tasks that require a professional.
