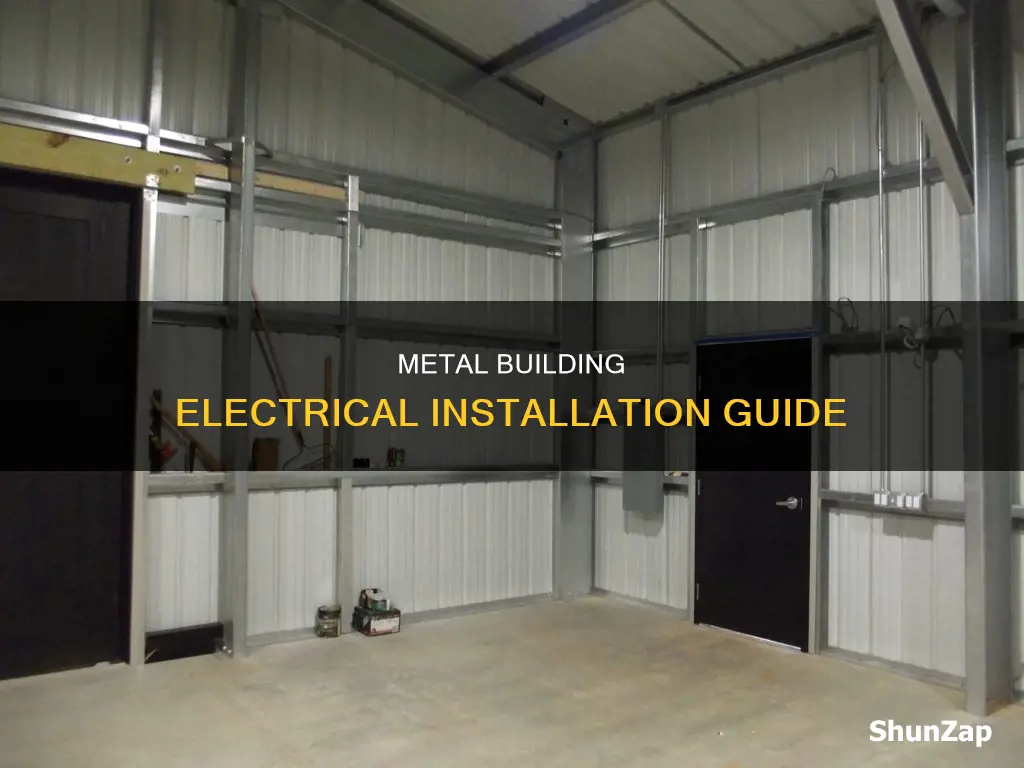

Running electrical wiring in a metal building requires careful planning and execution to ensure it is done safely and up to code. The process involves determining the electrical service size, running electrical wires from the main panel to the building, and ensuring that the wires are protected by conduit to prevent damage. Depending on the distance, you may need to dig a trench to run the wires underground. When it comes to the wiring method, you can choose between EMT (metal conduit), MC cable, or PVC conduit. EMT provides inherent nail protection and grounding, while MC cable and PVC conduit are also viable options. It is important to consult with professionals and follow local regulations to ensure a safe and functional electrical system in your metal building.
Explore related products
What You'll Learn
Determining electrical service size
The electrical service size of a building determines the power and efficiency of its electrical distribution system. It indicates how many appliances, lights, or other electrical devices can be operated simultaneously.
To determine the electrical service size, you need to access the main components of the electrical distribution system, which include the wire, the conduit, the meter, the panel, and the main breaker. The amperage rating of these components will help determine the overall electrical service size.
The wire size can be estimated by measuring the diameter of the conduit that houses the service cable entry. Common conduit sizes and their associated wire sizes include a 1-inch conduit housing a 6-gauge wire (60-amp service) and a 1 1/4-inch conduit housing a 4-gauge wire (100-amp service).
The electrical panel may also have a label indicating its amperage rating, typically ranging from 100A to 200A. The main breaker in the panel is usually the largest and is labelled as the "main."
Additionally, the electrical meter outside the house can provide clues about the electrical service size. For instance, a glass dome meter mounted on a square metal base typically indicates 100 amps of power, while a newer 150-amp service will have a rectangular base.
It is important to note that the voltage of the electrical service is typically 120/240 volts, and the amperage can range from 60 to 400 amps depending on the size and needs of the building. Most modern homes have a 200-amp service, while older houses often had 100-amp services or smaller.
Electric Fences in South Carolina: Legal or Not?
You may want to see also
Explore related products
Running electrical wires from the main panel
Firstly, determine the electrical service size you need for your metal building. This will depend on factors such as the intended usage, the number of electrical devices to be used, and the power requirements of those devices.
Next, measure the distance between your main electrical panel and the metal building. If they are far apart, you may need to dig a trench to bury the wires underground. Ensure that you use the appropriate type of electrical wire for this purpose, such as THHN wire or NM cable, depending on your specific needs and local regulations.
It is crucial to protect your electrical wires by enclosing them in a conduit. This will safeguard the wires from potential damage and provide a safe path for the electrical current. Common types of conduit include PVC conduit and EMT (Electrical Metallic Tubing) conduit. PVC conduit is often used for running wires through horizontal purlins, while EMT conduit can provide better nail protection and grounding when used with metal buildings.
When installing the conduit, ensure that it complies with local regulations and safety standards. For example, if using NM cable, it must have guard plates if it comes within 1-1/2" of a wall surface to protect the wiring from potential damage.
After installing the conduit and electrical wires, you can start installing electrical outlets and lights in your metal building. Ensure that all wiring is up to code and that you are using the appropriate wire sizes for your outlets and lights.
Finally, consider hiring a professional electrician to inspect your work and ensure that everything is safe and compliant with local regulations. They can also advise on specific requirements, such as grounding rods and the right size of electrical service for your building.
Lamps: Electrical Devices or Not?
You may want to see also
Explore related products
Choosing the right wire type
National Electrical Code (NEC) Compliance:
Ensure that the wire type you choose complies with the National Electrical Code (NEC). The NEC sets standards for electrical wiring to ensure safety and functionality. Check with your local building department or a licensed electrician to understand the specific NEC requirements for your area.
Conduit Compatibility:
The wire type must be compatible with the conduit used in your metal building. Commonly used conduits include EMT (electrical metallic tubing) and PVC (polyvinyl chloride) conduit. EMT is a metal conduit that provides inherent nail protection and grounding capabilities. PVC conduit, on the other hand, is made of plastic and is often used for its corrosion resistance and ease of installation. Make sure to select a wire type that can safely and effectively be used with your chosen conduit.
Grounding Considerations:
Grounding is an essential aspect of electrical safety in metal buildings. If you are using metal boxes and have continuous grounding, stranded THHN (thermoplastic high-heat-resistant nylon-coated) wire is a recommended option. THHN wire is easy to pull through the conduit and provides effective grounding. However, if you plan to use EMT as a damage shield and run unprotected cable in certain areas, you will need to use NM (non-metallic) cable instead. Ensure that you follow local codes and requirements for grounding and consult with a professional electrician if you have any questions.
Load Requirements:
Consider the load requirements of your metal building to choose the appropriate wire size and type. Different wire gauges and types have varying current-carrying capacities. Consult with an electrician to determine the right wire size for your specific load requirements, ensuring that the wiring can safely handle the electrical demand of your building.
Aesthetic Preferences:
While functionality and safety are the top priorities, you may also consider the aesthetic impact of your wire choice. For example, MC (metal-clad) wire is mentioned as being more aesthetically pleasing than exposed NM-B or Romex wiring. If the appearance of the wiring is important to you, discuss your options with a professional to find a solution that aligns with your preferences.
Remember, it is always advisable to consult with a licensed electrician who can guide you in selecting the right wire type for your specific metal building project, ensuring compliance with local codes and safety standards.
Miller Electric's 31-602: What's the Deal?
You may want to see also
Explore related products
Installing electrical outlets
When installing electrical outlets in a metal building, there are several important considerations and steps to follow. Firstly, determine the electrical service size you need and ensure you have the right size wires for your outlets. If your building is detached, you will need to run electrical wires from your main electrical panel to the building, which may involve digging a trench. Ensure these wires are protected by conduit to prevent damage.
Next, you will need to decide on the placement of your outlets. While one suggestion is to place an outlet every 3 feet, this may be excessive for your needs, and you may opt for a greater distance between outlets. Consider your intended use of the building and the types of electrical devices you will need to power.
Now, you can begin installing the outlets. If you have R-Panels on the exterior of your building, you can run the electrical wiring behind these panels. Alternatively, you can use a surface mount with EMT, which provides flexibility for future changes. Ensure you have the necessary clips and screws for your type of building structure, whether it is steel or aluminium.
When running the electrical wiring, you can use PVC conduit to run the power to boxes. You may also need to use guard plates to protect the wiring if it is within close proximity to a wall surface. It is important to follow local regulations and ensure your wiring is up to code. Consider hiring an electrician to assist with the installation and ensure it is done safely and correctly.
Finally, once all electrical work is complete, arrange for an inspection by your local building department to ensure your electrical system is safe and compliant with regulations.
Electric Toothbrushes: Are the Expensive Ones Better?
You may want to see also
Explore related products
Getting an inspection
Running electrical wiring in a metal building can be challenging due to the unique properties of metal structures, and it's important to ensure that the installation is done correctly and safely. Before beginning any electrical work, it is crucial to obtain the necessary permits and complete all required inspections to avoid costly fines or legal action.
The first step is to check with your local building department to understand the specific codes and permits required for your project. You need to ensure you are allowed to run electrical wires to your outdoor building and comply with all safety regulations. It is also essential to choose a safe and accessible location for your electrical panel, protecting it from the elements.
Once you have determined the path and destination of the wires, you can start installing electrical outlets and lights. Ensure that all wiring is up to code, using the right size wires for the outlets and lights. It is recommended to hire an electrician to ensure the work is done safely and correctly. They can help determine the right size electrical service and ensure proper installation.
After completing the electrical work, an inspection by your local building department is necessary to ensure everything is up to code. This includes checking for proper wire installation, correct wire sizes, and any signs of damage or fraying that could lead to safety hazards. It is also important to verify that the electrical system functions correctly without any unusual noises or vibrations that could indicate servicing needs.
Additionally, when it comes to metal buildings, proper grounding is essential. While the National Electrical Code (NEC) provides specific requirements for grounding, local inspectors may have their own preferences. It is important to consult with your inspector to understand their specific requirements and ensure your building's grounding meets their standards.
Kobo's Electric Sheep: Androids Dreaming of a Digital Future
You may want to see also
Frequently asked questions
Once you’ve determined the electrical service size you need, run the electrical wires from your main electrical panel to your outdoor metal building. Depending on the distance between your main panel and your building, you may need to dig a trench to run the wires underground.
You’ll need to make sure that the wires are protected by conduit to prevent damage.
You’ll need to get an inspection from your local building department to make sure everything is up to code.
PVC conduit is considered by some to be worthless as far as nail protection is concerned. EMT metal conduit is compact and provides nail protection and grounding.
It is always a good idea to hire an electrician to make sure the job is done safely and up to code.
