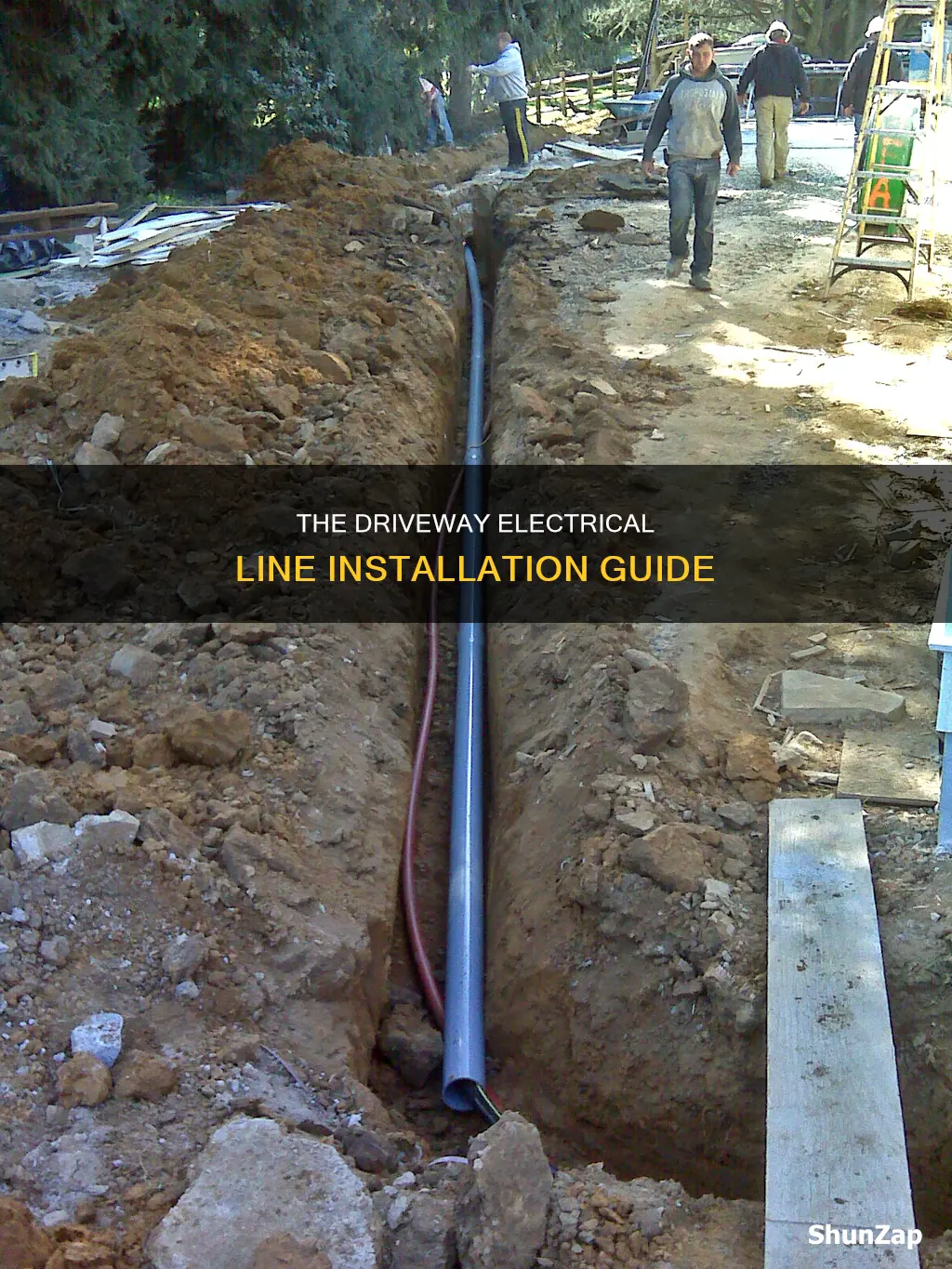

Running electrical wiring under a driveway is a complex task that requires careful planning and execution. The process involves creating a pathway for the wires to pass through without damaging the driveway or compromising safety. This can be achieved through various methods, such as drilling, trenching, or using a technique called water boring. The chosen method depends on factors such as power volume, soil type, and local electrical codes. It is essential to use the proper tools, materials, and safety precautions to ensure a successful and safe installation.
| Characteristics | Values |
|---|---|
| Minimum burial depth | 12 inches for a residential driveway with 120V and 20A |
| Conduit material | PVC, galvanized rigid metal electrical |
| Wire type | Burial grade, GFCI-protected |
| Wire rating | Suitable for constant contact with the ground and water |
| Wire size | Depends on power volume and type of soil |
| Hole size | Minimum size if the soil is rocky |
| Hole creation technique | Water boring, drilling |
Explore related products
What You'll Learn
Identify soil type
Soil is composed of solid particles and pore spaces. The pore spaces make up approximately 50% of the soil by volume and allow for the movement of air and water through the soil. The other 50% of the soil is made up of minerals, organic matter, and microbial life. The mineral particles in the soil are derived from rocks that have been broken down over thousands of years by climatic and environmental conditions.
There are six main types of soil: chalky, clay, loamy, peaty, sandy, and silty. Each type of soil has distinct characteristics that affect how plants grow. For example, clay soils are heavy, high in nutrients, wet and cold in winter, and baked dry in summer. Sandy soils, on the other hand, are light, dry, warm, low in nutrients, and often acidic. Loamy soils are a mixture of sand, silt, and clay, with ideal ratios of 40% sand, 40% silt, and 20% clay. This mixture helps the soil retain nutrients and moisture while providing structure and stability for plants to grow.
- Feel the soil: Pick up a small amount of wet soil and rub it between your fingers. If it feels gritty, you likely have a high percentage of sand. If it feels sticky and lumpy, you probably have a high clay percentage. If it feels smooth and almost slimy, you may have a high silt percentage.
- Roll the soil: Try to roll the moistened soil into a ball in your hands. Clay soils can be rolled into a long, thin sausage and can be smoothed to a shiny finish by rubbing with a finger. Loamy soils can also be rolled into balls but will not hold their shape as well as clay soils.
- Observe the soil: Take a close look at the soil and observe its characteristics. Clay soils have a smearing quality and are sticky when wet. Sandy soils are coarse and do not stick together well, making it difficult to roll them into a sausage shape. Silty soils are rare, especially in gardens, and have a slightly soapy, slippery texture. They do not clump easily and can be identified by their ability to form a ribbon when rubbed between the thumb and fingers.
- Neighbourhood research: Most soils in a particular region are similar. You can ask fellow gardeners in your neighbourhood or join regional gardening groups to find out the predominant soil type in your area.
- Settle test: Add a cup of soil to a large glass jar, shake it well, and leave it overnight. Observe the state of the water and the layers of soil that have settled to determine the type of soil you have.
- PH test: Use a pH test kit to determine the acidity level of your soil. Different plants thrive in different pH levels, so this can help you choose the right plants for your garden.
- Local analysis: Collect a sample of your soil and bring it to your local County Extension office for analysis. They can provide information about your soil's texture, pH, and nutrient availability, as well as recommendations for amending and fertilizing your soil.
Setting Electric Plug Timers: A Simple Guide
You may want to see also
Explore related products
Use water boring
Water boring is a technique that can be used to run electrical wiring under a pathway or driveway without having to dig up the hard surface. Here is a step-by-step guide on how to use water boring to run an electrical line under a driveway:
Plan the Project
Before beginning any work, it is important to plan out the project. Decide where you want any lighting or speakers to be placed, as well as the location of any transformers or amplifiers. Drawing a plan on paper can be helpful.
Prepare the Materials
To perform a water bore, you will need a garden hose, pipe adapters or fittings, a shut-off valve, and a series of pipes. The pipe should be about 2 feet longer than the width of the driveway to protect the wire from any damage. If using a non-flexible pipe, you will also need to create a trench so the pipe can be laid horizontally.
Create the Entrance Hole
Make an entrance hole that is longer than the width of the driveway. If using a flexible pipe, ensure it can be bent enough to fit through the hole. Place the pipe with the attached hose and valve horizontally in the entrance hole.
Turn on the Water and Begin Drilling
With someone turning on the water, slowly push and rotate the pipe to drill through the dirt and mud, creating a hole under the driveway. If you encounter a root or rock, you may need to cut the pipe and try again at a different angle or depth. Go a few inches at a time and be patient. The water pressure will soften and blast away the soil, which will then run out inside the pipe.
Reach the Exit Hole
Continue pushing and rotating the pipe until you reach the exit hole on the other side of the driveway. Be careful not to miss the exit hole, or you may need to dig around to locate the pipe. Once the pipe pokes through, turn off the water immediately to prevent filling the hole with water and removing too much dirt.
Install the Wiring
Cut the pipe to your desired length on each side of the driveway. Push your low-voltage "burial grade" wiring through the hole. Finally, refill the hole with the dirt you dug out and pack it down to prevent settling.
Water boring is a useful technique to avoid digging up your driveway when running electrical wiring. It is important to take your time and plan carefully to ensure the project is completed safely and effectively.
