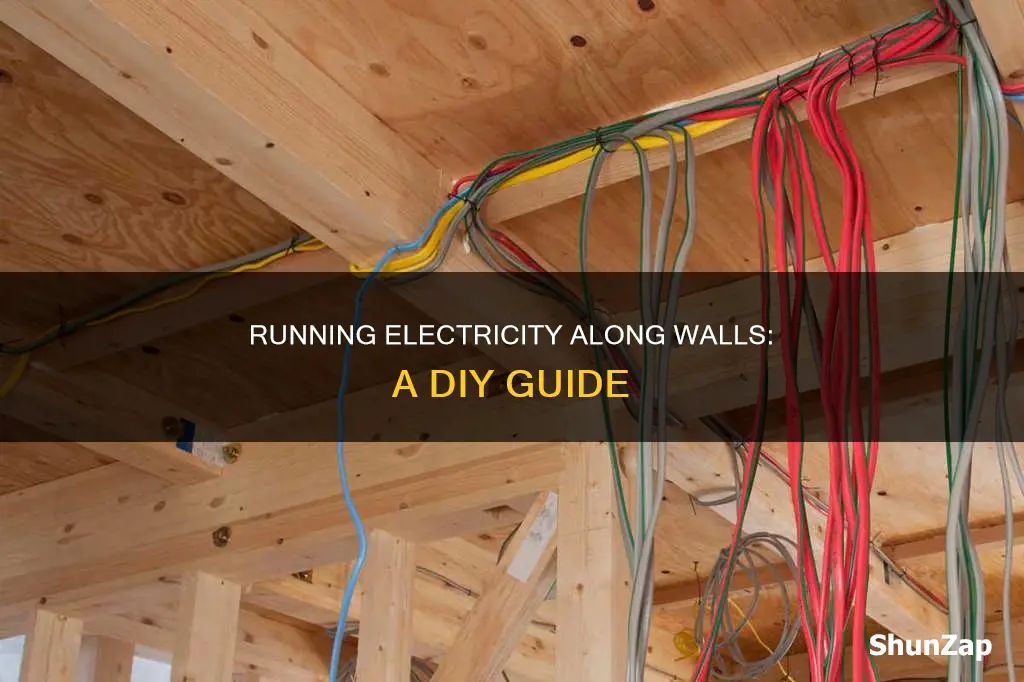

Running electricity along a wall can be a challenging task, especially if you're dealing with finished walls. The process involves fishing electrical wires through walls, which requires some basic understanding of electrical work and the use of specialty tools. While it may seem intimidating, it's possible to add or extend circuits without destroying the walls. This can be done by routing wires through unfinished spaces like basements or attics, or by using techniques such as surface raceway wiring or wire concealers. Safety precautions are crucial, so it's important to switch off the main power and isolate the circuit before beginning any electrical work.
| Characteristics | Values |
|---|---|
| Tools | Stud finder, pencil, drywall hand saw, utility knife, dust mask, flashlight, wire concealers, cable staples, cable clamps, cable safe plate, chisel, mallet, screwdriver, wire staple, drill, etc. |
| Techniques | Fishing wires, running wires through unfinished basements or attics, removing drywall, using wire mold products, using a fish tape, etc. |
| Safety | Switch off the main power, isolate the circuit, wear safety goggles, wear gloves, wear a dust mask, etc. |
| Considerations | Scope of work, local code requirements, wire gauge, amperage of the circuit, blocking, etc. |
Explore related products
What You'll Learn
Running wires through finished walls
Firstly, it is important to understand the layout of the wall and identify any obstructions. Use a stud finder to locate the studs, as well as any existing pipes or wires behind the wall. Mark the locations of the studs and plan the path of the wires, ensuring a minimum clearance of 2 1/2 inches from any stud. If there is blocking, you may need to cut or drill through it to create a path for the wires.
Next, turn off the power to the area at the circuit breaker to ensure safety. Cut holes in the wall using a drywall saw or an oscillating multi-tool. Be cautious not to cut too deeply into the wall to avoid damaging hidden pipes or wires. Cut a hole in the top or bottom plate of the wall with a drill. If you are running wires horizontally through an attic, basement, or crawl space, you may need to cut access into your floor or ceiling to reach the wall plate.
Now, it's time to feed the wires through the wall. Secure the wires to a fish tape or fish stick, which is a flexible rod with a small hook. Feed the fish tape through the holes in the wall and use it to pull the wires through. If you are running wires to another electrical box, ensure the cable is firmly anchored within 8 inches of each box and every 4 1/2 feet along its length.
Finally, seal any holes in the wall plates with fire-resistant caulk to prevent the spread of flames in the event of a fire. Repair any drywall or wall finish that was removed or damaged during the process.
Remember to check your local electric and building codes for any wiring restrictions and always work with a basic understanding of electrical work to ensure your safety.
Residency Requirements for Electrical Contractor Licenses Explained
You may want to see also
Explore related products
Extending a circuit to add a new outlet
Before you begin, it's important to note that electrical work can be dangerous and, depending on where you live, may require a permit or a professional installation. Check with your local code office to find out if you need a permit or a professional. If you're uncomfortable with any steps or lack the necessary expertise, consider hiring a licensed electrician.
Now, to extend a circuit to add a new outlet, you'll first need to determine where you'll get power for your new outlet. If you're tapping into an existing circuit, make sure it can handle the additional load. Most residential circuits are rated for 15 or 20 amps. You'll also need to ensure that your outlet placement complies with local codes. For example, some rooms, like kitchens, bathrooms, and laundry areas, require circuits that can only serve that specific room or ancillary areas.
Once you've determined that your circuit can handle the additional load, turn off the power to the circuit at the breaker box. You can then cut a hole in the wall for the new outlet box. Trace the outline of the outlet box on the wall and use a keyhole saw or a strong utility knife to cut through the wall material. If your wall is made of plaster, you may need to drill holes into the corners and cut the hole with a Sawzall.
After cutting the hole, run the wire from the power source to the new outlet. Look for ways to extend the branch circuit wiring vertically from the source of power, such as through an attic or basement, to avoid making additional holes in the wall. Use fish tape to guide the new cable through the wall, ensuring it runs smoothly without kinks or sharp bends.
Now, you can strip the insulation from the ends of the wires, exposing the copper conductors. Connect the wires to the corresponding terminals: black (hot) to brass, white (neutral) to silver, and green or bare (ground) to the ground screw. Make sure all connections are secure and tight to prevent arcing and the risk of fire.
Finally, secure the outlet box to the wall, ensuring it is level and flush with the surface. Reassemble the outlet and cover plate, and turn the power back on to test your new outlet.
How Fans Can Consume Electricity and Your Wallet
You may want to see also
Explore related products
Using a fish tape for long vertical pulls
Fish tape is a tool used by electricians for pulling electrical wires through walls, ceilings, and floors. It is a long, stiff, flat steel wire. If you have complete access to the walls, you may not need a fish tape, but it is useful when access is limited.
- Put on safety glasses. Fish tape is made of stiff metal wire and can be dangerous if allowed to unreel all at once.
- Turn off electric circuits in the area where you're working to avoid injury from electricity. Non-conductive fiberglass fish tape is also available if you are concerned about conduction.
- Feed the fish tape through a conduit until it is pushed through the other opening. The fish tape can be pushed in any direction.
- Attach a guide string to the end of the tape. This will pull the wires back through the conduit in the opposite direction as the fish tape is retracted.
- Pull the fish tape back slowly and patiently. It is helpful to have an assistant at the other end to unspool the electrical cable and relieve tension.
- Reel back all of the fish tape until the electrical cable appears. Ensure that about a foot or more of the cable is exposed to prevent it from retracting and being lost.
- Reduce friction on the wire by using a wire-pulling lubricant.
- Unspool the electrical cable before pulling it with the fish tape if working alone.
- Avoid rust by running the wet fish tape through a towel as you reel it back. Even with dry fish tape, occasionally run the tape through a towel to clean it.
- Take extreme care when opening the fish tape casing.
Electric Range and GFCI: What You Need to Know
You may want to see also
Explore related products
Running wires through an attic or crawl space
When running wires through an attic, it is important to follow local electrical codes and requirements. For example, NM cable typically needs to be run through holes or notches cut in joists rather than stapled to their faces. This ensures compliance with electrical standards and safety regulations.
In a crawl space, wiring can be run at angles with joists. Smaller cables should be run through bored holes in joists or along runnels. Drilling holes in the block foundation of a crawl space can be an option for running wires, but it is essential to consider the presence of fumes from attached garages, which may pose a safety risk.
When running wires through an attic or crawl space, it is important to consider the overall wiring plan, including the location of the main electrical panel and the path of the wiring to the desired outlets or devices. This planning stage is crucial to ensure the wiring is installed efficiently and effectively, taking into account any potential challenges or obstacles.
Overall, running wires through an attic or crawl space can be a viable option for wiring a home, but it is important to consider the specific circumstances, local regulations, and potential challenges to ensure a safe and efficient installation.
BDO's Power Waste: Idle Trays Costing the Earth?
You may want to see also
Explore related products
![6 Pack Magnetic Cable Clips [Cable Smooth Adjustable] Cord Holder, Under Desk Cable Management, JOYROOM Adhesive Wire Holder Keeper Organizer for Home Office Desk Phone Car Wall Desktop Nightstand](https://m.media-amazon.com/images/I/71z427f7WYL._AC_UY218_.jpg)
Concealing wires within the walls
Concealing wires within walls is a challenging task that requires careful planning and execution. Here are some detailed instructions to help you achieve a neat and safe wire concealment within your walls:
Planning and Preparation:
Before starting any work, it is crucial to have a basic understanding of electrical work and the proper techniques for fishing wires through walls. Familiarize yourself with the scope of the job and the techniques commonly used by electricians. Identify the type of wall you have, such as drywall or plaster and lath, as this will impact the tools and methods you can use.
Stud and Utility Location:
Use a stud finder to locate the wooden studs, blocks, and spacers within the wall. Mark the locations of the studs and any existing pipes or wires behind the wall. The wires will typically run through the hollow space between the studs. It is essential to ensure that you do not accidentally damage any existing utilities during your work.
Marking and Drilling:
Mark the wall to indicate the desired path of the wires. For horizontal runs, ensure that the holes are no more than 8 inches from the electrical box, and for vertical runs, use staples to anchor the wires to the studs, spaced no more than 4 1/2 feet apart. Drill holes in the studs for the wires to pass through, following local code regulations for hole placement and using protective metal plates if necessary.
Running the Wires:
There are several methods for running wires through finished walls. One common method is to create small access holes in the drywall, necessary for drilling through wall plates. Use a fish tape for long vertical pulls to guide the wires through the walls and into the electrical boxes, securing them with cable clamps. Ensure that the wire gauge matches the amperage of the circuit to avoid overloading.
Patching and Finishing:
After running the wires, patch up any holes or cuts in the wall. Cut a drywall patch to fit the open channel, insert it, and secure it to the studs with screws. Apply joint tape and drywall joint compound to finish the joints and screw heads, creating a smooth surface. If necessary, you can add insulation or wood blocking to the studs before patching the drywall.
Remember, always follow local electrical codes and regulations, and if you are unsure about any part of the process, consult a qualified electrician to ensure a safe and effective wire concealment within your walls.
Electric Wheelchairs: Medicare Coverage Explained
You may want to see also
Frequently asked questions
There are several methods to run electricity along a wall. You can mount cables on the surface of your wall with clips, or run them through plastic trunking that you can nail or screw to the wall. Alternatively, you can conceal them within the wall by cutting a channel and running the cable through a plastic conduit.
You can use wire concealers along the baseboards to hide the cables.
First, mark the wall to indicate where the TV will hang. Then, unplug the TV and disconnect the wires. Remove the TV from the wall and locate the studs behind the wall where you want to hide the wires. The wires will run through the hollow space between the studs. Use a stud finder to detect the location of the studs, pipes, and wires.
Before starting any electrical work, switch off the main power at the consumer unit/fuse box and isolate the circuit by removing the circuit fuse.
