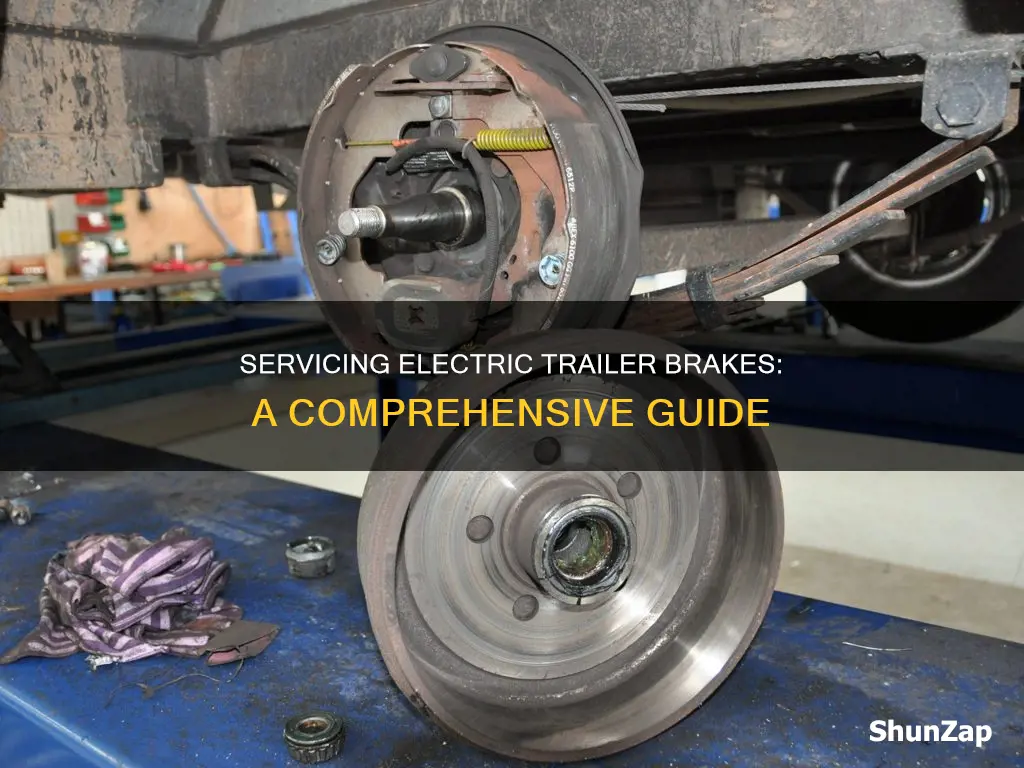

Electric trailer brakes are an essential safety feature for any trailer, and regular servicing is necessary to ensure they remain in good working order. This guide will cover the steps for servicing 12x2 electric trailer brakes, including the tools and parts required, the process for adjusting and replacing brake components, and the recommended procedures for testing and maintaining the brakes. Whether you're a seasoned trailer owner or a novice, understanding how to service your electric trailer brakes can help you avoid costly repairs and stay safe on the road.
| Characteristics | Values |
|---|---|
| Standard Burning Procedure | 1. Turn the trailer brake control gain to the maximum level. 2. Drive at speeds up to 40 mph. 3. Adjust the brake controller slide mechanism to apply 8 to 10 volts to the trailer brakes, slowing the tow vehicle to 20 or 25 mph. 4. Release the slide mechanism. 5. Continue driving and apply the brake controller at one-mile intervals. |
| Parts Needed | Wiring, connectors, zip-ties, wire clips, electrical tape, ground screws, 7-way connector, breakaway kits, brake controller |
| Hub Replacement | 1. Remove the axle nut. 2. Remove the nuts fastening the backing plate assembly. 3. Peel back the loom and tape from the wires. 4. Cut the wires and slide the backing plate assembly off the axle spindle. 5. Install a seal sleeve on the axle shaft if it is rusty or rough. 6. Clean the wheel side of the new backing plate flange. 7. Set the new backing plate on the axle with the electro-magnet at the six o'clock position, ensuring the correct left and right orientation. 8. Connect the electro-magnet wires to the trailer's wire harness. 9. Secure the wires with a zip tie to the torsion arm. 10. Clean the new drum/wheel hub with brake cleaner. 11. Set the hub on a work surface with the opening facing up and insert a bearing. 12. Press a new seal into the hub. |
Explore related products
What You'll Learn
Replacing the complete assembly
When replacing the complete assembly of your 12"x2" electric trailer brakes, there are several important steps to follow to ensure a safe and effective replacement. Firstly, it is crucial to have the right tools and materials. You will need equipment to lift and securely support your trailer, ensuring that they are rated for the weight of your trailer for safety. An impact wrench or a sturdy lug wrench will be needed to remove the wheels and access the brakes. A comprehensive socket set is also essential for removing and securing various nuts and bolts during the replacement process.
Before beginning the replacement, it is important to inspect the old brake drum assembly for any signs of wear, such as deep grooves or scoring on the drum surface. Decide if the drum needs to be replaced or if it can simply be resurfaced. Remove the old brake shoes, springs, and any other worn components. Compare these old parts with the new ones to ensure a correct match, then proceed to install the new components, making sure everything is positioned and secured correctly.
After installing the new brake components, reattach the brake drum. Adjust the brakes according to the manufacturer's instructions. For drum brakes, this typically involves adjusting the tension so that the brake shoes are close to the drum without dragging. It is crucial to test the new brakes to ensure they are functioning correctly.
In addition to the mechanical aspects, you will also need to address the electrical components. Run wiring from the front of the trailer to the trailer brakes to carry electric power to them. You may require connectors, zip ties, wire clips, electrical tape, and ground screws. Convert your trailer connector to a 7-way connection to include a circuit for electric brakes. Each brake assembly should have two wires coming out of the back. Attach one wire to the trailer for the ground, and the other wire will receive power. Run a 10-gauge wire (blue insulation) from the front of the trailer to one of the trailer brakes as the power wire. Connect the power wire to the non-grounded wire on one of the brakes, then run another wire from this brake to the brake on the other side of the axle.
