Adjusting the brakes on an electric scooter is a useful skill to have to ensure your safety and keep your scooter in good condition. There are several methods to adjust the brakes on your electric scooter, depending on the type of brakes your scooter has. This could include mechanical disc brakes, regenerative brakes, or hydraulic brakes. It's important to know what type of brakes your scooter has before attempting any adjustments. This guide will cover the basics of brake adjustment for electric scooters, including tools and tips for fixing loose brakes and improving brake responsiveness.
Characteristics and Values Table for Adjusting Brakes on an Electric Scooter
| Characteristics | Values |
|---|---|
| Tools | 4 mm Allen wrench, 8 mm open-ended wrench, large adjustable wrench, Allen key |
| Step 1 | Loosen mounting bolts with a 4 mm Allen wrench |
| Step 2 | Rotate mounting bolts counterclockwise |
| Step 3 | Spin the wheel while pulling the brake lever |
| Step 4 | Check for drag |
| Step 5 | Adjust brake pads |
| Step 6 | Tighten the mounting bolts |
| Step 7 | Check brake lever for responsiveness and ensure brake light is working |
| Step 8 | Test the scooter at low speed, then gradually increase to check the braking system |
Explore related products
What You'll Learn

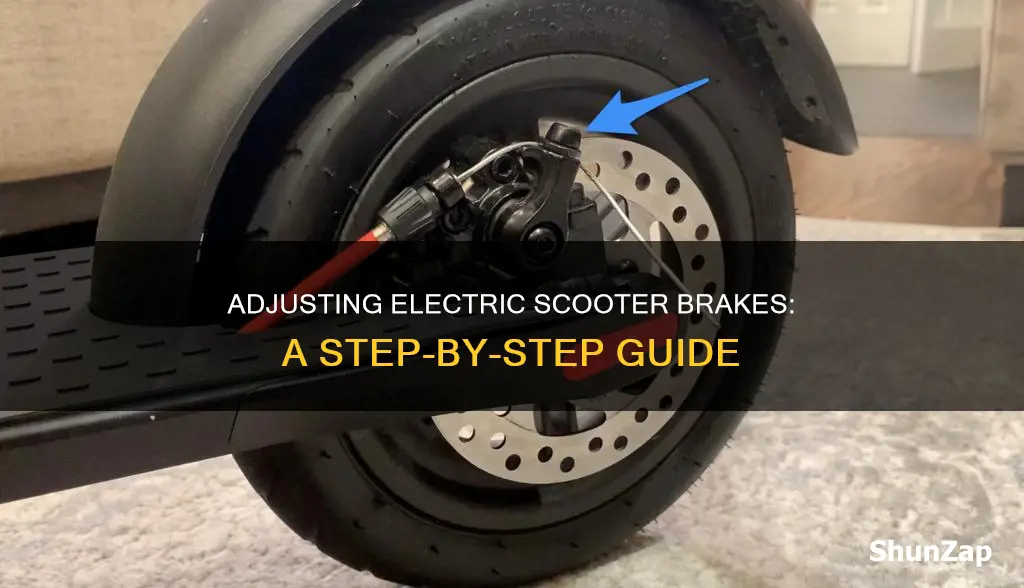

Adjusting the brake caliper
Prepare the Scooter
Place your scooter on a crate or similar raised platform to lift it off the ground. This will give you better access to the wheels and brakes for adjustment.
Inspect the Disc
Spin the wheel and examine the disc for any wobbling or irregularities. If the disc appears bent, place a clean towel over the affected area to protect it, and use a large adjustable wrench to gently bend the disc back into alignment.
Adjust the Caliper
- Use a 4 mm Allen wrench to loosen the mounting bolts on both ends of the caliper. Rotate each bolt one full turn counterclockwise.
- Spin the wheel while pulling on the brake lever, then snug the mounting bolts back down. This step ensures the brake caliper is correctly aligned with the rotor.
- Check for drag by spinning the wheel and observing any resistance. If there is significant drag, you may need to loosen the mounting bolts slightly. Try turning them â…™ of a turn counterclockwise at a time until the wheel spins freely.
- If you have a mechanical disc brake, regenerative brake, and brake light configuration, ensure the light is functioning correctly. Adjustments to the brake caliper can affect the brake light's operation, so it is crucial to verify its functionality.
Final Checks
Before riding your scooter, conduct some tests at low speeds and gradually increase to ensure the braking system is adjusted properly. The wheel should spin smoothly and quietly. If you notice any issues, re-inspect the caliper alignment and make adjustments as needed.
By following these steps, you can fine-tune your electric scooter's brake caliper for optimal performance and a safer riding experience.
Electric Drum Kits: A Quieter Church Option?
You may want to see also
Explore related products
Checking for wheel drag
Loosen the Caliper Bolts: Begin by locating the brake caliper, which is the part surrounding the disc brake rotor. Use the appropriate size Allen wrench to loosen the mounting bolts on either end of the caliper. This will allow you to adjust the position of the caliper relative to the rotor.
Spin the Wheel: After loosening the caliper bolts, spin the scooter's wheel gently. Observe whether the wheel spins freely without any rubbing or unusual noises. If you hear any scraping or rubbing sounds, it indicates that the brake pads are still too close to the rotor or the wheel.
Adjust Brake Pad Clearance: If there is rubbing or noise, re-adjust the caliper alignment. Move the caliper slightly to create a small gap between the brake pads and the rotor. You can do this by loosening the mounting bolts further and making minor adjustments to the caliper position.
Check for Drag: Once you've adjusted the caliper alignment, spin the wheel again to check for drag. There should be some resistance or drag on the wheel due to the brake pads making slight contact. If there is no drag, it means the brake pads are too far from the rotor, and you'll need to adjust the caliper closer to the wheel.
Fine-Tune Brake Pad Positioning: Use a hex key or a flat-head screwdriver to fine-tune the brake pad positioning. Locate the adjustment knobs or bolts on the side of the caliper and adjust them to increase or decrease the distance between the brake pads and the rotor. This step ensures that the brake pads make even contact with the rotor.
Test Brake Response: Finally, test the brake response by pulling the brake lever while the wheel is spinning. The wheel should come to a smooth and quick stop without any excessive drag or resistance. If necessary, make minor adjustments to the brake pad positioning or cable tension to achieve the desired stopping performance.
Remember, proper maintenance and adjustments to your electric scooter's brakes are crucial for your safety and the longevity of your scooter. Always refer to the specific instructions for your scooter model, and if you're unsure, seek assistance from a qualified technician.
Electrical Symbols in Word: Easy Insertion
You may want to see also
Explore related products
Tightening the brake cable
To tighten the brake cable on an electric scooter, you will need to make a mechanical disc brake adjustment. This is a simple process, but it is important to get it right to ensure your safety when riding.
First, check for any slack in the cable by pulling on the brake lever. If there is too much slack, you will need to adjust the tension on the brake cable. This can be done by tightening the adjuster, which is usually a plastic knob or locknut. Use an 8mm open-ended wrench and turn it counterclockwise by 1/6 of a turn.
Next, give the tire a turn to check if the brakes are dragging. If the mechanical disc brakes are too tight, they may be preventing the wheel from spinning freely. In this case, you will need to loosen the locknut slightly, again by 1/6 of a turn, until the tire spins without any resistance.
It is important to check that your brake light is working properly after making any adjustments to the brake cable. If the brakes are too tight, it can disable the taillight or cause a delay in its activation, which can be dangerous when riding.
Finally, once you have adjusted the brake cable tension and confirmed that the brake light is functioning, your electric scooter's brakes should be safely optimized.
Resetting Your LG Electric Dryer: A Step-by-Step Guide
You may want to see also
Explore related products
Fixing a wobbling wheel
Before attempting any repairs on your electric scooter, it is important to inspect it for any obvious damage or misaligned components. Check the frame for any bends or dents and inspect the wheel components such as spokes or brakes for any damage. Place your scooter on a level surface and spin each wheel separately to examine the wheel alignment. If you notice any wobbling or rubbing against the brakes or other components, you likely have a misaligned wheel.
To adjust a misaligned wheel, first loosen the axle nut and then adjust the wheel's position until it is properly aligned. Some scooters have an alignment adjustment feature, usually located near the wheel axles, which can be used for this purpose. Consult your scooter's manual to determine if your scooter has this feature and how to use it.
If the wheel alignment seems correct but the wobbling persists, it is time to inspect the brake system. Check for any loose or damaged brake components and ensure that the brake cables are properly adjusted. You may need to replace the brake pads or tighten the brake calipers.
Finally, once you have made the necessary adjustments, tighten all components back to their proper positions and double-check the alignment by spinning the wheels again. If the wobbling issue persists, it is recommended to consult a professional or contact the manufacturer for assistance. Continuing to ride a scooter with a wobbling wheel can cause further damage and may lead to safety risks.
Camping at the Grand Canyon: Electric Campgrounds Explored
You may want to see also
Explore related products
Testing the brakes
Now that you've adjusted your electric scooter's brakes, it's time to test them. It is important to test the brakes before riding your scooter again to ensure your safety and the effectiveness of the brakes. Here's a step-by-step guide to testing the brakes:
- Start by placing your scooter on a flat, even surface. Ensure that the scooter is stable and secure.
- Spin the wheel and listen for any unusual noises. The wheel should spin smoothly, quietly, and with minimal resistance. If you hear grinding or squealing noises, it could indicate that the brakes are still not adjusted properly.
- Check for wheel wobble by sight. A wobbling wheel could indicate that the disc is bent and requires adjustment.
- Inspect the gap between the rotor and the brake pad. If there is a noticeable gap on either side, the caliper may need further adjustment.
- Perform a brake lever test. Pull the brake lever and ensure that it feels responsive and requires an appropriate amount of force to engage. There should be minimal slack in the lever.
- Check the brake light. Ensure that the brake light illuminates when you engage the brake lever. This step is crucial for your safety and visibility to others.
- Conduct a low-speed test ride. Ride your scooter at a low speed and gradually increase the speed. Test the brakes at different speeds to ensure they respond effectively and bring the scooter to a smooth stop.
- Perform small, quick braking jerks. This helps to break in new brake pads and improve their performance. It usually takes about 15 kilometres for new brake pads to reach optimal performance.
- Re-adjust as necessary. If you encounter any issues or unsatisfactory performance during testing, repeat the adjustment process and then test the brakes again.
Remember, it is essential to take your time during the testing process and make adjustments as needed. Your safety depends on properly functioning brakes, so ensure you are confident in their performance before riding at higher speeds or on busy roads.
Electric Start Snowblower Troubleshooting Guide
You may want to see also
Frequently asked questions
First, put your scooter on a crate to lift it off the ground. Spin the wheel and observe the disc. If it's wobbling, the disc is likely bent. Protect the area with a clean towel and use a wrench to bend the disc back into alignment. Loosen the nuts holding the brake housing, then tighten them while applying the brake.
First, remove the two caliper retaining screws. Turn the caliper over to reveal the flat clamping screw. Tighten this screw to leave a 1mm gap between the pad and the brake disc. Put the caliper back, leaving the retaining screws loose. Press and hold the brake lever, then tighten the screws.
If there's slack when you pull the brake lever, start with a cable adjustment. Turn the cable adjuster clockwise until you feel some brake drag, then back it off until the wheel spins freely. Check the brake lever for responsiveness and ensure the brake light is working.
Before riding, test your scooter at low speed, gradually increasing. The wheel should spin quietly and effortlessly. If the braking system is too tight, loosen the knobs on the brake levers and calipers.
