Electric gates are a great way to improve the security of your home. Automatic gate openers allow you to open and close your gate with the push of a button, but they need to be set up correctly to ensure they work efficiently and safely. One of the most important components of an electric gate is the limit switch, which is a type of sensor that detects and controls the mechanical movement of the gate to prevent it from hitting the gate posts or derailing. In this article, we will discuss how to set the limits on your electric gate to ensure smooth and accurate operation.
Characteristics and Values of Electric Gate Limit Settings
| Characteristics | Values |
|---|---|
| Purpose | To set the points at which the gate opener stops during opening and closing cycles, ensuring the gate opens and closes fully without causing damage or obstruction. |
| Function | Limit switches are sensors that detect and control mechanical movement, restricting travel within a certain range. |
| Safety | Limit switches prevent the gate from hitting posts or derailing, causing damage to the gate and surrounding area. They also protect the motor from damage by overwork. |
| Flexibility | Limit switches allow for flexible opening and closing angles, making them suitable for various occasions. |
| User Experience | Adjustable limit switches provide added protection and convenience, allowing users to set travel limits according to their needs. |
| Installation | DIY installation of automatic gate openers is possible but may void the product's warranty and carries risks such as electric shock and motor damage. |
| Maintenance | Limit switches may need to be reset or re-established over time or after power outages to ensure smooth and accurate gate operation. |
| Troubleshooting | If issues arise, it is recommended to contact customer service or a professional repair company for assistance. |
Explore related products
What You'll Learn
Limit switches: Sensors to detect and control mechanical movement
Limit switches are sensors that detect and control mechanical movement to prevent it from exceeding a limit position. They are commonly employed as security installations on machine equipment to restrict the travel of mechanical equipment within a certain working range. Limit switches are essential for automatic gate safety and functionality. Without them, the gate motor will continue to rotate until it receives a new command or comes up against an obstacle.
Limit switches are available in contact type and non-contact type. The TOPENS gate opener, for example, uses a magnetic switch, a widely used non-contact limit switch. When the magnet senses the limit switch, the gate opener controller cuts off power to the motor, making it stop spinning. Electromagnetism limit switches are easy to adjust, and the gate will automatically stop at the desired position.
Limit switches are electromechanical devices operated by a physical force applied to them by an object. They are used to detect the presence or absence of an object. They were originally used to define the limit of travel of an object, hence their name. For example, a roller limit switch can detect when an object moves past a specific point on a conveyor belt.
There are four general types of limit switches: whisker, roller, lever, and plunger. When an object contacts the actuator, the switch operates, causing an electrical connection to make or break. This signals that a component or part has reached a predefined point or position. Limit switches are drawn and designed differently depending on the origin of the electrical schematic.
Magnets' Impact on Electrical Devices: How They Affect Functionality
You may want to see also
Explore related products
Adjusting the limit switch: How to set travel limits

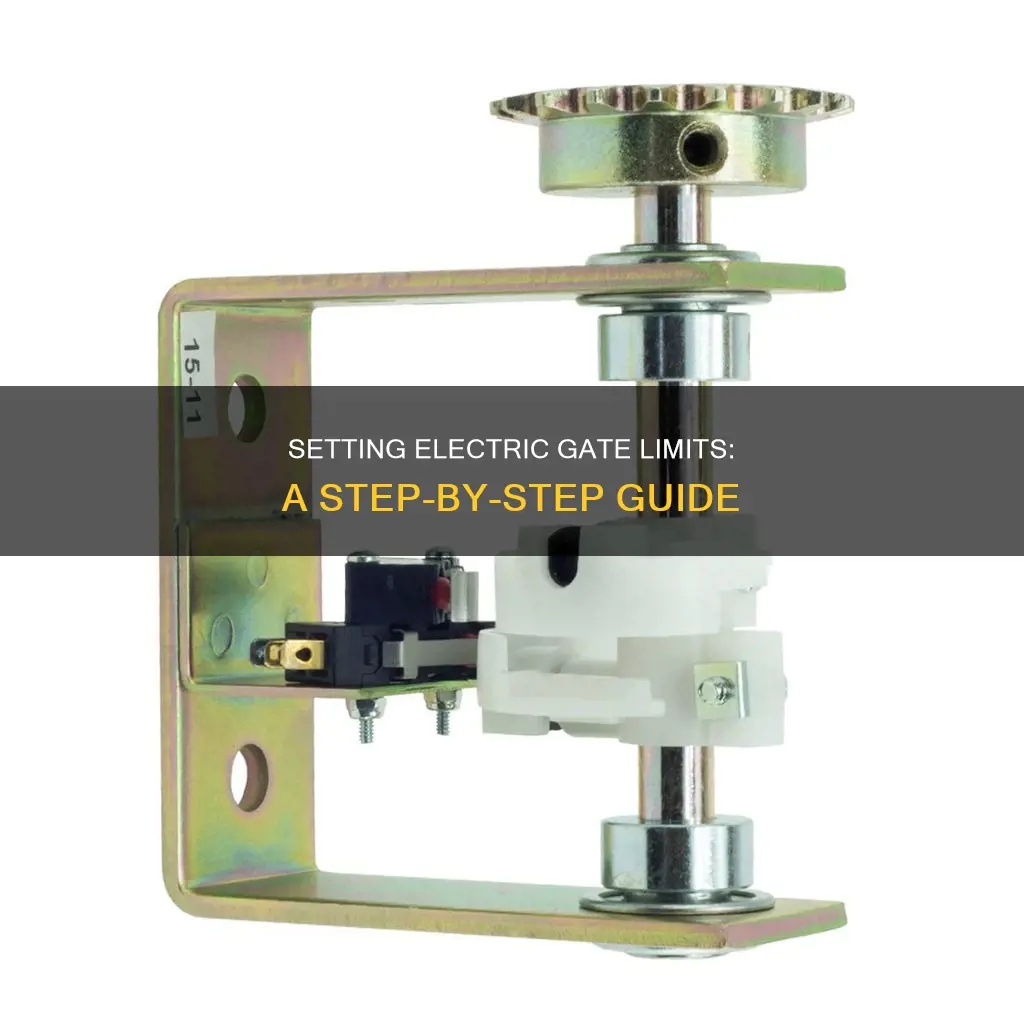

Limit switches are an essential component of any electric gate system. They are sensors that detect and control the mechanical movement of the gate, ensuring it doesn't exceed the limit position. This prevents the gate from hitting the posts or derailing, which could cause damage to the gate and its surroundings.
