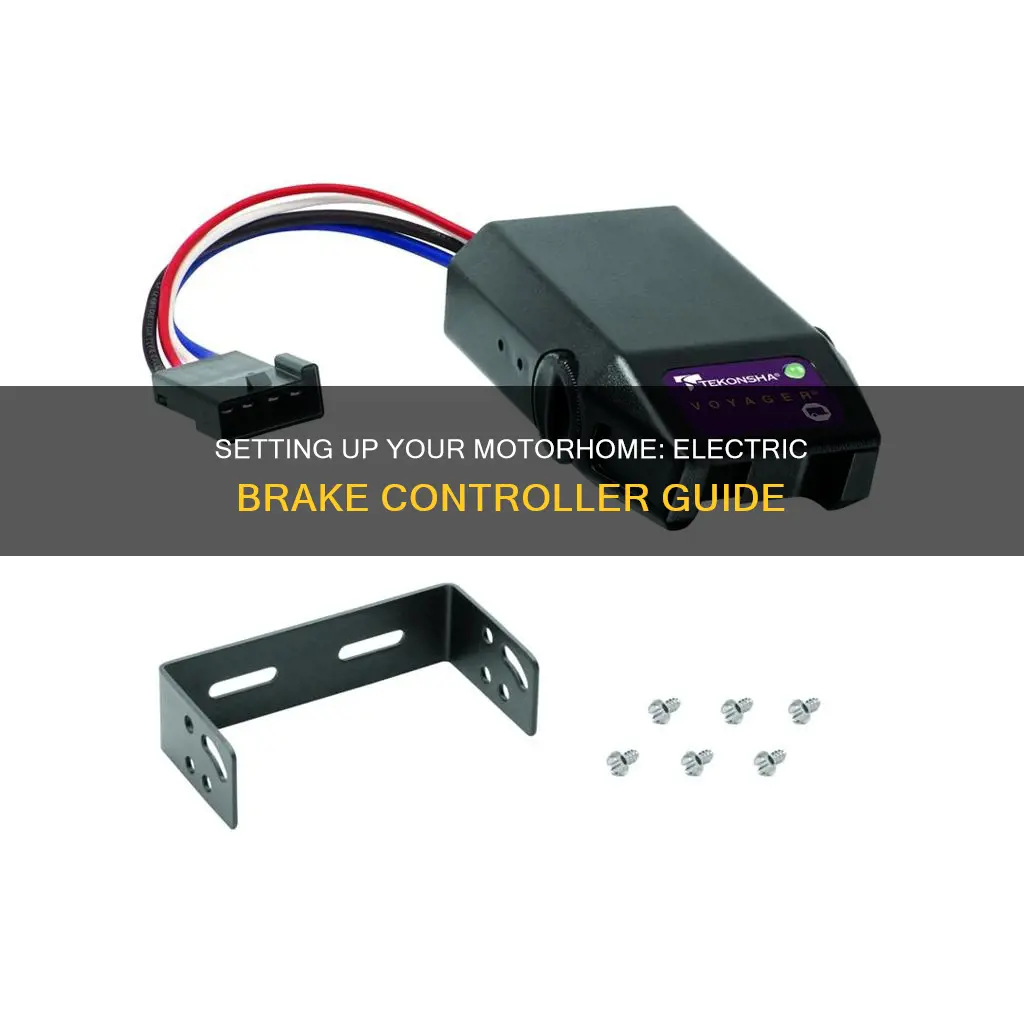

Motorhome electric brake controllers are an essential component for safely towing a trailer or RV. They are electronic devices that regulate the electric trailer brakes, allowing the driver to control and monitor the trailer's braking activity from the towing vehicle's cockpit. This ensures that the trailer and towing vehicle brake together as a system, preventing jerky stops and maintaining stability. Brake controllers come in various styles, including time-delayed and proportional or inertia-based types, each with unique advantages and settings to adjust trailer brake gain and sensitivity. Proper installation and setup of these controllers are crucial for safe and effective towing, and this process may vary depending on the manufacturer's instructions and vehicle specifications.
Characteristics and Values Table for Setting a Motorhome Electric Brake Controller
| Characteristics | Values |
|---|---|
| Number of wires | 4 |
| Wire colours | Blue, black, red, and white |
| Wire functions | White wire is a ground, black wire is for power, red wire is the stop light circuit, and blue wire is the brake output |
| Installation steps | Disconnect the tow vehicle's negative battery cable, choose where to mount the controller's interface, drill holes in the dash for the mounting bracket, mount the interface bracket, secure and connect the interface using a vehicle-specific wiring harness |
| Calibration steps | Ensure the trailer wiring harness is plugged into the vehicle, park on a level surface in a safe, open area, and allow the brake controller to calibrate |
| Adjustment steps | Drive at 25 mph and press the brake pedal, adjust sensitivity higher if the vehicle stops too slowly and lower if it stops too abruptly, test braking at various speeds |
| Types of brake controllers | Time-delayed, user-controlled, and proportional or inertia-based |
| Time-delayed characteristics | Gain setting tells the controller the amount of braking force to apply, can cause jerky stops and push-pull between the trailer and tow vehicle |
| Proportional or inertia-based characteristics | Uses an accelerometer to sense changes in momentum and apply power in proportion to the vehicle's momentum, provides smooth and efficient braking |
Explore related products
What You'll Learn
Understanding the types of electric brake controllers
Electric brake controllers are an essential component of any motorhome or trailer setup, providing safety and control when towing. They are required by law in many states when the trailer's gross weight exceeds a certain limit, typically ranging from 1,500 to 3,000 lbs. These devices use electricity from the tow vehicle to regulate the power applied to the trailer brakes, ensuring smooth and efficient braking.
There are several types of electric brake controllers available, each with unique features and capabilities. One common classification is between user-controlled and proportional (or inertia-sensing) controllers. User-controlled brake controllers allow the user to adjust the braking force via an interface, providing a basic yet effective method of controlling the trailer brakes. Proportional controllers, on the other hand, utilise accelerometers to sense changes in momentum and apply braking power in proportion to the vehicle's momentum, resulting in smoother and more precise stops.
Another type of electric brake controller is the time-delay controller, which activates the trailer brakes with increasing power over a fixed period. While this method is simple and easy to adjust, it may not offer the same precision as proportional controllers. For those seeking a feature-rich option, the Tekonsha brake controller stands out with its ability to control up to eight brakes simultaneously and its wide range of settings.
The Curt Venturer Electric Trailer Brake Controller is a reliable and straightforward option for small trailers and occasional towers. It is compatible with various braking systems and has a unique "quick plug" feature for easy connection. The Draw-Tite and Reese brake controllers are also worth considering, offering a boost setting and diagnostic features, respectively.
When choosing an electric brake controller, it's important to consider factors such as towing conditions, trailer weight, vehicle capabilities, and personal preferences for features and adjustability. Additionally, ensuring compatibility between the controller and your vehicle-trailer setup is crucial for safety and efficiency. With the right electric brake controller, you can confidently navigate freeways, dirt roads, and any terrain with a motorhome or trailer in tow.
Electricity Access in Athens' Refugee Squats
You may want to see also
Explore related products
How to install a brake controller
Electric trailer brakes require a brake controller to function. There are two basic types of brake controllers: time-delay and proportional or inertia-based. A time-delay brake controller applies an increasing amount of power over a fixed period of time when the driver presses the brake pedal. Proportional brake controllers, on the other hand, use an accelerometer to sense changes in momentum and apply power in proportion to the vehicle's momentum, resulting in smoother and more efficient braking.
To install a brake controller, you will need to connect it to the trailer wiring harness and ensure that it is plugged into your vehicle. During setup, it is important to park your vehicle and trailer on a level surface in a safe, open area with ample stopping distance and no traffic. Some brake controllers may require calibration, while others may not or may be self-calibrating.
If you are installing a brake controller in a motorhome with air brakes, you can use an electric brake controller like the Tekonsha Prodigy P3. You will need to wire it into your RV, connecting the black wire to the positive post. If your motorhome has a 7-way trailer connector at the rear bumper, there may be a connector under the dash that the controller can simply plug into. Otherwise, you may need a brake controller installation kit and an extra length of duplex cable.
The brake controller wiring typically consists of four wires: red, black, blue, and white. The red wire is the stop light circuit and connects to the wire on the brake pedal switch. The black wire is for power and should be connected to the positive terminal of the battery, along with an in-line circuit breaker. The blue wire is the brake output and should be connected to the trailer connector on the circuit with the trailer brake magnets. Finally, the white wire is the ground and should be connected to any solid ground point.
Understanding the Different Types of MCBs in Electrical Systems
You may want to see also
Explore related products
Adjusting the brake controller
The first step in adjusting the brake controller is to understand the two main types of controllers: time-delay and proportional or inertia-based. Time-delay controllers activate the trailer brakes with an increasing amount of power over a fixed time, while proportional controllers use an accelerometer to sense changes in momentum and apply power in proportion to the vehicle's momentum.
When adjusting a time-delay controller, the gain setting can be adjusted to accommodate different trailers and load sizes. A higher gain setting is used for larger trailers, while a lower gain setting is used for smaller trailers to avoid brake lockup. The goal is to have the controller's power setting slow down the trailer while using the manual brake lever to apply stopping pressure.
Proportional controllers, on the other hand, provide smoother and more efficient braking, especially when towing on hills. They do not require manual adjustments like time-delay controllers, as they automatically sense the vehicle's momentum and apply the appropriate amount of power.
Regardless of the type of controller, the adjustment process aims to synchronise the braking of the motorhome and the trailer. This ensures that the trailer does not push or pull the motorhome, creating a safer and more controlled driving experience.
It is important to refer to the specific instructions provided by the manufacturer of your brake controller, as each model may have unique requirements for adjustment and installation.
Unexpected Power Outage: What You Need to Know
You may want to see also
Explore related products
Using the brake controller
The next step is to adjust the trailer brake gain, which refers to the amount of power applied to the trailer brakes. This can be done via an interface in the cockpit of the motorhome, such as an LED-lit knob, where you can adjust the gain setting to ensure smooth braking without skidding. Consider factors such as the weight of your load and road conditions when adjusting the gain.
You can then test the braking at various speeds, starting at around 25 mph, and adjust the sensitivity setting accordingly. If the motorhome stops too slowly, increase the sensitivity, and if it stops too abruptly, lower the sensitivity. This will help ensure smooth stops in different conditions.
Some brake controllers also offer a manual activation button, allowing you to activate the trailer brakes without applying the motorhome brakes. This can be useful for correcting minor trailer sway or slowing down gradually on a hill.
Additionally, brake controllers may have different modes, such as proportional mode for highway driving and user-controlled mode for off-grid adventures. Proportional mode applies force to the trailer brakes proportional to the force applied to the motorhome brakes, resulting in smoother stops. In contrast, user-controlled mode allows you to set a specific brake level.
Wheelchair Rentals: Seaside, Oregon's Electric Options
You may want to see also
Explore related products
Troubleshooting
Check the Power Supply and Wiring
If your brake controller doesn't power on, start by checking the power supply. Ensure the controller is receiving electricity from the battery. Check the fuse box for blown fuses and replace them if necessary. Inspect the wiring for loose connections or frays, and repair or replace any damaged wiring.
Inspect the Ground Connection
A poor ground connection is a common issue. The ground wire connects to the vehicle's chassis, and if it is loose or corroded, the controller won't function properly. Ensure the wire is securely fastened to a clean, rust-free surface. Clean any corrosion and reconnect if necessary.
Verify Brake Output Voltage
The brake controller sends an electrical signal to the trailer brakes. If this signal is weak or inconsistent, it could indicate an issue with the output voltage. Use a multimeter to test the voltage and, if low, inspect the wiring for damage or wear, replacing it if needed.
Adjust the Gain Setting
The gain setting determines the force applied by the brakes relative to the trailer's weight. If the gain is set too high, the brakes may lock up. Gradually lower the gain and test the brakes at low speeds.
Inspect Trailer Wiring and Connections
Regularly inspect the trailer wiring harness for damage, and replace if necessary. Check connections for corrosion and ensure they are secure. Clean and lubricate brake components to maintain performance.
Test Brake Controller Before Trips
Always test the brake controller before driving. Apply the brakes at low speeds to ensure smooth engagement and adjust the gain setting as needed.
Check for Specific Error Codes or Messages
If your controller displays error codes or messages, refer to the owner's manual for troubleshooting guidance. Common issues like "nc" (no connection) can often be resolved by cleaning and reconnecting trailer plugs and checking wiring.
Adjust Brake Assemblies and Settings
If the brakes apply too aggressively, ensure the brake assemblies are properly adjusted and that the boost/gain setting is appropriate for the trailer size.
Remember to consult your motorhome's user manual for specific instructions and safety guidelines related to your electric brake controller.
Mastering the Electric Eel: Operating Model S
You may want to see also
Frequently asked questions
A trailer brake controller is an electronic device that controls the braking system on your towable RV. It acts as a go-between for your tow vehicle and your trailer.
When you apply the brakes in your tow vehicle, the controller sends a signal to activate the trailer brakes. Most designs include an interface in the cockpit of the tow vehicle, which allows you to control the gain setting, or the amount of power applied to the trailer brakes.
There are two main types of electronic brake controllers for trailer towing: proportional and time-delayed. Proportional trailer brake controllers apply force to the trailer's brakes proportional to the amount of force being applied to the tow vehicle's brakes. Time-delayed controllers allow you to select a gain setting that tells the controller how much force to apply, regardless of the situation.
The process varies based on the device’s manufacturer. Here are the basic steps to install most trailer brake controllers: disconnect your tow vehicle’s negative battery cable, choose where to mount the controller, drill holes and mount the interface bracket, and connect the interface using a vehicle-specific wiring harness.
With your trailer coupled to your vehicle, the first step is to make sure the trailer wiring harness is plugged into your vehicle. Then, allow the brake controller to calibrate. You may also need to adjust the trailer brake gain and braking sensitivity.
