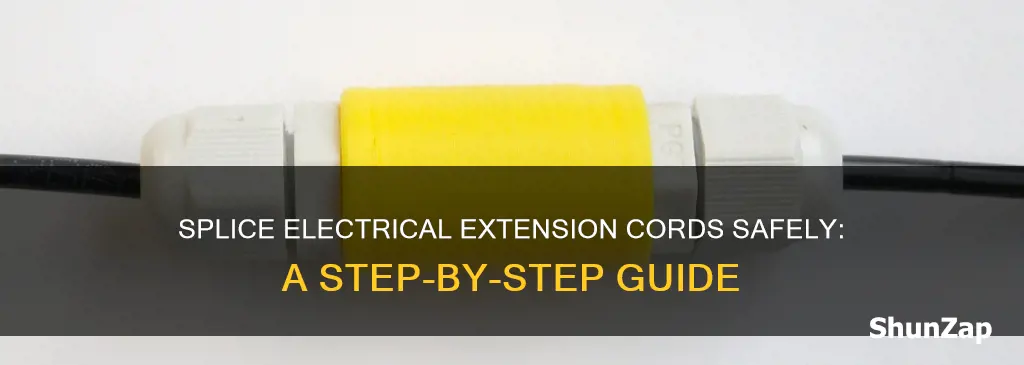

Splicing an electrical extension cord is a straightforward process that can be done as a DIY project. However, it is important to note that splicing may compromise the strength and integrity of the cord, making it susceptible to snagging or moisture damage. To splice an electrical extension cord, you will need to cut and strip the wires, ensuring they are long enough to work with. After stripping, you can twist the wires together and secure the connection with electrical tape, solder, or a waterproof splice block. It is crucial to use proper splicing materials and adequately insulate the splices with heat shrink tubing to prevent exposure and ensure safety.
Explore related products
What You'll Learn
Using a junction box with grommets/cord connectors
Using a junction box with grommets or cord connectors is a safe way to splice electrical extension cords. This method ensures that the stripped wire is not exposed. Here is a step-by-step guide on how to do it:
Firstly, put on safety gear to protect yourself from any electrical hazards. Before you begin splicing, ensure that the non-damaged end of the cord is unplugged for safety. If the damage is close to one end, you can simply cut off that end and add a new plug. If the damage is in the middle, you will end up with two shorter cords.
Next, cut out the damaged part of the cord. Make sure to cut out a sufficient amount of the cord to ensure that no damaged sections remain. Then, take your junction box and grommets/cord connectors. Follow the manufacturer's instructions to securely attach the junction box to the cord, ensuring the grommets/connectors are snug and tight.
Now, you can reassemble the plug, following the manufacturer's instructions. Ensure that the new plug is the same rating and configuration as the cord and that it is securely attached. Finally, test your newly spliced extension cord by plugging it in and testing connected appliances.
Some safety tips to keep in mind: always ensure there are no exposed wires, and use electrical tape for extra protection and stability. If your spliced cord is not working properly, check the connections and ensure they are secure. If issues persist, the replacement plug may be assembled incorrectly.
