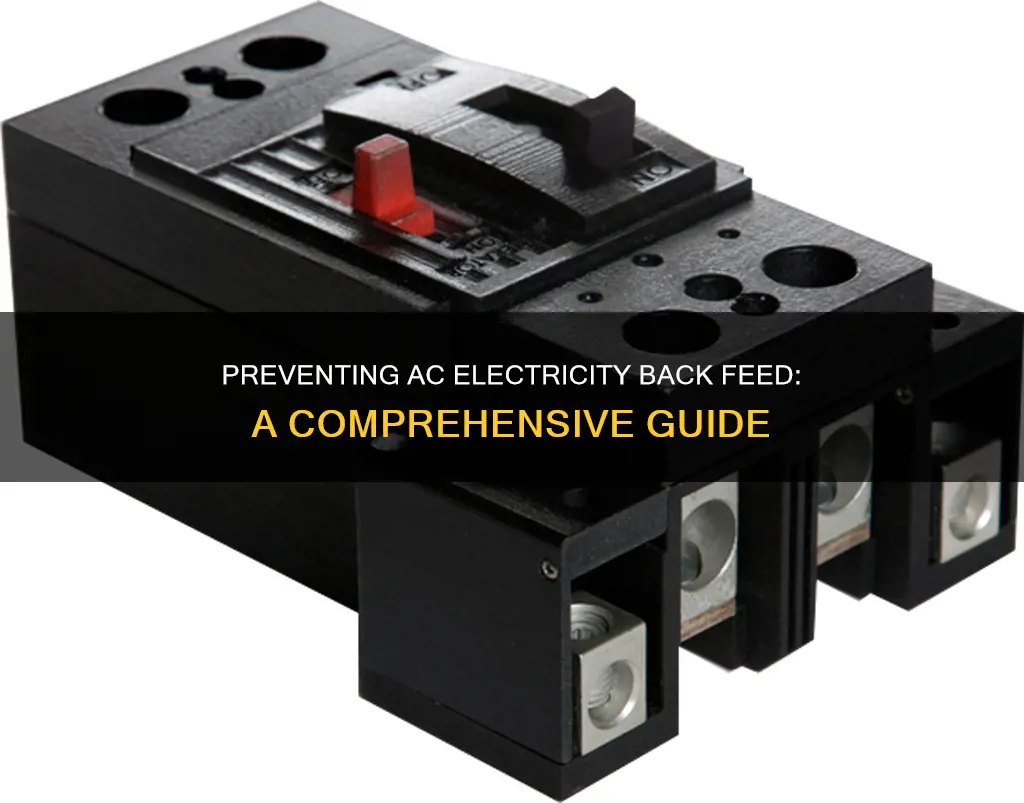

Preventing Ac Electricity Back Feed: A Comprehensive Guide

how to stop ac electricity back feed

Preventing AC electricity back feed is a critical safety issue. Back feed can occur during a power outage, or when combining separate power circuits. This can be dangerous and even illegal. To prevent back feed, you can use a double conversion system, an off-grid inverter, or a UL 1741-compliant inverter, which is designed to prevent back feed by evaluating the grid before feeding power. Alternatively, you can set up your SCADA system to shut down in the event of back feed, or install blocking diodes to prevent reverse bias being injected into PV panels.

How to stop AC electricity back feed

Characteristics Values
Use of RCD devices RCD devices can be used to detect imbalances, but backfeed may still occur through its own neutral
DP double pole MCBs Provide overcurrent protection and a higher degree of isolation
SSR relays No back-feed current will flow, but there may still be a potential voltage present
UL 1741-compliant inverter Designed for anti-islanding and will not backfeed a grid that is not supplying steady power
Off-grid or partial off-grid system Use of a dedicated charger or off-grid inverter to prevent backfeed
Blocking diodes Prevent backfeeding of PV panels by installing blocking diodes in series with individual or combined strings
DC isolators Install DC isolators between SPOTs and PV strings to prevent backfeed during partial retrofits
Transfer switch or breaker-panel interlock Use a transfer switch or breaker-panel interlock to safely connect to emergency power

shunzap

Use a double conversion system with a dedicated charger like a chargeverter

If you're looking to prevent AC electricity back feed, one effective method is to use a double conversion system with a dedicated charger like a chargeverter. This setup offers a reliable solution, although it may come with a higher price tag.

Here's how it works:

The double conversion system is a two-step process. In the first step, the AC input power from the grid is converted into DC power. This conversion ensures that any irregularities or fluctuations in the AC input are eliminated, providing a stable DC power stream. In the second step, the DC power is then converted back into AC output power, which can be utilised by your equipment or appliances.

The dedicated charger, such as a chargeverter, plays a crucial role in this process. It serves as a buffer, ensuring that the power is directed and controlled appropriately during the conversion process. This helps maintain the stability and quality of the output AC power, reducing the risk of back feed.

One of the key advantages of this method is its ability to isolate the output power from any issues with the input power. By converting AC to DC and then back to AC, you create a barrier that prevents irregularities in the input power from affecting the output. This enhances the overall stability and reliability of the power supply.

Additionally, the double conversion system with a dedicated charger provides a higher degree of safety. By having two conversion stages, you add an extra layer of protection against power-related issues. This can be particularly important in sensitive equipment setups or environments where power stability and safety are critical.

While this method may be more expensive than some other options, it offers a robust and dependable solution to preventing AC electricity back feed. It ensures that your equipment receives a consistent and controlled power supply, minimising the chances of any unexpected issues or damage caused by power fluctuations or irregularities.

shunzap

Employ RCD devices to detect an imbalance in the circuits

Employing RCD devices to detect an imbalance in the circuits is a crucial step in enhancing electrical safety and preventing AC electricity back feed. RCD stands for Residual Current Device, and it is designed to monitor the electric current flowing through the circuit. During standard, no-fault conditions, the current flowing into and out of the load is balanced. However, when a fault occurs, such as a person touching a bare conductor, the RCD will detect the leakage current and quickly disconnect the circuit.

RCDs are essential in modern electrical systems, offering additional protection from electrocution and electrical fires. They are designed to detect any imbalance in the currents of the supply and return conductors of a circuit. When the current passing through the line and neutral conductors is not equal, the RCD will interrupt the circuit, reducing the severity of injury caused by electric shock. While RCDs provide critical safety features, they do not protect against overcurrent or short-circuiting, so additional measures like fuses or circuit breakers are necessary.

There are different types of RCDs available, including fixed RCDs, socket-outlet RCDs, and portable RCDs. Fixed RCDs are installed in the switchboard and protect individuals or groups of circuits. Socket-outlet RCDs, on the other hand, are integrated into specific sockets and protect only the appliance plugged into that socket. Portable RCDs are versatile and can be plugged into any socket, offering protection to any appliance connected to them.

RCDs are invaluable safety devices, especially when working with electricity. They are designed to detect and prevent dangerous electrical faults, reducing the risk of electric shocks and fires. RCDs are now mandatory for most domestic circuits in the UK, highlighting their critical role in ensuring electrical safety.

In conclusion, employing RCD devices to detect an imbalance in the circuits is a vital step in preventing AC electricity back feed. By monitoring the circuit and quickly responding to any faults, RCDs provide essential protection against electrocution and electrical fires. With their ability to detect current imbalances and promptly disconnect the circuit, RCDs play a crucial role in enhancing electrical safety in residential, commercial, and industrial settings.

shunzap

Use a UL 1741-compliant inverter to prevent backfeeding to the grid

To prevent backfeeding to the grid, it is imperative to use a UL 1741-compliant inverter. UL 1741 is a set of stringent grid connection standards that ensure inverters remain connected and support the grid during periods of instability. This standard was established by Underwriters Laboratories, a private company that certifies compliance with specific technical requirements.

When you initially power on a UL 1741-compliant inverter, it will take approximately five minutes to evaluate the grid connection before allowing any backfeed. Moreover, these inverters are designed for anti-islanding, meaning they will not backfeed a grid that is not supplying steady power. If the power becomes unsteady or there is a complete outage, the inverter will disconnect, preventing any backfeed.

UL 1741-compliant inverters are particularly relevant for renewable energy systems, such as wind turbines and residential solar installations. These systems are often required to remain connected to the grid to maintain power production during fluctuations. The UL 1741 standard helps strengthen the grid and ensures that inverters can actively manage grid functions.

To further enhance the capabilities of UL 1741-compliant inverters, the UL 1741 SA standard was introduced. This supplementary standard focuses on grid connect capabilities and future-proofing inverters by creating guidelines for dealing with grid volatility. UL 1741 SA-certified inverters can provide predictable, soft start ramp rates of power production when connecting to the grid and can operate without a direct communications link to utility companies.

By utilizing a UL 1741-compliant inverter, you can effectively prevent backfeeding to the grid, ensuring the safety of first responders and utility line workers during power outages.

shunzap

Install blocking diodes in series with individual strings to prevent reverse bias

When installing blocking diodes in series with individual strings, it is important to follow specific guidelines to ensure their effectiveness in preventing reverse bias. Here are some detailed instructions to achieve this:

Firstly, it is crucial to understand the setup of the solar panels or PV modules. Bypass diodes are typically connected in reverse bias between the positive and negative output terminals of a solar cell or panel. The number of diodes installed should correspond to the number of solar cells or panels, with a maximum of about 20 series cells per bypass diode. This helps limit the reverse bias voltage.

Secondly, when installing blocking diodes, ensure that their voltage rating is at least twice the VOC|max of the PV module or string they protect. Additionally, their current rating capacity should be at least 1.4 times higher than the ISC of a single PV module or the parallel strings they protect. This ensures the diodes can effectively handle the electrical load and prevent reverse bias.

Furthermore, blocking diodes should be properly housed and accessible only by trained personnel. Proper housing involves placing the diodes in boxes with an adequate degree of protection, depending on their location. This helps prevent unauthorised access and potential tampering, ensuring the diodes remain functional and safe.

In addition to the above, it is important to consider the specific application and any potential issues. For example, in solar panels, bypass diodes help compensate for power losses and lessen the shading effect on modules. They also act as a protective device, preventing module destruction in case of faults that reverse the bias of the module.

Finally, regular maintenance and monitoring of the blocking diodes are essential. This includes checking for any defects or deterioration that could lead to power losses or safety hazards. By following these guidelines, you can effectively install blocking diodes in series with individual strings to prevent reverse bias and ensure the safe and efficient operation of the solar panels or PV modules.

Electric Eels: Ocean or Freshwater?

You may want to see also

shunzap

Convert AC to DC power and then connect to the charge controller

Converting AC to DC power involves transforming high-voltage AC from power outlets to low-voltage DC, which is used by most electronic devices. This conversion process is commonly done by device chargers, which contain built-in rectifiers and transformers. Rectifiers are circuit components that allow current to flow in a single direction, converting the alternating current of AC to the direct current of DC. Transformers are then used to step down the voltage to the required level for the device.

To convert AC to DC power, you will need a few parts for the circuit:

  • A rectifier, typically made of diodes, to convert AC to DC
  • A transformer to step down the voltage
  • A multi-meter to measure the output voltage
  • A capacitor to smooth out voltage fluctuations
  • Use a multi-meter to measure the output voltage on the secondary pins of the transformer when the power cable is plugged in. The reading should be 1/10 to 1/5 of your mains voltage. For example, in the US, the mains voltage is typically 12-24VAC, so the reading should be between 1.2-2.4VAC.
  • If you are using a higher mains voltage, such as 220VAC, you will need a transformer with a 10:1 step-down ratio, as most voltage regulators cannot handle more than 35VDC input.
  • Connect the AC power cable to the primary winding side of the transformer.
  • Connect the secondary winding side of the transformer to the bridge rectifier.
  • The rectifier will convert the AC input to DC, but there may be fluctuations in the output.
  • Add a smoothing capacitor to the circuit to stabilize the voltage and reduce ripples. Larger capacitors will allow the voltage to stay higher for longer, resulting in less rippling.
  • Use a voltage regulator to stabilize the input voltage to a specific output voltage if needed.

Once you have converted AC to DC power, you can connect it to a charge controller. A charge controller is a device that regulates the voltage and current going into a battery to ensure safe and efficient charging. It controls the rate at which energy is added to the battery and prevents overcharging.

It is important to note that working with electrical circuits can be dangerous, so always take the necessary precautions and follow safety guidelines. Additionally, make sure to check your local regulations and work with a certified electrician if you are unsure about any part of the process.

Electric Shock: Lethal Watts Explained

You may want to see also

Frequently asked questions

To prevent AC electricity back feed, you can use a double conversion system where the grid only inputs through a dedicated charger, such as a chargeverter. Alternatively, you can use an off-grid inverter, which is incapable of export.

AC electricity back feed can be potentially lethal. It can also cause damage to electrical components, such as the rotor and diodes.

If you have a hybrid system connected to the grid and your battery, you may be back feeding electricity to the grid. You can check your system's settings to see if there is an option for \"Zero export\" or \"Off-grid\", which can help prevent back feeding.
