If you're looking to switch a 4-prong general electric range cord to a 3-prong one, or vice versa, you're in luck! It's a simple process that doesn't require an electrician. The National Electrical Code (NEC) changed the rules in 1996, making 4-prong cords the official standard for safety reasons. The primary difference between 3-wire and 4-wire circuits is the method of grounding, which provides a safe path for electricity during a short circuit. When switching cords, it's important to understand the wiring, which differs for each cord type. You can purchase a replacement cord at hardware stores like Home Depot or Lowe's.
| Characteristics | Values |
|---|---|
| Number of wires in a 4-prong range | 2 hot wires, 1 neutral wire, 1 ground wire |
| Number of wires in a 3-prong range | 2 hot wires, 1 neutral wire |
| When to use a 4-prong range | 4-prong has been the official standard since 1996 |
| When to use a 3-prong range | For older houses built before 1996 |
| How to switch a 4-prong to a 3-prong | Remove the ground strap from the neutral terminal, connect the ground screw to the neutral terminal with a jumper or bonding strap |
| How to switch a 3-prong to a 4-prong | Connect the ground wire from the 4-prong cord to the ground screw on the appliance, ensure the ground strap is secured under the neutral terminal |
| Safety considerations | Avoid using plug adapters as they can be unsafe and cause fires or shocks |
Explore related products
What You'll Learn
Understand the difference between 3-wire and 4-wire circuits
In 1996, the National Electrical Code (NEC) updated the rules for range and dryer cords and their outlets, switching from three-prong to four-prong cords, or three-wire to four-wire circuits. The main difference between three-wire and four-wire circuits is the method of grounding. A ground path provides a safe route for electricity to follow in the event of a short circuit or other electrical fault, helping to prevent shocks and fires.
A three-wire range circuit has three wires: two hot wires carrying 120 volts each, and one neutral wire that carries voltage only secondarily and also serves as a ground path for safety. A four-wire range circuit has four wires: two hot wires, a neutral wire, and a separate ground wire. In this case, the neutral does not serve as a ground wire, as the circuit has a wire dedicated to that function. Therefore, a four-wire circuit or four-prong cord is safer.
Three-wire circuits, when used with a ground wire, provide an extra layer of safety, as the ground wire provides a path for excess current to be safely directed into the earth in the event of a short circuit or other malfunction. They are more versatile, safer, and used for more complex electrical systems that require higher power and additional safety measures. They are ideal for complex appliances and systems like electric stoves and HVAC systems.
In contrast, 2-wire circuits are generally used for basic electrical appliances and devices that only require a single phase. They are simpler, more cost-effective, and ideal for basic applications with minimal power needs.
Electric Window Repair: DIY Troubleshooting Guide
You may want to see also
Explore related products
Know the safety benefits of a 4-wire circuit
In 1996, the National Electrical Code (NEC) updated the rules for range and dryer cords and their outlets, switching from three-prong to four-prong cords. This change was made to improve electrical safety and prevent shocks, fires, and other electrical hazards.
A three-wire range circuit has two hot wires carrying 120 volts each and one neutral wire that carries voltage only secondarily and also serves as a ground path for safety. In the event of a short circuit or other electrical fault, the ground path provides a safe path for electricity to follow, preventing the metal body of the range from becoming electrified and giving the user a shock.
A four-wire range circuit has four wires: two hot wires, a neutral wire, and a separate ground wire. The key difference is that the four-wire circuit has a dedicated ground wire, while the neutral wire in a three-wire circuit serves double duty as a ground wire. Having a separate ground wire is more effective in grounding fault currents, providing additional safety.
The four-wire circuit gets its name from the use of four conductors to create two complete electrical circuits, one for each direction. This configuration allows for full-duplex operation with low crosstalk. While the local loop, a two-wire circuit, saves on copper wiring infrastructure costs, the four-wire circuit provides improved electrical power quality and safety, especially in congested and heavy-load locations.
Learn Electric Guitar With 'Times Like These
You may want to see also
Explore related products
Steps to replace a 3-prong receptacle with a 4-prong one
If you're replacing a 3-prong receptacle with a 4-prong one, there are a few steps you should follow to ensure it's done correctly and safely. Firstly, it's important to understand the difference between 3-prong and 4-prong receptacles. A 3-wire range circuit has three wires: two hot wires carrying 120 volts each and one neutral wire that carries voltage only secondarily and also serves as a ground path for safety. A 4-wire range circuit, on the other hand, has an additional separate ground wire, which means that the neutral wire doesn't have to serve double duty as a ground wire. This is why a 4-prong receptacle is considered safer.
Before you begin any electrical work, it's crucial to turn off the power to the outlet at the service panel. You can then remove the plate screw and cover, as well as the screws holding the old receptacle in place, and gently pull out the old outlet box. Be careful not to crack the wiring. You can then disconnect the old outlet and test-fit the new GFCI outlet by gently pushing the wires back and ensuring it fits. If the wires aren't long enough, you may need to add an extension.
When installing a 4-prong receptacle, you'll need to ensure the ground wire is connected correctly. The wiring splice box will have three screw terminals for the cord wires (two hots and one neutral) and a nearby ground screw. For a 4-prong cord, you'll need to connect the ground wire to this ground screw. If the range previously had a 3-prong cord, you'll need to remove the ground strap from the neutral terminal.
It's important to note that if you're not an electrician, attempting to replace a 3-prong receptacle with a 4-prong one can be dangerous. While it may seem straightforward, electrical work can be complex and mistakes can lead to safety hazards. Therefore, it's always recommended to consult a professional electrician for any electrical installations or replacements. They will be able to advise on the best course of action and ensure that the work is carried out safely and correctly.
The Ultimate Guide to Starting an Electric Snow Thrower
You may want to see also
Explore related products
How to switch a GE Profile Dryer cord from 4-prong to 3-prong
If you are converting from a 4-prong to a 3-prong cord on a GE Profile Dryer, you will need to make sure that the ground screw on the range is electrically connected to the neutral terminal on the terminal block. This is because a 3-prong cord does not have a ground wire, so the ground connection must be made with the neutral wire. The ground-to-neutral connection is typically made with a metal strap that is secured under the ground screw and the neutral screw terminal.
On the other hand, if you are converting from a 3-prong to a 4-prong cord, you will need to remove the ground strap from the neutral terminal. The 4-prong cord will have a dedicated ground wire that connects to the ground screw, so you will no longer need to use the neutral wire as a ground path.
It is important to note that a 3-wire configuration with a 3-prong cord is considered obsolete and can be dangerous. The National Electrical Code (NEC) changed the rules about dryer cords in 1996 and now requires a 4-wire configuration with a 4-prong cord for all new installations. The 4-wire circuit provides additional safety by having a separate ground wire, reducing the risk of shock in the event of a short circuit or other electrical fault.
When making any electrical connections, it is always best to consult a professional electrician or refer to the dryer's UL-approved instructions to ensure that the work is done safely and correctly.
Additionally, some GE dryers have been reported to have a yellow wire that is connected to the neutral terminal with a white wire. If you encounter this during your conversion, it is recommended to consult a professional electrician or the dryer's instructions to determine the appropriate course of action.
Electric Shopping Carts: What Are They Called?
You may want to see also
Explore related products

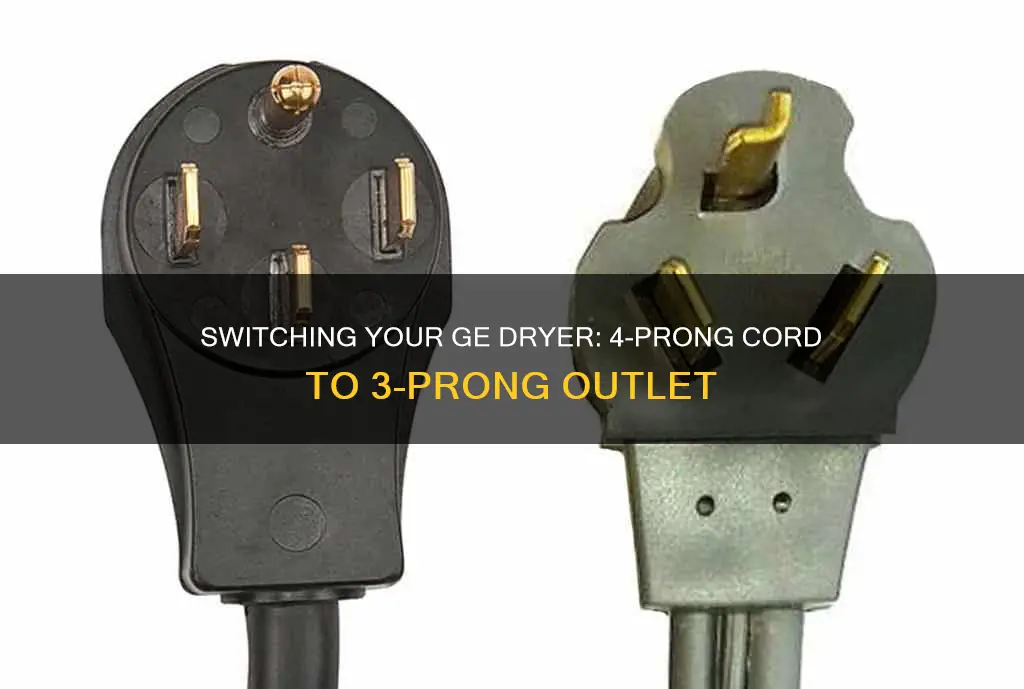

Converting a 4-prong dryer cord to fit a 3-slot outlet
Since 1996, the National Electrical Code (NEC) has required four-slot outlets for dryers, which only accept four-wire cords. Older dryers built before 2000 only have three terminals for wires: two outer terminals for hot wires and one centre terminal for a neutral wire. The grounding wire now found in newer four-prong cords was instead built into older machines and attached to the grounding screw within the connection box.
If you're installing a three-prong cord, which does not have a ground wire, the ground screw on the range must be electrically connected to the neutral terminal on the terminal block. Here are the steps to convert a four-prong dryer cord to fit a three-slot outlet:
- Shut off the circuit powering the dryer and unplug the dryer.
- Rotate the dryer so you can access the back panel, then disconnect the dryer vent.
- Remove the connection box cover located on the back of the dryer, just above where the power cord comes out.
- Remove the clamp holding the cord in place by taking out the two screws joining each half of the clamp together.
- Separate the clamp, and pull each half out individually.
- Unscrew the left and right terminals and remove the black and red hot wires, followed by the central terminal and its neutral white wire.
- Disconnect the green grounding wire by unscrewing the green grounding screw.
- Slide the four-prong cord out of the connection box.
- Use a jumper to connect the neutral terminal to the dryer's grounding screw on its frame.
- Ensure your new three-prong cord is secured in place with a steel cable clamp.
It is important to note that the NEC's decision to switch from three prongs to four prongs was an effort to improve electrical safety and help prevent shocks, fires, and other household electrical hazards.
Electric Eel Encounter: Shedd Aquarium's Shocking Secret
You may want to see also
Frequently asked questions
You can switch out the four-prong cord for a three-prong cord. Shut off the circuit powering the dryer and unplug the dryer. Then, use a jumper to connect the neutral terminal to the dryer's grounding screw on its frame. Bring the loose ends of the new three-prong cord up into the box and connect the two wires on the cord to the outer two screw terminals.
A three-wire range circuit has three wires: two hot wires carrying 120 volts each and one neutral wire that carries voltage only secondarily and also serves as a ground path. A four-wire range circuit has four wires: two hot wires, a neutral wire, and a separate ground wire. The four-wire circuit is safer.
Four prongs have been the official standard since 1996 when the National Electrical Code (NEC) changed the rules about range and dryer cords and their outlets. If you install a new range or dryer outlet, it must have four slots to accept a four-prong cord.
