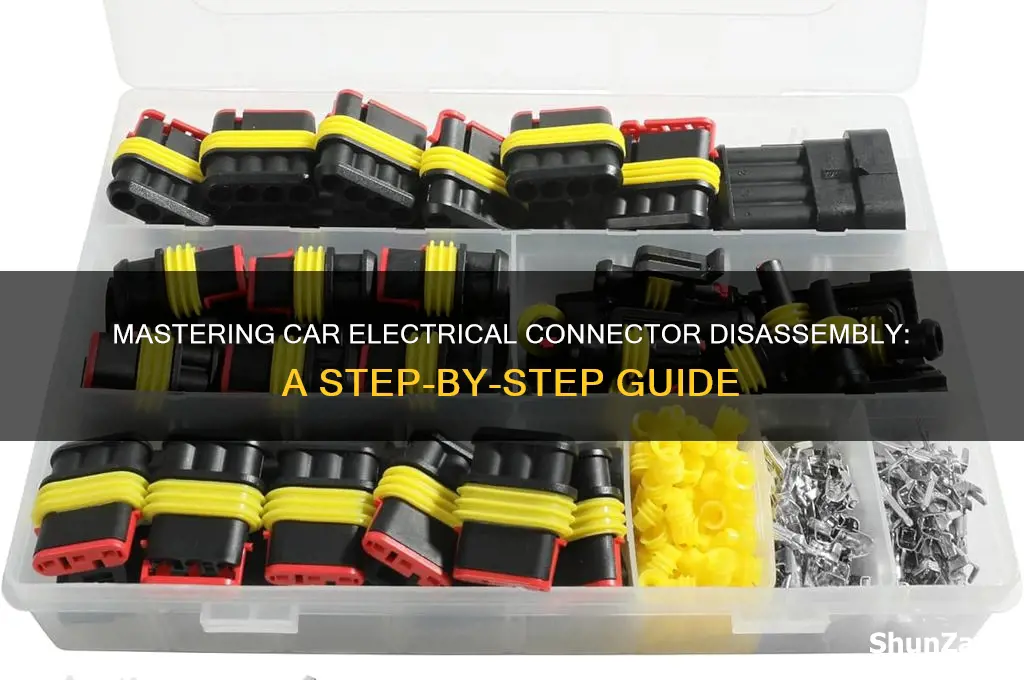

Taking apart car electrical connectors requires careful attention to detail and the right tools to avoid damaging the components. Most connectors are designed with locking mechanisms, such as clips, tabs, or friction fits, which secure them in place. To safely disconnect them, start by identifying the type of connector and its release mechanism—often indicated by a small lever, button, or notch. Use a plastic pry tool or a non-conductive screwdriver to gently depress or lift the locking feature while pulling the connector apart. Avoid pulling on wires directly, as this can damage the internal pins or insulation. Always consult the vehicle’s manual or a wiring diagram for specific instructions, and work in a clean, well-lit area to ensure precision and prevent short circuits.
| Characteristics | Values |
|---|---|
| Tools Required | Flathead screwdriver, trim removal tool, connector release tool, pliers |
| Safety Precautions | Disconnect car battery, wear insulated gloves, work in a well-lit area |
| Connector Types | Blade, pin, weatherproof, sealed, multi-pin |
| Release Mechanism | Tab, latch, clip, push-lock, screw-on |
| Disassembly Steps | 1. Identify connector type, 2. Locate release mechanism, 3. Apply pressure or tool to release, 4. Pull apart gently |
| Common Issues | Stuck connectors, broken tabs, corroded pins |
| Precautions | Avoid forcing connectors, inspect for damage before reassembly |
| Reassembly Tips | Align pins correctly, ensure secure locking mechanism engagement |
| Professional Help | Recommended for complex or high-voltage systems |
| Reference Sources | Online tutorials, manufacturer manuals, automotive forums |
Explore related products
What You'll Learn
- Identify Connector Types: Recognize different car electrical connector styles and their specific locking mechanisms
- Gather Tools: Assemble necessary tools like pry tools, screwdrivers, and connector release clips
- Release Mechanisms: Learn how to disengage latches, tabs, or clips securing the connectors
- Avoid Damage: Techniques to prevent breaking wires, pins, or connector housings during disassembly
- Reassembly Tips: Ensure proper alignment and secure reconnection of electrical connectors after separation
Identify Connector Types: Recognize different car electrical connector styles and their specific locking mechanisms
Car electrical connectors come in a dizzying array of styles, each with its own locking mechanism designed to ensure secure and reliable connections. Before attempting to disassemble any connector, identifying its type is crucial. Common styles include blade connectors, bullet connectors, weatherpack connectors, and Deutsch connectors, each serving specific purposes based on their design and environmental resistance. For instance, weatherpack connectors are sealed to prevent moisture ingress, making them ideal for outdoor wiring harnesses.
Blade connectors, characterized by their flat, blade-like terminals, often feature a friction-fit locking mechanism. To separate these, gently pull the connector apart while ensuring not to damage the terminals. Bullet connectors, on the other hand, use a threaded collar or set screw to secure the connection. Disassembly requires loosening the collar or removing the screw before pulling the connectors apart. Understanding these differences prevents accidental damage and ensures a safe disconnection.
Weatherpack and Deutsch connectors employ more complex locking mechanisms, typically involving latches or clips. Weatherpack connectors have a hinged latch that must be depressed to release the connection, while Deutsch connectors often use a quarter-turn latch or a secondary locking collar. Applying excessive force without understanding these mechanisms can lead to broken tabs or damaged housings. Always inspect the connector for release points before attempting disassembly.
A comparative analysis reveals that while some connectors prioritize ease of use (e.g., blade connectors), others emphasize durability and environmental protection (e.g., weatherpack and Deutsch connectors). For example, Deutsch connectors are widely used in off-road and military applications due to their robust design and resistance to harsh conditions. Recognizing these distinctions allows for informed decisions when working on specific vehicle systems, ensuring both efficiency and safety.
In practice, start by visually inspecting the connector for identifying marks or labels, such as manufacturer logos or part numbers. Online resources or vehicle service manuals can provide detailed diagrams and disassembly instructions for specific connector types. For hands-on learners, practicing on spare connectors before working on a live vehicle can build confidence and familiarity with different locking mechanisms. Always use appropriate tools, such as a small screwdriver or connector release tool, to avoid damaging the connector during disassembly.
Kansas' Top Renewable Resource: Powering the State with Wind Energy
You may want to see also
Explore related products
Gather Tools: Assemble necessary tools like pry tools, screwdrivers, and connector release clips
Before attempting to disassemble car electrical connectors, it’s crucial to gather the right tools. Using improper instruments can damage delicate components, leading to costly repairs or system failures. Start by assembling a toolkit tailored to the task. Essential items include pry tools, which are designed to apply leverage without scratching or breaking plastic housings. Opt for non-marring varieties, often made of nylon or soft metal, to avoid leaving marks on the connector. Screwdrivers, both flathead and Phillips, are also indispensable, especially for connectors secured with screws or panels. Ensure the tips are in good condition to prevent slipping, which could damage surrounding areas.
Connector release clips are another must-have, as many automotive connectors are designed with locking mechanisms. These clips are often specific to the connector type, so research your vehicle’s make and model to identify the correct tool. For example, some connectors require a flat-blade screwdriver to depress a tab, while others need a specialized release tool with a precise hook or notch. If you’re unsure, consult a vehicle repair manual or online forums for guidance. Investing in a universal connector tool kit can save time and frustration, as it typically includes a variety of release tools compatible with common automotive connectors.
While assembling your tools, consider the workspace and lighting. A well-lit area with ample space will make the process smoother. A magnetic parts tray can keep screws and small components organized, reducing the risk of losing them. Additionally, wear safety gear like gloves and safety glasses to protect against sharp edges or accidental shocks. Though rare, some connectors may still carry residual voltage, so treat every component as live until confirmed otherwise with a multimeter.
Finally, approach the task with patience and precision. Rushing can lead to mistakes, such as forcing a tool where it doesn’t belong or misidentifying a release mechanism. If a connector resists, double-check your technique and tools. Sometimes, a gentle wiggle or slight angle adjustment is all it takes to disengage the lock. By preparing thoughtfully and working methodically, you’ll ensure a successful disassembly without compromising the integrity of the electrical system.
Best Electric Motorcycle Motors: Types, Power, and Performance Guide
You may want to see also
Explore related products
Release Mechanisms: Learn how to disengage latches, tabs, or clips securing the connectors
Car electrical connectors often feature latches, tabs, or clips designed to secure them firmly in place. Understanding the type of release mechanism you’re dealing with is the first step to disengaging it safely. Latches typically require a sliding or pivoting motion, while tabs may need to be depressed or lifted. Clips often involve a squeezing action to release tension. Identifying the mechanism visually or through gentle probing can prevent accidental damage to the connector or wiring harness.
Analyzing the connector’s design can reveal hidden release mechanisms. Some connectors have symmetrical latches on both sides, requiring simultaneous pressure to disengage. Others may have a single tab concealed behind a shroud or labeled with a release symbol. For example, the Sumitomo Metripack 280 series uses a dual-latch system that releases when both sides are squeezed inward. Observing such details ensures you apply force in the correct direction and avoid breaking fragile components.
To disengage latches, tabs, or clips effectively, use the right tools and techniques. A flathead screwdriver or trim removal tool can help depress tabs without scratching the connector housing. For clips, a pair of needle-nose pliers provides controlled pressure. Always apply force gradually and evenly, testing the connector’s movement as you work. For connectors with multiple latches, release one side slightly before addressing the other to avoid overstressing the mechanism.
Caution is critical when dealing with aged or brittle connectors. Plastic components can become fragile over time, especially in high-heat environments like engine bays. If a latch or tab resists release, avoid forcing it. Instead, apply gentle heat with a hairdryer or heat gun to soften the plastic, then retry the release. Alternatively, lubricate the mechanism with a small amount of dielectric grease to reduce friction. Always prioritize preserving the connector’s integrity over quick removal.
Mastering release mechanisms not only simplifies connector disassembly but also reduces the risk of costly repairs. Damaged connectors can lead to electrical faults, requiring replacement parts or professional intervention. By approaching each latch, tab, or clip methodically and with the right tools, you’ll maintain the functionality of your vehicle’s electrical system while gaining confidence in handling future repairs. Practice on less critical connectors first to refine your technique before tackling complex assemblies.
Best Places to Buy Electric Bass for Jazz Band Musicians
You may want to see also
Explore related products
Avoid Damage: Techniques to prevent breaking wires, pins, or connector housings during disassembly
Car electrical connectors are designed to withstand years of vibration and environmental stress, but their durability doesn’t make them immune to damage during disassembly. A single misstep can snap a pin, crack a housing, or sever a wire, turning a routine task into a costly repair. Understanding the mechanics of these connectors is the first line of defense. Most automotive connectors use a locking mechanism—a tab, clip, or latch—that secures the male and female halves together. Forcing separation without disengaging this mechanism is the primary cause of damage. Always inspect the connector for release points before applying any force.
The tools you use can either prevent or provoke damage. Avoid flathead screwdrivers or improvised tools that concentrate force on a small area, as they can deform or break plastic housings. Instead, opt for specialized connector release tools or thin, non-marring pry tools designed to evenly distribute pressure. For connectors with delicate pins, consider using a magnifying glass or jeweler’s loupe to identify release tabs and ensure precise tool placement. If a connector feels stuck, resist the urge to pull harder; instead, re-examine the locking mechanism or consult a repair manual for model-specific insights.
Temperature and material properties also play a role in damage prevention. Cold temperatures make plastic brittle, increasing the risk of cracking during disassembly. If working in a cold environment, warm the connector gently with a hairdryer or heat gun set to low, ensuring the temperature doesn’t exceed 120°F (49°C) to avoid melting. Conversely, avoid excessive heat, which can warp the housing or damage internal components. Always test the temperature on a nearby surface before applying it to the connector.
Wire integrity is just as critical as the connector itself. Before disassembling, inspect the wires for fraying, corrosion, or stiffness, as these conditions can make them more prone to breakage. When pulling wires from a connector, grip them as close to the housing as possible and apply steady, even force. If a wire resists, stop and investigate whether it’s secured by an additional retention clip or adhesive. For multi-pin connectors, document the pin arrangement with a photo or diagram before disassembly to avoid misalignment during reassembly, which can bend or break pins.
Finally, practice and patience are your greatest allies. If you’re unsure about a connector’s design, test your technique on a similar component from a scrap vehicle or practice on a non-critical system first. Rushing increases the likelihood of mistakes, while a methodical approach ensures each step is executed correctly. Remember, the goal isn’t just to separate the connector but to do so in a way that preserves its functionality for future use. With the right tools, knowledge, and care, disassembling car electrical connectors can be a damage-free process.
Can Dyson Revolutionize the Electric Car Industry? Exploring the Possibilities
You may want to see also
Explore related products
Reassembly Tips: Ensure proper alignment and secure reconnection of electrical connectors after separation
Reassembly of car electrical connectors demands precision to avoid malfunctions or damage. Begin by inspecting the connector for alignment tabs, notches, or color-coded markers—these are manufacturer cues for proper orientation. Misalignment can lead to pin bending or incomplete contact, so align the connector halves until you hear or feel a distinct click, signaling a secure lock. If the connector lacks audible feedback, gently tug to confirm it’s seated fully before proceeding.
Unlike disassembly, reassembly requires awareness of force limits to prevent over-tightening. Use a torque wrench set to 1–2 Nm for connectors with screws, as excessive force can crack the housing. For snap-fit connectors, avoid leveraging tools; instead, apply even pressure with your fingers or a flat-edged tool to ensure uniform engagement. If resistance is met, reassess alignment rather than forcing the connection, as this often indicates misalignment or debris in the interface.
Environmental factors play a role in long-term reconnection stability. Apply dielectric grease sparingly to the connector’s mating surfaces to repel moisture and prevent corrosion, especially in high-humidity regions. However, avoid silicone-based lubricants, as they can degrade plastic housings over time. For connectors in engine bays or undercarriages, consider wrapping them with electrical tape or heat-shrink tubing post-reassembly to enhance weatherproofing.
Finally, test the connection immediately after reassembly to verify functionality. Use a multimeter to check for continuity or power flow, or activate the related system (e.g., lights, sensors) to ensure operation. If issues persist, disassemble and inspect for bent pins, debris, or incomplete locking. Proper reassembly not only restores function but also prevents intermittent faults that are harder to diagnose later, saving time and potential repair costs.
Effective Cleaning Solutions for Electric Wiring Harness Maintenance
You may want to see also
Frequently asked questions
Common tools include a flathead screwdriver, a trim removal tool, a connector release tool, and needle-nose pliers. Always use the correct tool to avoid damaging the connector.
Most connectors have a release tab, latch, or clip. Look for a small lever, button, or slot on the side or top of the connector. Refer to the vehicle’s manual or online diagrams for specific connector types.
Yes, if the connector is undamaged and the terminals are secure. Inspect for broken tabs, bent pins, or loose wires before reassembling. Replace the connector if it shows signs of wear or damage.
Apply gentle, steady pressure and avoid forcing it apart. Use a connector release tool or a thin, non-conductive pry tool to carefully disengage the latch. Ensure the release mechanism is fully actuated before pulling the connector apart.
Work slowly and avoid excessive force. Use the correct tool for the connector type, and never pull on wires directly. Label or take photos of the wiring harness before disconnecting to ensure proper reassembly.
