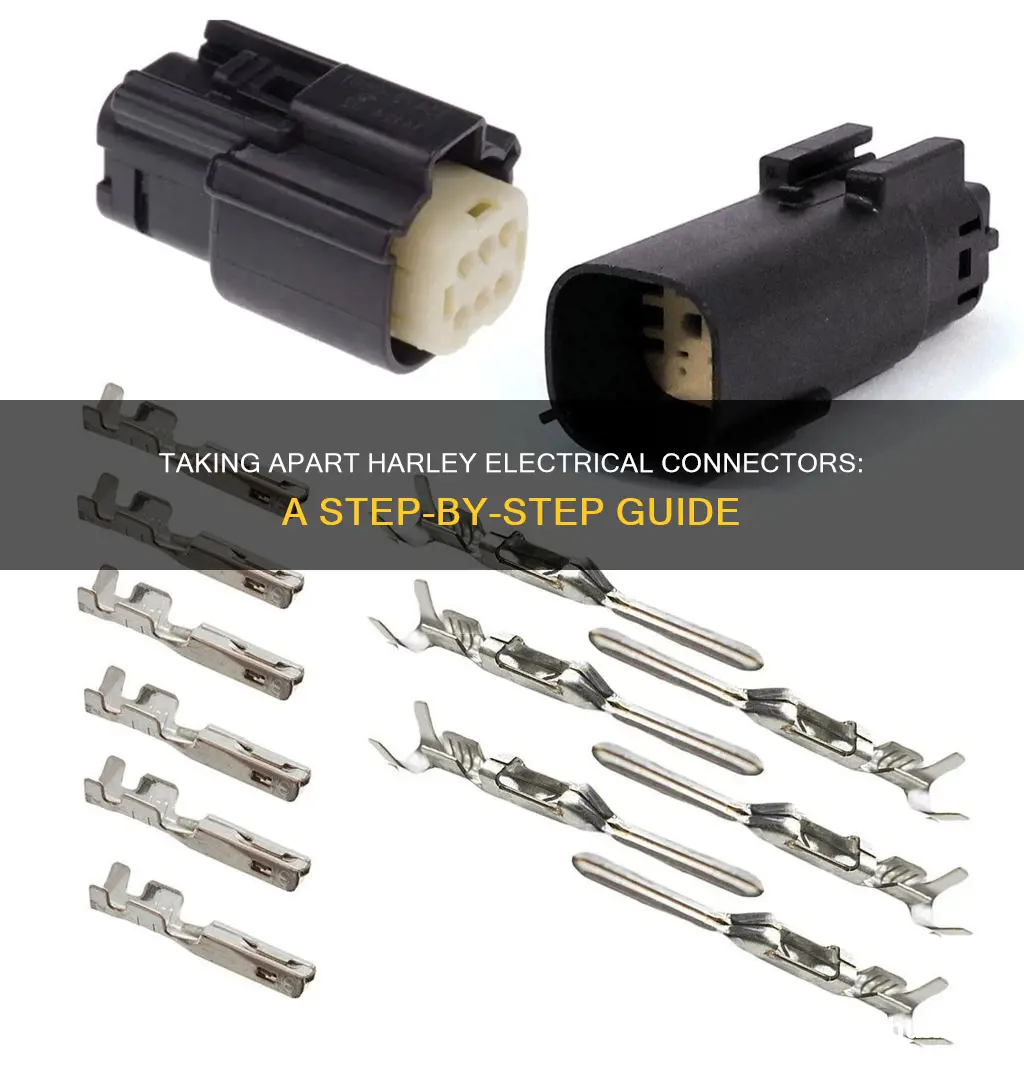

Taking apart Harley electrical connectors can be a tricky task. While some connectors are small enough to pull through the bars, others may require more intricate methods. One popular method is to cut and extend the wires, although this is not recommended for those without the necessary skills. Depinning and repinning cables is another way to take apart Harley electrical connectors, although this can be time-consuming and challenging. It is important to take pictures or make diagrams of the connectors before taking them apart to ensure they are properly reassembled.
Explore related products
What You'll Learn
Using a pin lock tool
Firstly, you need to identify the pins and the lock tab. The lock tab is a tiny mechanism that needs to be tripped from the front of the connector. You can use a modified dental tool or a very small screwdriver to release the lock tab. It is important to be gentle and careful during this step to avoid damaging the connector.
Once the lock tab is released, you can use a pin lock tool to unlock the pins. Insert the pin lock tool into the hole next to each pin. Make sure the tool is fully inserted before attempting to pull the pins out. You may need to apply some force to pull the pins out, but be careful not to damage the connector or the wires.
After removing the pins, it is crucial to make a diagram or take pictures of the pin arrangement. This will ensure that you can correctly reassemble the connector. Label each pin and its corresponding hole to avoid confusion during reassembly.
Additionally, some Harley models have small connectors that can be pulled through the bars without the need for disassembly. However, for larger connectors or more complex setups, the pin lock tool method may be necessary. It is always recommended to consult a professional or a Harley-Davidson service manual if you are unsure about the process or if you encounter any difficulties.
