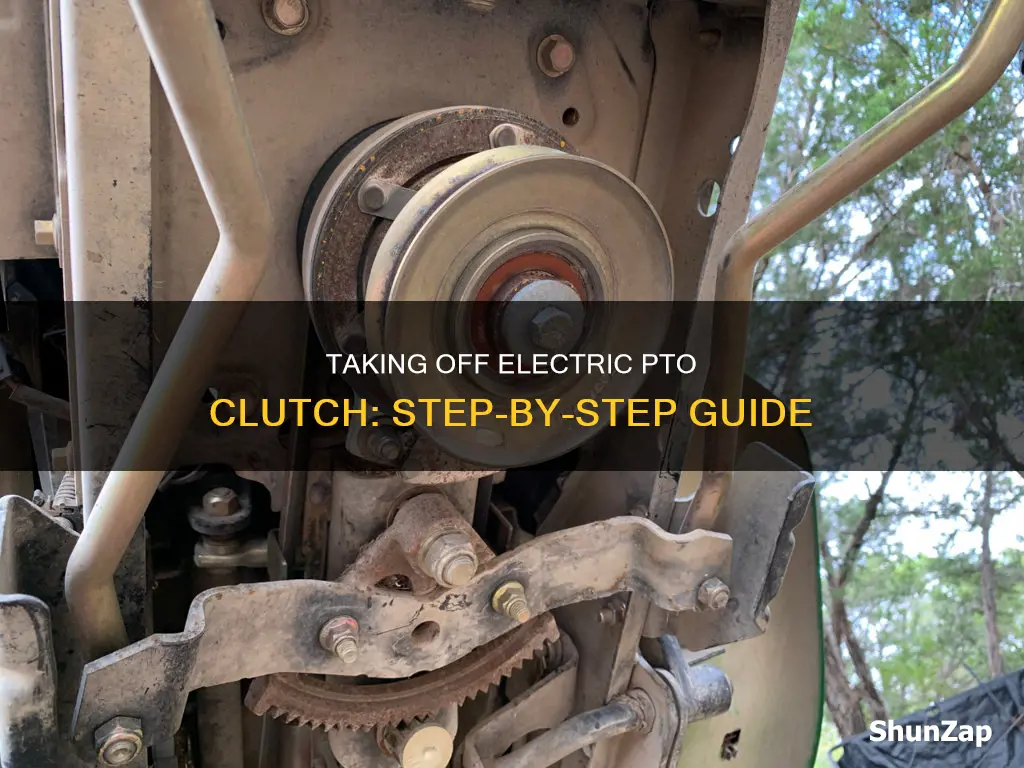

Removing an electric power take-off (PTO) clutch can be a challenging task. Before attempting to remove the clutch, it is important to take safety precautions, including disconnecting the spark plug and battery cables, and wearing safety glasses and gloves to protect against harmful chemicals and debris. The first step in removing the clutch is to unplug the electrical connection and remove the steering arm at the front of the tractor without changing its adjustment. If the clutch bolt is stuck, there are several techniques that can be employed, such as using a round air hammer bit to loosen it or, if it has broken off, drilling it out carefully. It is also important to note that the PTO clutch is bolted onto the shaft of the motor, and simply removing the bolt may allow it to be pulled off. However, rust or seizing can complicate the process, requiring additional steps such as using an impact gun or employing tricks with broken taps and hammers to remove stubborn bolts.
Characteristics and Values for Removing an Electric PTO Clutch
| Characteristics | Values |
|---|---|
| Safety precautions | Disconnect spark plug and battery cables. Wear safety glasses and gloves. |
| Tools | Impact gun, rope, small puller, air hammer, drill, welder |
| Steps | Remove steering arm, unplug electrical connection, remove bolt, lock shaft, use tools to loosen bolt |
| Common issues | Clutch is stuck, rusted, or seized |
| Tips | Use anti-seize compound, do not use heat |
Explore related products
What You'll Learn
Unplug the electrical connection and remove the steering arm
To unplug the electrical connection and remove the steering arm of an electric PTO clutch, follow these steps:
First, unplug the electrical connection to the PTO clutch. This will disconnect the power source and allow you to safely work on removing the steering arm. Be sure to locate and address any clip or tab on the wiring connector that might be preventing accidental disconnection. You may need to use a screwdriver to lift it as you pull back on the connector. If the connector is stuck, carefully and slowly pry it out with a small screwdriver.
Next, remove the steering arm at the front of the tractor. It is important to be cautious during this step to avoid changing any adjustments. If the clutch bolt is stuck, you may need to use a round air hammer bit inserted into the socket and start hammering on the bolt to loosen it. Alternatively, you can try an old shade tree trick by first removing the spark plug and turning the engine over until the piston is at the bottom. Then, take a small rope, about 5 feet long (similar to the type used for pull cords), tie a knot at both ends, and poke it into the spark plug hole until you can't push it further, leaving some rope to pull it back out. Finally, turn the bolt, and when the piston comes up to the top and jams against the rope, you can remove the bolt.
These steps will help you safely and effectively unplug the electrical connection and remove the steering arm of the electric PTO clutch, allowing you to proceed with further maintenance or repairs. Remember to wear appropriate safety gear, such as safety glasses and gloves, to protect yourself from any harmful chemicals or debris.
Mastering the Art of Lifting Electric Pallet Jacks Safely
You may want to see also
Explore related products
Use an impact gun to knock it loose
If your electric PTO clutch is stuck, an impact gun can be used to knock it loose. The clutch is bolted onto the shaft of the motor, and the impact gun will be needed to remove the center bolt. Once this bolt is removed, the clutch should slide off the driveshaft.
It is important to note that the driveshaft will spin if you try to remove the center bolt without an impact wrench. The impact wrench will prevent the driveshaft from spinning.
There are four bolts that go into the block and one bolt in the driveshaft. Two of the bolts that go into the block also support the muffler, so you will need to remove the muffler before you can remove the bolts.
Before attempting any repairs, it is important to disconnect the spark plug and battery cables, and to wear appropriate safety gear, including glasses and gloves, to protect against harmful chemicals and debris.
If your clutch is stuck due to rust, you may need to use WD-40 to help loosen it. Do not use heat on a clutch you plan to reuse, as it will melt the coil and destroy it.
Understanding Electrical Circuit Flow: What's Moving?
You may want to see also
Explore related products
Remove the bolt at the end of the shaft
Removing the bolt at the end of the shaft is a crucial step in taking off an electric PTO clutch. However, it can be challenging and may require some ingenuity and a variety of tools.
Firstly, it is important to note that the electric PTO clutch is bolted onto the shaft of the motor. Therefore, to remove the clutch, the bolt must be taken out first. However, this is not as simple as it sounds, as the shaft tends to turn with the bolt, preventing its removal. One way to counter this is to use an impact gun, which can knock the bolt loose before the shaft has a chance to turn.
Another method to prevent the shaft from turning while loosening the bolt is to lock the engine down. This can be achieved by removing the spark plug and turning the engine over until the piston is at the bottom. Then, take a small rope, about 5 feet long, and tie a knot at each end. Feed one end of the rope into the spark plug hole, and slowly turn the crank clockwise until the engine stops. This will prevent the shaft from turning, allowing you to loosen the bolt.
In some cases, the bolt may be stuck due to rust or other factors. If this is the case, you can try using a round air hammer bit inserted into the socket and start hammering on the bolt to loosen it. Alternatively, you can use a pneumatic air ratchet to remove the bolt. If the bolt is broken off flush in the crankshaft, you will need to carefully drill it out without damaging the crank. This can be done using a left-hand drill bit and a reversing drill to catch the bolt and screw it out.
It is worth noting that some people recommend not using WD-40 or any penetrating oil around the PTO clutch, as it may cause clutch slippage. However, others have found success in using penetrating oil to soak the shaft before attempting to remove the bolt.
Understanding Electrical Circuit Load Capacity Calculations
You may want to see also
Explore related products
Use a round air hammer bit to loosen a stubborn clutch bolt
To remove an electric PTO clutch, you must first remove the bolt at the end of the shaft. The PTO clutch is bolted, not screwed, onto the shaft of the motor.
If the bolt is stubborn, there are several methods you can try to loosen it. First, clean the bolt with a wire brush to remove loose rust and dirt. Then, apply a rust penetrant like PB Blaster or WD40 to the bolt and threads, covering it completely. You can also try a 50/50 mix of automatic transmission fluid with acetone. Let the solution sit for a couple of hours, and then try to loosen the bolt with a wrench.
If the bolt still won't budge, try using a impact gun or air hammer on low pressure. Use a round air hammer bit and apply torque to the adapter with a wrench while you apply air hammer blows. The dual force should break the bolt loose. You can also try using a blunt or pointed tip on the head of the bolt with full PSI. This rapid hammering action will break up the rust mechanically.
If you're still unable to remove the bolt, you may need to drill it out and retap the threads for a new bolt. This will destroy the clutch, so only do this if you don't plan on reusing it.
Converting Air Brakes to Electric: A Comprehensive Guide
You may want to see also
Explore related products
Wear safety gear: glasses, gloves, and disconnect spark plug/battery cables
When removing an electric PTO clutch, it is important to prioritise safety. Before beginning any work on power equipment, it is crucial to disconnect the spark plug and battery cables. This is a safety precaution to prevent accidental activation of the equipment.
Additionally, it is essential to wear appropriate safety gear to protect yourself from potential hazards. Safety glasses are necessary to shield your eyes from debris and harmful chemicals that may be present during the removal process. Gloves are also crucial to provide a barrier between your skin and any hazardous substances or sharp edges.
The process of removing an electric PTO clutch can vary depending on the specific equipment and its condition. In some cases, an impact gun may be required to loosen the clutch before it can be removed. If the clutch is rusted onto the motor shaft, it may require more force to remove, but it is important to avoid using heat, as this can damage the clutch.
By taking the necessary safety precautions and wearing the appropriate safety gear, you can help ensure that the electric PTO clutch removal process is carried out effectively and safely.
Electric Blanket Recalls: Are You at Risk?
You may want to see also
Frequently asked questions
First, unplug the electrical connection to the PTO clutch. Then, remove the steering arm at the front of the tractor, being careful not to alter the adjustment. If the clutch bolt is stuck, try using a round air hammer bit inserted into the socket and start hammering on the bolt.
Before servicing or repairing any power equipment, disconnect the spark plug and battery cables. Remember to wear appropriate safety glasses and gloves to protect your eyes and hands from harmful chemicals and debris.
You will need an impact gun, a round air hammer bit, a sharp chisel, a dremel, an impact screwdriver, safety glasses, and gloves.
Try using a round air hammer bit inserted into the socket and start hammering on the bolt. This should help loosen it. If this doesn't work, another option is to put a slot in the broken bolt with a dremel and use an impact screwdriver with a flat bit to loosen it.
After removing the clutch, inspect it for wear and damage, and replace any worn or damaged components. When reinstalling, make sure to properly align and secure the clutch, following the manufacturer's instructions.
