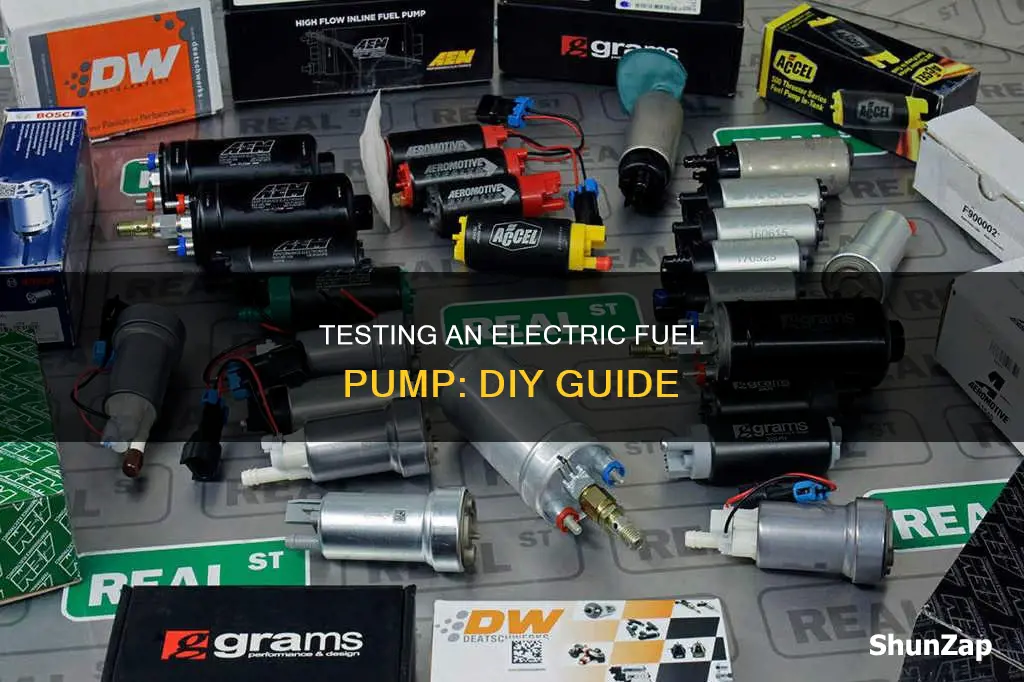

Testing an electric fuel pump is crucial for maintaining a vehicle's performance and efficiency. Fuel pumps can fail due to various reasons, including contaminated fuel, electrical issues, or simply wear and tear over time. Running a vehicle with low fuel levels can also cause premature pump failure, as the pump relies on fuel for cooling and lubrication. Before testing, it is important to prioritise safety by working in a well-ventilated area and keeping a fire extinguisher nearby. To effectively test an electric fuel pump, you will need tools such as a fuel pressure gauge, a multimeter for electrical tests, and possibly a scan tool for modern vehicles. Let's explore various methods and tools to diagnose fuel pump issues and ensure your engine receives the right amount of fuel.
Explore related products
What You'll Learn
Use a multimeter to check for electrical issues
To test an electric fuel pump using a multimeter, you must first identify the problem as fuel-related. This can be done by listening for the fuel pump by placing your ear near the tank and turning the ignition key to the "on" position. If the pump is working properly, you should hear a distinct noise.
Once you've identified the problem as fuel-related, you can use a multimeter to test for electrical issues. Set the multimeter to the 2M (2 Megaohm) range to get a precise resistance reading. Then, test any two of the four terminals simultaneously, connecting one lead to the ground and the other to a power terminal to measure resistance or continuity.
If you're experiencing issues with the fuel pump relay, which controls the electric current running through the pump, you can remove it from your vehicle and use a multimeter to check the resistance through the relay's circuit. Ensure your vehicle is turned off before removing the relay. Check the multimeter for a reading of 0, indicating no resistance between the points and that the relay is functioning. If the reading is greater than 0, the circuit inside the relay is faulty.
Before performing any electrical tests, it's crucial to prioritise safety. Work in a well-ventilated area, keep a fire extinguisher nearby, and disconnect the battery's negative terminal to prevent electrical sparks.
Electricity's Ancient Roots: 12th Century Innovations
You may want to see also
Explore related products
Test fuel pressure with a fuel pressure gauge
To test fuel pressure with a fuel pressure gauge, you should first locate the fuel rail. You may need to remove the engine cover to access it. Locate the Schrader valve on the fuel rail, which is where the fuel pressure will be tested. Remove the cap from the Schrader valve. Attach the fuel pressure tester, ensuring a tight, leakproof connection. If the tester has a pressure relief hose, route it to a container to capture any released fuel.
Turn the ignition to "on", but do not start the engine. The fuel pump will pressurise the fuel system, and you will be able to read the fuel pressure gauge. Observe the psi reading. A drop in psi over 5-10 minutes indicates a leak in the system. If the pressure drops by 20 psi in that time, for example, there is a leak in the fuel system.
To test the fuel pressure with the engine running, leave the fuel pressure gauge attached, but ensure it will not contact any rotating engine accessories. You may need an assistant to hold the gauge. Start the engine and observe the gauge. Once the engine is warmed up, give the engine a slow rev, checking that the pressure rises with the RPMs. If the pressure holds steady and rises with engine speed, your engine problem is not fuel-related.
Electricity Access in Tanzania: How Many Have Power?
You may want to see also
Explore related products
Check for blockages in the fuel filter and lines
Checking for blockages in the fuel filter and lines is an important step in diagnosing fuel pump issues. Blockages in the fuel line can mimic symptoms of pump failure, so it is crucial to inspect these components for any visible obstructions.
To check for blockages, start by locating the fuel filter and lines. The fuel filter is typically located before the pump, and its position can vary depending on the vehicle. Once you have located the fuel filter and lines, carefully inspect them for any signs of clogging or obstruction. Look for any visible debris, dirt, or impurities that may be restricting the fuel flow.
If the fuel filter appears clogged, it is recommended to remove and clean it or replace it with a new one. A clogged fuel filter can cause the fuel pump to work harder, leading to potential pump failure. Additionally, ensure that there are filters both before and after the pump to prevent trash and debris from entering the pump.
In some cases, you may need to remove and clean the fuel lines to restore proper fuel flow. Check for any signs of restriction or damage that could be causing the blockage. It is important to refer to your vehicle's manual or seek professional guidance to safely perform these checks and make any necessary replacements.
By regularly maintaining and replacing your fuel filter, you can help ensure your vehicle's performance and avoid potential fuel pump issues caused by blockages in the fuel system. Remember to prioritize safety and follow recommended procedures when working on your vehicle's fuel system.
The Electric Corvette E-Ray: Fully Charged Fun
You may want to see also
Explore related products
Inspect the fuel pump relay in the fuse box
To inspect the fuel pump relay in the fuse box, you must first locate the relay. The main fuse box is usually located underneath the hood near the front of your vehicle, but there may also be a smaller fuse box under the steering column inside the car. The fuel pump relay is typically coloured green or grey. If you cannot locate the relay, check your vehicle's manual, which should indicate its location.
Once you have located the fuel pump relay, you can proceed to remove it from the fuse box. Turn off your vehicle and take the key out of the ignition to avoid any chance of the vehicle starting during the process. Pull the cover off the fuse box and identify the fuel pump relay using the diagram on the cover. Grab the relay firmly on both sides and pull it straight up and out from the terminals of the fuse box. If it does not come out easily, try rocking it back and forth to loosen the connection.
After removing the relay, inspect it for any visible damage, such as corrosion, burns, or broken pins. Clean the relay prongs with a wire brush to ensure a solid connection when you plug it back in. You can also try cleaning the terminal ports on the fuse box with a wire brush or an electrical contact cleaner.
To test the fuel pump relay, you can use a multimeter to check for continuity in the wires and connections. Set the multimeter to the lowest range on the Ohms scale or set it to 'continuity'. Connect one lead to one of the power circuit pins and the other lead to the other power terminal. If you detect zero ohms or any resistance value, your fuel pump relay has shorted power pins and needs to be replaced. Alternatively, if you hear a beeping sound, it indicates that the power pins have shorted.
If your relay is functioning properly, but you still suspect an issue with your fuel pump, you may have a blockage in the fuel line or a larger underlying problem with your vehicle. In such cases, it is recommended to consult a professional for an accurate diagnosis and safe repairs.
Polarization's Role in Electric Induction Explained
You may want to see also
Explore related products
Listen for a humming or buzzing noise near the fuel tank
Listen carefully for a humming or buzzing noise near the fuel tank. This is a typical indicator of a functioning fuel pump. If you don't hear any noise, it could suggest an issue with the pump or its electrical connections. Try listening near the gas cap while someone else turns the key to "On" to see if the pump is activating.
It is important to note that the location of the fuel pump may vary depending on the vehicle. Electric fuel pumps are usually located in the fuel tank, while mechanical pumps are often found on the engine's side.
Additionally, you can use a multimeter to test for electrical issues. Set the multimeter to the 2M (2 Megaohm) range to get a precise resistance reading. When examining the four terminals, test any two terminals simultaneously, connecting one lead to the ground and the other to a power terminal. This will help you measure resistance or continuity.
Remember to prioritize safety during the testing process. Work in a well-ventilated area, keep a fire extinguisher nearby, and disconnect the battery's negative terminal to prevent electrical sparks.
Best Low-Wattage Electric Blankets for Energy Efficiency
You may want to see also
Frequently asked questions
Always work in a well-ventilated area and keep a fire extinguisher nearby. Disconnect the battery's negative terminal to prevent electrical sparks, and relieve fuel system pressure to avoid potential fuel sprays. Don't forget safety glasses and gloves for personal protection.
Install a fuel pressure gauge on the fuel pressure test port or tee it into the fuel line. Start the engine and observe the pressure reading, comparing it to the manufacturer's specifications. Most fuel injection systems operate between 30 to 60 psi.
Inspect the fuel filter and lines for visible obstructions. Remove and clean the fuel lines or replace the fuel filter if necessary.
Measure the voltage at the pump's power supply wire with the ignition on. You should see around 12V if the circuit is working correctly. Low voltage may indicate electrical issues.
You can use a multimeter to check for continuity in wires and connections, ensuring the electrical path to the pump is intact. An amp draw test can also reveal if the pump is working harder than usual. Additionally, listen for a humming or buzzing noise from the fuel tank area when the key is turned on.
