Testing a car's electrical system for leaks is crucial for maintaining vehicle reliability and safety. Electrical leaks, often caused by damaged wiring, faulty connections, or worn insulation, can lead to battery drain, erratic component behavior, or even fire hazards. To diagnose these issues, start by inspecting the battery terminals for corrosion or loose connections. Use a multimeter to measure the parasitic draw—the current consumed by the vehicle when it’s off—to identify abnormal drainage. Next, visually inspect the wiring harness for exposed wires, cracks, or signs of overheating. A dedicated circuit tester or test light can help pinpoint specific circuits with leaks. Additionally, checking fuses and relays for continuity ensures no hidden faults are present. Addressing leaks promptly not only prevents further damage but also ensures the electrical system operates efficiently and safely.
| Characteristics | Values |
|---|---|
| Tools Required | Multimeter, Battery Load Tester, Electrical System Tester, Insulation Tester |
| Safety Precautions | Disconnect battery, wear insulated gloves, work in a well-ventilated area |
| Testing Method | Conduct visual inspection, perform continuity test, check for voltage drops |
| Common Leak Areas | Wiring harnesses, connectors, fuses, relays, battery terminals |
| Voltage Drop Threshold | Typically less than 0.5V drop across connections |
| Insulation Resistance | Minimum 1 megohm (MΩ) for proper insulation |
| Battery Load Test | Test under load to check for leaks in the charging system |
| Frequency of Testing | Annually or when electrical issues are suspected |
| Symptoms of Leaks | Dim lights, intermittent electrical failures, dead battery |
| Professional Diagnosis | Recommended for complex systems or persistent issues |
| Preventive Measures | Regularly inspect wiring, clean terminals, and use dielectric grease |
Explore related products
What You'll Learn
- Battery Load Test: Check battery health under load to ensure it powers the system without failure
- Fuse and Relay Inspection: Examine fuses and relays for damage or corrosion causing electrical leaks
- Wiring Harness Check: Inspect wiring for fraying, cracks, or exposed wires that may cause shorts
- Ground Connection Test: Verify all ground points are clean and secure to prevent resistance issues
- Multimeter Diagnostics: Use a multimeter to trace voltage drops and identify faulty circuits
Battery Load Test: Check battery health under load to ensure it powers the system without failure
A car battery's ability to deliver consistent power under load is a critical yet often overlooked aspect of vehicle health. While a simple voltage test might show a battery at 12.6 volts, it doesn’t reveal how well it performs when the alternator, headlights, or starter motor demand maximum output. This is where a battery load test becomes indispensable. By simulating real-world stress, this test exposes weaknesses that could lead to unexpected failures, such as a dead battery on a cold morning or dimming lights during high-drain situations.
To perform a battery load test, you’ll need a specialized tool called a battery load tester, which applies a controlled load to the battery while measuring its voltage drop. Start by ensuring the battery is fully charged and the engine is off. Connect the tester’s positive and negative clamps to the corresponding battery terminals. Apply a load equivalent to half the battery’s cold cranking amps (CCA) rating for 15 seconds. For example, a 600 CCA battery should be tested with a 300-amp load. Observe the voltage reading: a healthy battery should maintain a voltage above 9.6 volts during the test. If the voltage drops significantly below this threshold, the battery is likely compromised and may need replacement.
One common mistake during a load test is neglecting to account for temperature. Cold temperatures reduce a battery’s efficiency, so adjust your expectations accordingly. For instance, a battery at 32°F (0°C) will perform differently than one at 80°F (27°C). Most load testers have built-in temperature compensation, but manual adjustments may be necessary for accurate results. Additionally, ensure the battery terminals are clean and free of corrosion, as poor connections can skew test results and mimic symptoms of a failing battery.
While a load test is highly effective, it’s not the only diagnostic tool in your arsenal. Pair it with a visual inspection of the battery for swelling, leaks, or damage, and consider testing the charging system to rule out alternator issues. A failing alternator can overwork the battery, leading to premature failure even if the battery itself is healthy. By combining these methods, you gain a comprehensive understanding of your vehicle’s electrical health and can address issues before they escalate.
In conclusion, a battery load test is a straightforward yet powerful way to assess your car’s electrical reliability. It bridges the gap between theoretical voltage readings and real-world performance, ensuring your battery can handle the demands of modern driving. Whether you’re a DIY enthusiast or a professional mechanic, mastering this test will save you time, money, and the frustration of unexpected breakdowns.
Are Electric Cars Truly Electric-Only? Unraveling the Power Source Mystery
You may want to see also
Explore related products
Fuse and Relay Inspection: Examine fuses and relays for damage or corrosion causing electrical leaks
Fuses and relays are the gatekeepers of your car’s electrical system, ensuring power flows where it should and halts where it shouldn’t. Over time, these components can degrade due to heat, moisture, or age, leading to corrosion or physical damage that causes electrical leaks. Such leaks manifest as blown fuses, malfunctioning lights, or erratic behavior in systems like the radio or air conditioning. Identifying and addressing these issues early prevents minor annoyances from escalating into costly repairs or safety hazards.
Begin by locating your car’s fuse box, typically found under the dashboard, in the engine bay, or both. Consult your vehicle’s manual for exact locations and fuse/relay assignments. Armed with a flashlight and a fuse puller (or needle-nose pliers), inspect each fuse for visible signs of damage: a blown fuse often has a broken or melted wire inside its transparent casing. Relays, on the other hand, may show corrosion around the terminals or a burnt odor. Remove any suspect components and compare them to known good ones for consistency in size, color, and condition.
Testing fuses and relays requires a multimeter, a tool that measures electrical continuity. For fuses, set the multimeter to the continuity or resistance setting and touch the probes to the fuse’s terminals. A reading of zero or near zero indicates the fuse is intact; anything higher suggests it’s blown. Relays are slightly more complex: apply power to the relay’s coil terminals and check for a clicking sound or a change in resistance across the contacts. If the relay fails to respond, replace it immediately.
Prevention is as crucial as inspection. Regularly clean fuse box terminals with a wire brush and dielectric grease to inhibit corrosion, especially in humid climates. Avoid overloading circuits by using fuses with the correct amperage rating, and replace relays proactively if they control high-demand systems like fuel pumps or cooling fans. These small steps can save you from roadside breakdowns and extend the life of your vehicle’s electrical system.
In summary, fuse and relay inspection is a straightforward yet vital part of diagnosing electrical leaks. By combining visual checks with multimeter testing and adopting preventive measures, you can maintain a reliable electrical system and avoid the pitfalls of overlooked corrosion or damage. It’s a small investment of time that pays dividends in safety and peace of mind.
Choosing the Right Solder for Electrical Wiring Repairs: A Guide
You may want to see also
Explore related products
Wiring Harness Check: Inspect wiring for fraying, cracks, or exposed wires that may cause shorts
A single frayed wire can spark a cascade of electrical issues, from flickering lights to complete system failure. The wiring harness, the intricate network connecting your car's electrical components, is particularly vulnerable to wear and tear. Age, vibration, and environmental factors like heat and moisture can cause insulation to crack, exposing wires and creating potential short circuits.
A visual inspection is your first line of defense. Start by locating the main wiring harness, typically running along the firewall or under the dashboard. Carefully trace its path, examining each wire for signs of damage. Look for:
- Fraying: Wires resembling a frayed rope, with strands exposed or separated from the insulation.
- Cracks: Visible splits or tears in the insulation, often caused by age or heat.
- Exposed Wires: Bare metal wire visible due to worn or damaged insulation.
Even minor damage can lead to shorts, draining your battery, causing erratic behavior, or even posing a fire hazard.
Don't underestimate the power of a thorough visual inspection. It's a simple yet crucial step in preventing electrical leaks and ensuring your car's safety and reliability.
Electric Vehicle Insurance: Costlier Coverage for Greener Driving?
You may want to see also
Explore related products
Ground Connection Test: Verify all ground points are clean and secure to prevent resistance issues
A weak ground connection is a silent saboteur in your car's electrical system, causing erratic behavior, dim lights, and even complete component failure. Think of it as a kink in a hose – electricity struggles to flow efficiently, leading to overheating, voltage drops, and potential damage.
Diagnosing the Culprit: Ground points, often hidden beneath layers of grime and corrosion, are prime suspects. Battery terminals, engine block connections, and body grounding straps are common trouble spots. A visual inspection is your first line of defense. Look for loose bolts, frayed wires, and the telltale green or white corrosion that signals trouble.
A multimeter, your trusty diagnostic tool, becomes your ally here. Set it to measure resistance (ohms). Touch one probe to the suspected ground point and the other to a known good ground, like the negative battery terminal. A reading significantly above zero indicates a problem. Aim for readings below 0.1 ohms for optimal performance.
Restoring the Flow: Armed with your diagnosis, it's time to restore the flow. Start by cleaning the ground points meticulously. A wire brush and dielectric grease are your weapons of choice. Sand away corrosion, ensuring a clean metal-to-metal contact. Apply a thin layer of dielectric grease to prevent future corrosion. Tighten all connections securely, but avoid over-tightening, which can damage threads.
Prevention is Key: Regularly inspecting and cleaning ground connections is crucial for long-term electrical health. Include it in your routine maintenance schedule, especially if you live in areas with high humidity or salt exposure. Remember, a little preventative care can save you from costly repairs and frustrating electrical gremlins down the road.
Electric Vehicles: Greener, Cleaner, and Samsara's Future
You may want to see also
Explore related products
Multimeter Diagnostics: Use a multimeter to trace voltage drops and identify faulty circuits
Voltage drops are the silent saboteurs of automotive electrical systems, causing dim lights, sluggish starters, and unpredictable component failures. A multimeter, when used correctly, becomes your detective tool to expose these hidden culprits. By measuring voltage at various points along a circuit, you can pinpoint where the drop occurs, revealing the location of resistance or a faulty connection. This methodical approach transforms troubleshooting from guesswork into a precise science.
For instance, imagine a headlight that flickers despite a new bulb. Connect your multimeter in parallel across the battery terminals – it should read around 12.6 volts for a healthy system. Then, move the positive lead to the headlight connector. If the voltage drops significantly, the issue lies between the battery and the connector, indicating a corroded wire, loose terminal, or high-resistance splice.
The beauty of multimeter diagnostics lies in its versatility. You can test individual components like fuses, relays, and switches. Set your multimeter to continuity mode (beep indicates a complete circuit) to check for broken wires or open circuits. For switches, measure resistance across the terminals – it should be near zero when activated and infinite when off. Relays can be tested by applying power and checking for voltage at the output terminal. Remember, always consult your vehicle's wiring diagram for specific circuit configurations and expected voltage readings.
Safety is paramount. Always disconnect the battery negative terminal before working on the electrical system to prevent accidental shorts. Be mindful of high-voltage components like the alternator and starter motor. If you're unsure about a component's function or safe testing procedures, consult a professional mechanic.
Mastering multimeter diagnostics empowers you to tackle electrical gremlins with confidence. By systematically tracing voltage drops and identifying faulty circuits, you can save time, money, and frustration, ensuring your vehicle's electrical system operates at peak performance. Remember, practice makes perfect – the more you use your multimeter, the more adept you'll become at deciphering the language of voltage and current, transforming you from a helpless bystander into a skilled automotive electrician.
Powering Electric Vehicles: Understanding Wattage Requirements
You may want to see also
Frequently asked questions
A car electrical system leak refers to unintended power drainage from the battery when the vehicle is off, often caused by faulty wiring, malfunctioning components, or parasitic draws. Testing for leaks is crucial to prevent battery drain, ensure reliable vehicle operation, and avoid unexpected breakdowns.

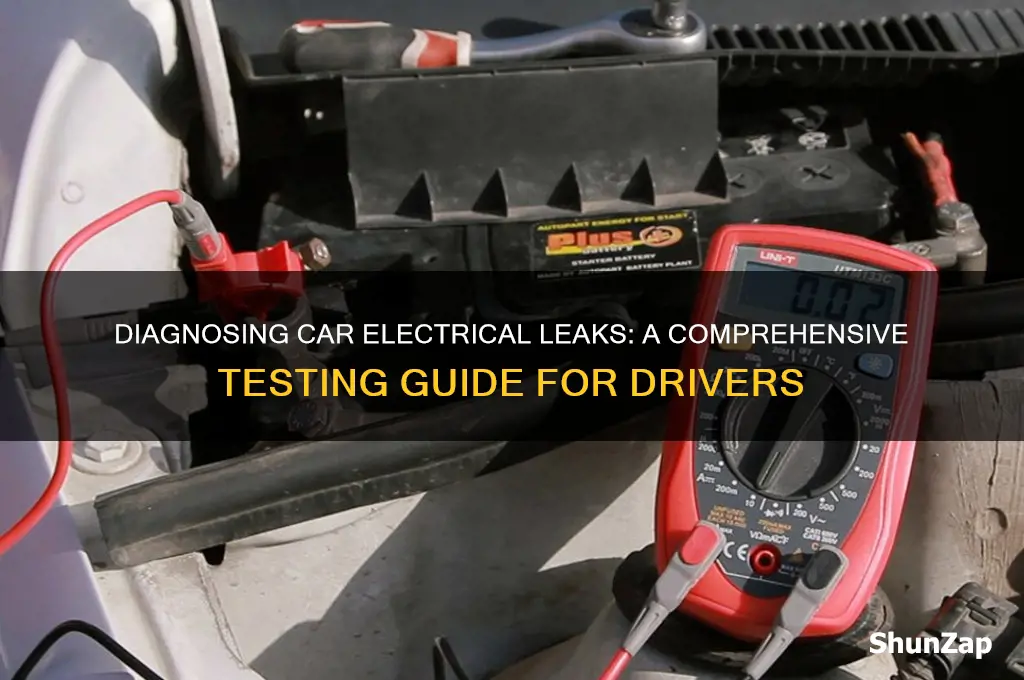

Disconnect the negative battery terminal, connect the multimeter in series between the terminal and battery post, and set it to measure current (amps). A reading above 50 milliamps (0.05 amps) typically indicates a leak. Further testing is needed to pinpoint the source.
Common causes include faulty relays, malfunctioning modules (e.g., ECU, BCM), interior lights staying on, aftermarket accessories, or damaged wiring that creates a short circuit.
Yes, you can perform a basic test by checking if the battery drains overnight. Fully charge the battery, disconnect it, and reconnect it after 12 hours. If the battery is significantly drained, a leak is likely present. However, a multimeter is more accurate for diagnosing the issue.
