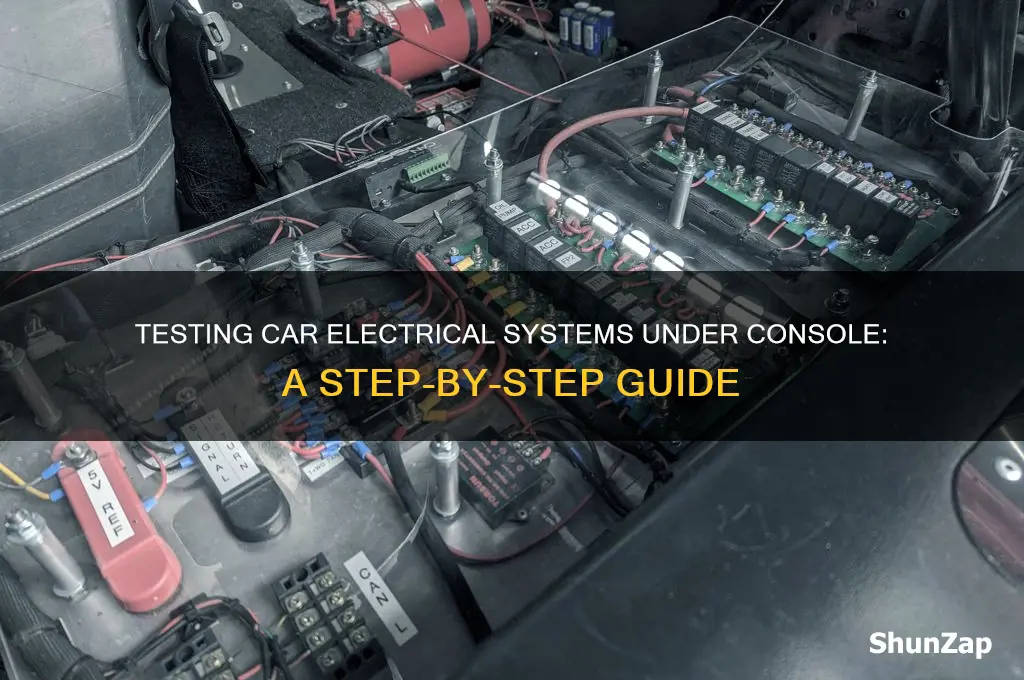

Testing the electrical components under a car's console is a crucial step in diagnosing and resolving issues related to the vehicle's interior systems. This process involves inspecting wiring harnesses, fuses, relays, and connectors that control functions such as the radio, climate controls, power outlets, and lighting. To begin, ensure the car is turned off and the battery is disconnected to prevent electrical hazards. Use a multimeter to check for continuity, voltage, and resistance in the wiring, and inspect fuses for signs of damage or burnout. Carefully remove the console panels to access the components, taking note of their placement for reassembly. Testing under the console requires patience and attention to detail, as it helps identify faulty connections or components that may be causing malfunctions, ensuring the vehicle's interior systems operate reliably.
| Characteristics | Values |
|---|---|
| Tools Required | Multimeter, Screwdriver, Pliers, Electrical Contact Cleaner, Flashlight |
| Safety Precautions | Disconnect battery, Wear insulated gloves, Work in a well-lit area |
| Accessing the Console | Remove screws, Pry carefully with a trim tool, Disconnect wiring harnesses |
| Testing Components | Check fuses, Relays, Wiring connections, Ground points |
| Multimeter Settings | Voltage (DC), Continuity, Resistance |
| Common Issues | Loose connections, Blown fuses, Corroded terminals, Faulty switches |
| Cleaning Contacts | Use electrical contact cleaner, Soft brush for corrosion removal |
| Reassembling Console | Ensure all connections are secure, Align panels properly, Tighten screws |
| Diagnostic Codes | Use OBD-II scanner for error codes related to electrical systems |
| Professional Help | Consult a mechanic if issues persist or complex repairs are needed |
Explore related products
What You'll Learn
- Battery Voltage Check: Measure battery voltage to ensure it’s within optimal range for electrical system functionality
- Fuse Box Inspection: Examine fuses for damage or blown components that may disrupt power flow
- Wiring Harness Test: Inspect wiring under console for fraying, corrosion, or loose connections affecting circuits
- Ground Connection Verification: Test grounding points for continuity to prevent electrical malfunctions or shorts
- Relay and Switch Testing: Check relays and switches for proper operation to ensure circuit control
Battery Voltage Check: Measure battery voltage to ensure it’s within optimal range for electrical system functionality
A car's battery is the heart of its electrical system, and a voltage check is a simple yet crucial diagnostic step. This test provides a snapshot of the battery's health and its ability to power the vehicle's electrical components. By measuring the voltage, you can determine if the battery is holding a charge effectively and if it's within the optimal range for your car's electrical system to function correctly.
The Process Unveiled: To perform this check, you'll need a digital multimeter, a handy tool for any car owner. Start by locating the battery, typically found under the hood, but in some vehicles, it might be in the trunk or under the rear seat. Ensure the car is turned off, and the ignition is in the 'off' position. Connect the multimeter's positive lead to the battery's positive terminal and the negative lead to the negative terminal. A healthy car battery should read between 12.6 and 12.8 volts when the engine is off. If your reading falls within this range, your battery is in good condition.
Interpreting Results: If the voltage reading is below 12.4 volts, it indicates a weak or discharged battery. This could be due to various factors, such as age, extreme temperatures, or a parasitic drain. In this case, you might need to recharge the battery or consider a replacement. On the other hand, a reading above 12.8 volts could suggest overcharging, which may be caused by a faulty voltage regulator. This issue can lead to battery damage and should be addressed promptly.
Practical Tips: It's advisable to perform this test regularly, especially if your car is older or you've noticed electrical issues. Extreme temperatures can affect battery performance, so testing before and after winter or summer can be beneficial. Additionally, if you've recently installed new electrical components, a voltage check ensures your battery can handle the increased demand. Remember, a well-maintained battery is key to avoiding unexpected breakdowns and ensuring your car's electrical system operates efficiently.
Advanced Insights: For a more comprehensive assessment, you can perform a load test, which involves measuring voltage drop under load. This test simulates real-world conditions and provides a more accurate representation of the battery's health. However, it requires additional equipment and knowledge, making the simple voltage check a more accessible starting point for most car owners. By understanding and monitoring your car battery's voltage, you can take proactive steps to maintain your vehicle's electrical system, ensuring reliability and peace of mind on the road.
