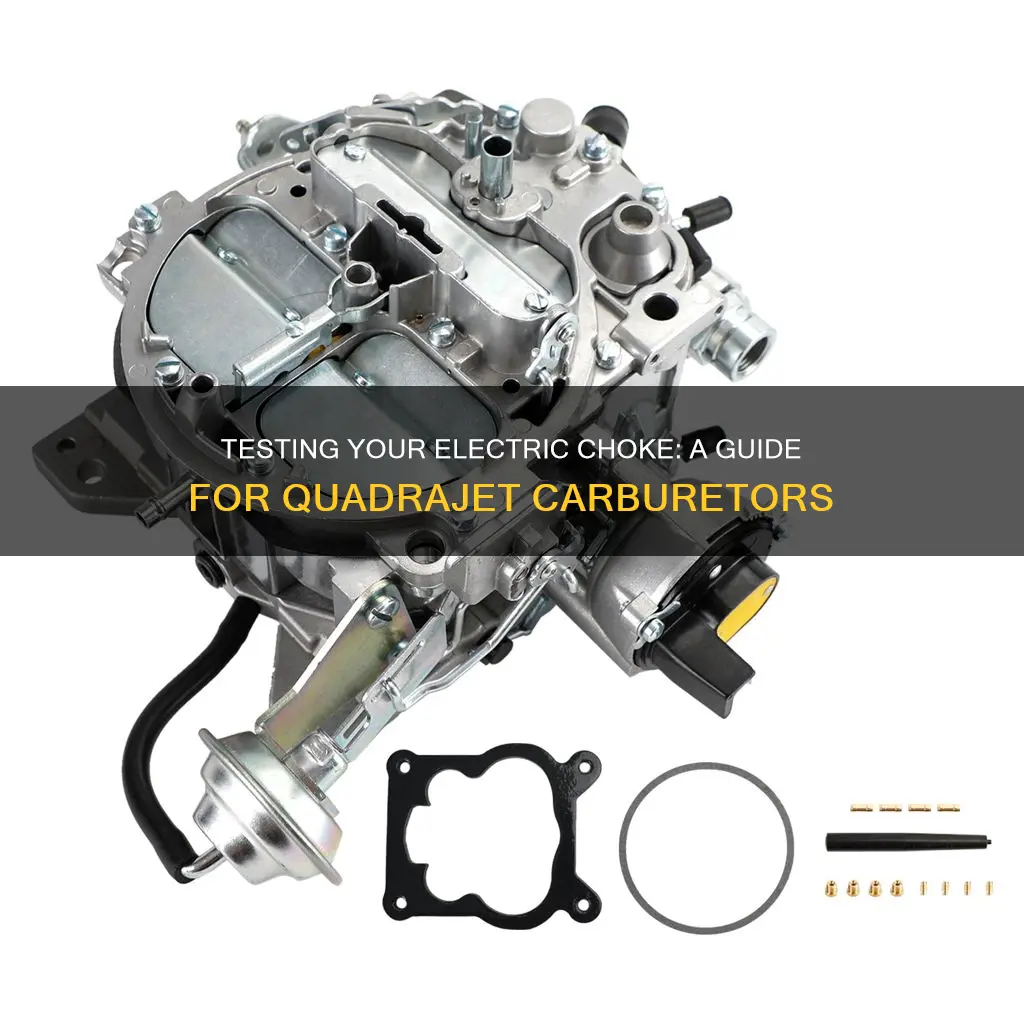

The Quadrajet carburetor is a popular choice for automotive enthusiasts due to its performance and reliability. The electric choke on a Quadrajet carburetor helps to regulate the air-fuel mixture during engine startup, ensuring smooth engine performance. The process of testing and adjusting the electric choke may vary depending on the specific carburetor and vehicle model, but there are some general guidelines to follow. This includes checking the wiring setup, which involves connecting the choke to a power source activated by the ignition key and ensuring a good ground connection. Proper understanding and execution of the wiring are crucial for optimal engine performance and fuel efficiency.
Characteristics and Values Table for Testing an Electric Choke on a Quadrajet
| Characteristics | Values |
|---|---|
| Wiring Setup | Depends on the specific model and year of the vehicle. |
| Ignition Switch Connection | Connect to a power source activated when the ignition key is turned on. |
| Ground Connection | Connect choke housing to a ground point on the engine or chassis. |
| Components | Thermostatic coil, heater element, and electrical connections. |
| Thermostatic Coil Function | Opens and closes the choke plate based on engine temperature. |
| Heater Element Location | Usually on the exhaust or intake manifold. |
| Heater Element Function | Provides heat to the thermostatic coil to facilitate choke plate movement. |
| Choke Plate Behavior | Fully open when the engine is warm and closed when cold. |
| Carburetor Adjustment | Loosen retainer screws and rotate the choke coil to change the opening point. |
| Air Valve (AV) Transition | Should open only under load and sufficient RPM, without a noticeable transition. |
Explore related products
$59.2 $63.18
What You'll Learn
The wiring setup
One important aspect of Quadrajet electric choke wiring is the connection to the ignition switch. The electric choke needs to be connected to a power source that is activated only when the ignition key is turned to the “on” position. This prevents the choke from staying closed when the engine is not running, which could lead to a rich fuel mixture and poor performance.
Another crucial element of Quadrajet electric choke wiring is the ground connection. For the electric choke to function properly, it requires a good ground connection. This can be achieved by connecting the choke housing to a suitable ground point on the engine or chassis.
The electric choke system consists of several components, including a thermostatic coil, heater element, and electrical connections. The thermostatic coil is responsible for opening and closing the choke plate based on the engine’s temperature. The heater element, usually located on the exhaust manifold or intake manifold, provides heat to the thermostatic coil to facilitate the opening and closing of the choke plate. This system ensures that the choke plate is fully open when the engine is warm and closed when the engine is cold.
When wiring the Quadrajet electric choke, the first step is to locate the electric choke connector on the carburettor. This connector should have two terminals labelled “B+” and “I”. The “B+” terminal connects to a 12-volt power source, typically the ignition switch. The “I” terminal connects to the starter solenoid “R” terminal or a separate ignition coil terminal. It is important to ensure that the wiring connections are secure and properly insulated to prevent any electrical issues.
Android Mediators' Electric Agreement Dreams: What Do They Mean?
You may want to see also
Explore related products
The thermostatic coil
The heater element, typically located on the exhaust or intake manifold, plays a supporting role by providing heat to the thermostatic coil. This heat facilitates the coil's function, ensuring that the choke plate responds accurately to the engine's temperature.
To adjust the thermostatic coil's function, you can follow these steps:
- Locate the electric choke connector on the carburetor, which should have two terminals labeled "B+" and "I".
- Ensure the ""B+" terminal is connected to a 12-volt power source, typically the ignition switch.
- Verify that the "I" terminal is connected to the starter solenoid "R" terminal or a separate ignition coil terminal.
- Secure and properly insulate the wiring connections to prevent electrical issues and ensure the choke's optimal performance.
By following these steps and understanding the function of the thermostatic coil, you can ensure that your Quadrajet carburetor's electric choke is properly wired and functioning, resulting in smooth engine starts and efficient fuel usage.
Testing Automotive Electrical Circuits: Step-by-Step Guide
You may want to see also
Explore related products
The heater element
To locate the heater element, you can refer to the specific carburetor and vehicle information. It is often positioned near the electric choke connector, which has two terminals labelled "B+" and "I". The “B+” terminal connects to a 12-volt power source, such as the ignition switch, while the “I” terminal connects to the starter solenoid “R” terminal or a separate ignition coil terminal.
When working with the heater element, it is important to ensure that all wiring connections are secure and properly insulated. This prevents potential electrical issues and ensures the proper functioning of the electric choke system. Regular maintenance and following the manufacturer's guidelines specific to your vehicle model and year are recommended to keep the heater element and the electric choke system in optimal condition.
The Electric Dodge Challenger: Speed Demon?
You may want to see also
Explore related products
The ignition switch
When wiring the electric choke, you must first locate the electric choke connector on the carburetor. This connector typically has two terminals labelled "B+" and "I". The "B+" terminal is where you connect the 12-volt power source, which can be the ignition switch. It is important to ensure that the wiring connections are secure and properly insulated to prevent any electrical issues. Additionally, you should consult the carburetor and vehicle's wiring diagrams for specific instructions.
The "I" terminal, on the other hand, connects to the starter solenoid "R" terminal or a separate ignition coil terminal. This terminal is crucial for the proper functioning of the electric choke. By following the correct wiring procedures, you can ensure that the electric choke operates optimally, resulting in improved fuel efficiency and engine performance.
It is worth noting that some vehicles may have a choke fuse in the fuse block. In such cases, the fuse is hot and active only when the ignition is in the "on" position. This prevents the choke from heating up when the key is in the "on" position but the engine is off, maintaining the optimal functioning of the choke mechanism.
Baking Cakes Before Electricity: Techniques and Innovations
You may want to see also
Explore related products
Adjusting the choke
First, it is important to understand the basics of the quadrajet electric choke wiring. The electric choke system consists of several components, including a thermostatic coil, heater element, and electrical connections. The thermostatic coil, in conjunction with the heater element, is responsible for opening and closing the choke plate based on the engine’s temperature. When the engine is cold, the choke plate should be closed, and when the engine is warm, the choke plate should be fully open.
To adjust the choke, locate the electric choke connector on the carburetor. This connector typically has two terminals labeled “B+” and “I”. The “B+” terminal connects to the power source, such as the ignition switch, and should only be activated when the ignition key is turned to the “on” position. This ensures that the choke does not remain closed when the engine is not running, which could lead to a rich fuel mixture and poor performance. The “I” terminal connects to the starter solenoid “R” terminal or a separate ignition coil terminal. Make sure that all wiring connections are secure and properly insulated to prevent electrical issues.
Once the wiring is confirmed, you can make adjustments to the choke opening point. Loosen the three retainer screws and rotate the black plastic choke coil in either direction to achieve the desired choke opening point. This adjustment will impact the choke's behavior during engine startup.
Additionally, there is an adjustment for the AV (air valve) spring. By pushing the AV open with your finger when the engine is off, you can get a sense of how it is adjusted. The AV should close without hesitation when you release the pressure. If you want the AV to open later, adjust it by turning it clockwise by half a turn, increasing the spring tension. Then, test your adjustments with a road test.
Creating a Vacuum: No Electricity, No Problem!
You may want to see also
Frequently asked questions
Loosen the three retainer screws and rotate the black plastic choke coil to change the choke opening point.
The electric choke system consists of a thermostatic coil, a heater element, and electrical connections. The thermostatic coil is responsible for opening and closing the choke plate based on the engine's temperature.
First, locate the electric choke connector with the "B+" and "I" terminals. The "B+" terminal connects to a 12-volt power source, and the "I" terminal connects to the starter solenoid "R" terminal or a separate ignition coil terminal. Ensure that the wiring connections are secure and properly insulated.
