Testing an electric golf cart solenoid is a straightforward process that can help determine whether the solenoid is functioning correctly or needs to be replaced. The solenoid is a critical component that enables the golf cart to move by converting electrical energy into mechanical energy. Before testing, ensure the golf cart is turned off and wear safety gear such as goggles and gloves. The solenoid is typically located in the engine compartment, connected to the battery, controller, and motor. Inspect the solenoid and its wiring for any damage, loose connections, or corrosion. Use a digital multimeter to test voltage across the large terminals with the key off and the pedal not pressed. If you experience issues like a non-clicking solenoid or a non-starting cart, consult a professional mechanic for further diagnosis.
| Characteristics | Values |
|---|---|
| Solenoid function | Transforms electrical energy into mechanical energy, acting as the “go switch” |
| Location | Under the seat, above the motor, or in the engine compartment |
| Common issues | Clicking noises, failure to start, overheating, loose/corroded wires, damaged connectors |
| Testing tools | Digital multimeter (voltmeter), safety goggles, gloves, basic hand tools |
| Testing process | Inspect wiring, set multimeter to voltage, check voltage across terminals, listen for clicking, measure resistance |
| Troubleshooting | Check key switch, controller, wiring harness, pedal position, pedal switch |
Explore related products
What You'll Learn
Wear safety gear, turn off the cart, and locate the solenoid
When testing an electric golf cart solenoid, it is important to prioritise safety. Wear safety goggles and gloves to protect yourself from electrical hazards and potential debris. Ensure the golf cart is turned off, and the key is removed from the ignition.

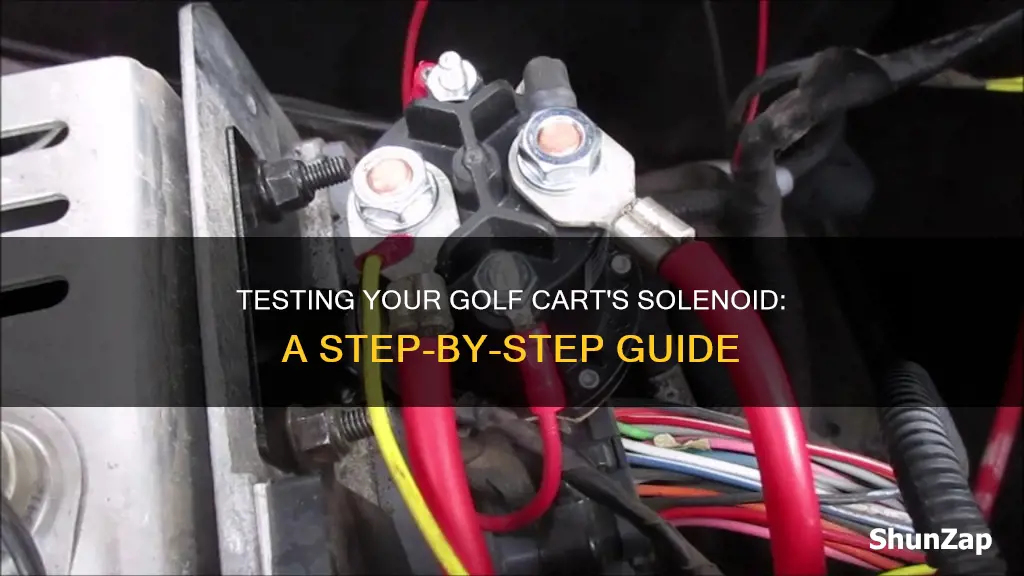

The solenoid is typically located in the engine compartment of the golf cart. It is a cylindrical component with multiple terminals and is usually connected to the battery, controller, and motor. It is a small unit that sits on top of the starter in the engine.
The solenoid is responsible for transmitting power from the battery to the rest of the golf cart. It uses an electric charge to generate a magnetic field.
Before locating the solenoid, familiarise yourself with its appearance. It is typically cylindrical with multiple terminals. It may exhibit signs of damage, loose connections, or corrosion.
Once you have identified the solenoid, you can proceed with the testing procedure. This typically involves utilising a voltmeter or multimeter to check the voltage and continuity across the terminals.
The Power of Language: Electricity as a Noun and Verb
You may want to see also
Explore related products
Inspect wiring for damage, loose connections, or corrosion
When inspecting the wiring of a golf cart solenoid, it is important to look for any signs of damage, loose connections, or corrosion. Begin by locating the solenoid within the golf cart and carefully inspecting the wires connected to its terminals. Look out for any frayed, tangled, or messy wiring, as this can indicate potential issues. If you notice any rust or corrosion on the wires, they will need to be replaced.
It is also important to check for any signs of overheating, as this can cause the solenoid to wear out prematurely and lead to other electrical issues. If the solenoid feels excessively hot to the touch or emits a burning smell, it may be overheating due to loose connections or internal faults. Inspect the wiring for any signs of melting, burning, or discolouration that could indicate heat damage.
In addition to visual inspection, you can also test the wiring for continuity using a multimeter. This will help you determine if there are any breaks or disruptions in the electrical flow. If you suspect a short circuit or loose connection, locate the fuse box and inspect the fuses for any signs of damage. A blown fuse will need to be replaced to restore the electrical circuit.
Another sign of wiring issues is abnormal noises, such as excessive clicking or a buzzing sound. If the solenoid is producing unusual sounds, it may indicate loose connections or internal wear. Pay attention to any unusual behaviour or performance issues with the golf cart, as these can also be indicators of wiring problems. For example, if the cart is not running smoothly or is struggling to move, it could be due to faulty wiring affecting the power delivery to the motor.
Finally, it is important to regularly inspect and clean the wiring terminals to prolong the lifespan of the solenoid. Ensure that all connections are tight and secure, and refer to reference diagrams or notes if needed. If you are unsure about any aspects of the inspection or repair process, it is always best to consult a qualified technician for assistance.
Electric Recliner Maintenance: Taking Back Off with Ease
You may want to see also
Explore related products
Check for a blown fuse
If your electric golf cart is not functioning properly, a blown fuse may be the reason for the sudden loss of power. Fuses are designed to protect the electrical components of the cart by breaking the circuit when the current exceeds a limit, so a blown fuse could indicate an underlying issue.
To check for a blown fuse, first, locate the fuse box in your golf cart. The position of the fuse box varies depending on the model and year of your cart. For example, the fuse box in some Yamaha carts is on the left side of the controller, while some EZGO carts have the fuse in the charging receptacle or behind the rubber air intake bellows. Club Car carts may have the fuse located in the electrical components black box near the battery or under the front seat or dashboard. Refer to your owner's manual for detailed information and diagrams indicating the location of the fuse box.
Once you've located the fuse box, inspect the fuses for any signs of damage, such as melting, burning, or cracking, or a broken filament. A multimeter can also be used to test the continuity of the fuses. If you find a blown fuse, replace it with a new one of the same rating and type.
It's important to identify and address the cause of the blown fuse to prevent it from happening again. For example, the issue could be due to a short circuit, loose connection, defective relay switch, or voltage surge.
Contraindications: Electrical Stimulation and Hardware Compatibility
You may want to see also
Explore related products
Listen for clicking sounds when pressing the accelerator
When testing an electric golf cart solenoid, it is important to listen for clicking sounds when pressing the accelerator. This is because the solenoid, a small electromagnetic device that controls the flow of electricity from the battery to the motor, should normally make a faint click when it engages. If you don't hear a clicking sound, it could be a sign of a faulty solenoid.
A solenoid that is not working properly may exhibit several symptoms, including a failure to start the golf cart and inconsistent acceleration. In some cases, the solenoid may produce unusual or louder clicking noises, indicating that it is not fully engaging. This can result in excessive clicking without the cart moving, which is a common sign that the solenoid requires attention.
To test the solenoid, it is recommended to use a multimeter or voltmeter. Before beginning the test, ensure that the golf cart is turned off, the key is removed from the ignition, and any safety precautions, such as wearing protective gear, are taken. The solenoid is typically located in the engine compartment, often on top of the starter, and is connected to the battery, controller, and motor.
Once the solenoid is located, set the multimeter to ohms (Ω) and place a probe on each large terminal. Then, turn the key on, switch the transmission to the forward position, and press the accelerator. If you hear a click, take an ohm measurement between the larger terminals. A reading above 0.4 indicates the need for a solenoid replacement. However, if you do not hear a click, change the multimeter setting to DC volts, place the probes on the small terminals, and press the accelerator again. If the voltmeter displays full voltage to the battery without a click, it confirms that the solenoid is faulty and requires replacement.
By listening for clicking sounds during the testing process, you can identify potential issues with the solenoid and take appropriate action, such as replacing the solenoid or consulting a professional mechanic for further assistance.
Assembling Lansinoh Electric Breast Pump: A Step-by-Step Guide
You may want to see also
Explore related products
Measure voltage and resistance with a multimeter
To measure voltage and resistance with a multimeter, start by locating the solenoid. It is typically found near the golf cart's batteries, in the engine compartment. It is a cylindrical component with multiple terminals and is usually connected to the battery, controller, and motor.
Once you have located the solenoid, the next step is to disconnect it from the golf cart. Disconnect all electrical wires attached to the solenoid terminals. Note the position and connection of each wire to ensure correct reconnection. Remove any hardware, such as nuts, bolts, or screws, securing the solenoid to its mounting point.
Now, you can begin to measure voltage and resistance with the multimeter. First, ensure that the golf cart is turned off and the key is removed from the ignition. Set your multimeter to the resistance or ohms setting. Connect the multimeter's red probe to the small terminal on the solenoid and the black probe to the solenoid's metal housing or ground. The multimeter should display a reading of zero ohms or very low resistance. If the reading is significantly higher or infinite, it indicates a faulty solenoid.
Additionally, you can perform a voltage test on the solenoid. Set the multimeter to the DC voltage setting and connect the red probe to the large terminal on the solenoid and the black probe to the solenoid's metal housing or ground. Turn on the golf cart and press the accelerator pedal. The multimeter should display a voltage reading close to the battery voltage. If the reading is significantly lower or zero, it suggests a faulty solenoid.
By conducting these tests with a multimeter, you can accurately determine the condition of your golf cart solenoid and take appropriate action to ensure its proper functioning.
